Home >> Chevrolet >> 2010 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk / Liftgate

Trunk / Liftgate




Liftgate Schematics

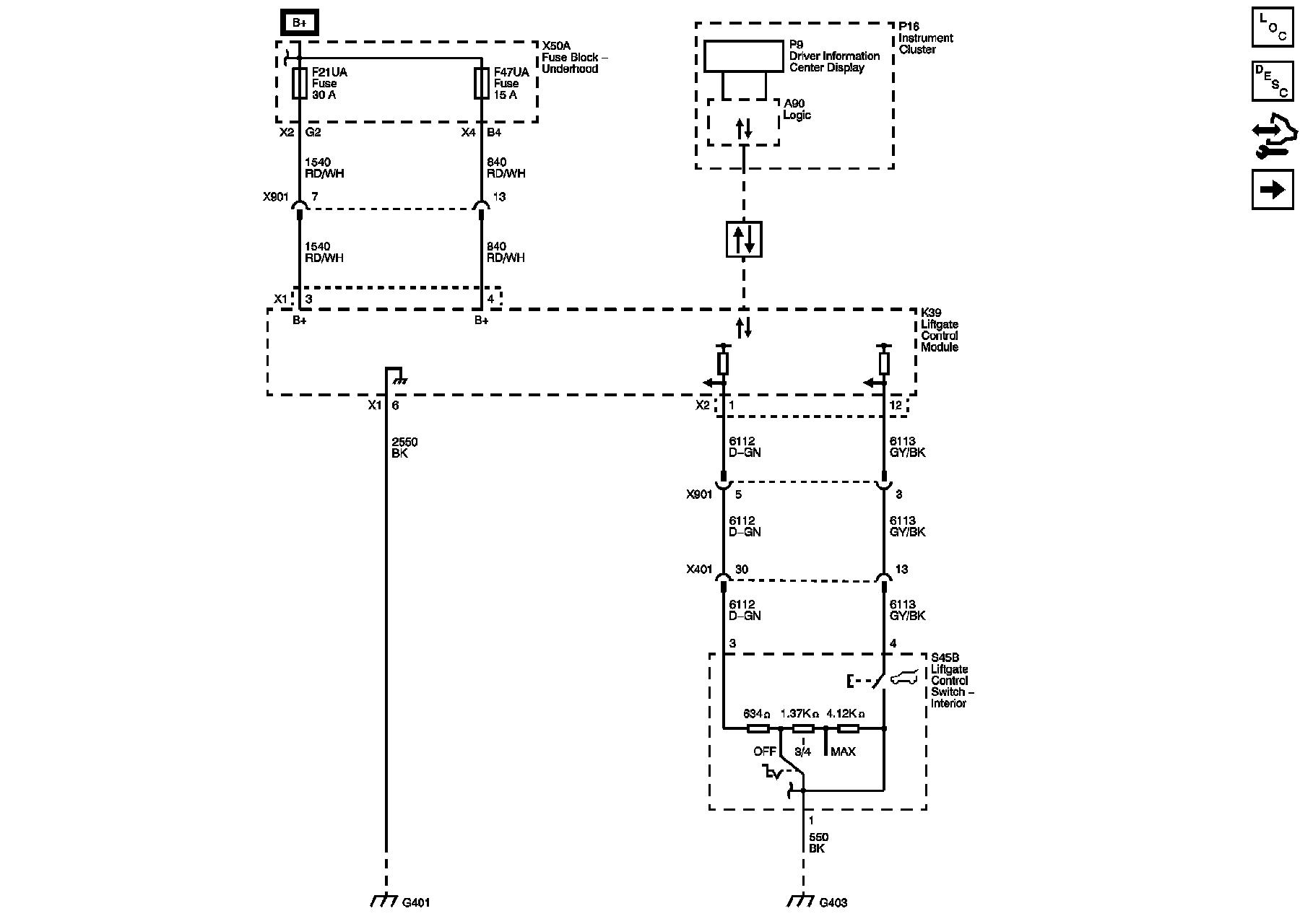

Module Power, Ground, Serial Data, and Front Switch (TB5)

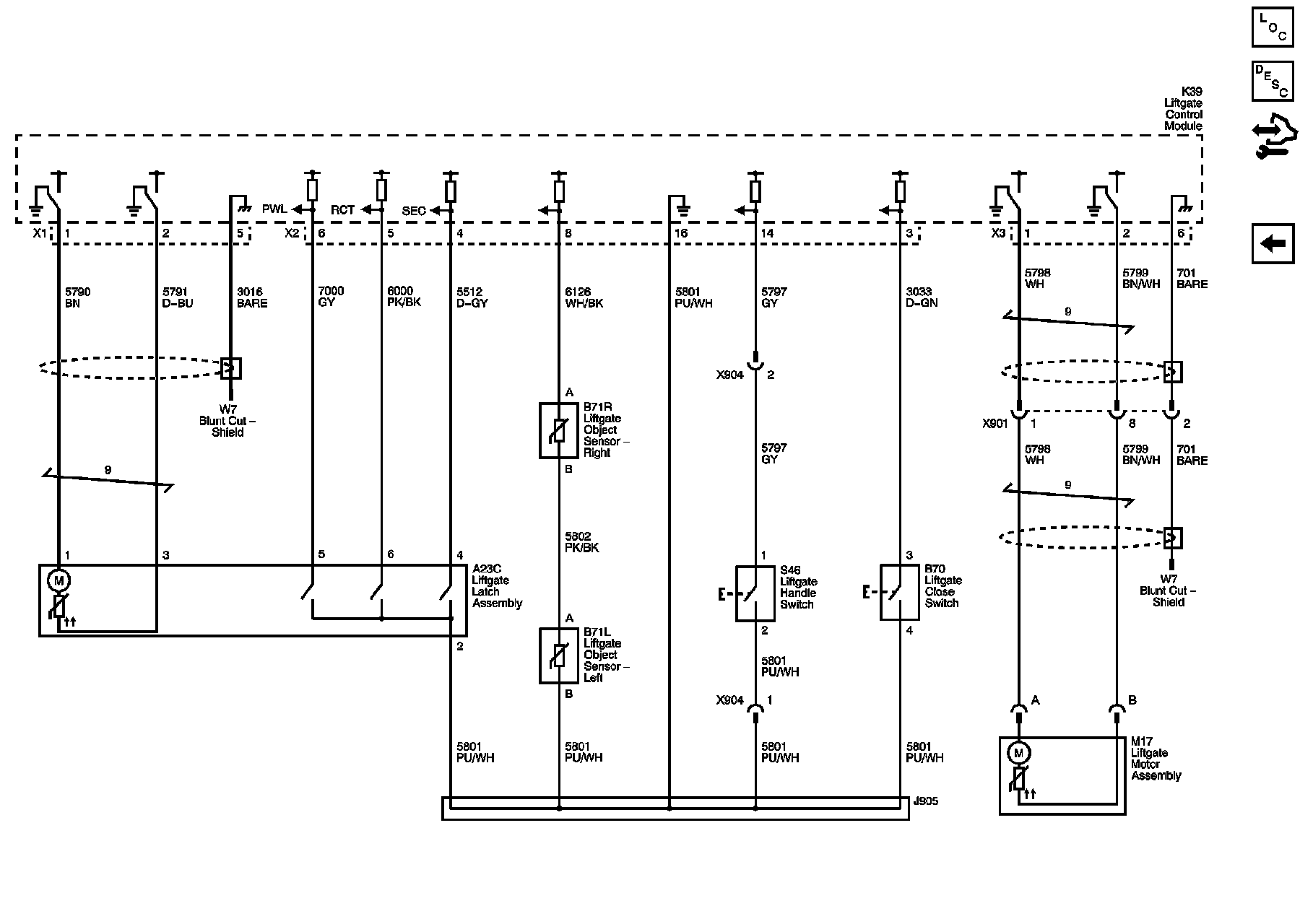

Liftgate Motor Controls (TB5)
