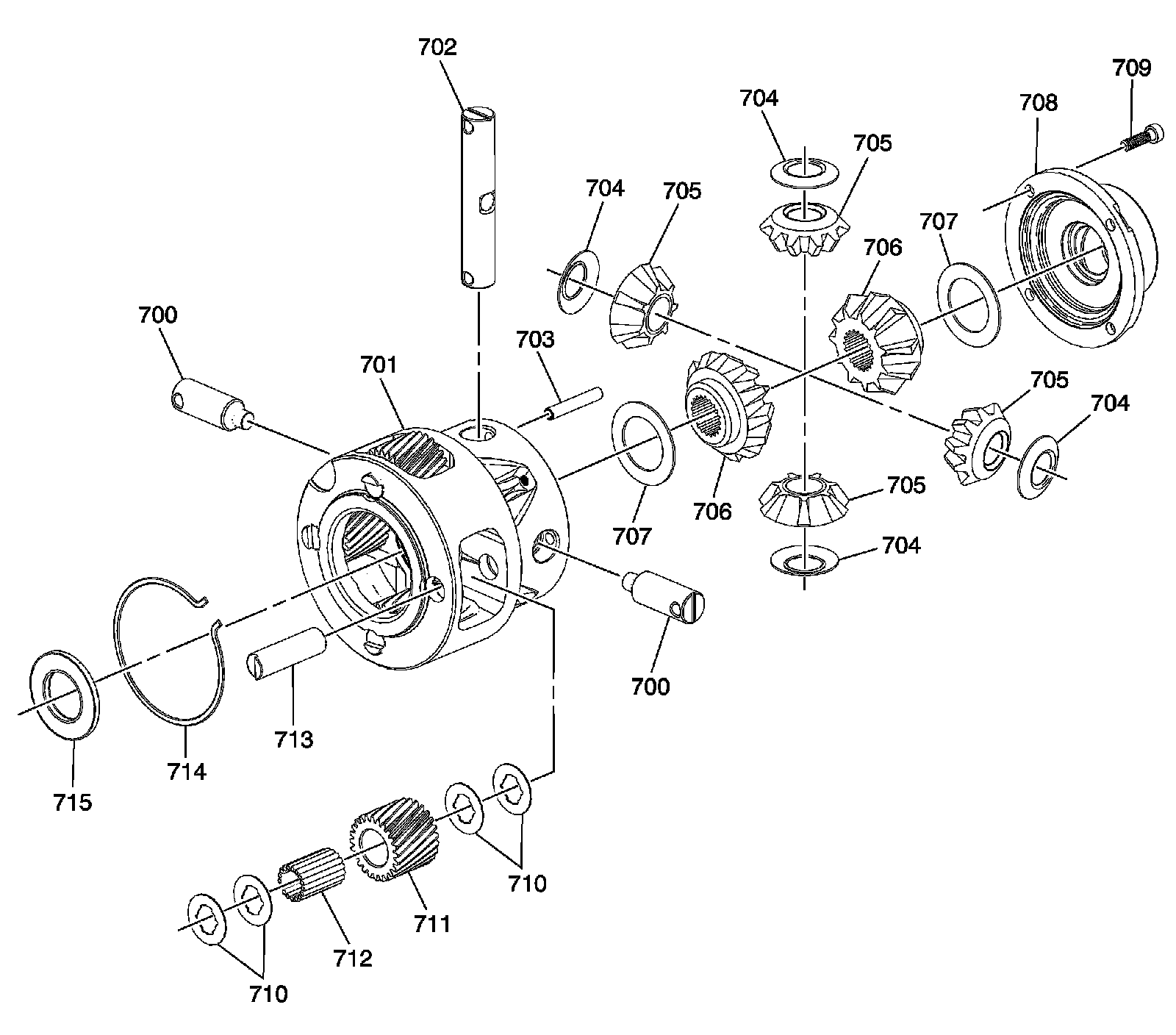

Front Differential Carrier Assembly (4 Pinion)

Disassembled Views

Front Differential Carrier Assembly (4 Pinion)




700 - Front Differential Pinion Gear Shaft
701 - Differential Carrier Assembly
702 - Front Differential Pinion Gear Shaft
703 - Front Differential Pinion Gear Shaft
704 - Front Differential Pinion Thrust Washer
705 - Front Differential Pinion Gear
706 - Front Differential Side Gear
707 - Front Differential Side Gear Thrust Washer
708 - Front Differential Carrier Cover
709 - Front Differential Carrier Cover Bolts
710 - Front Differential Pinion Gear Shaft Washer
711 - Front Differential Drive Pinion Gear
712 - Front Differential Carrier Pinion Gear Bearing Rollers
713 - Front Differential Pinion Gear Shaft Pin
714 - Front Differential Pinion Gear Shaft Retainer
715 - Front Differential Bearing
