16. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation




Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

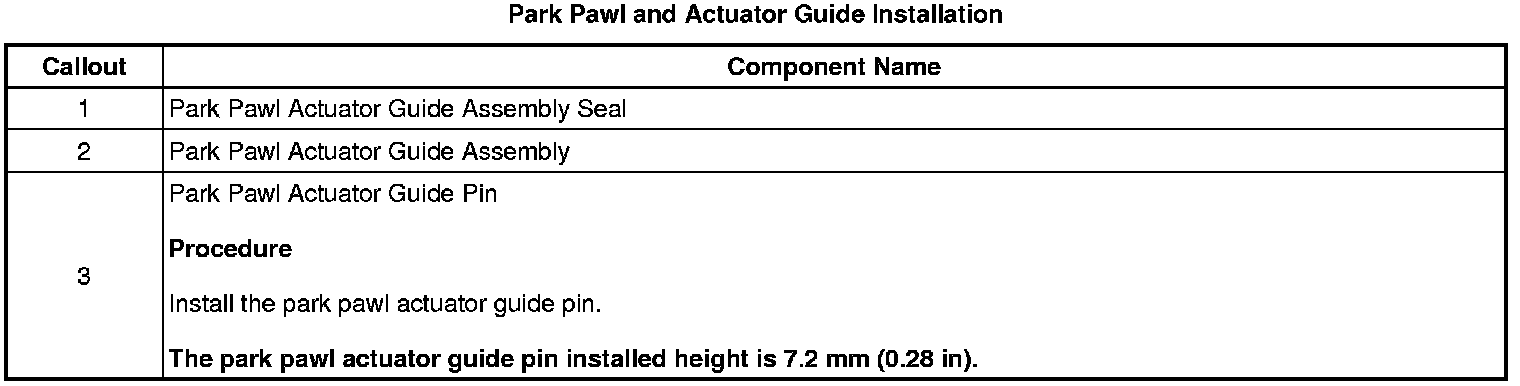

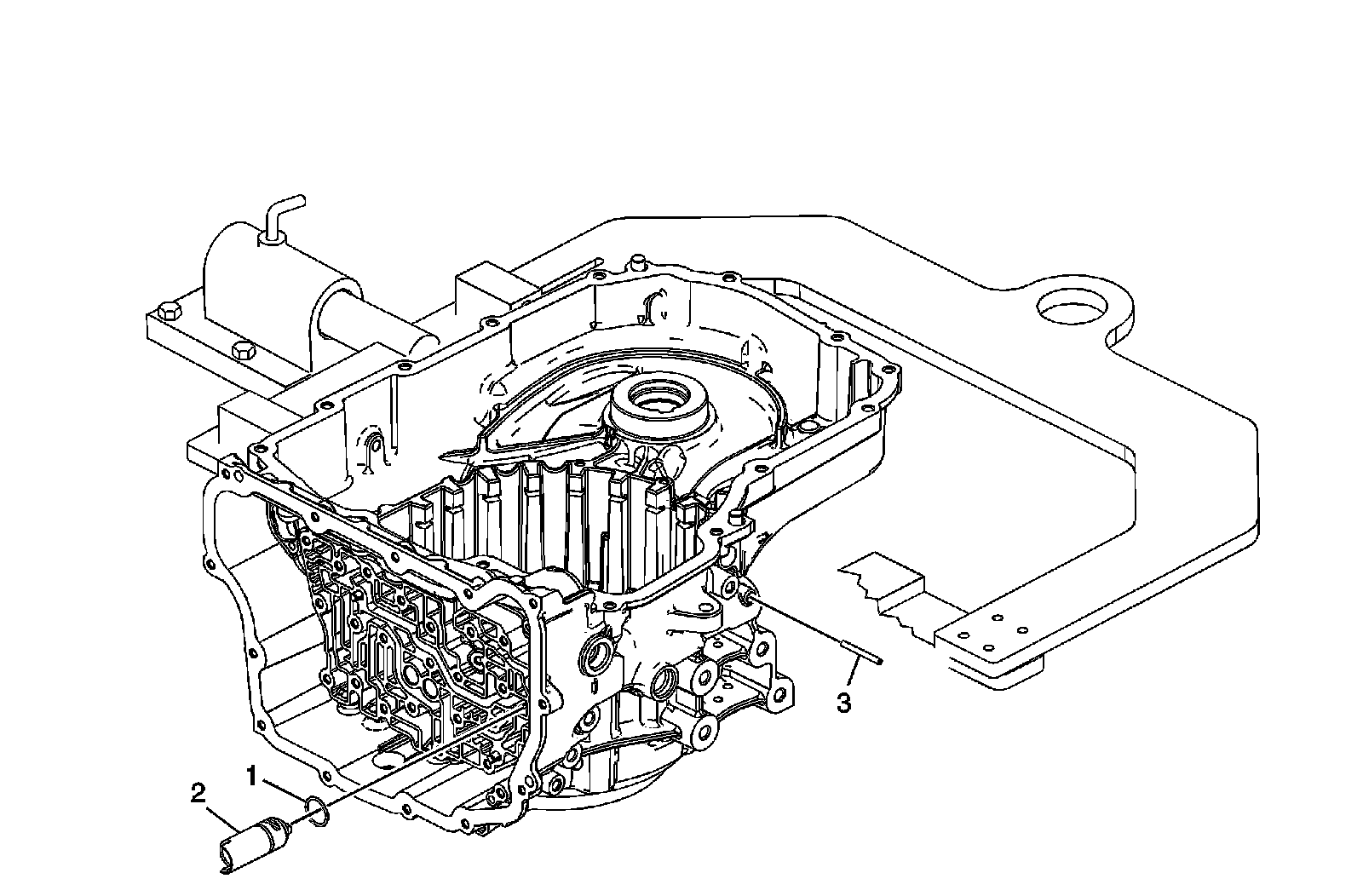

Park Pawl Actuator Guide Installation

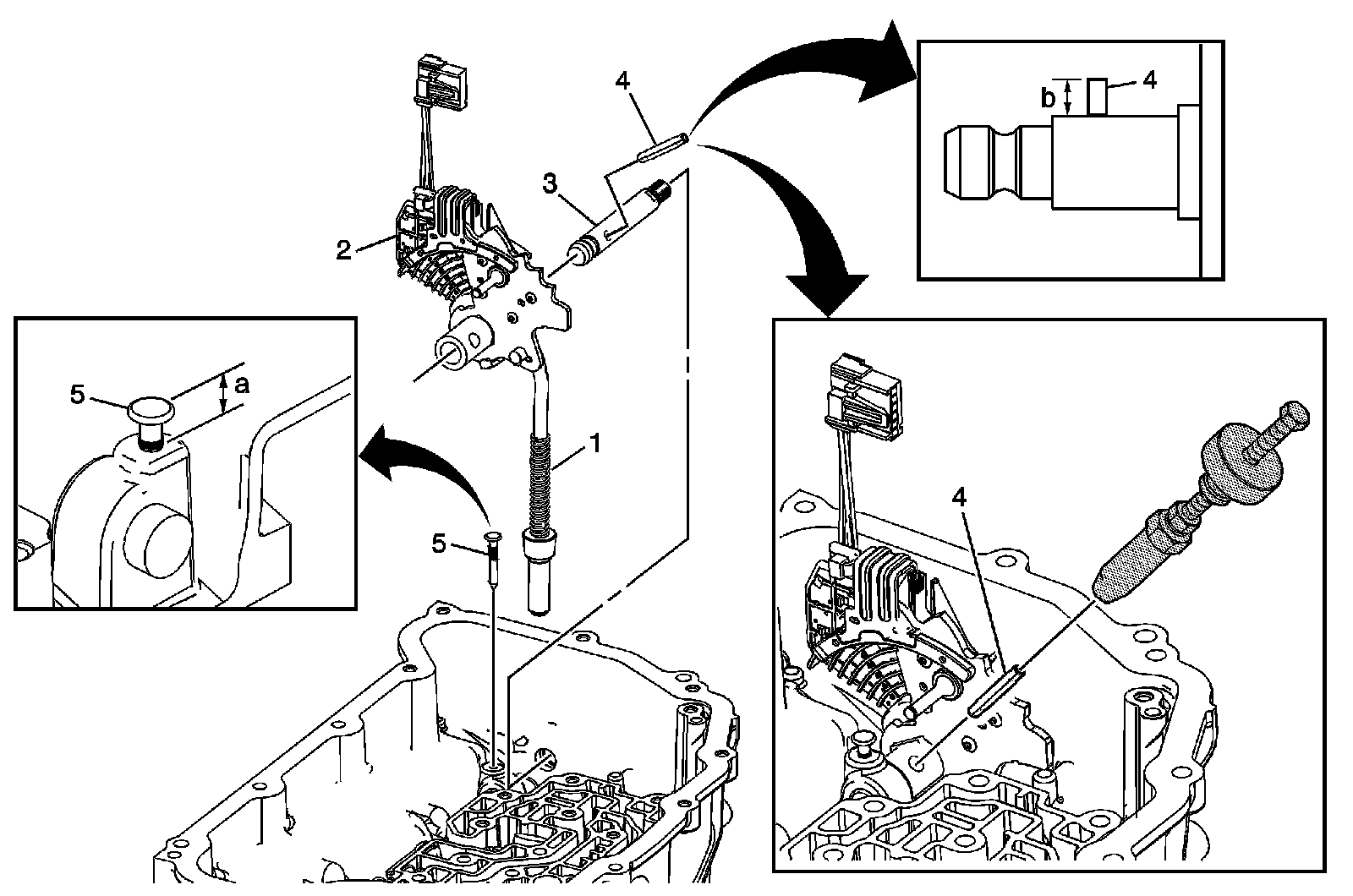

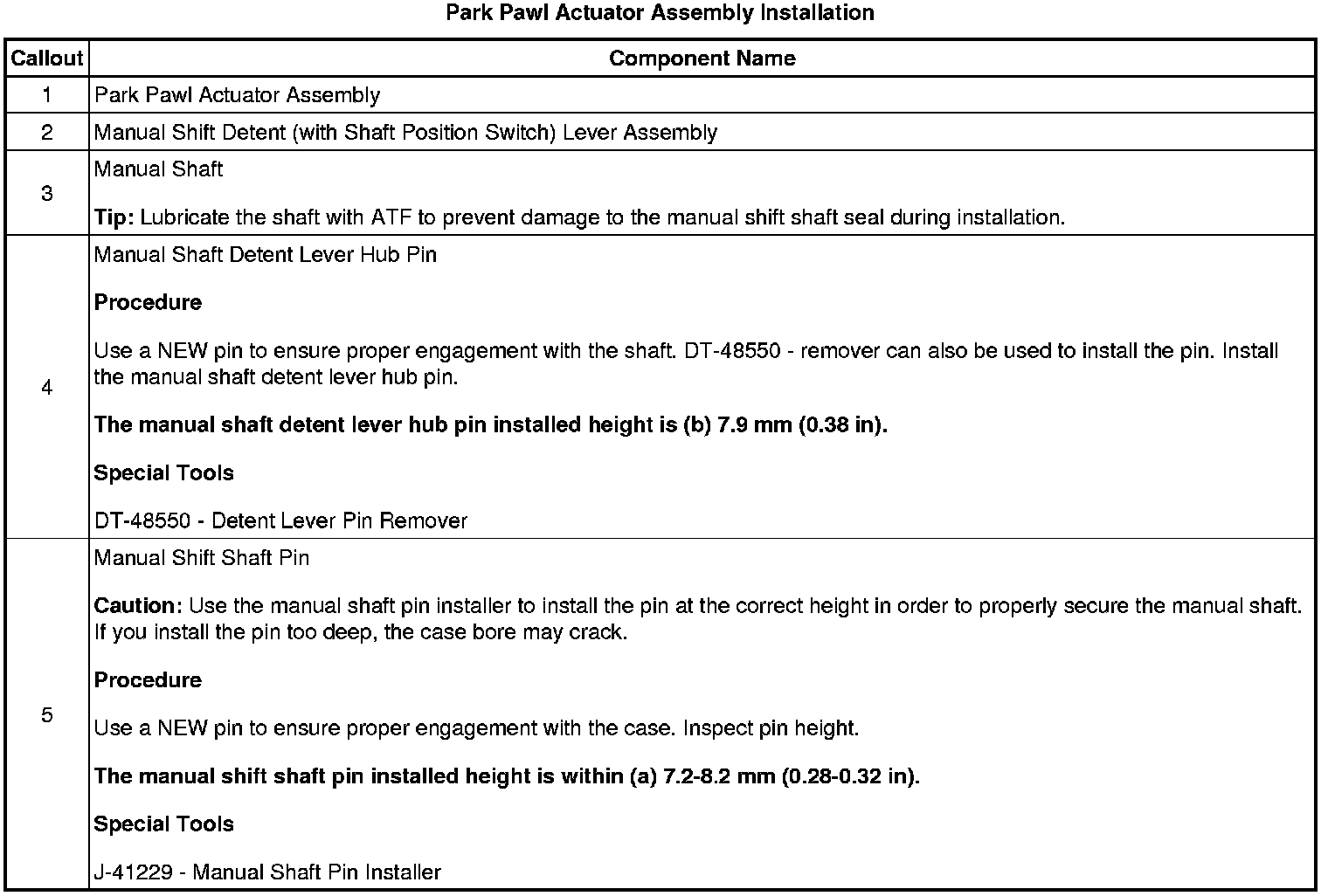

Park Pawl Actuator Assembly Installation
