6T40 - Automatic Transmission
>>
31. Drive and Driven Sprocket, Drive Link, and Park Pawl Installation
31. Drive and Driven Sprocket, Drive Link, and Park Pawl Installation

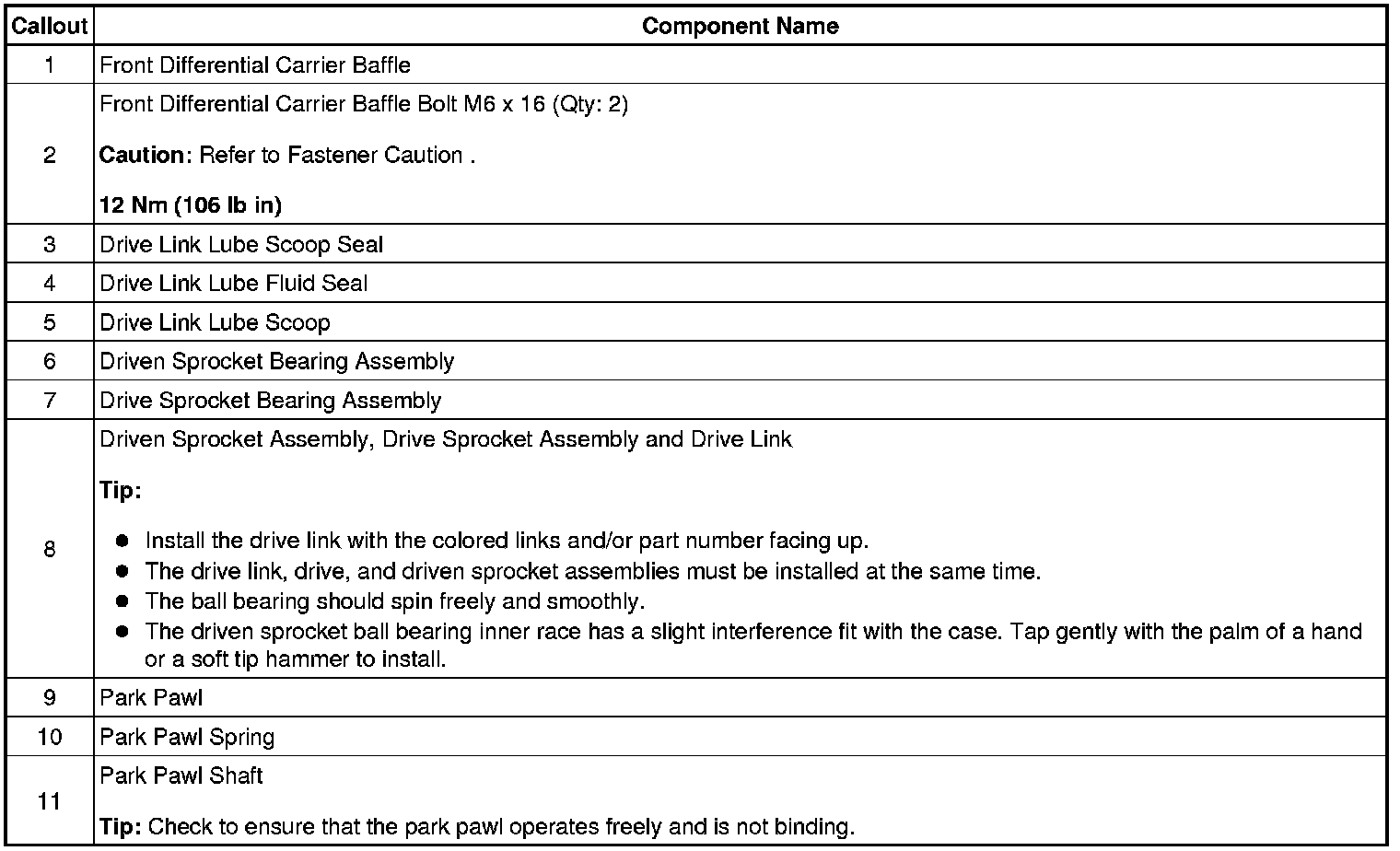

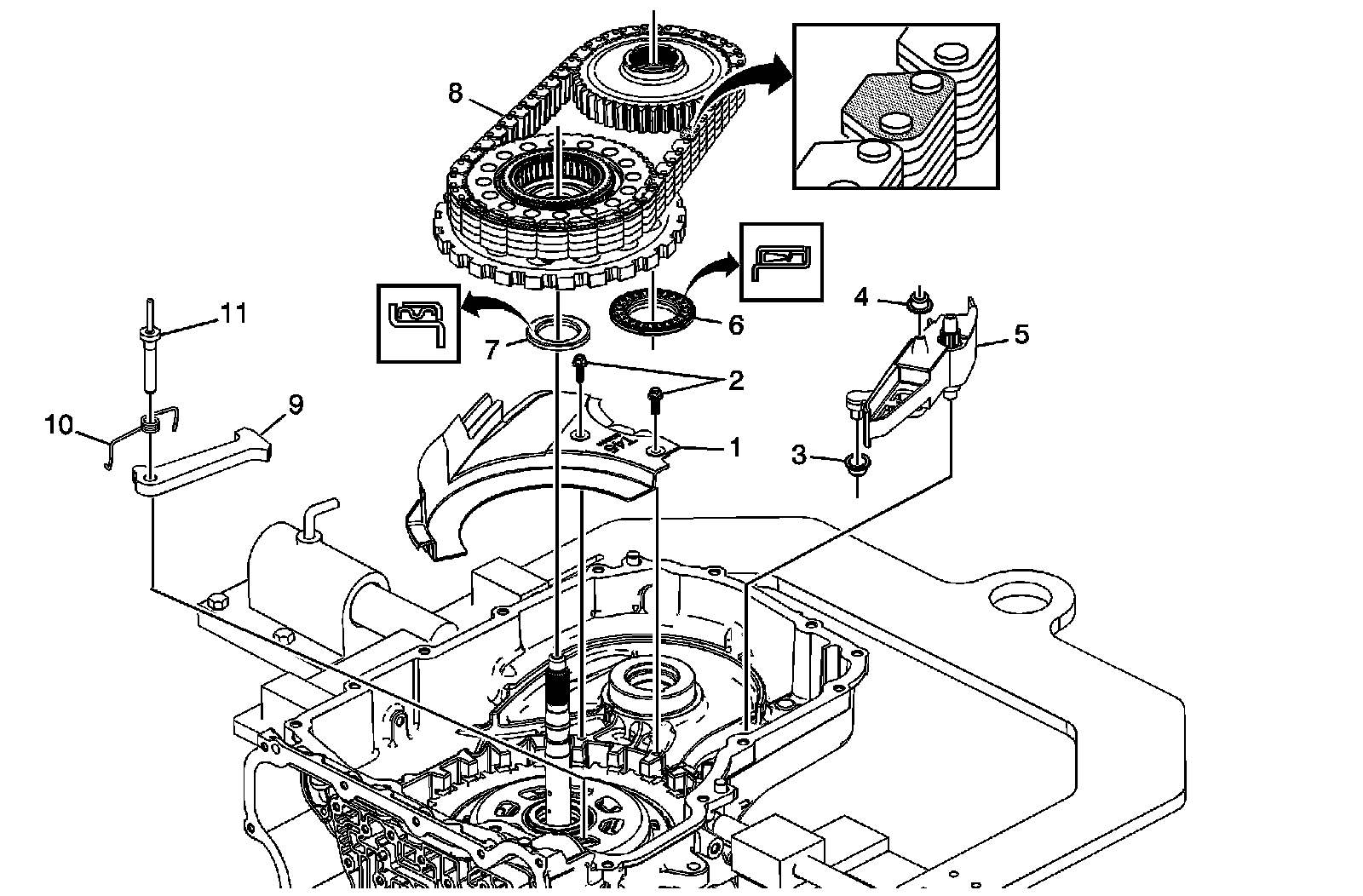

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45)
