25. Front Differential Transfer Drive Gear Support Assembly Assemble




Front Differential Transfer Drive Gear Support Assembly Assemble

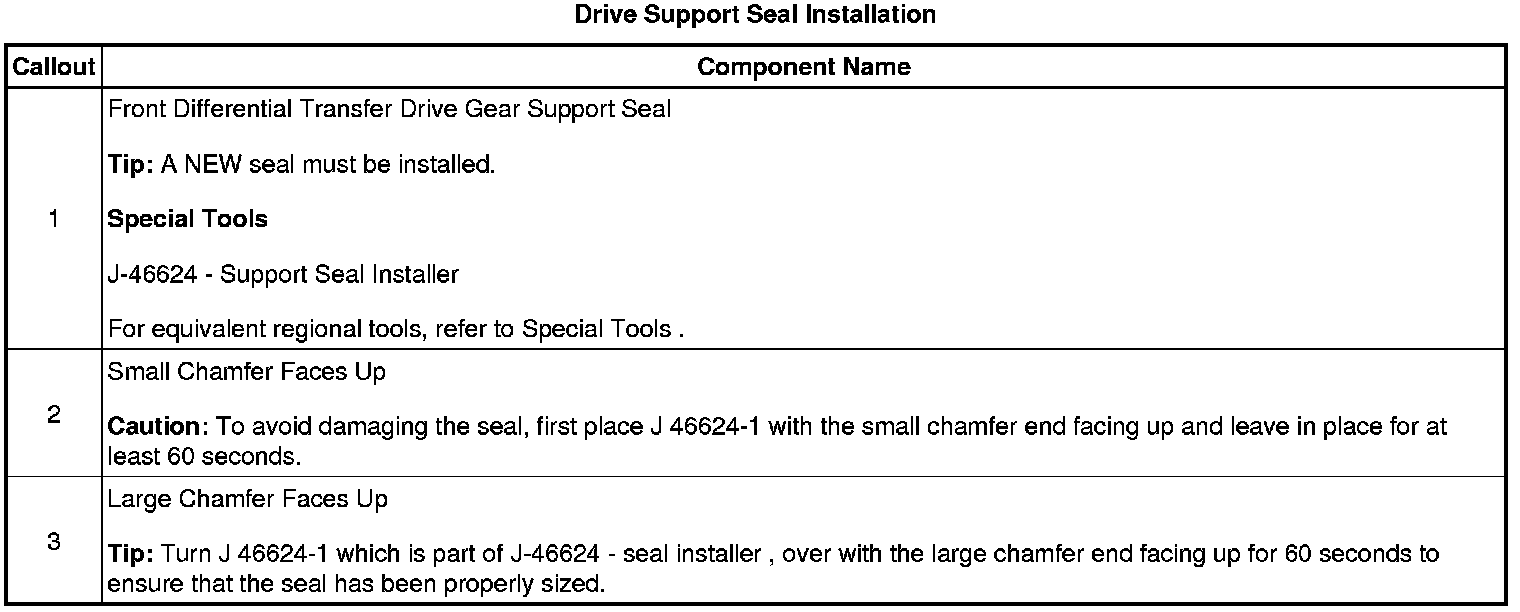

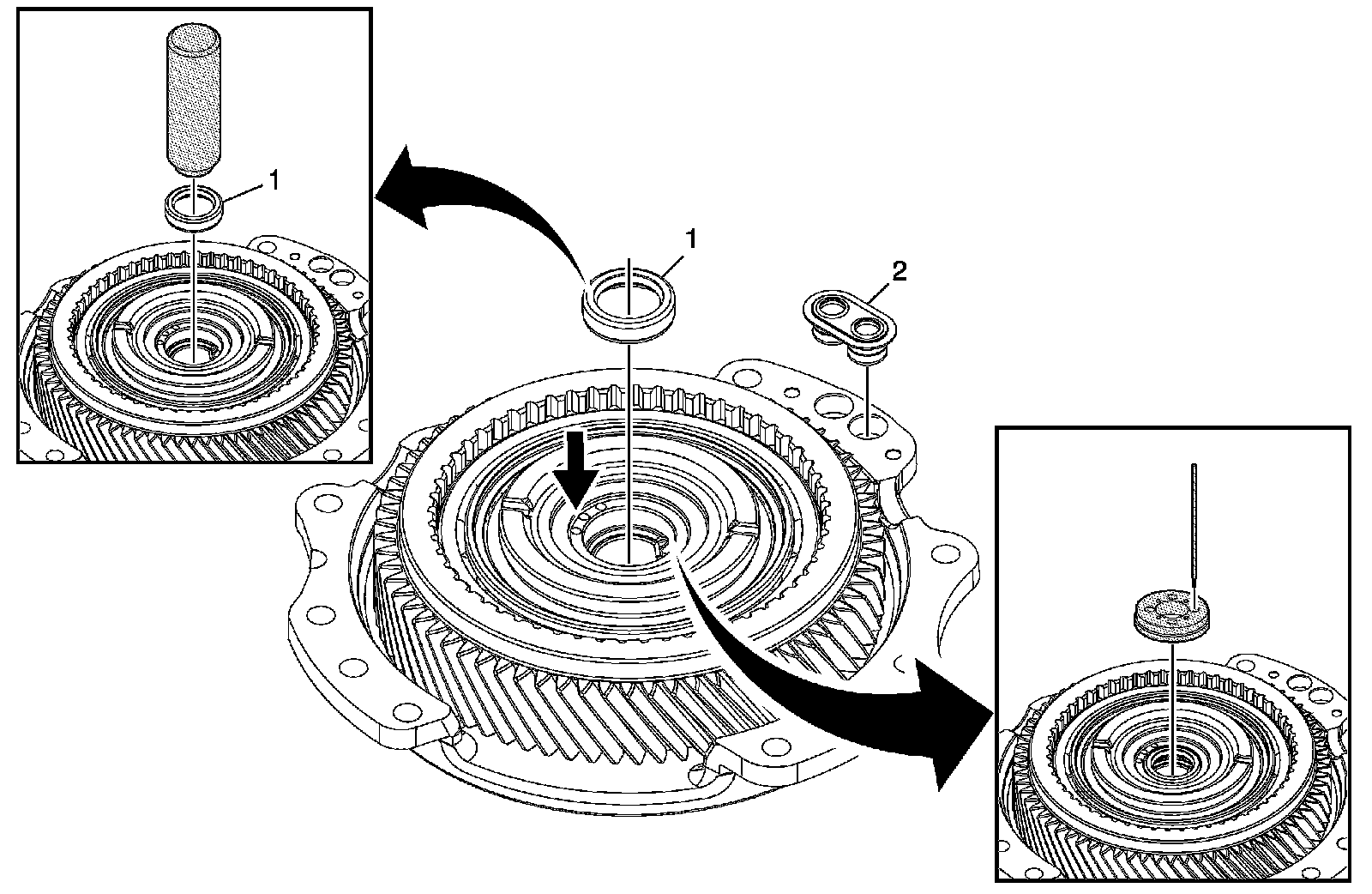

Drive Support Seal Installation

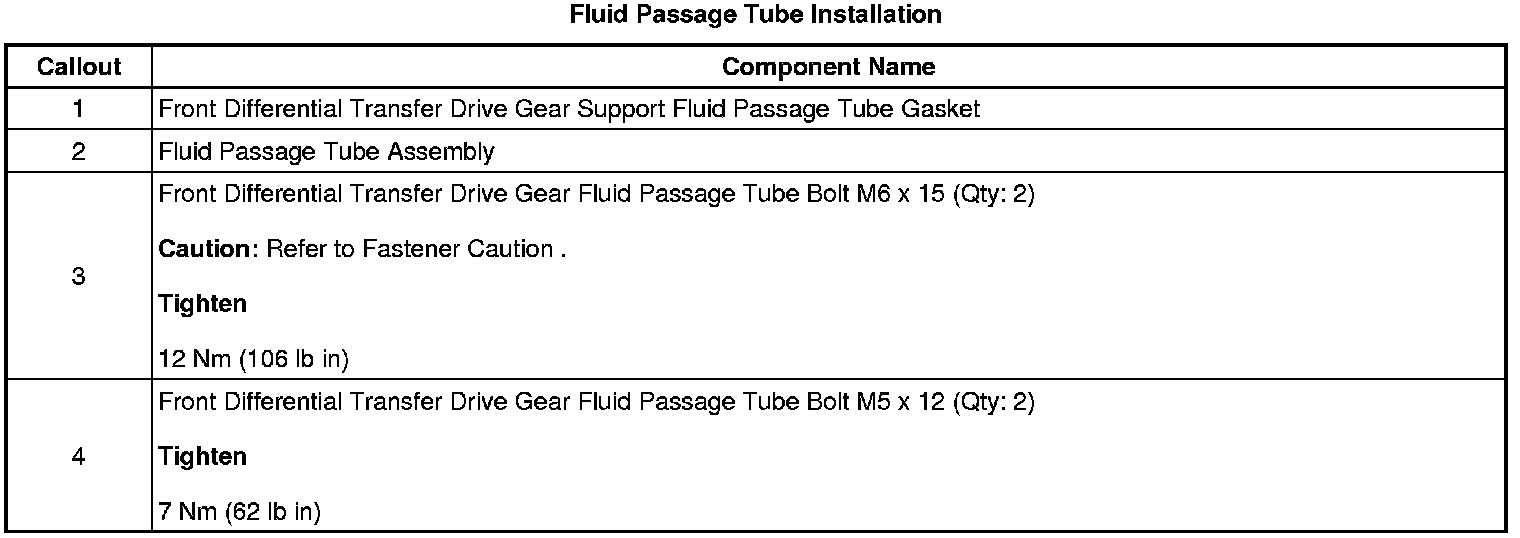

Fluid Passage Tube Installation

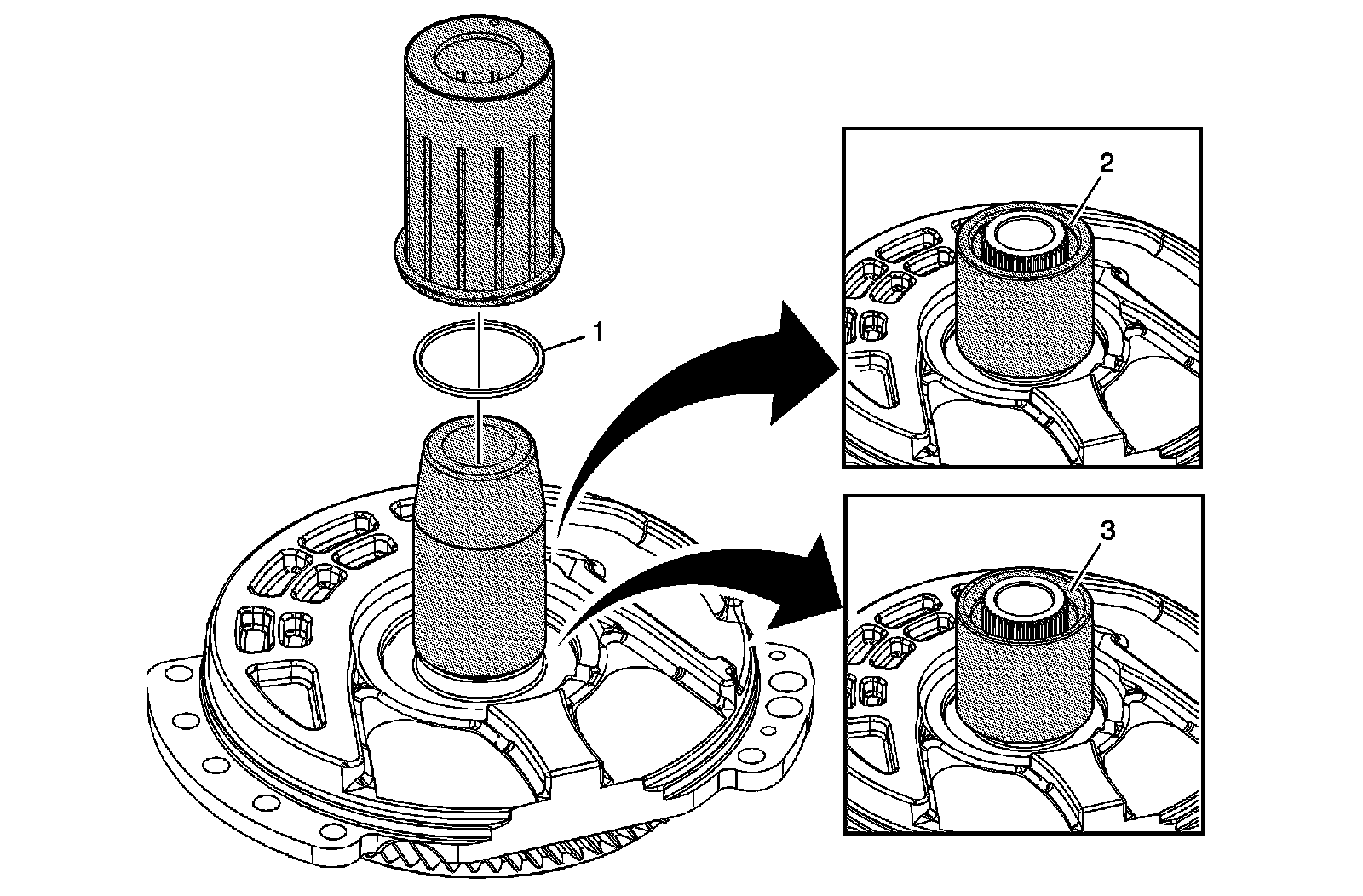

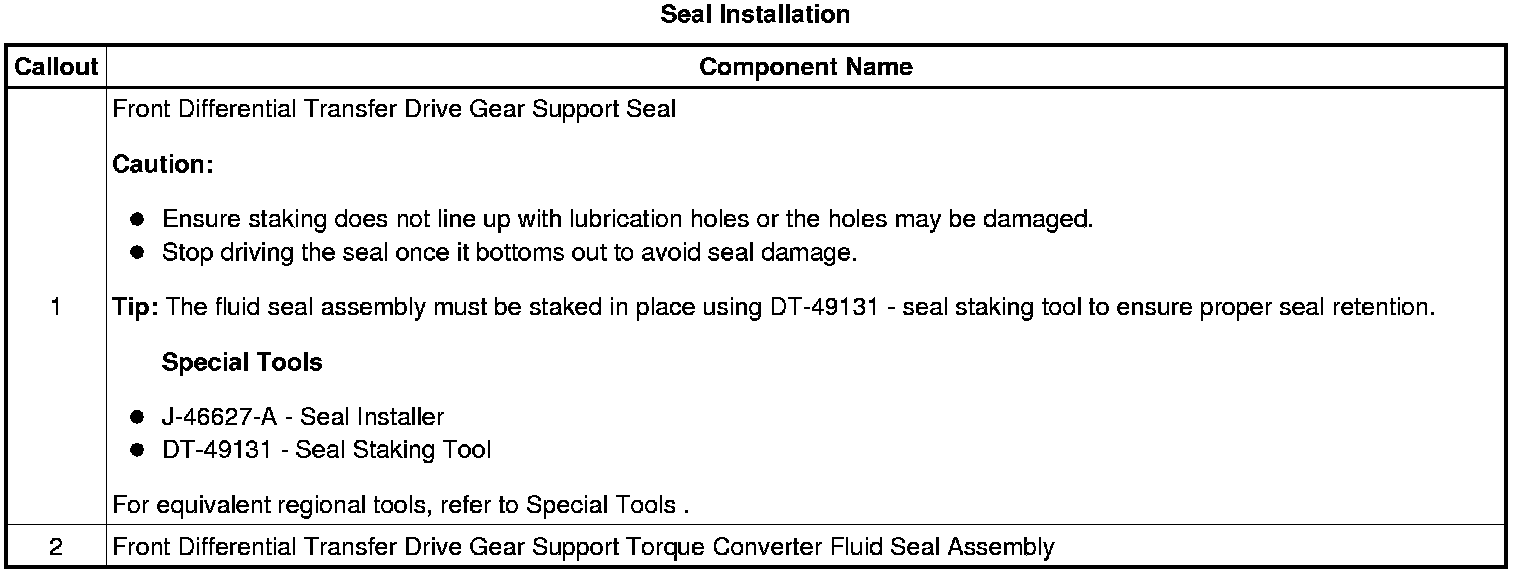

Seal Installation
