Cylinder Head Assembly
Cylinder head boltsDO NOT reuse the old cylinder head bolts

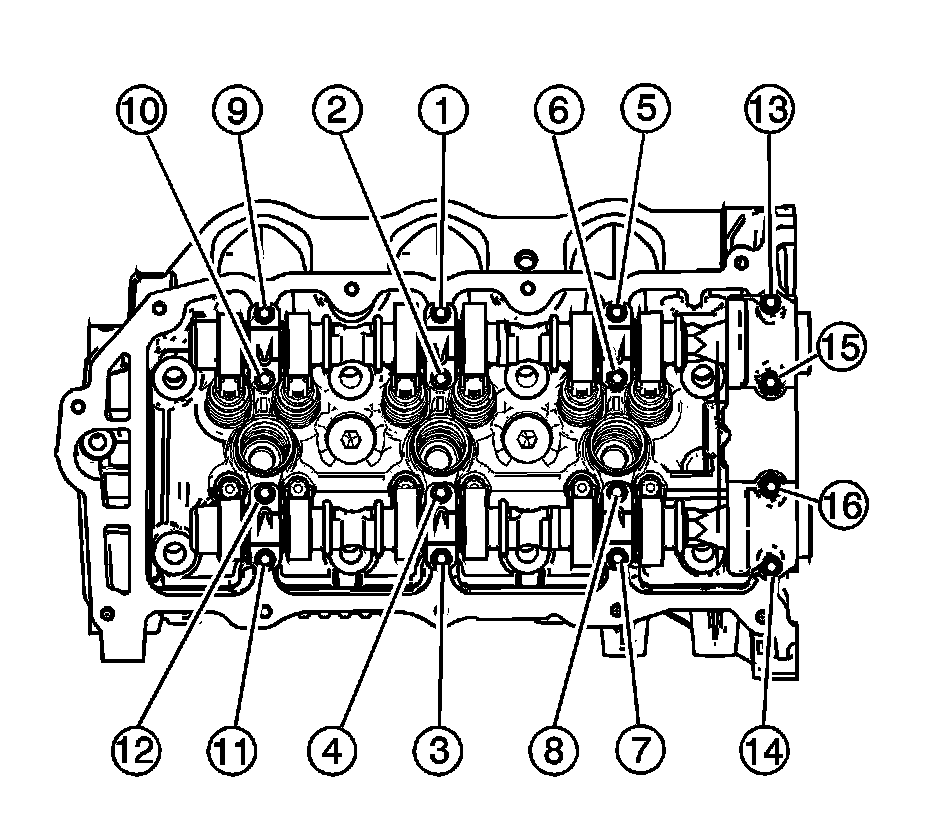

Left Sequence:
Right Sequence:
M11 cylinder head bolts
First pass 30 Nm (22 lb ft)
Second pass additional 150 degrees
M8 cylinder head bolts
First pass 15 Nm (11 lb ft)
Second pass additional 75 degrees
Camshaft Cap Bolt 10 Nm (89 lb in)
Right (SFI):
Loosen the center intake camshaft bearing cap bolts (1, 2) and the center exhaust camshaft bearing cap bolts (3, 4).
Retighten the center camshaft bearing cap bolts (1, 2, 3, 4) to 10 Nm (89 lb in)
