Removal Procedure

Note: Clean the evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the fittings in order to avoid possible system contamination.




1. Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

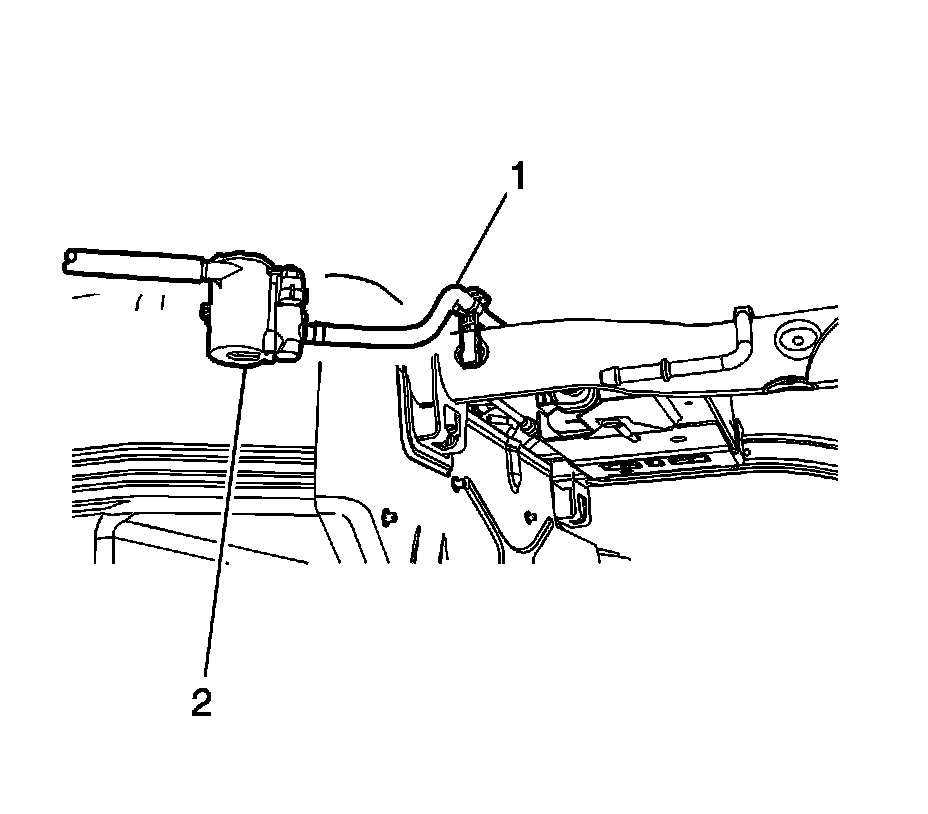

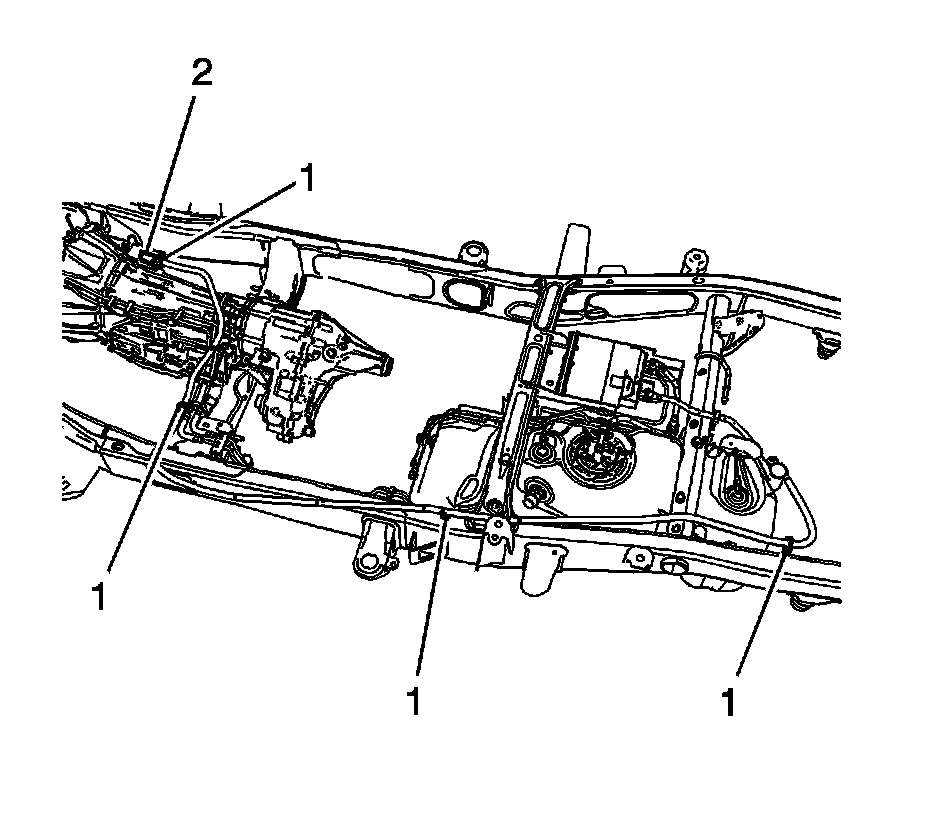

2. Cut the canister vent solenoid hose (1) approximately 76 mm (3 in) from the evaporative emission canister vent solenoid (2).




3. Disconnect the vent solenoid hose retainers (1).
4. Remove the vent solenoid hose and filter (2).
5. Replace the vent hose with bulk 5/8 in heater hose.

Installation Procedure




1. Use a hose clamp (1) at the end of the vent hose.
2. Ensure the filter (3) points down.
3. Secure the vent hose with a tie strap (2) to the vent hose tee connector (4).
4. Secure the remaining portion of the vent hose along the frame with tie straps as needed.

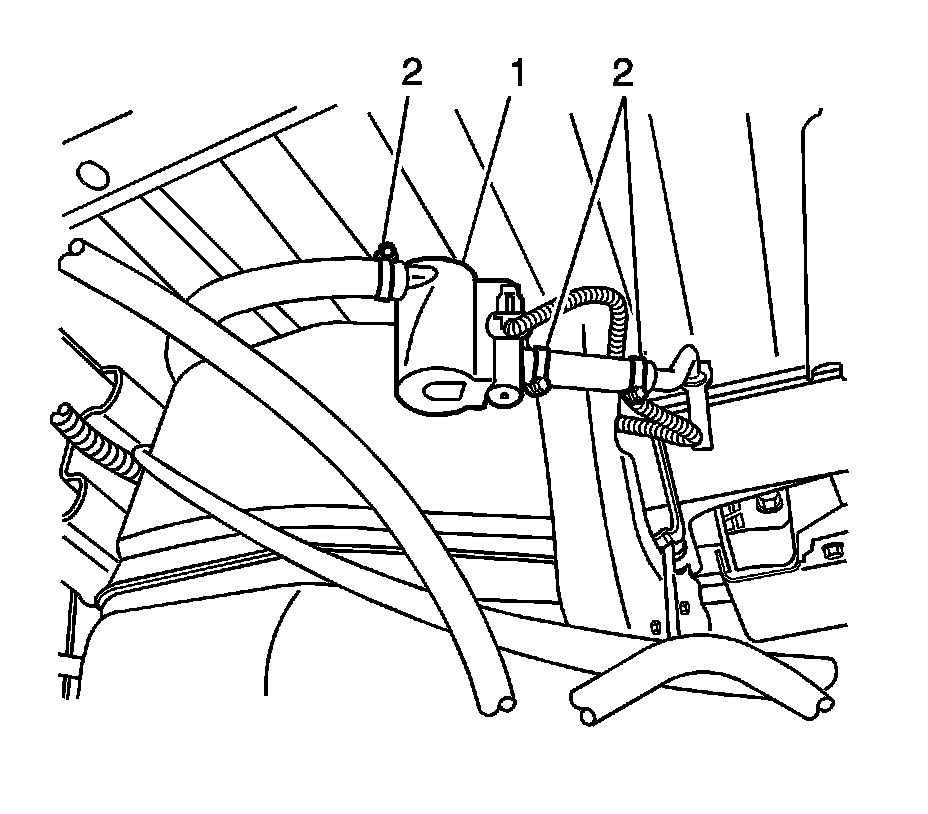

5. Position and install the evaporative canister vent solenoid (1) to the vehicle.
6. Secure both ends with hose clamps (2).
