Sunroof Window Replacement (Extended Cab)

Sunroof Window Replacement (Extended Cab)

Removal Procedure




1. Position the sunshade panel fully rearward.
2. Position the sunroof window panel to the vent position.

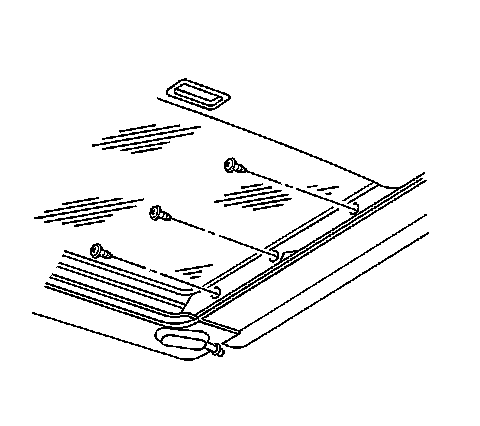

3. Remove the sunroof window panel screws from the sunroof window panel.
4. Remove the sunroof window panel from the sunroof module.

Installation Procedure




1. Position the sunroof window panel to the sunroof module.
Ensure that the information logo stencil is towards the rear of the sunroof opening.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the sunroof window panel screws to the sunroof window panel.

Tighten the sunroof window panel screws to 4 Nm (35 lb in).

3. Adjust the sunroof window panel as necessary. Refer to Sunroof Window Height and Opening Fit Adjustment (Extended Cab) (Sunroof Window Height and Opening Fit Adjustment (Extended Cab))Sunroof Window Height and Opening Fit Adjustment (Crew Cab) (Sunroof Window Height and Opening Fit Adjustment (Crew Cab)).
4. Inspect the sunroof window panel for proper operation.
