Air Bag Control Module
Component Connector End Views

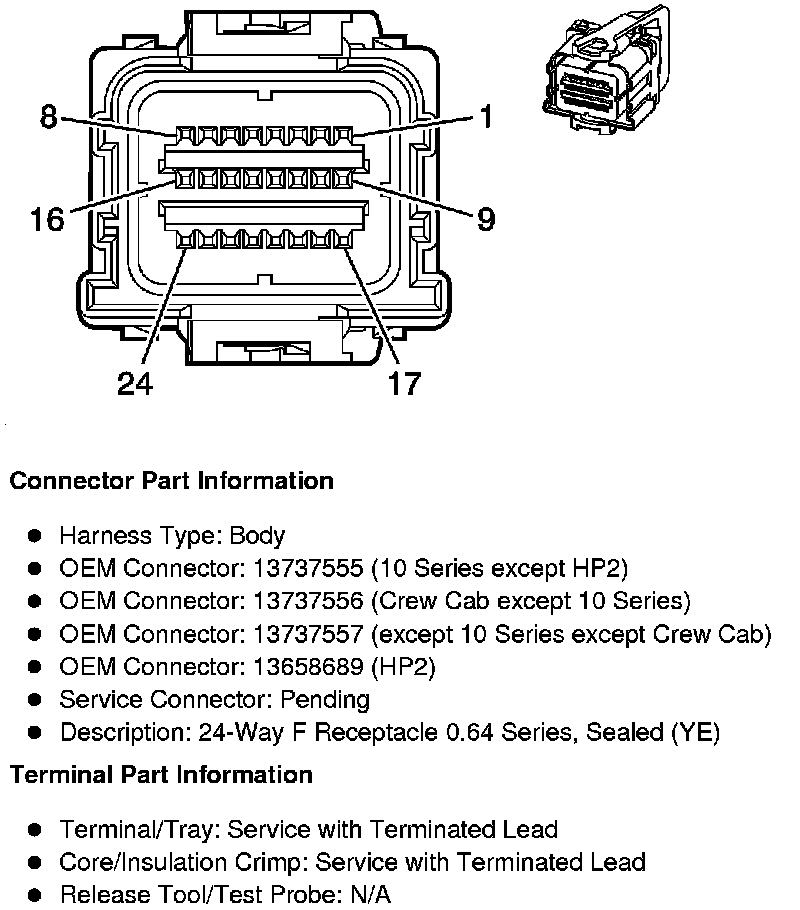

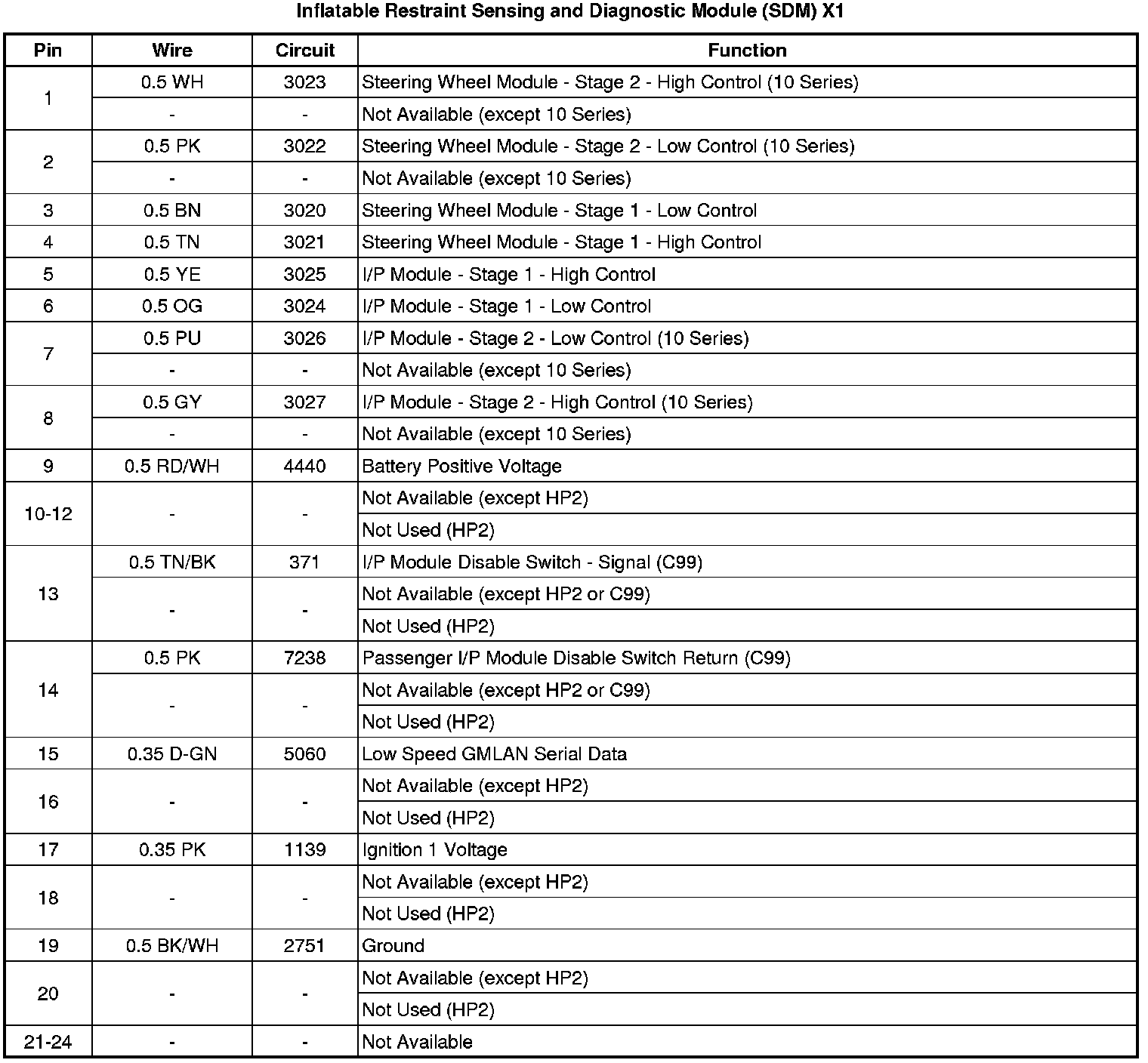

Inflatable Restraint Sensing and Diagnostic Module (SDM) X1

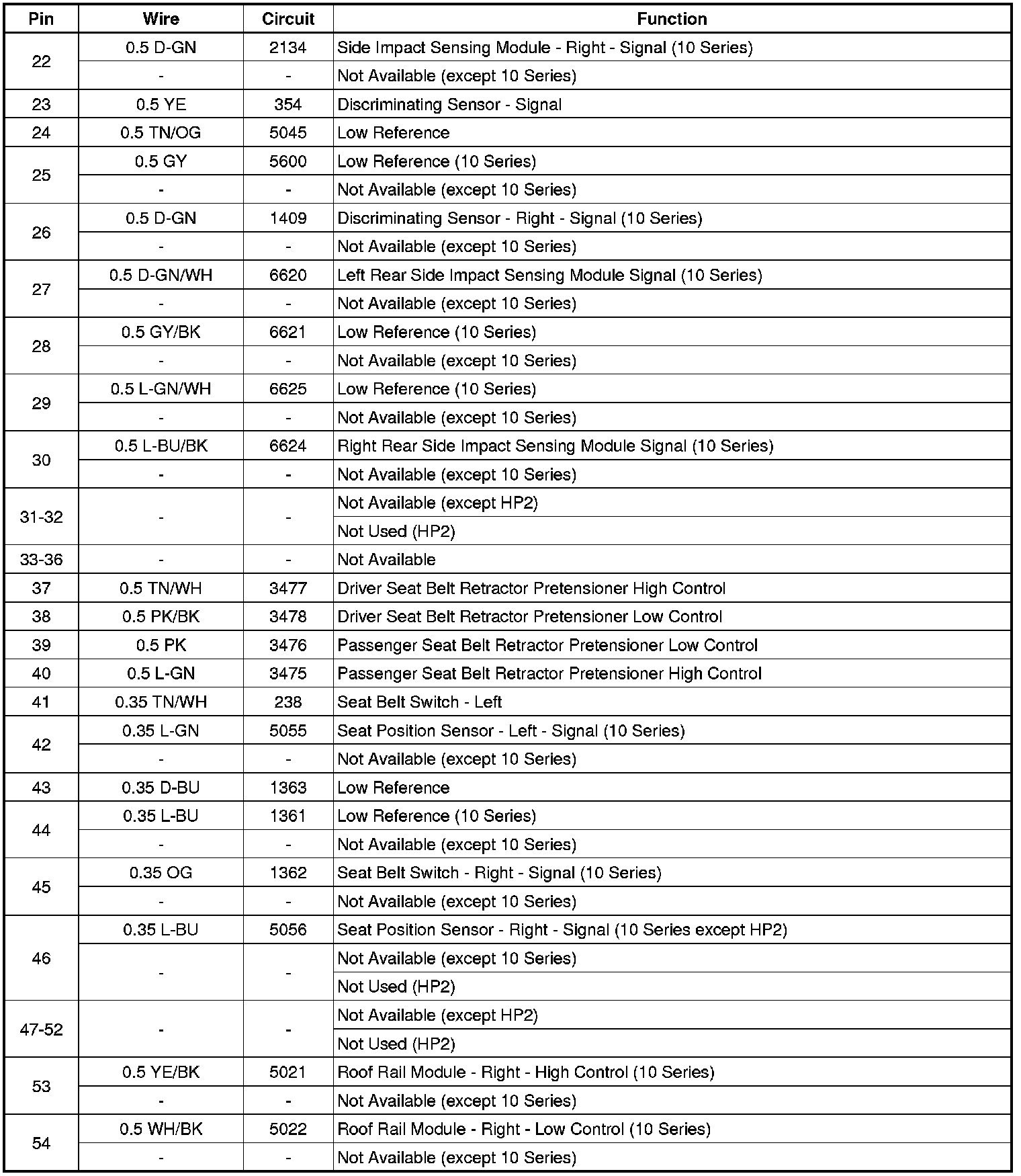

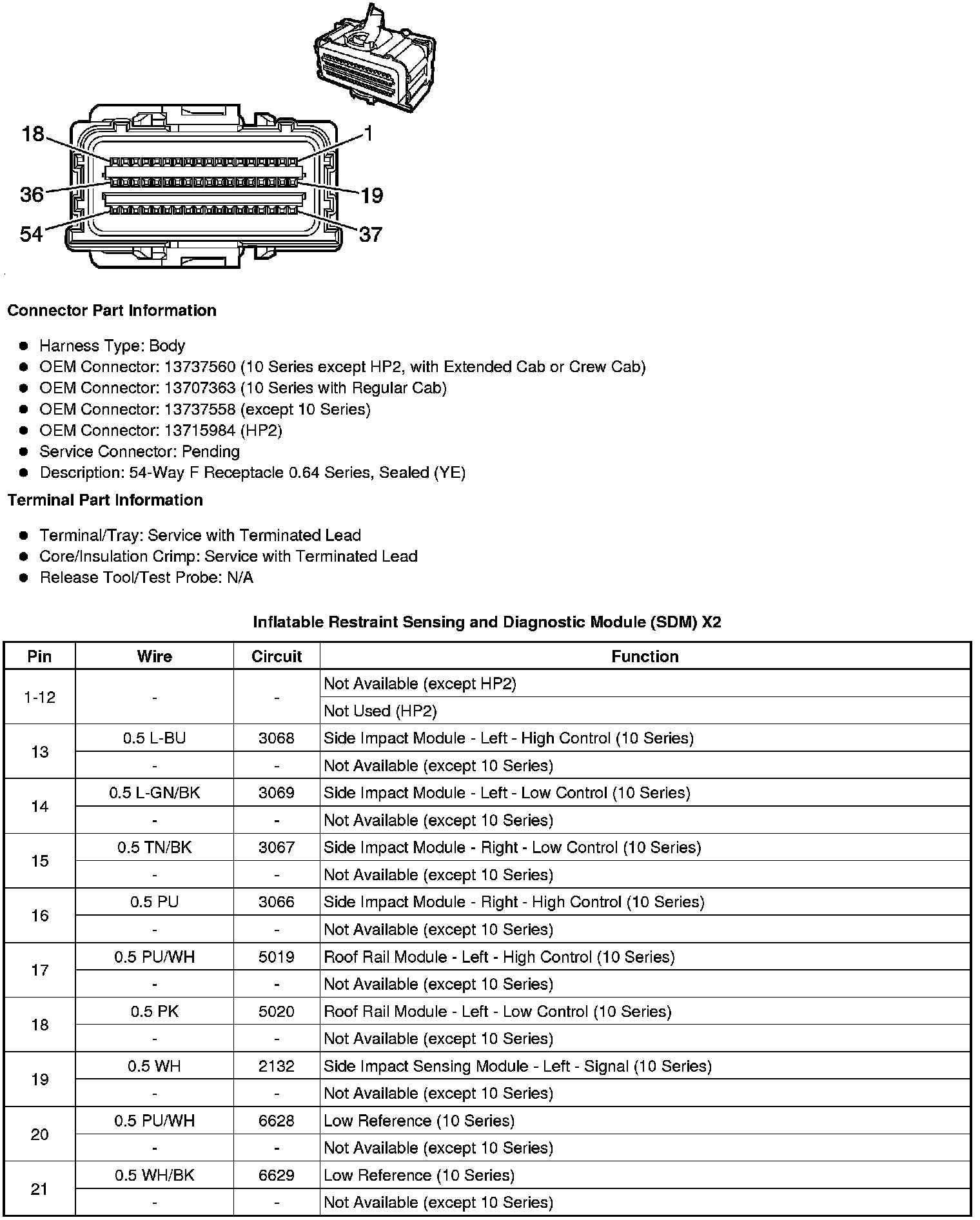

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2

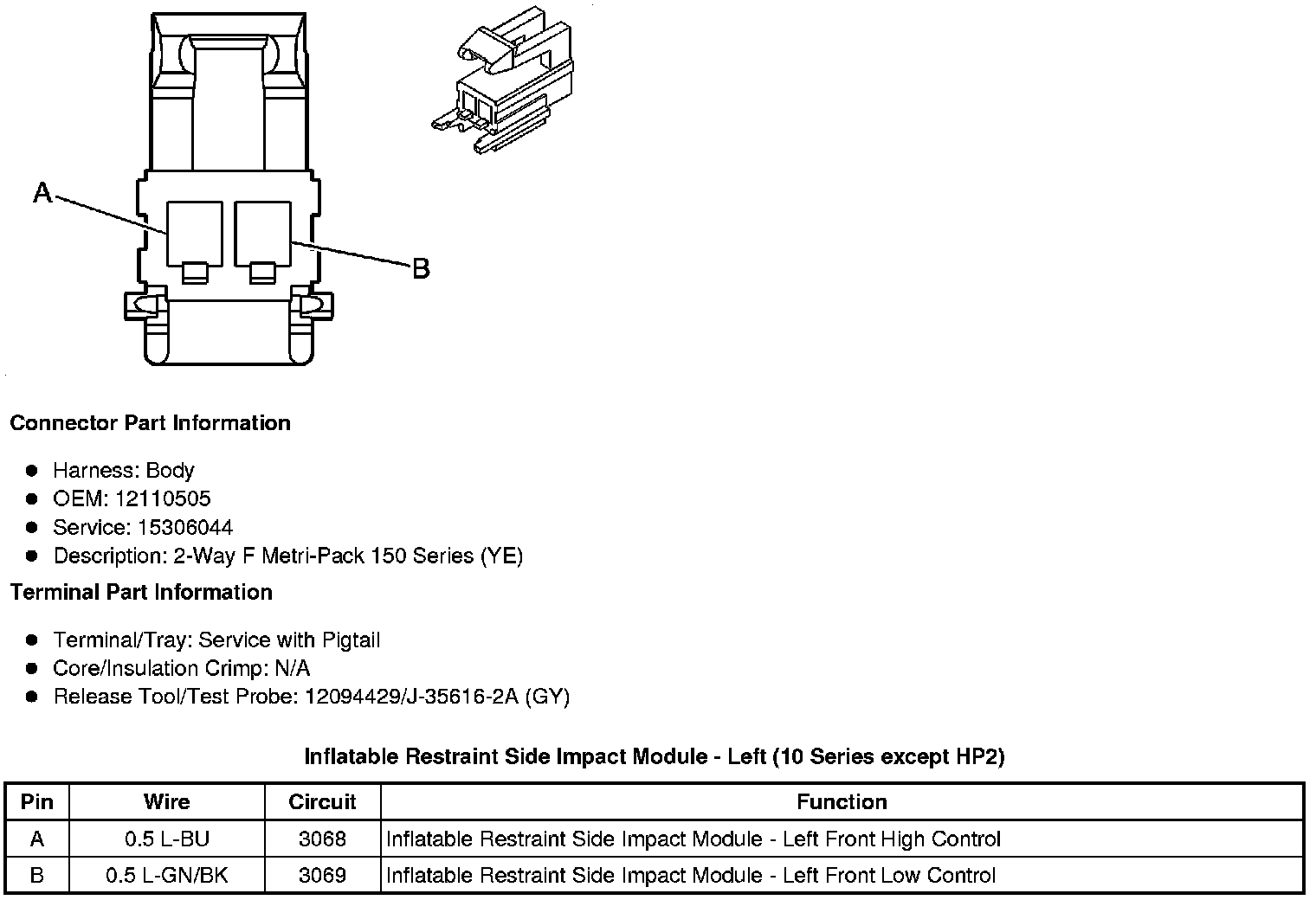

Inflatable Restraint Side Impact Module - Left (10 Series except HP2)
Inflatable Restraint Side Impact Module - Left (HP2)

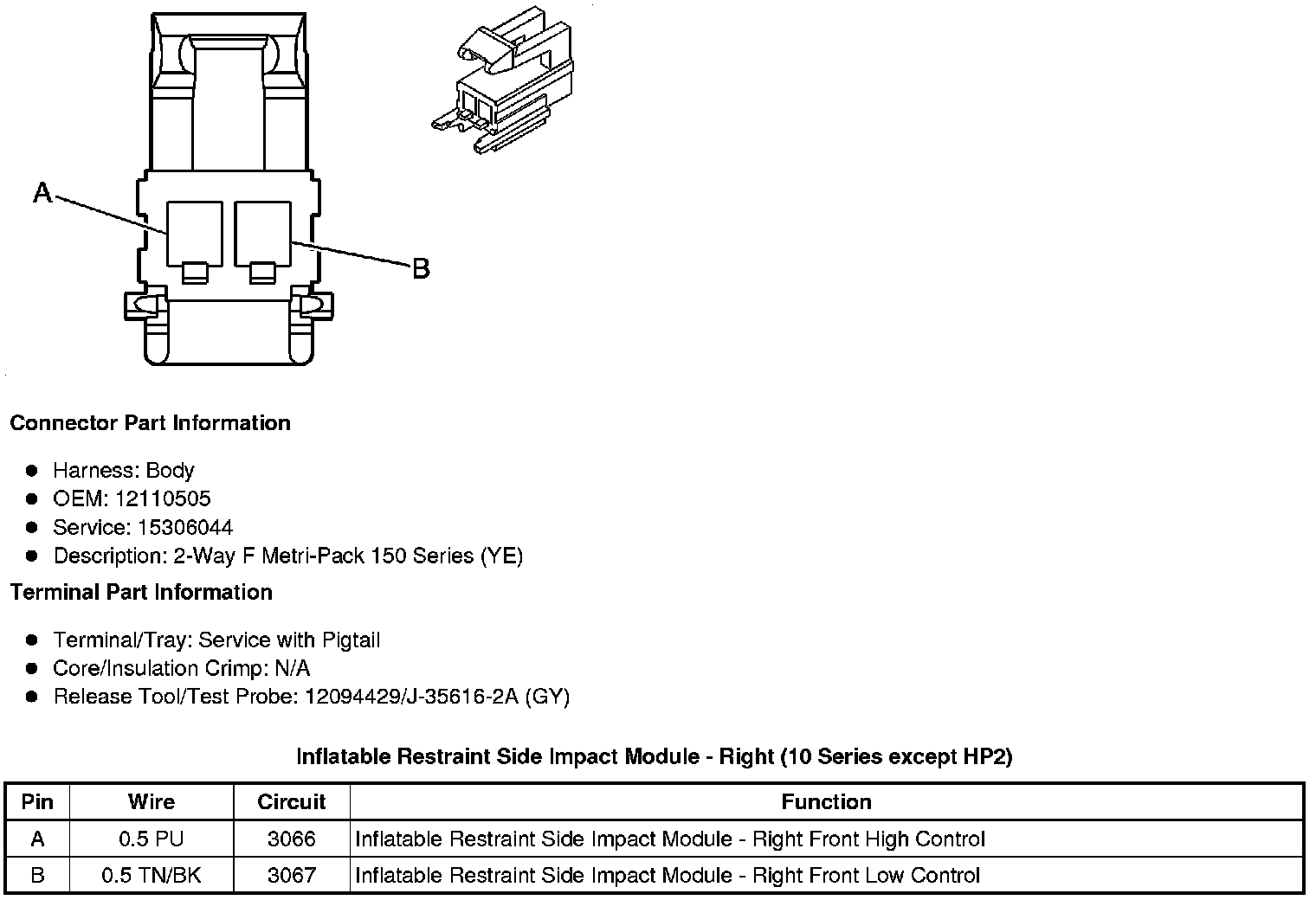

Inflatable Restraint Side Impact Module - Right (10 Series except HP2)

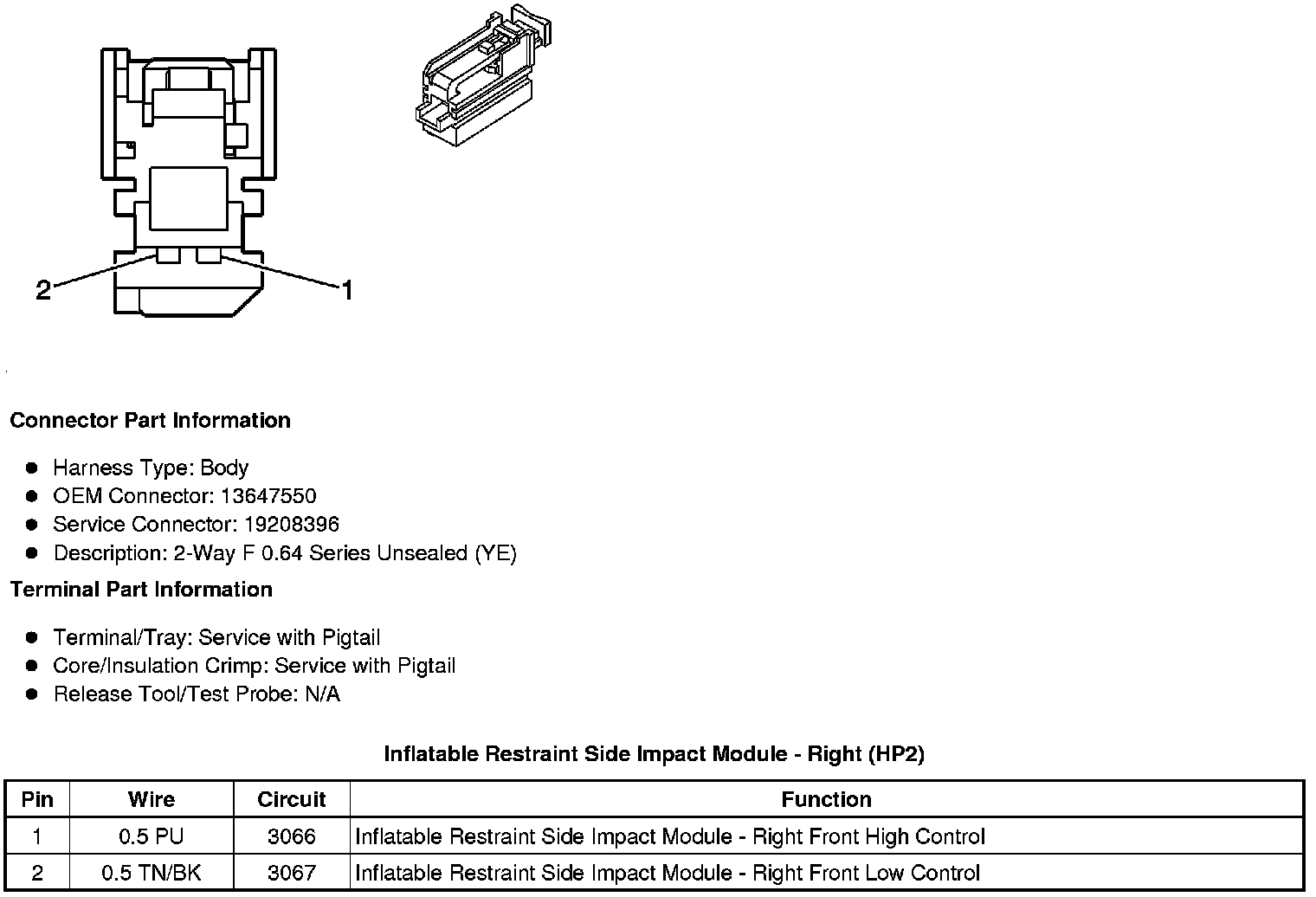

Inflatable Restraint Side Impact Module - Right (HP2)
