In - Ob
Component Connector End Views (continued)
Inflatable Restraint Roof Rail Module - Driver (Regular Cab with ASF)

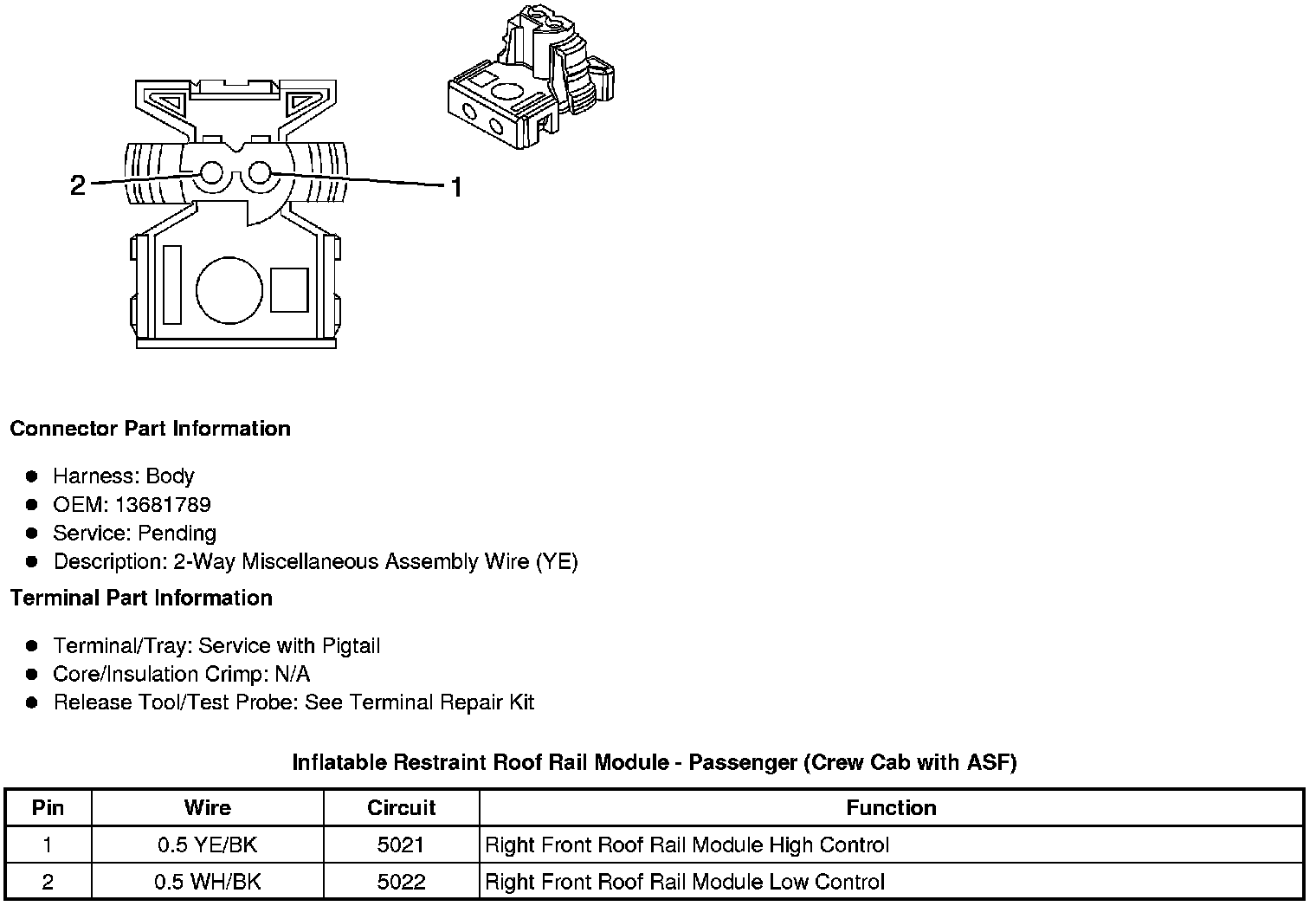

Inflatable Restraint Roof Rail Module - Passenger (Crew Cab with ASF)

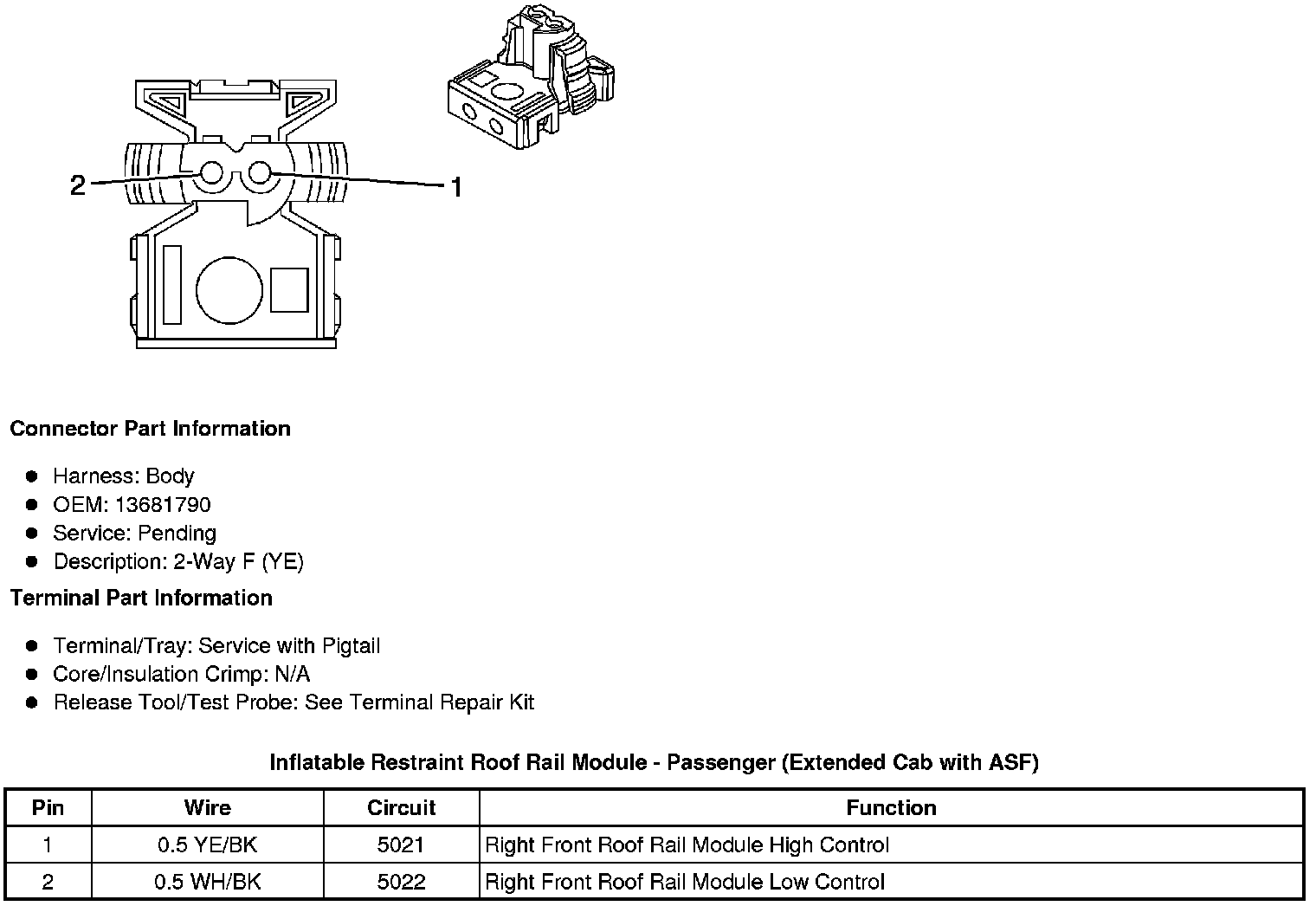

Inflatable Restraint Roof Rail Module - Passenger (Extended Cab with ASF)

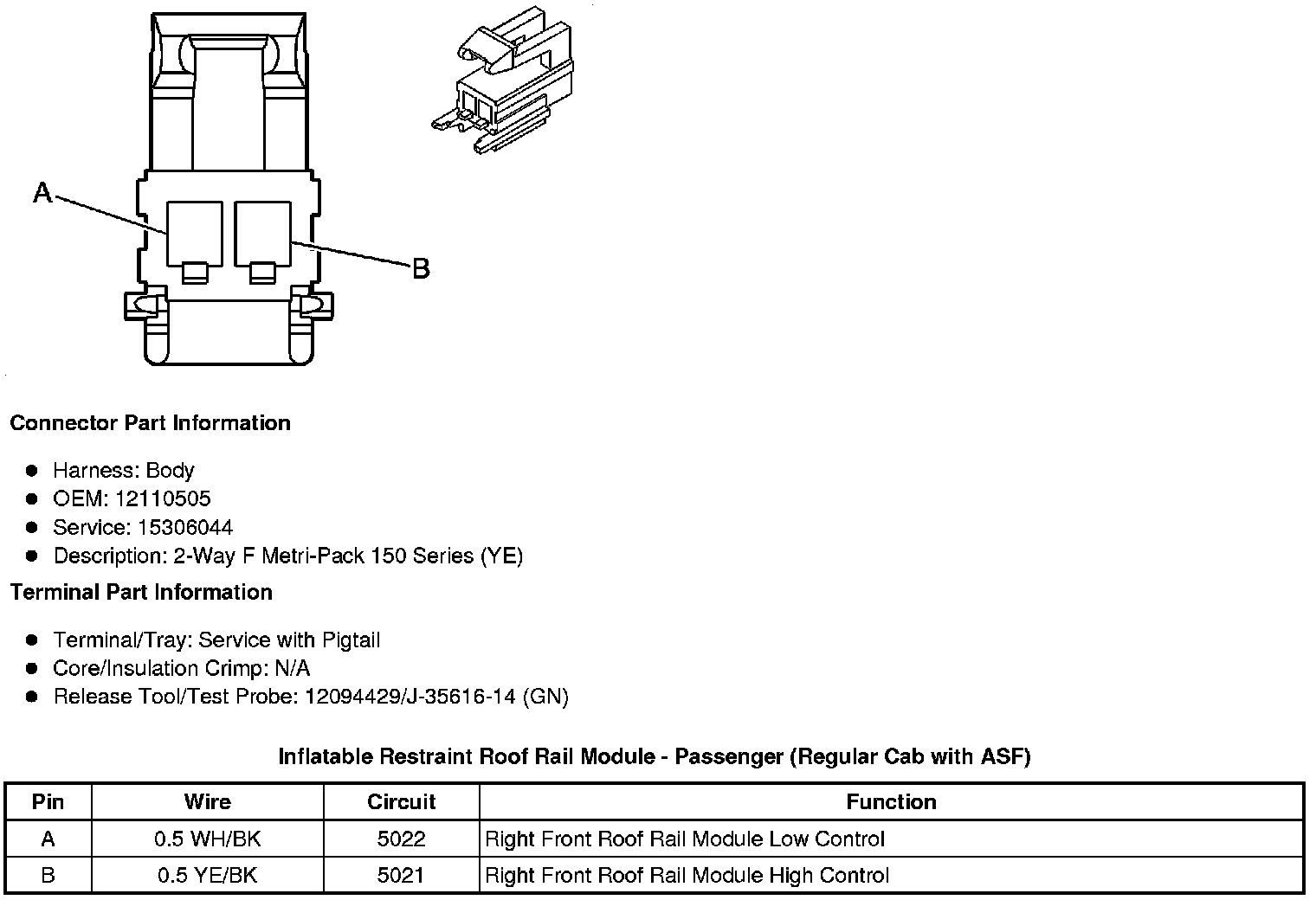

Inflatable Restraint Roof Rail Module - Passenger (Regular Cab with ASF)

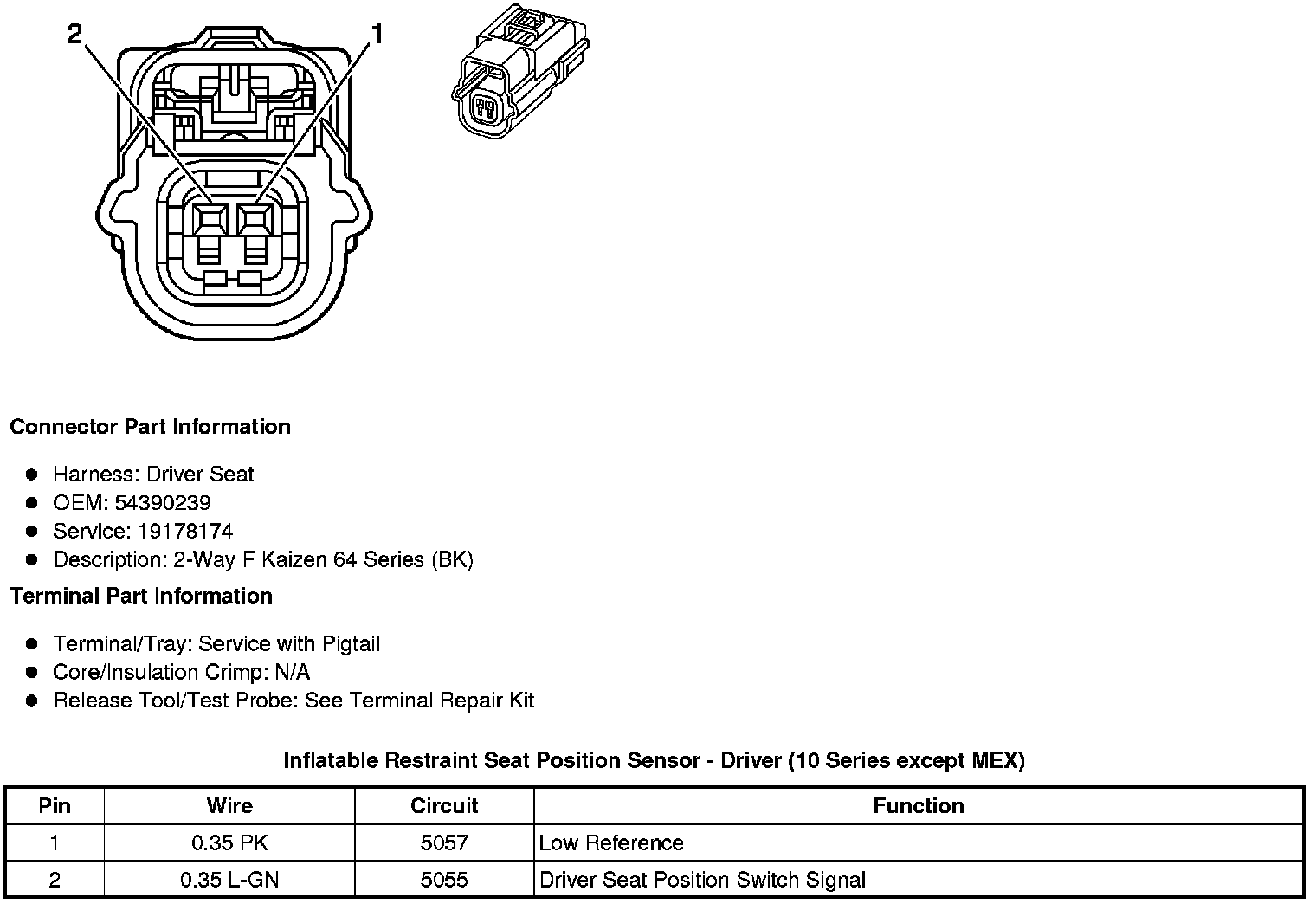

Inflatable Restraint Seat Position Sensor - Driver (10 Series except MEX)

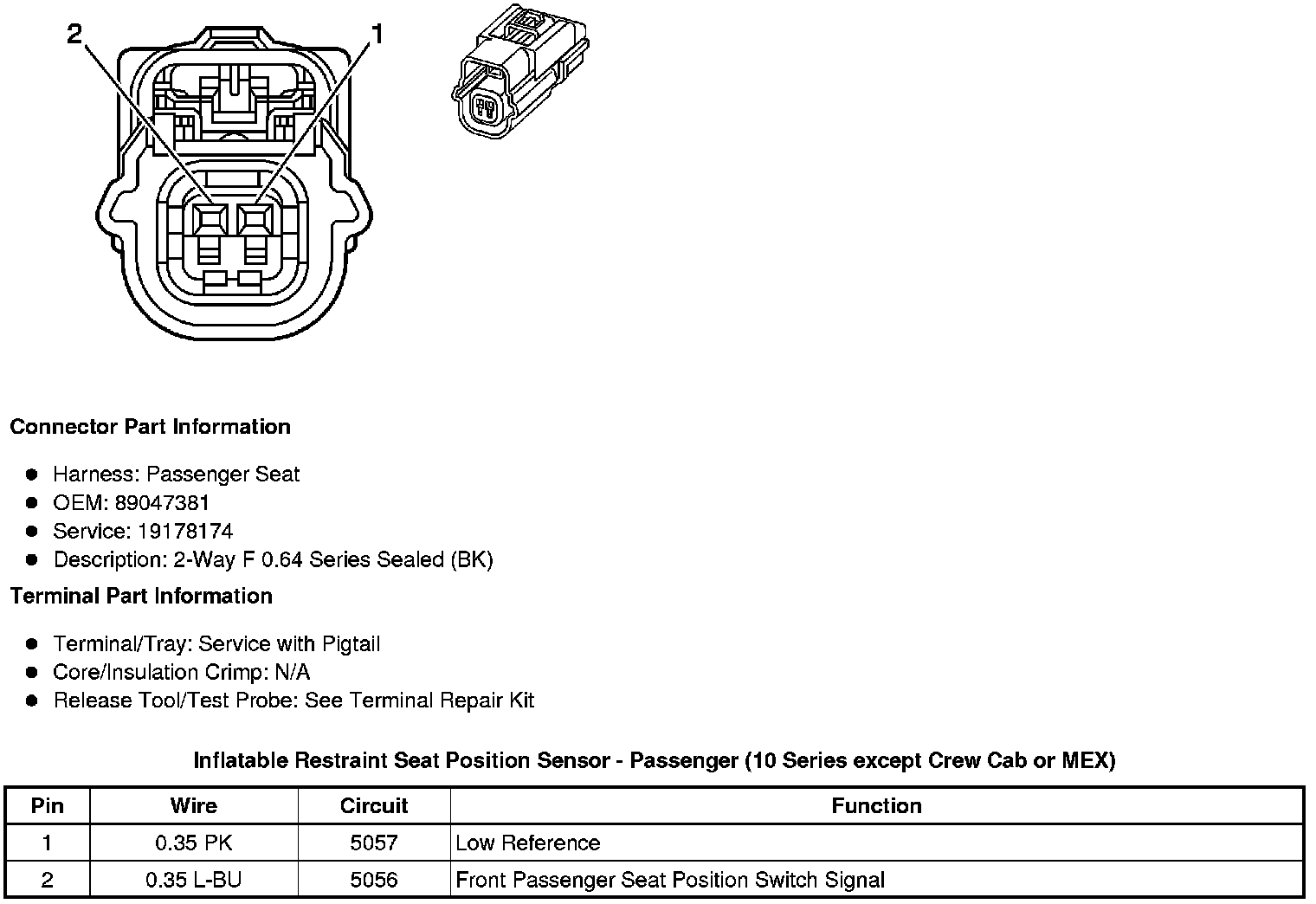

Inflatable Restraint Seat Position Sensor - Passenger (10 Series except Crew Cab or MEX)
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Inflatable Restraint Side Impact Module - Left (10 Series except HP2)
Inflatable Restraint Side Impact Module - Left (HP2)
Inflatable Restraint Side Impact Module - Right (10 Series except HP2)
Inflatable Restraint Side Impact Module - Right (HP2)
Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Extended or Crew Cab with ASF)
Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Extended or Crew Cab with ASF)

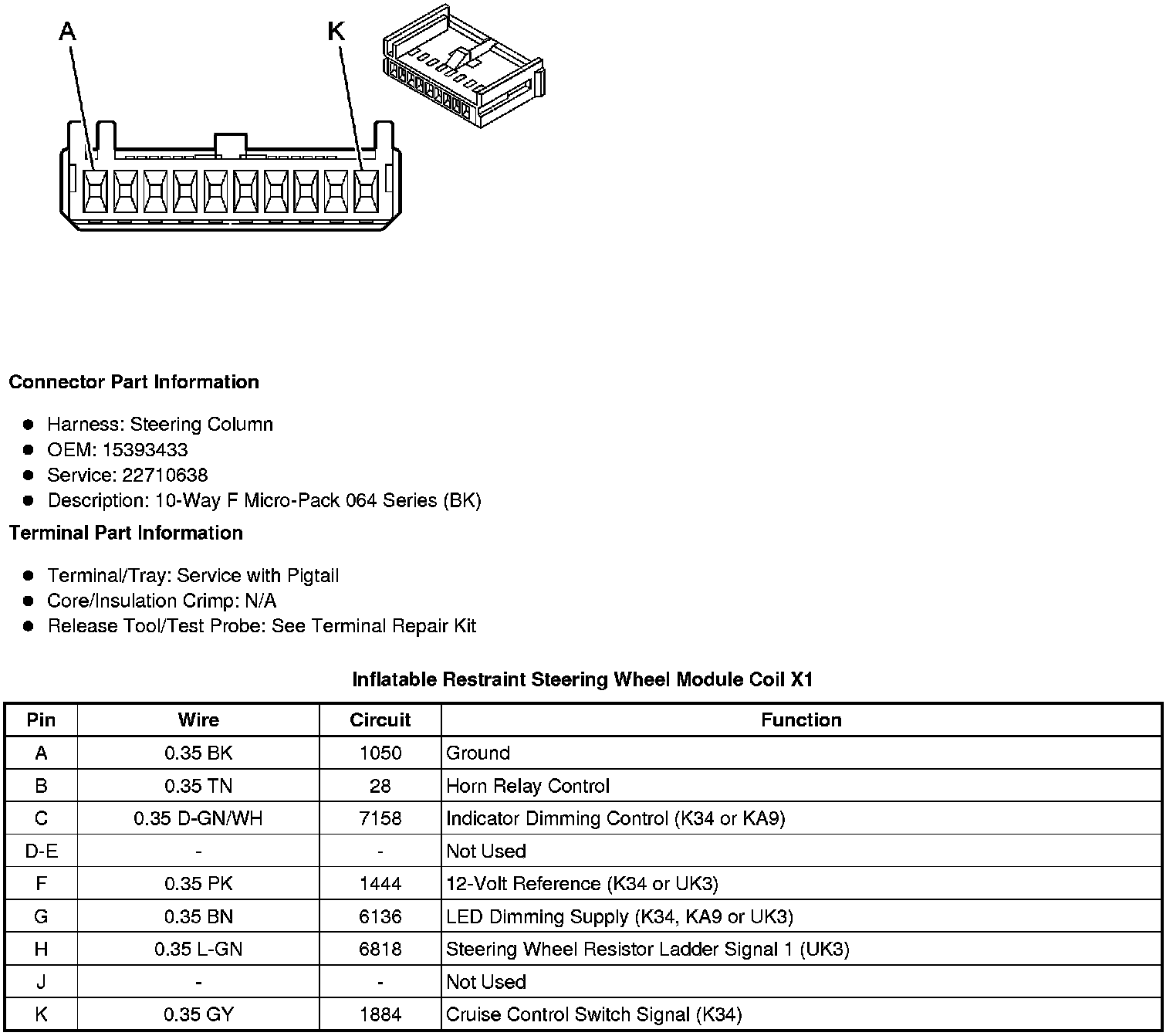

Inflatable Restraint Steering Wheel Module Coil X1
Inflatable Restraint Steering Wheel Module Coil X2
Inflatable Restraint Steering Wheel Module X1 (10 Series)
Inflatable Restraint Steering Wheel Module X2 (10 Series)

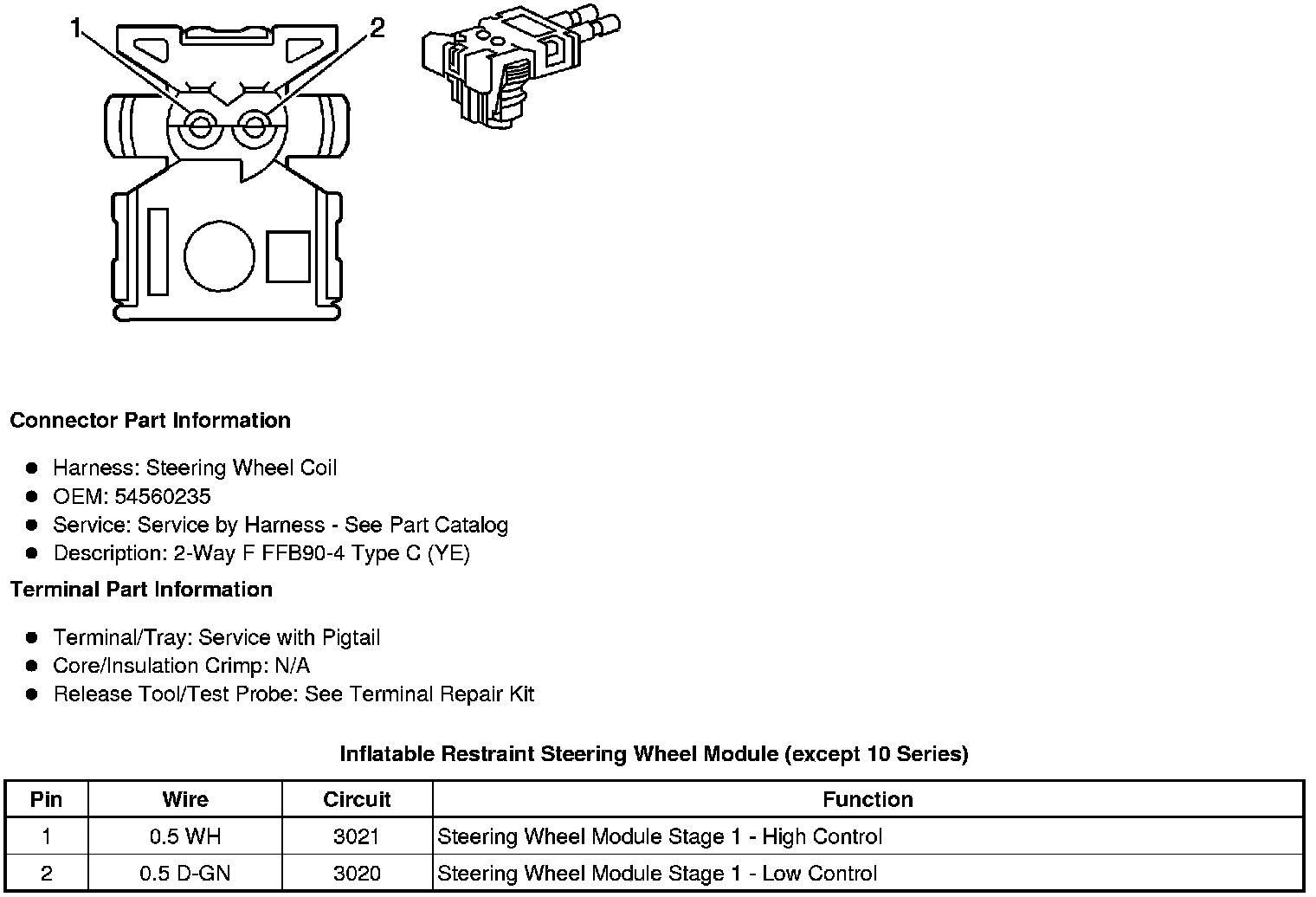

Inflatable Restraint Steering Wheel Module (except 10 Series)

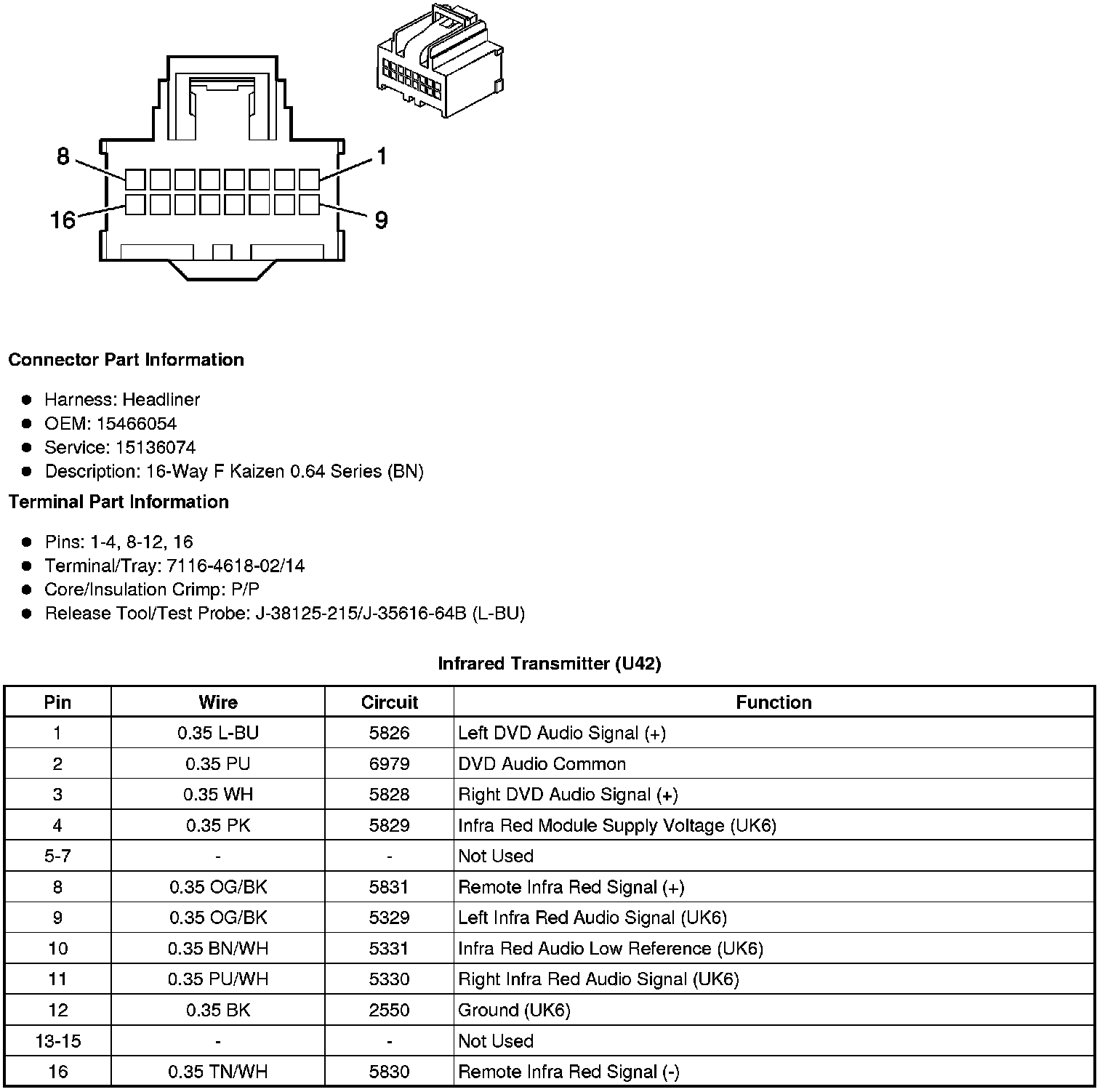

Infrared Transmitter (U42)
Inside Rearview Mirror (ISRVM) (except MEX)

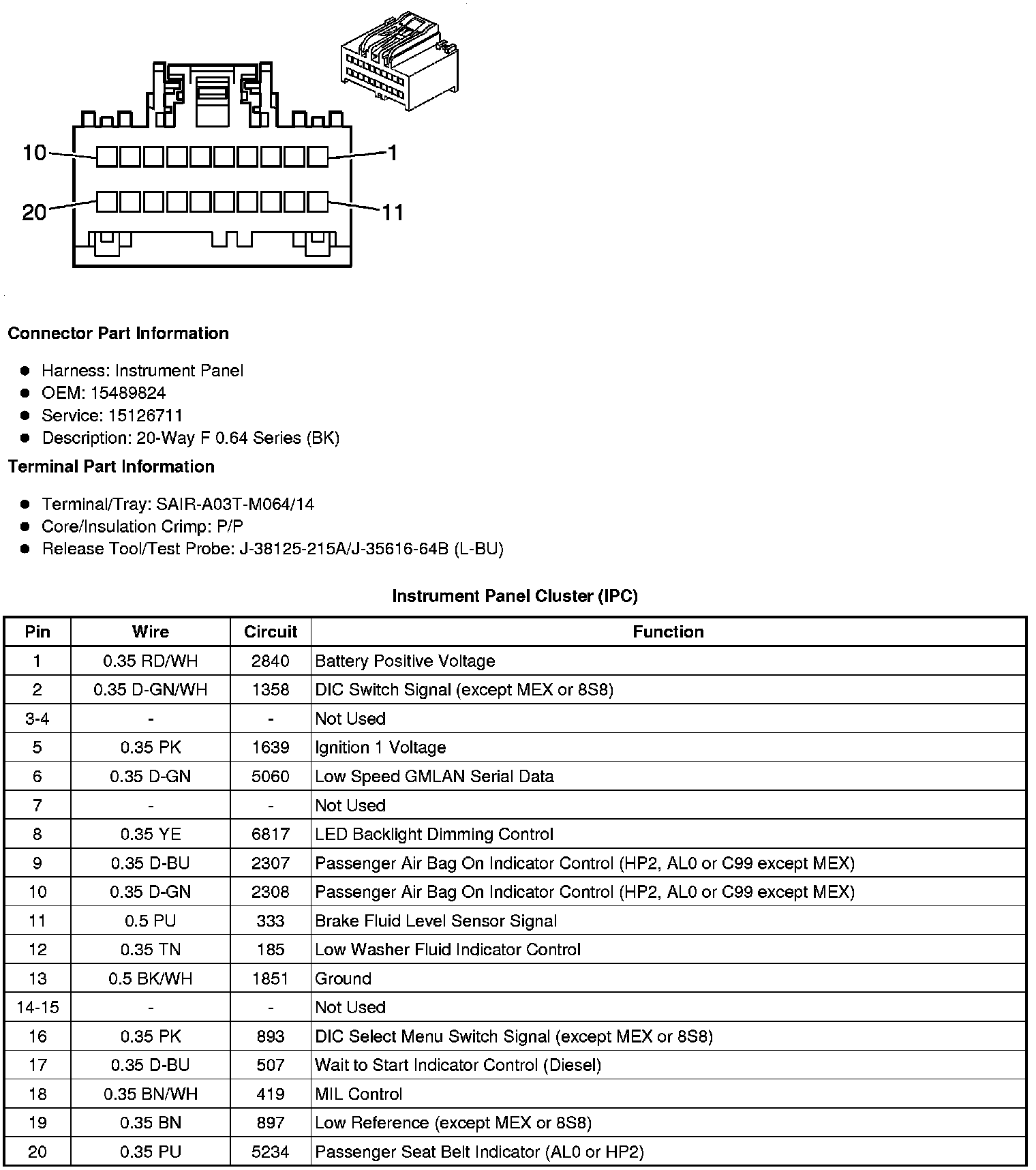

Instrument Panel Cluster (IPC)
Intake Air Heater (IAH) X1 (Diesel)

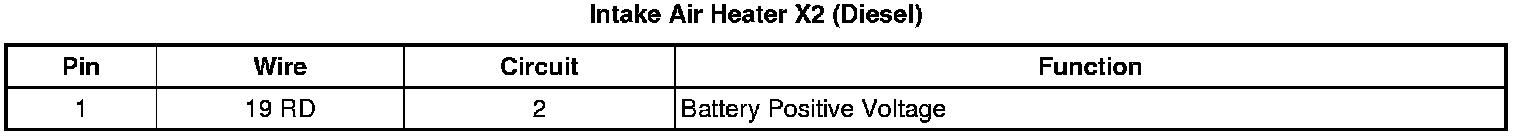

Intake Air Heater X2 (Diesel)

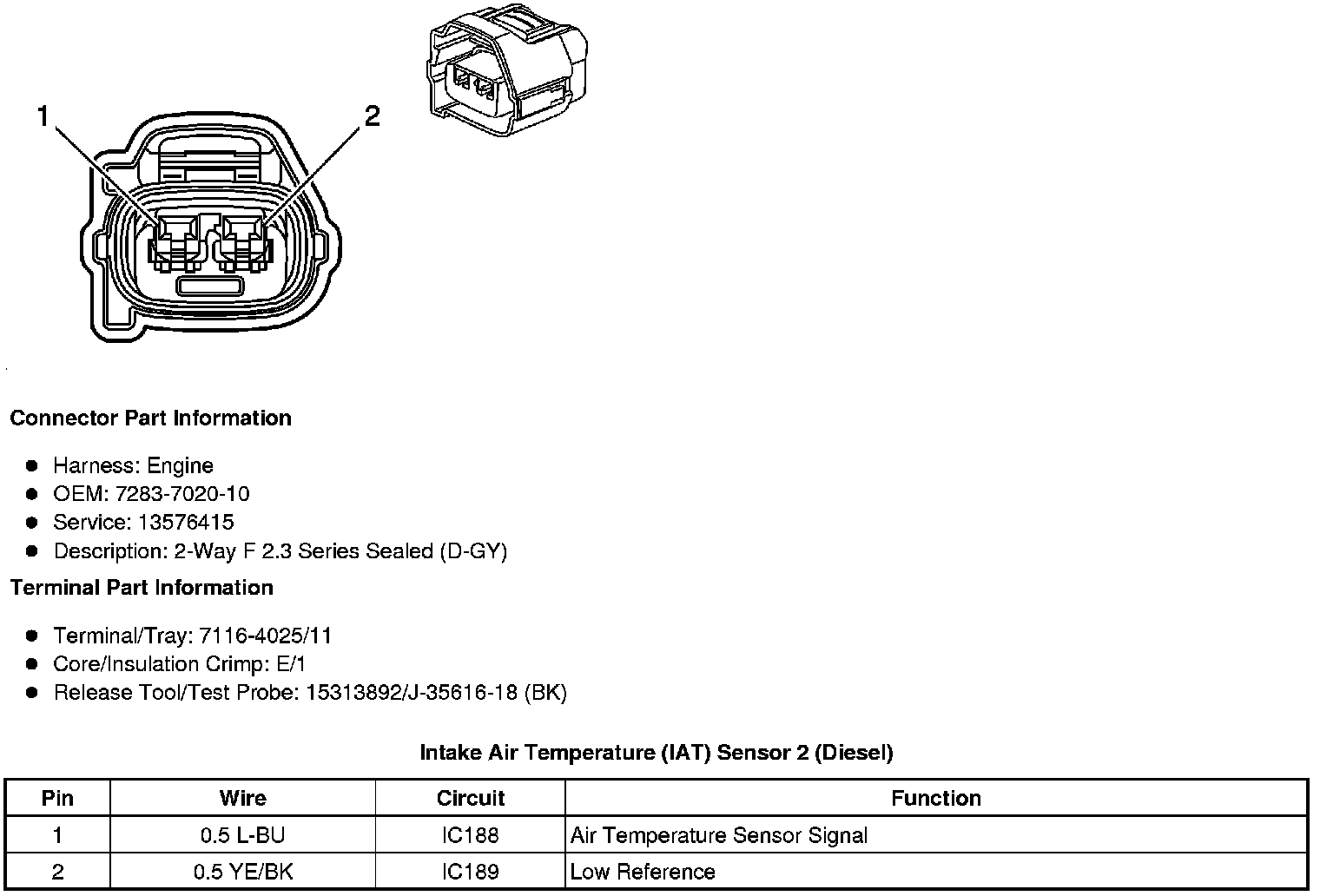

Intake Air Temperature (IAT) Sensor 2 (Diesel)

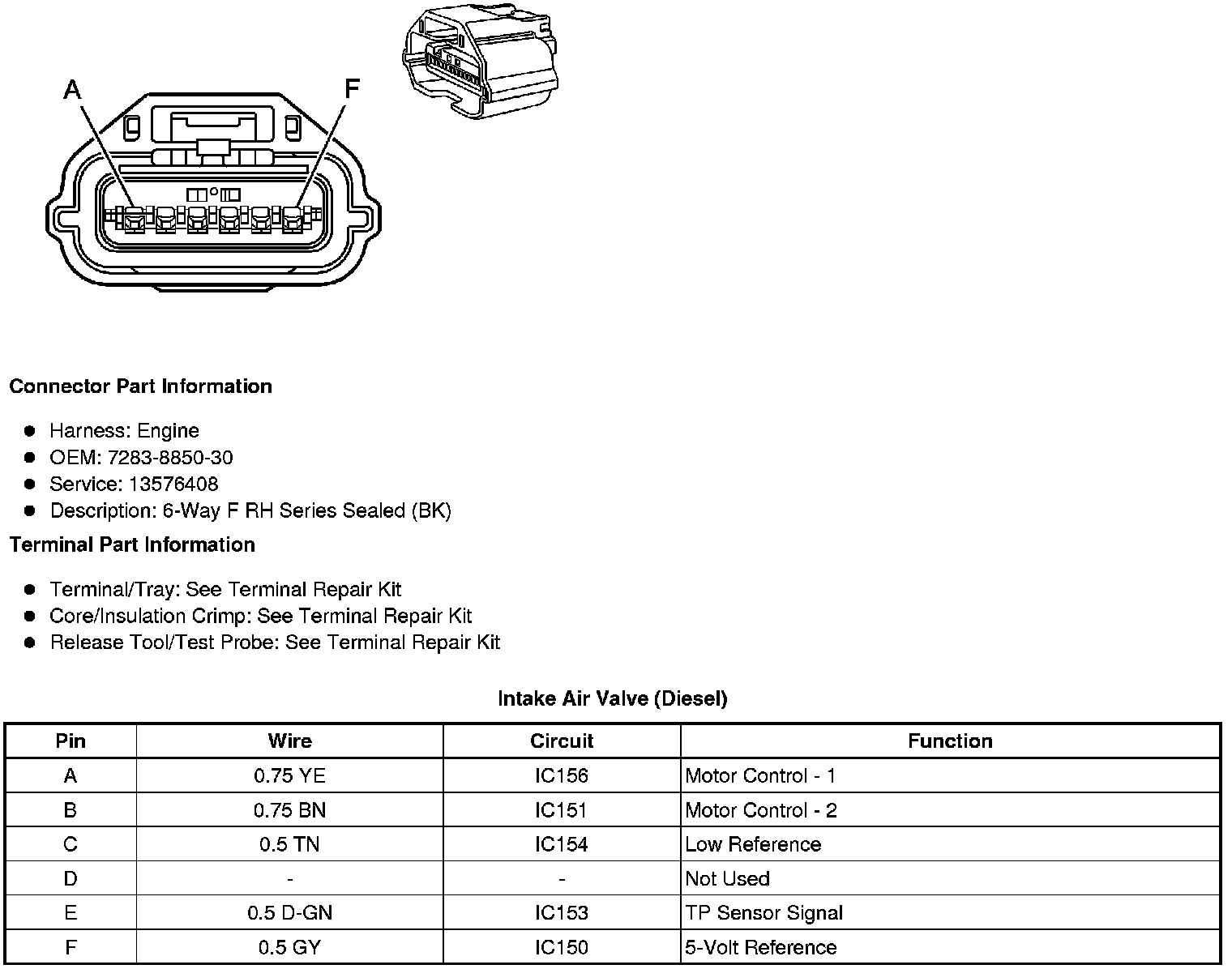

Intake Air Valve (Diesel)
Knock Sensor (KS) 1 (Gas)
Knock Sensor (KS) 2 (Gas)

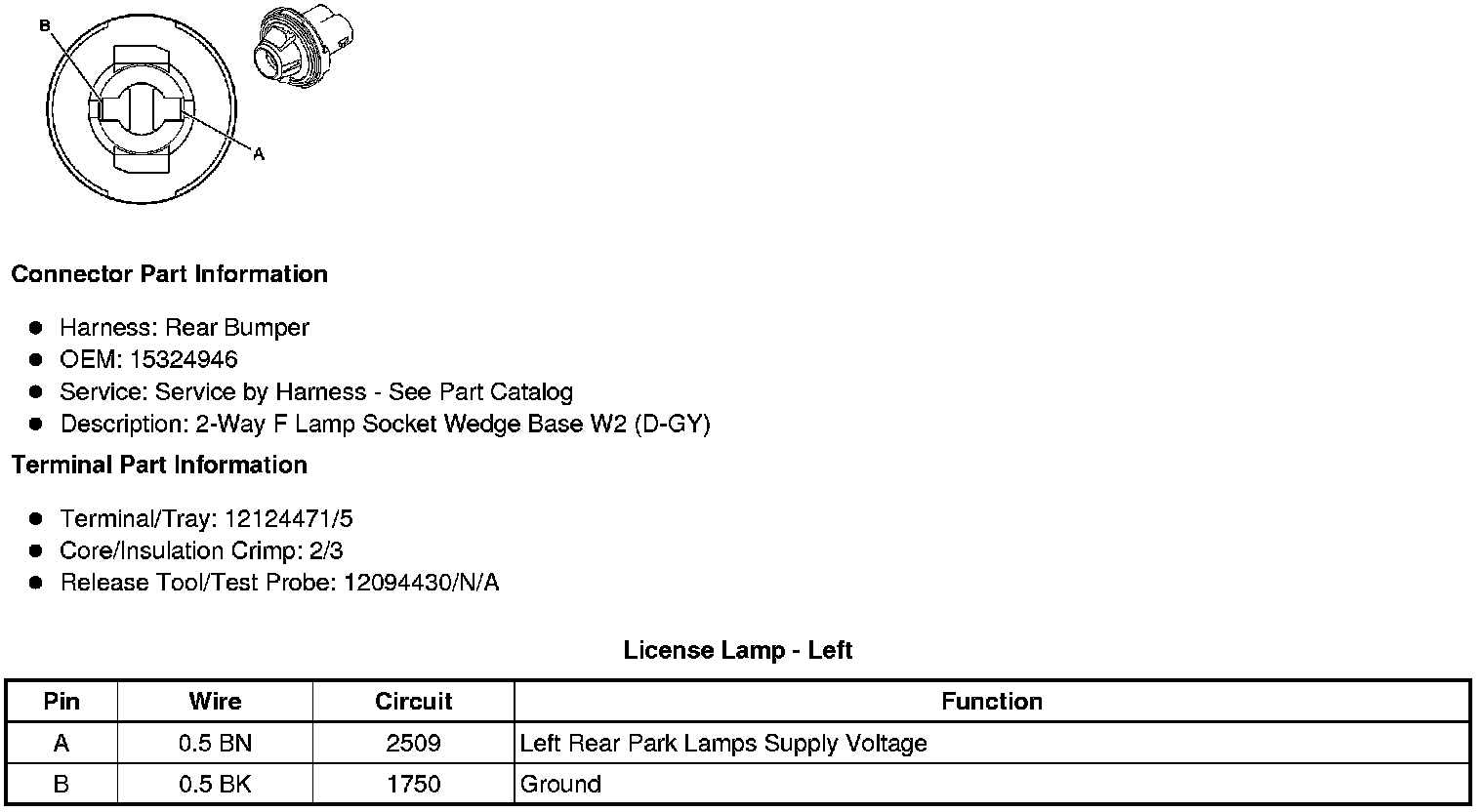

License Lamp - Left

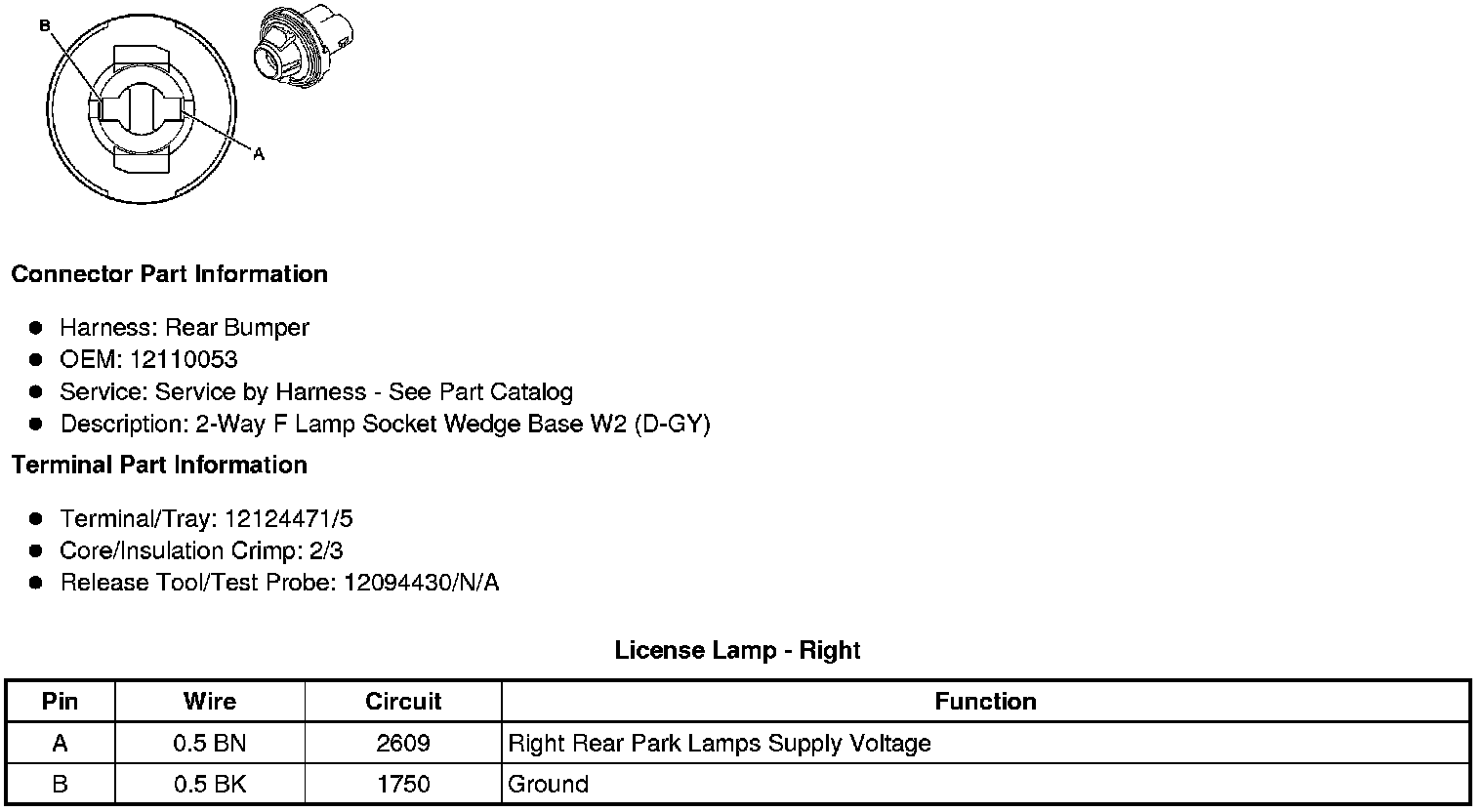

License Lamp - Right

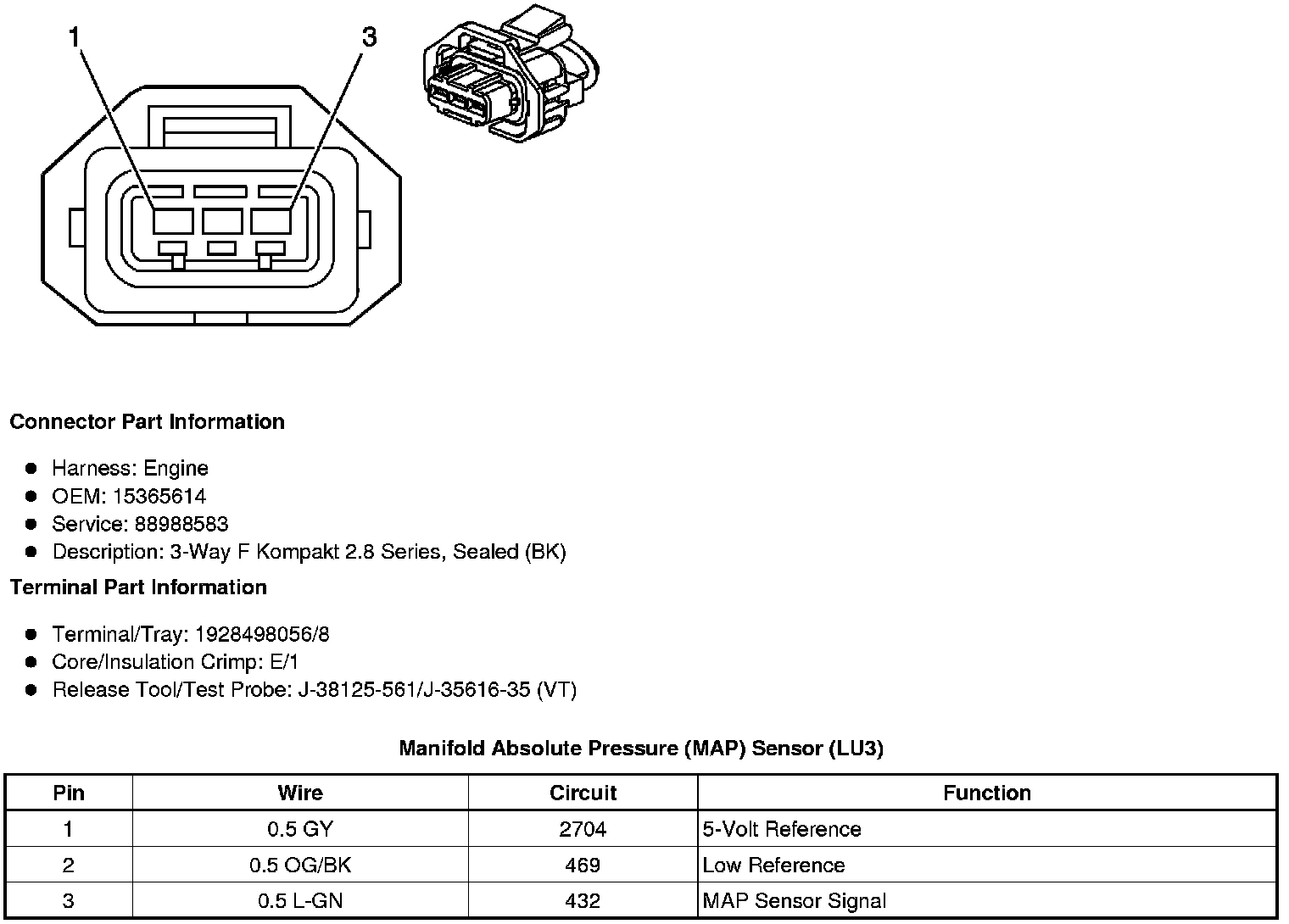

Manifold Absolute Pressure (MAP) Sensor (LU3)

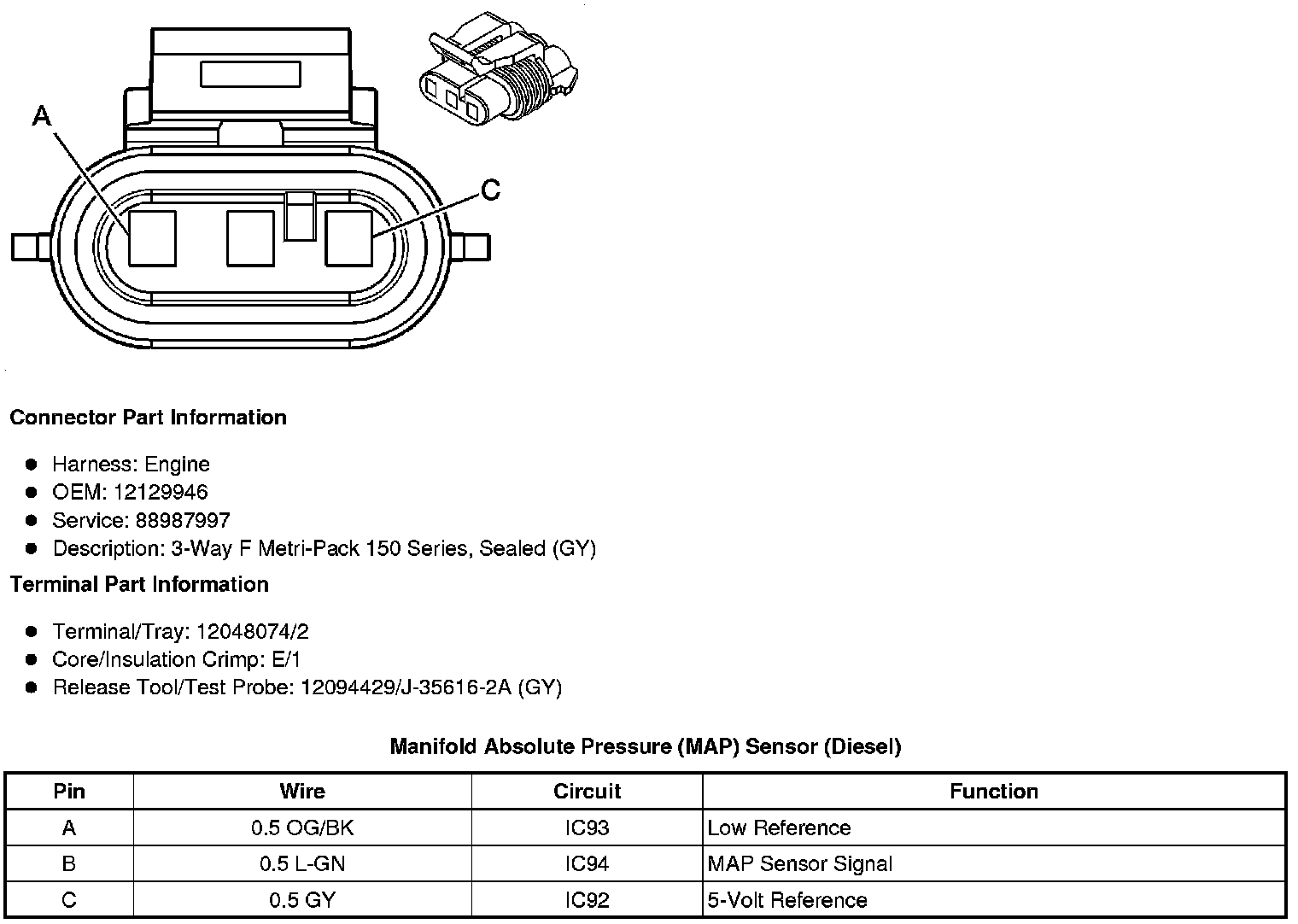

Manifold Absolute Pressure (MAP) Sensor (Diesel)

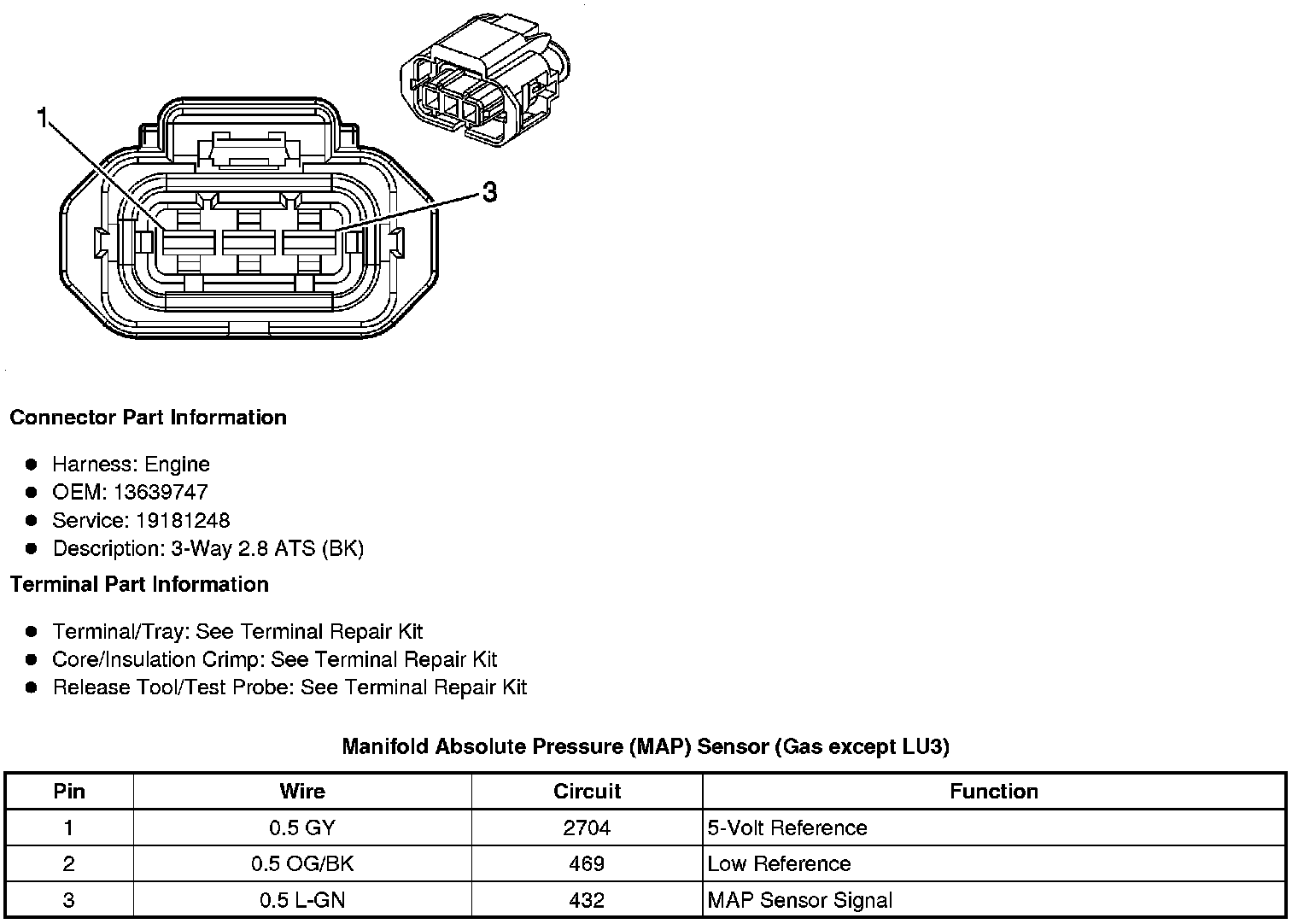

Manifold Absolute Pressure (MAP) Sensor (Gas except LU3)
Marker Lamp - Tailgate (RO5)
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (Diesel)
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (Gas)

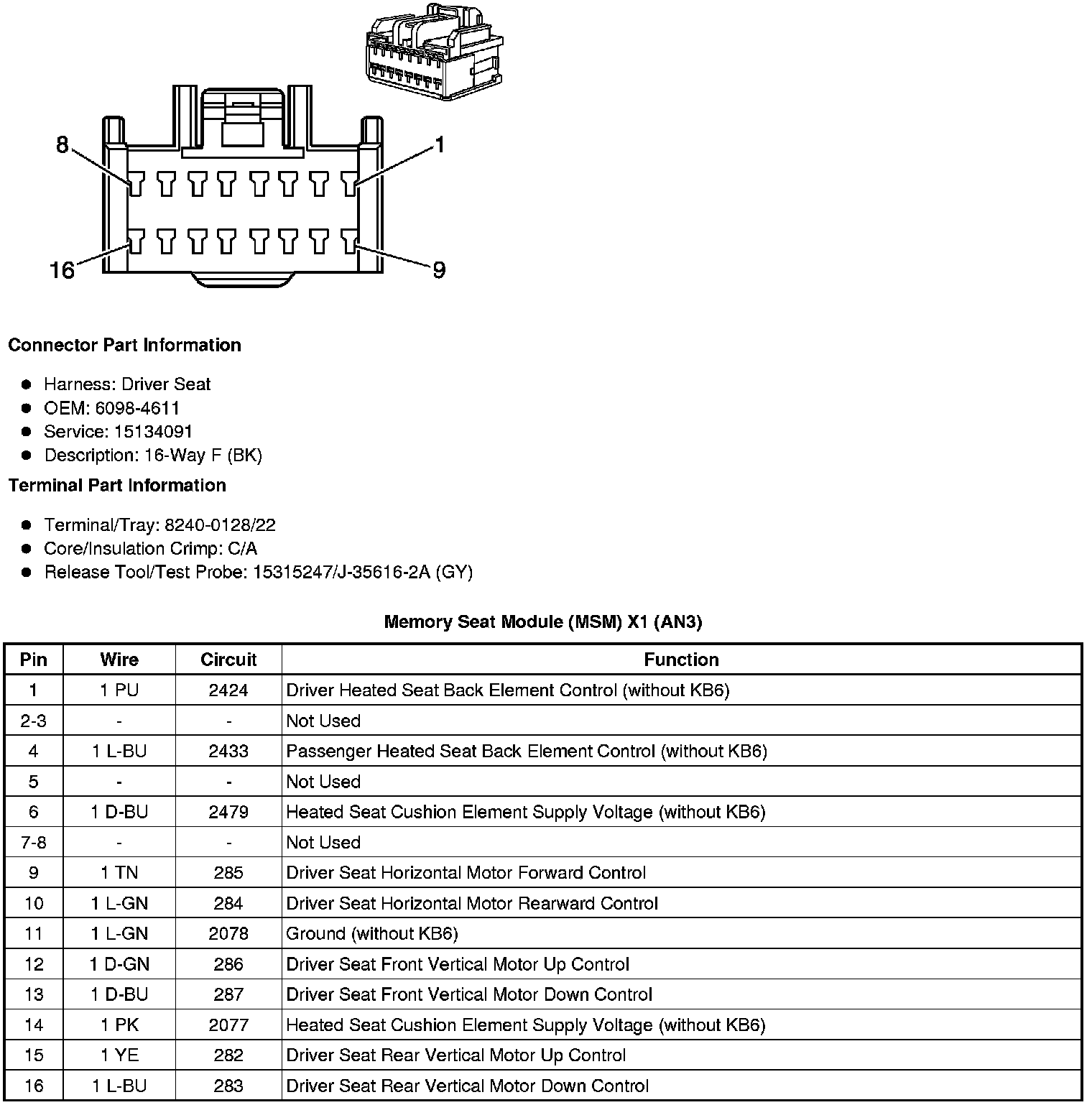

Memory Seat Module (MSM) X1 (AN3)

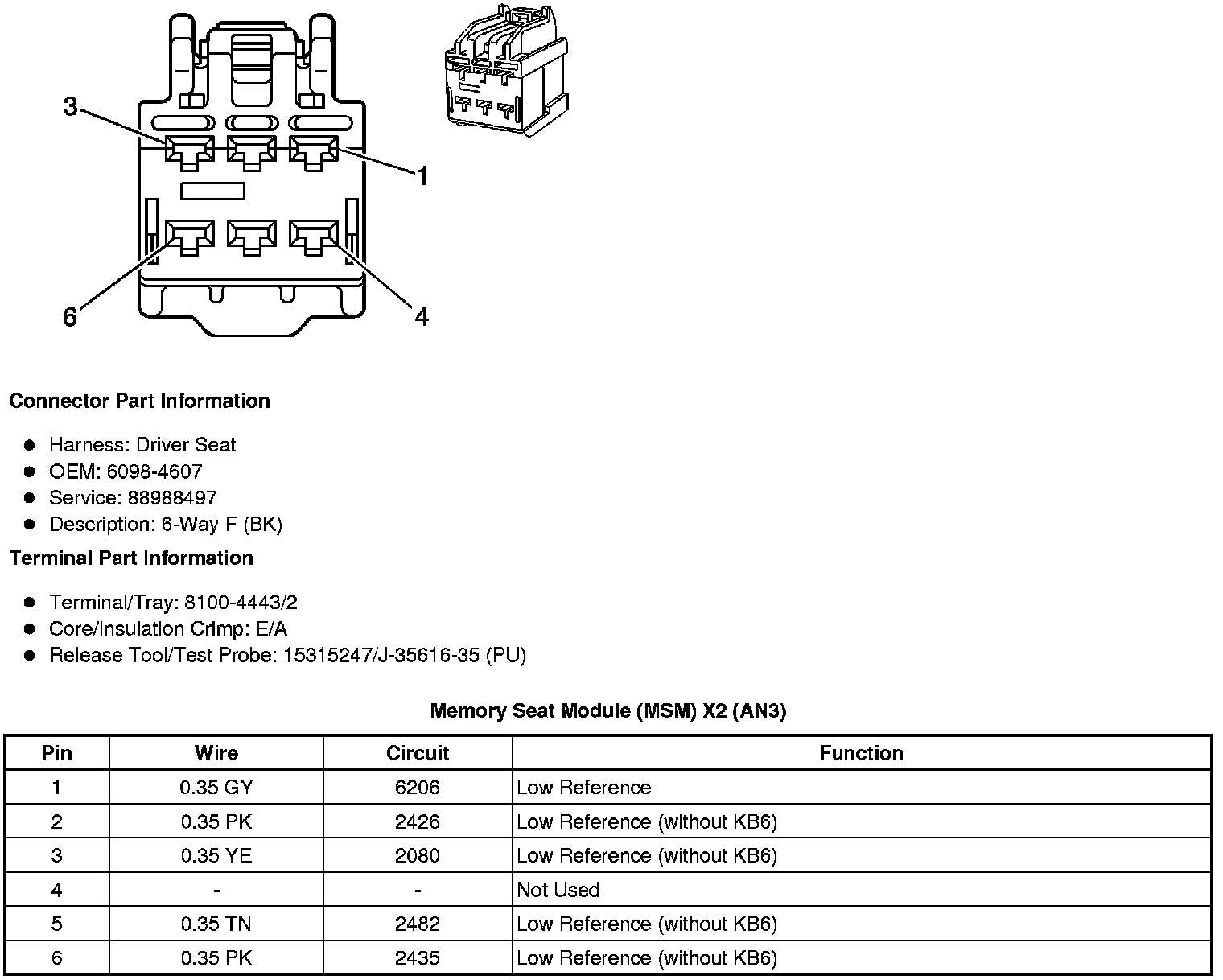

Memory Seat Module (MSM) X2 (AN3)

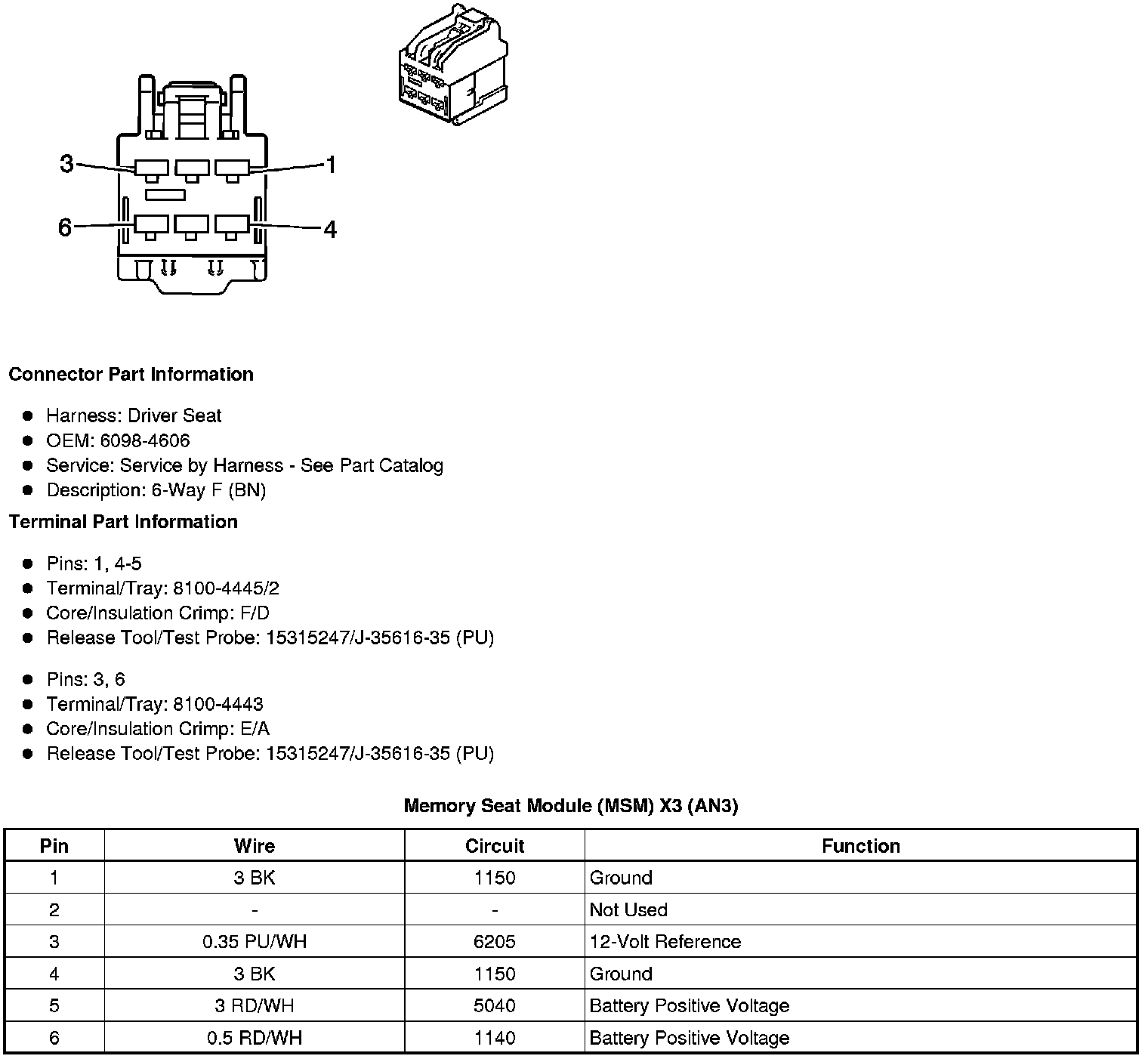

Memory Seat Module (MSM) X3 (AN3)

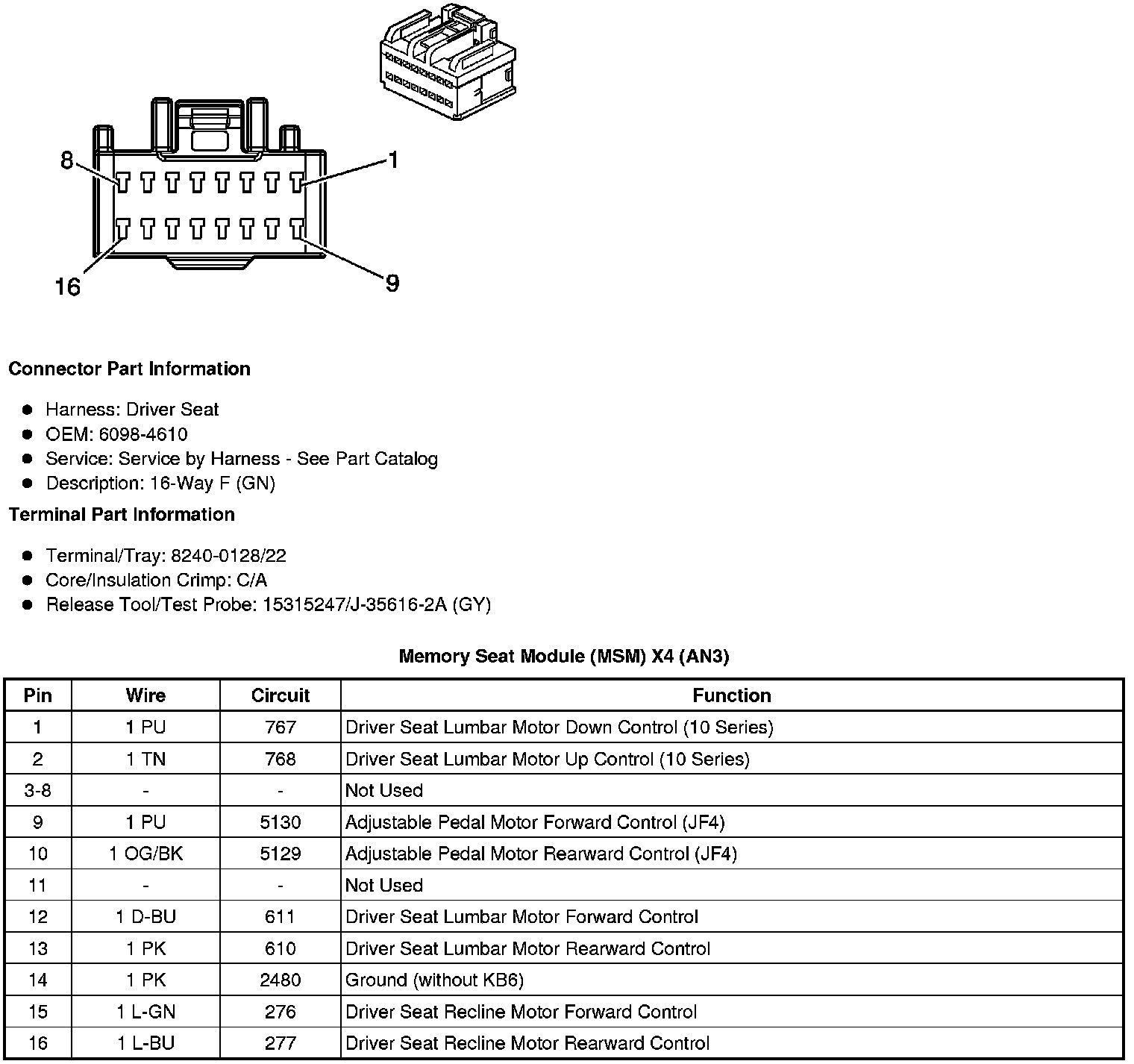

Memory Seat Module (MSM) X4 (AN3)

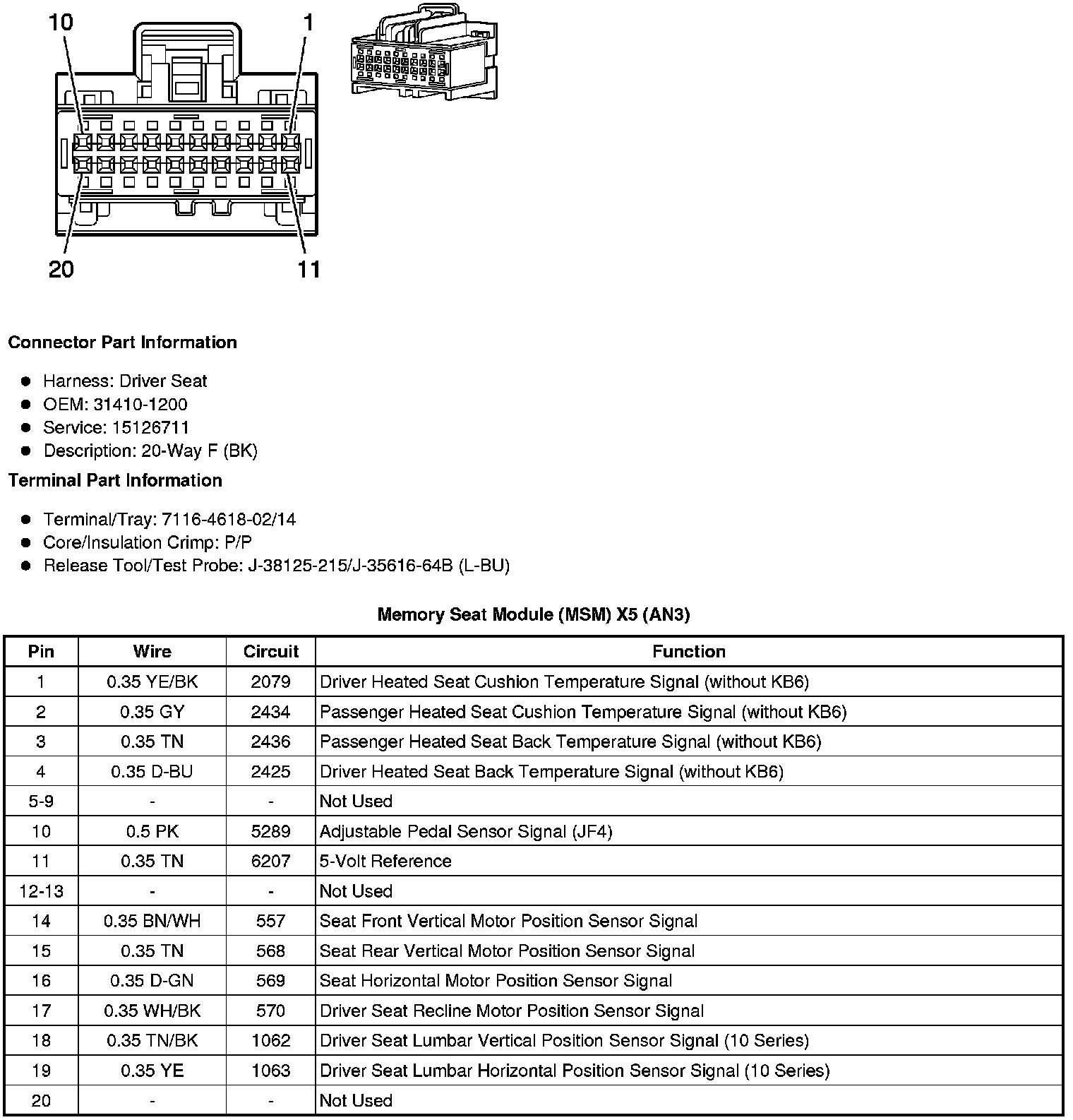

Memory Seat Module (MSM) X5 (AN3)

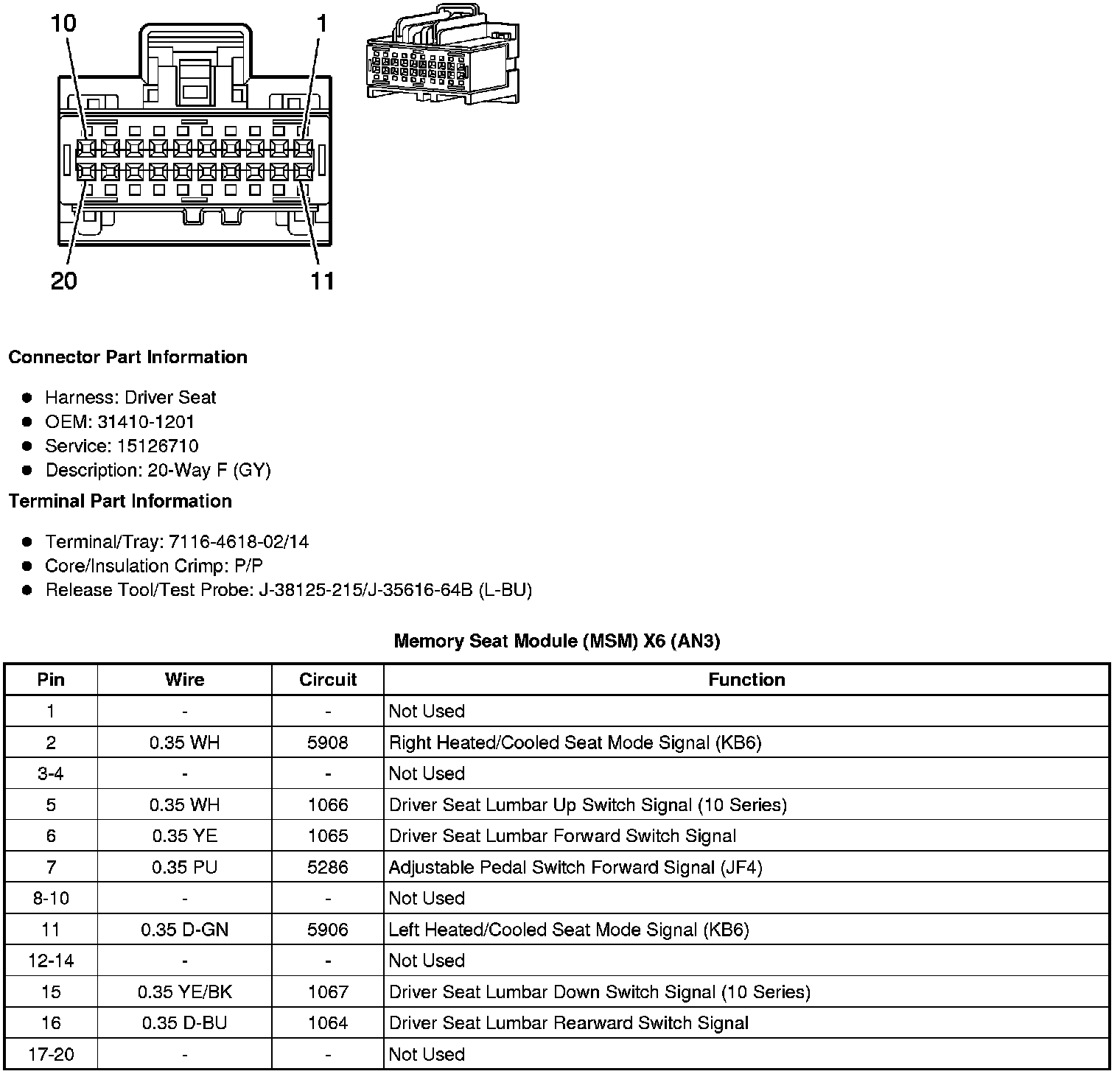

Memory Seat Module (MSM) X6 (AN3)
Memory Seat Module (MSM) X7 (AN3)
Mode Actuator (C67, C42 or CJ2)

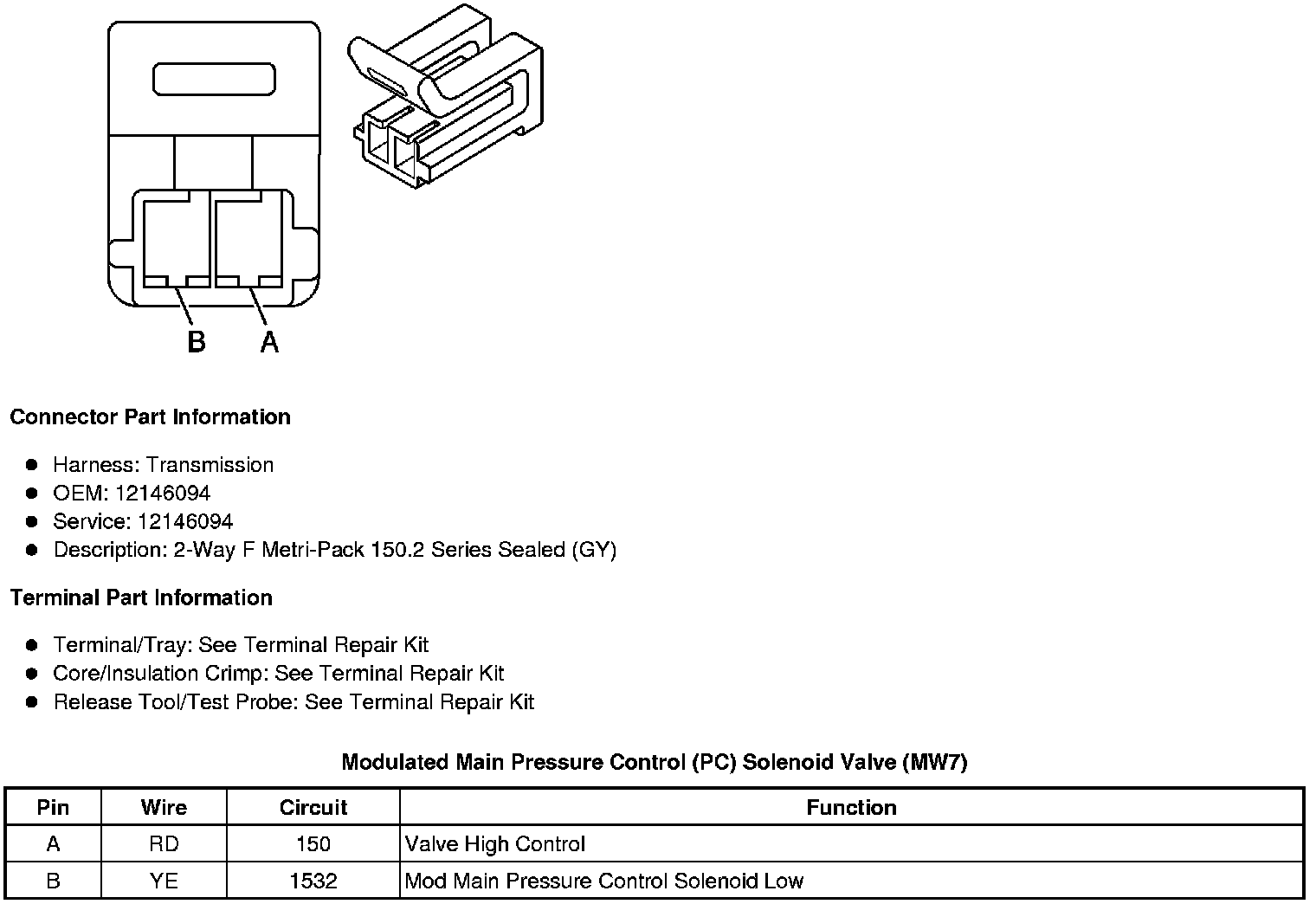

Modulated Main Pressure Control (PC) Solenoid Valve (MW7)

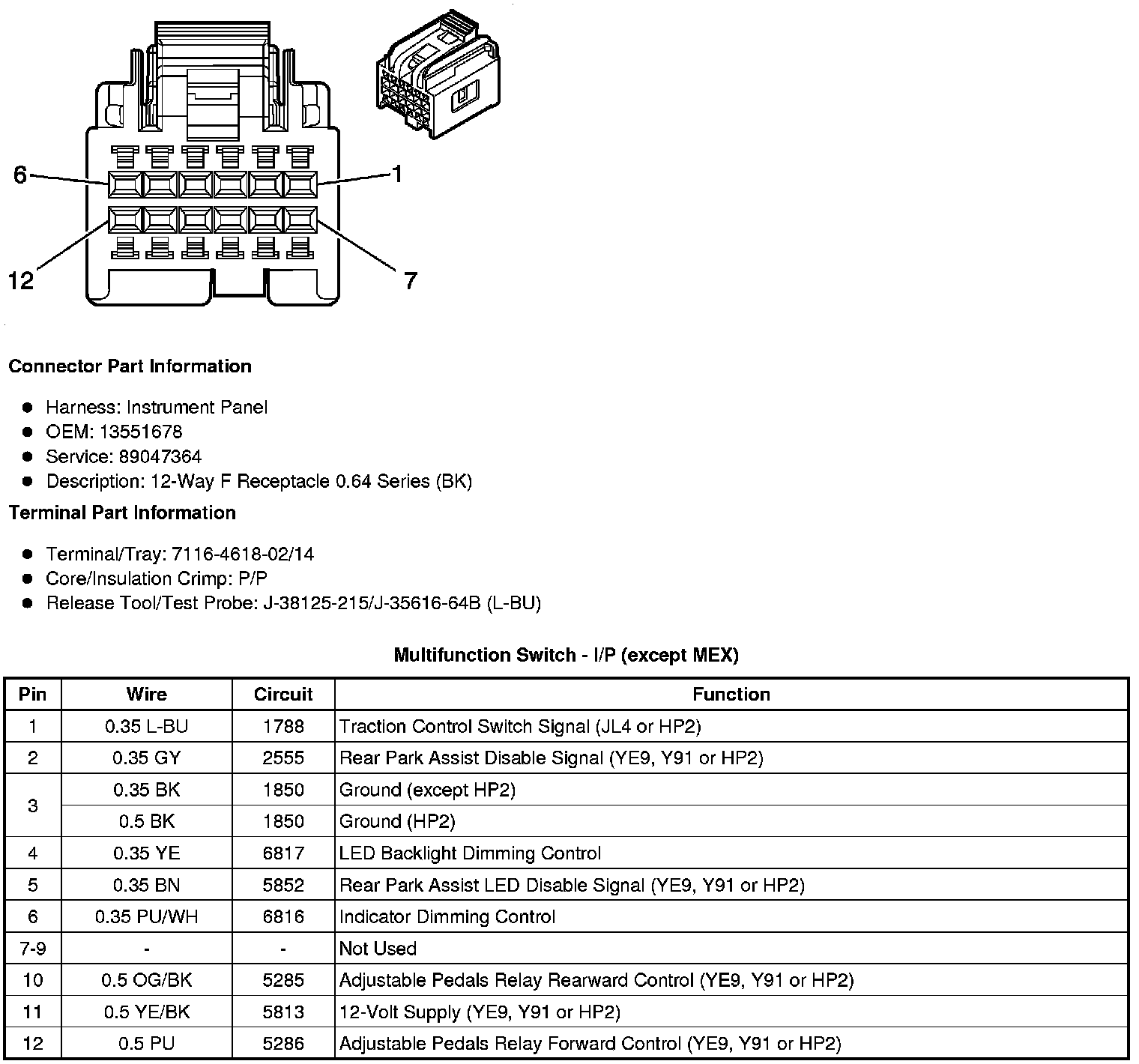

Multifunction Switch - I/P (except MEX)
Noise Compensation Microphone (UQA with Y91)

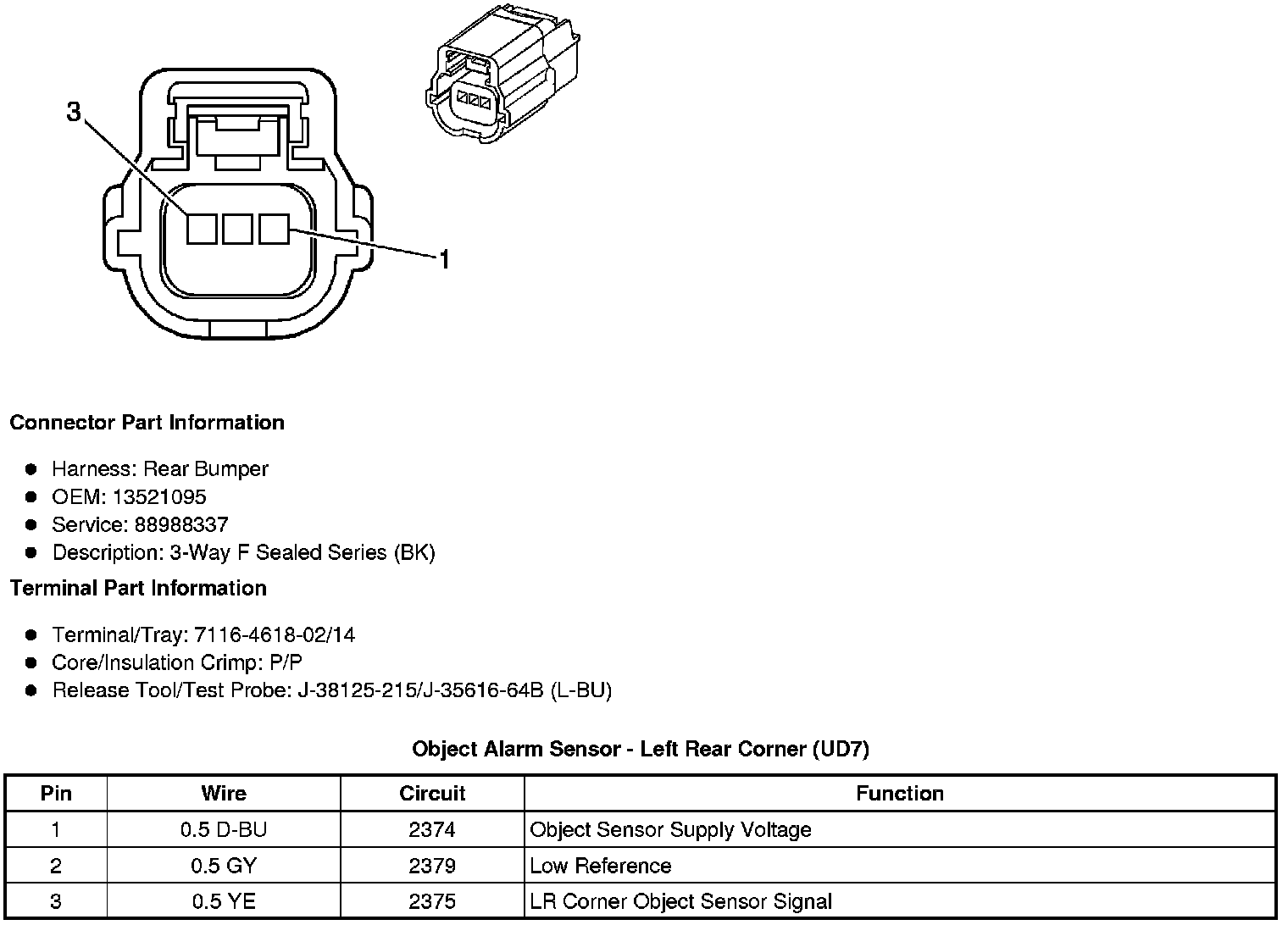

Object Alarm Sensor - Left Rear Corner (UD7)
