113. Output Speed Sensor Installation

Output Speed Sensor Installation

Special Tools

J 36850 - Transjel(R) Lubricant

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

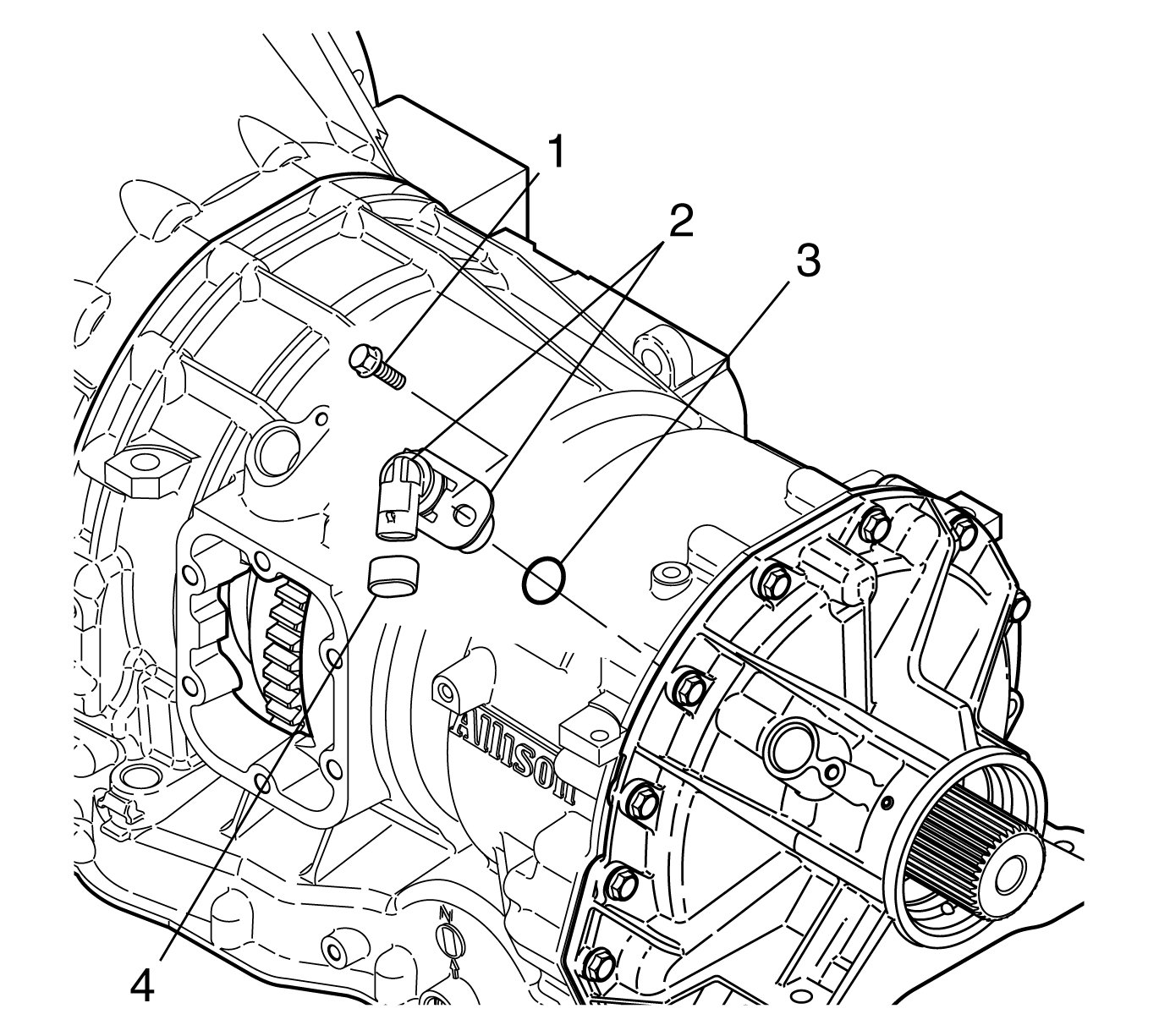

1. Install the vehicle speed sensor O-ring (3) onto the output speed sensor (OSS) (2).
2. Apply J 36850 - lubricant to the O-ring (3).
3. Install the OSS (2) into the low and reverse clutch housing, 2WD.

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the vehicle speed sensor bolt (1) into the low and reverse clutch housing, 2WD. Tighten the bolt to 12 Nm (108 lb in).
