B3823

DTC B3819, B3820, B3822, or B3823

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.

DTC Descriptors
DTC B3819 00
- Left Rear Window Up Control Circuit

DTC B3820 00
- Left Rear Window Down Control Circuit

DTC B3822 00
- Right Rear Window Up Control Circuit

DTC B3823 00
- Right Rear Window Down Control Circuit

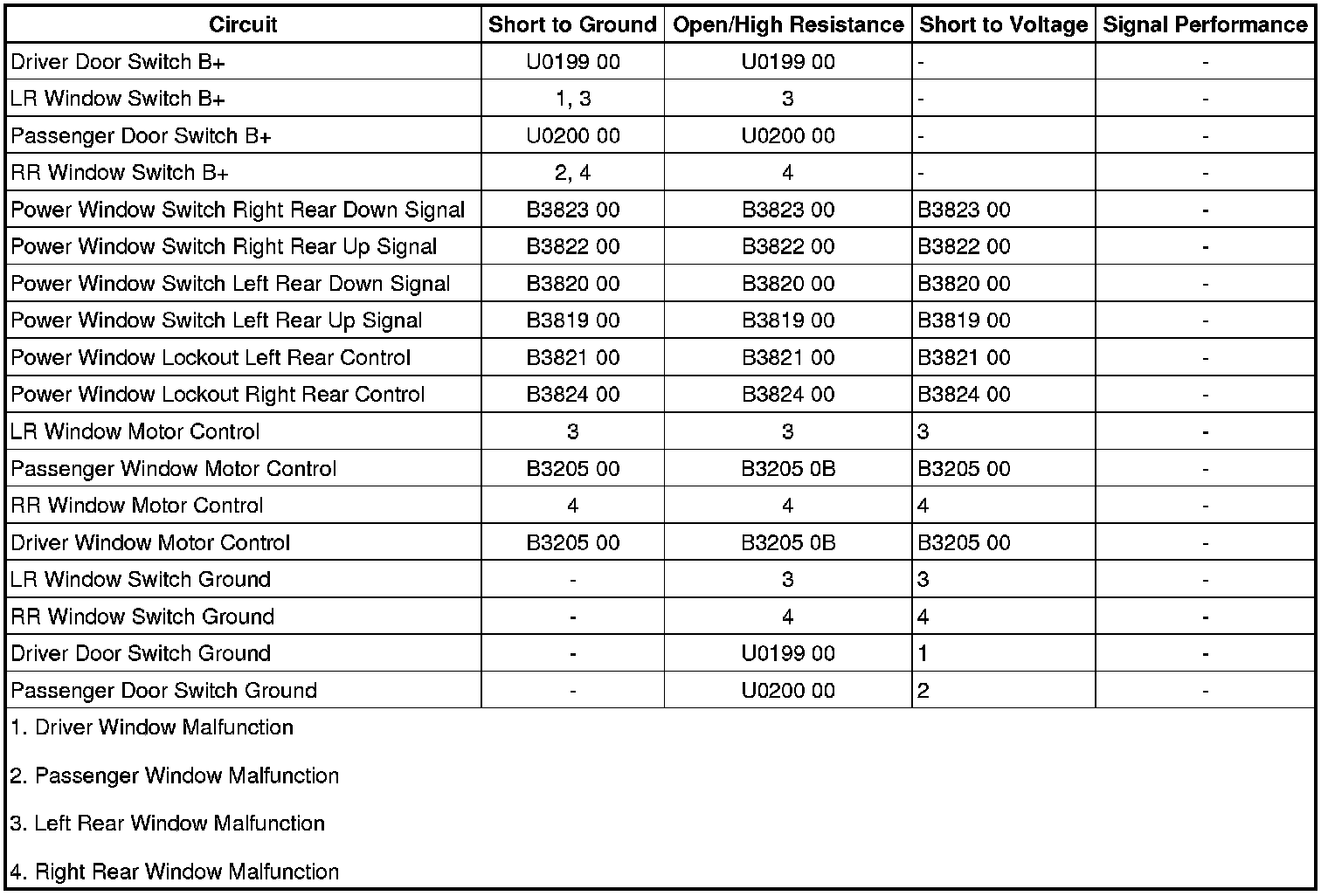

Diagnostic Fault Information





Circuit/System Description

The body control module (BCM) monitors the window UP/DOWN command from the driver door switch (DDS). When the rear window UP or DOWN command is received, the BCM sends a signal to the appropriate rear window switch. The rear window switches continuously monitor the up and down signal circuits, if no function is being commanded, the signal voltage is at approximately B+ voltage. If the UP or DOWN function is commanded, the BCM signal voltage drops approximately 0.5 volts and the appropriate rear window switch will then command the window in the UP or DOWN direction.

Conditions for Running the DTC

Battery voltage is between 9-16 volts.

Conditions for Setting the DTC

B3819 00

The BCM detects a fault in the left rear window up circuit.

B3820 00

The BCM detects a fault in the left rear window down circuit.

B3822 00

The BCM detects a fault in the right rear window up circuit.

B3823 00

The BCM detects a fault in the right rear window down circuit.

Action Taken When the DTC Sets

The left or right rear power window will be inoperative from the driver master control.

Conditions for Clearing the DTC

* The DTC will be current for as long as the fault is present.
* When the fault is no longer present, the DTC will be a history DTC.
* A history DTC will clear after 50 ignition cycles.

Reference Information
Schematic Reference

Moveable Window Schematics (Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Power Windows Description and Operation (Power Windows)
Electrical Information Reference

* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Verification

Ignition ON, command the appropriate rear door window UP and DOWN by using the window switch on the driver master control. The rear door window should perform UP and DOWN function.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the appropriate rear window switch.
2. Ignition ON, test for greater than 9 volts between the signal circuit terminal A and ground while commanding the rear window UP by using the window switch on the driver master control.

• If less than the specified range, test the signal circuit for a short to ground or open/high resistance. If the circuit tests normal, replace the BCM.

3. Test for greater than 9 volts between the signal circuit terminal C and ground while commanding the rear window DOWN by using the window switch on the driver master control.

• If less than the specified range, test the signal circuit for a short to ground or open/high resistance. If the circuit tests normal, replace the BCM.

4. If all circuits test normal, replace the rear window switch.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Rear Side Door Window Switch Replacement (Crew Cab) (Rear Side Door Window Switch Replacement (Crew Cab))Rear Side Door Window Switch Replacement (Extended Cab) (Rear Side Door Window Switch Replacement (Extended Cab))
* Control Module References (Programming and Relearning) for BCM replacement, setup and programming
