125. Lower Oil Pan Installation

Lower Oil Pan Installation

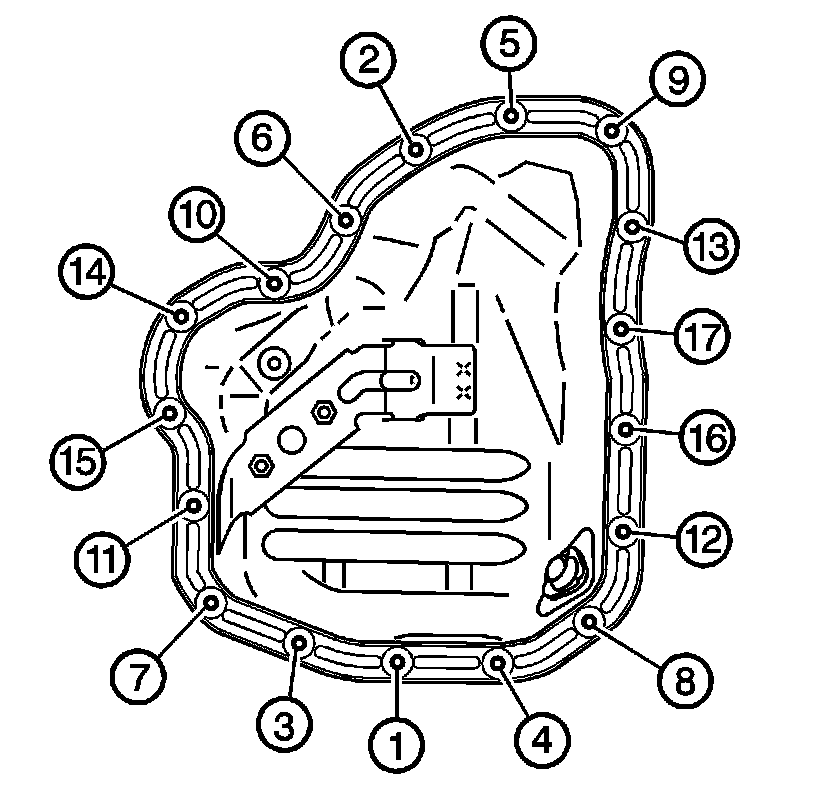

1. Apply a 2-3 mm wide by 0.5-1.5 mm high bead of GM P/N 12378521 (Canadian P/N 88901148) sealant to the lower oil pan mating surface.

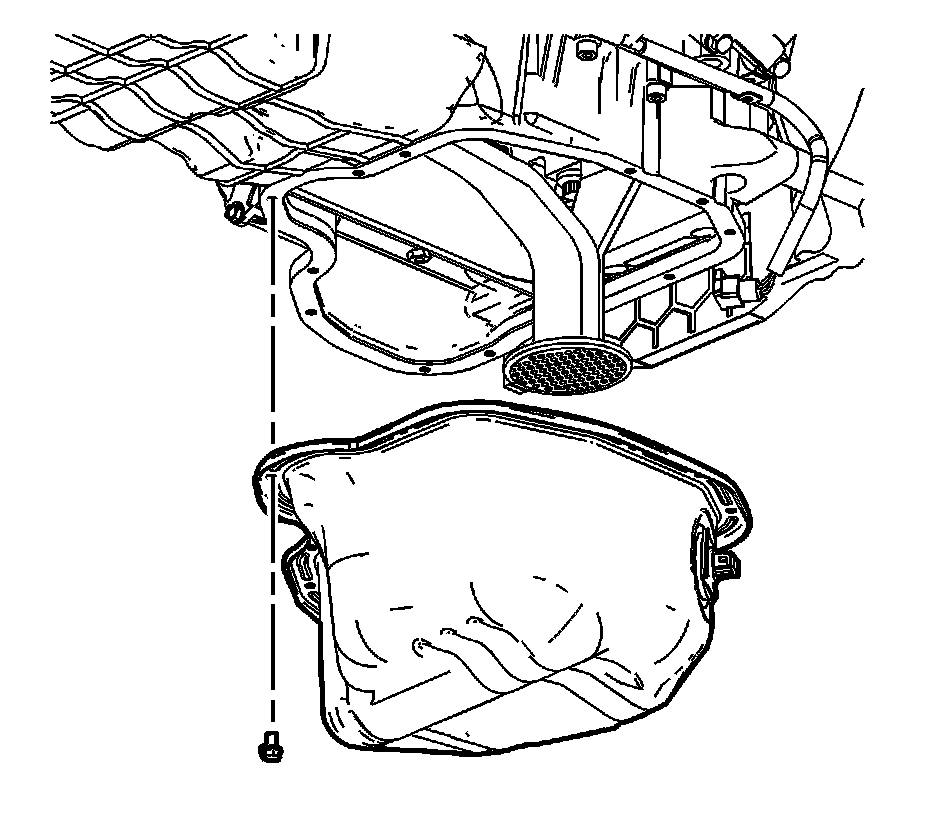

2. Install the lower oil pan.





Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the lower oil pan bolts and nuts and tighten to 10 Nm (89 lb in).

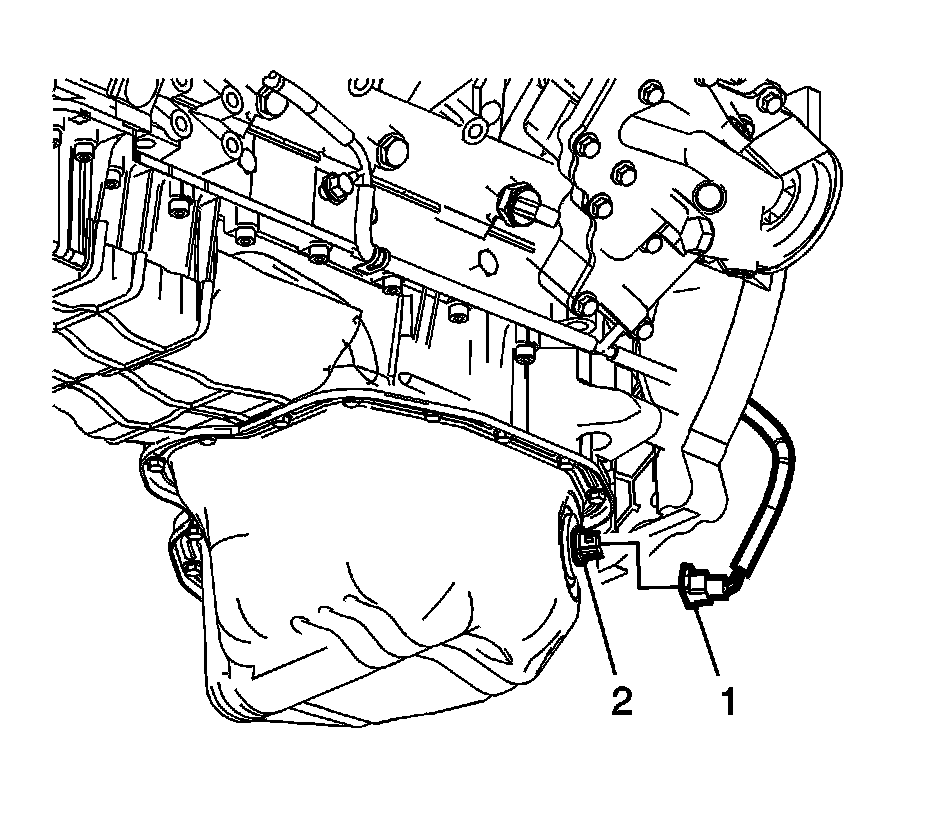

4. Connect the oil level sensor.
