Auxiliary Battery Negative Cable REPLACEMENT
Auxiliary Battery Negative Cable Replacement
Removal Procedure
Warning: Refer to Battery Disconnect Warning (Service Precautions).
1. Disconnect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) (Service and Repair)Battery Negative Cable Disconnection and Connection (Dual Batteries) (Service and Repair)Battery Negative Cable Disconnection and Connection (Auxiliary Battery) (Service and Repair).

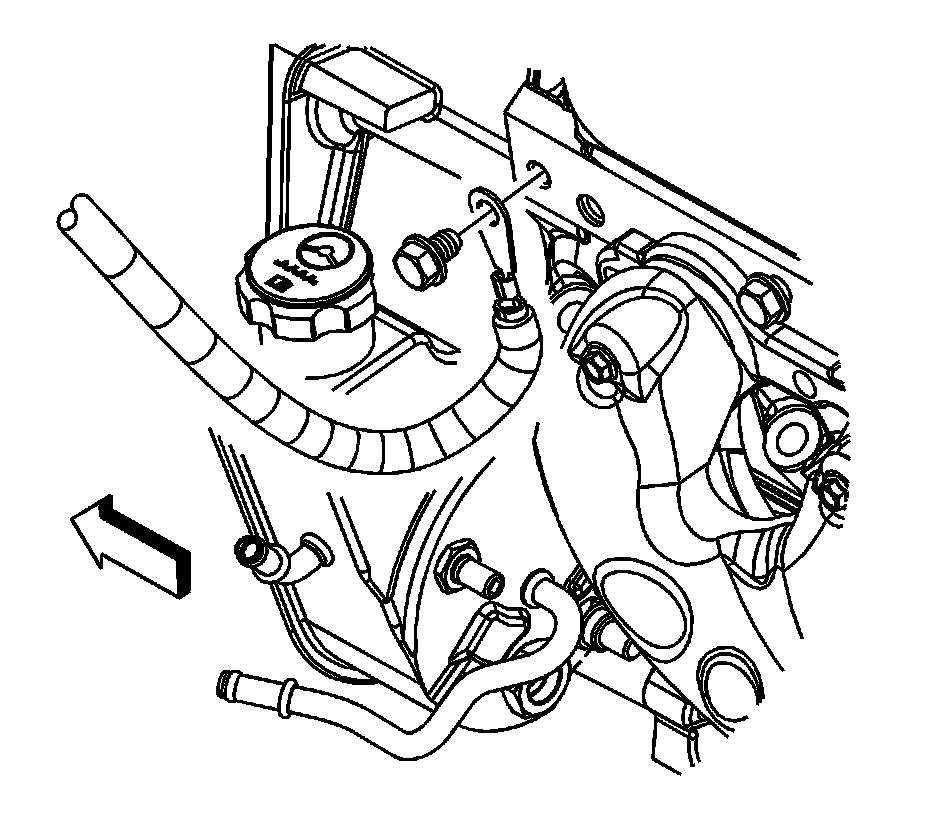

2. Remove the auxiliary battery negative cable ground terminal bolt from the left cylinder head.

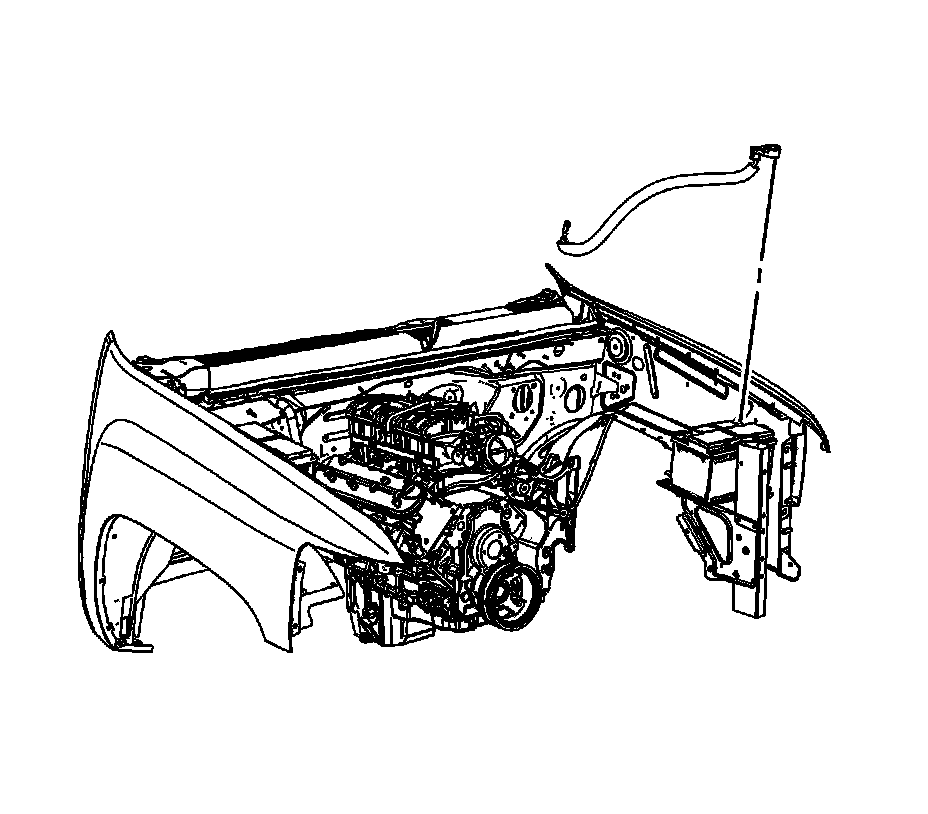

3. Remove the auxiliary battery negative cable from the vehicle.
Installation Procedure
1. Install the auxiliary battery negative cable to the vehicle.
Caution: Refer to Fastener Caution (Fastener Caution).
2. Position the auxiliary battery negative cable ground terminal to the left cylinder head and install the bolt and tighten to 25 Nm (18 lb ft).
3. Connect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) (Service and Repair)Battery Negative Cable Disconnection and Connection (Dual Batteries) (Service and Repair)Battery Negative Cable Disconnection and Connection (Auxiliary Battery) (Service and Repair).
