Rear Vision Camera: Locations

Luggage Compartment/Rear of Vehicle Component Views

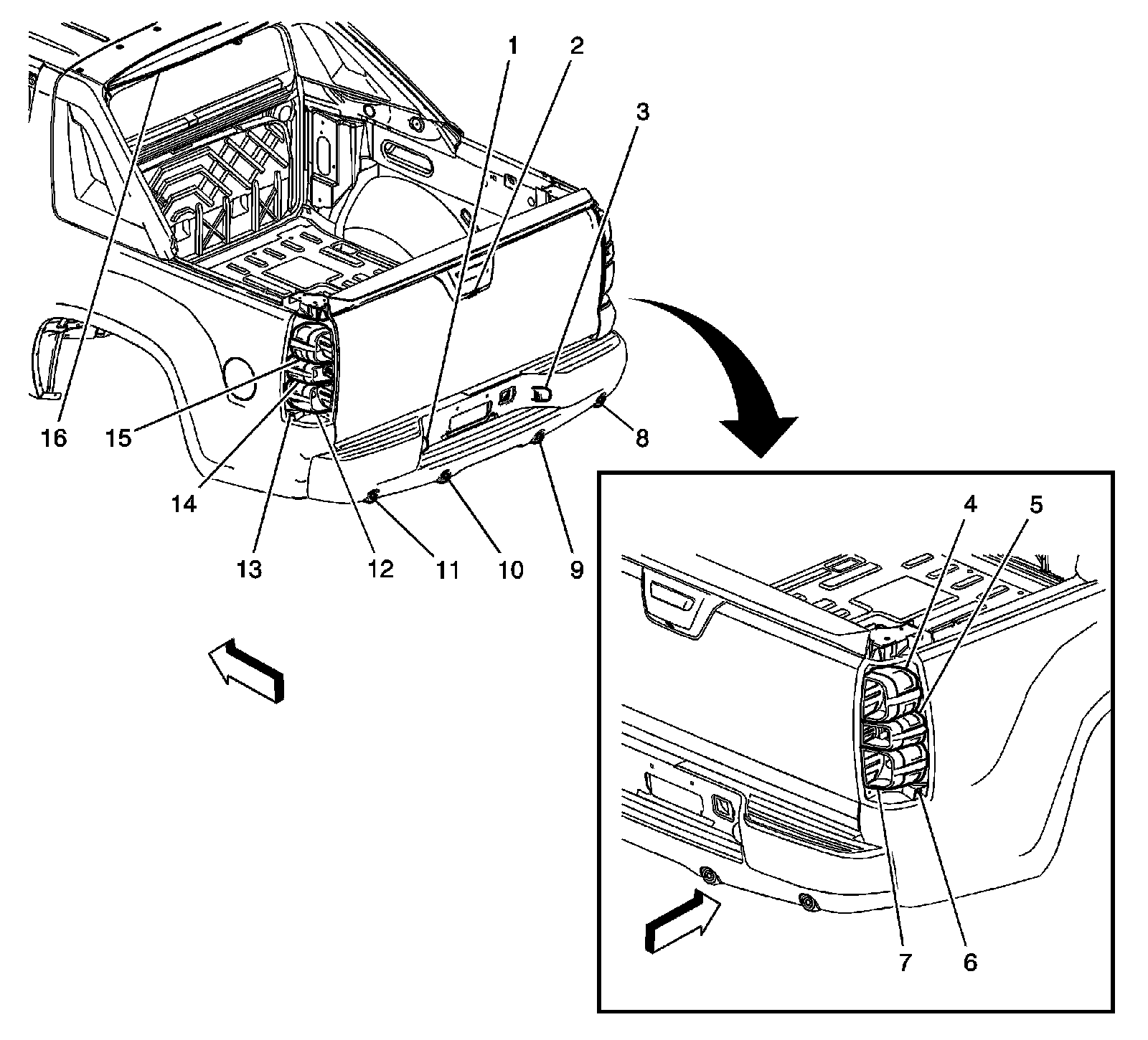

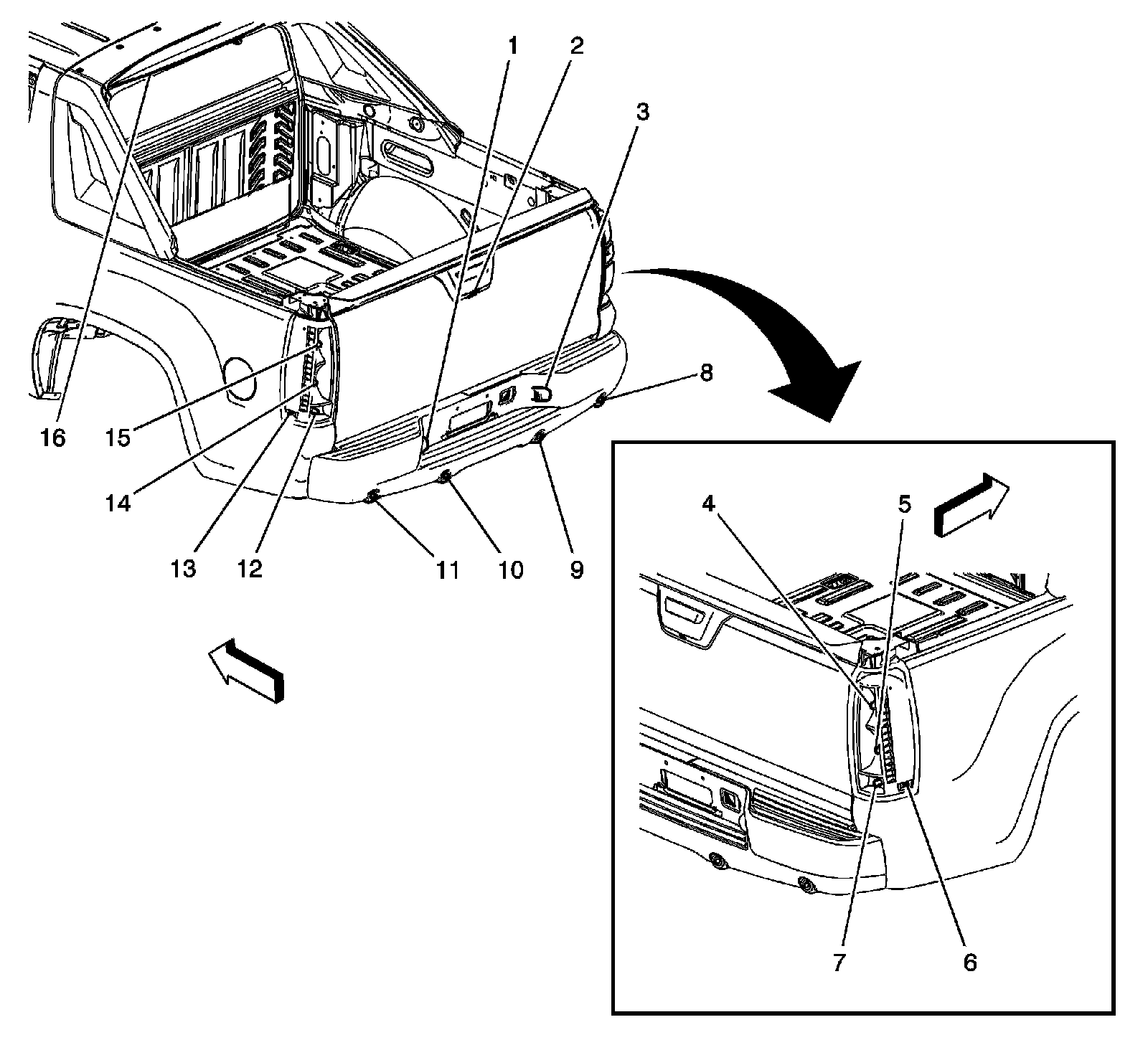

Rear of Vehicle Components (Z75 without E52 or TB7)

1 - License Lamp - Left
2 - Rearview Camera (UVC)
3 - License Lamp - Right
4 - Tail/Stop and Turn Signal Lamp - Upper Right
5 - Tail/Stop and Turn Signal Lamp - Lower Right
6 - Side Marker Lamp - Right Rear
7 - Backup Lamp - Right
8 - Object Alarm Sensor - Right Rear Corner (UD7)
9 - Object Alarm Sensor - Right Rear Middle (UD7)
10 - Object Alarm Sensor - Left Rear Middle (UD7)
11 - Object Alarm Sensor - Left Rear Corner (UD7)
12 - Backup Lamp - Left
13 - Side Marker Lamp - Left Rear
14 - Tail/Stop and Turn Signal Lamp - Lower Left
15 - Tail/Stop and Turn Signal Lamp - Upper Left
16 - Center High Mounted Stop Lamp (CHMSL)

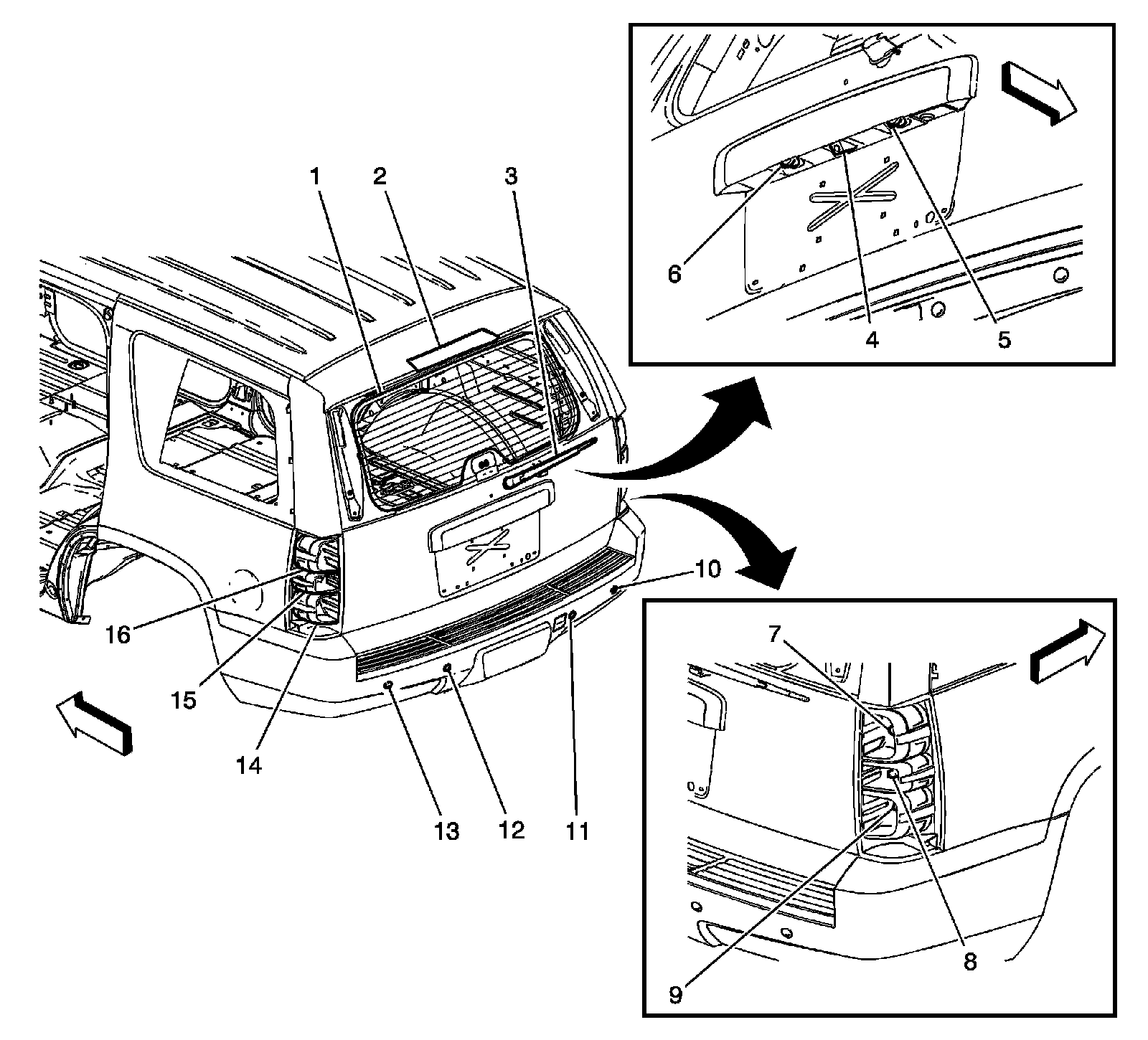

Rear of Vehicle Components (X88 without E52 or TB7)

1 - Rear Window Defogger Grid
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Rear Window Wiper
4 - Rearview Camera (UVC)
5 - License Lamp - Left
6 - License Lamp - Right
7 - Tail/Stop Lamp - Right
8 - Backup Lamp - Right
9 - Tail/Turn Signal Lamp - Right
10 - Object Alarm Sensor - Right Rear Corner (UD7)
11 - Object Alarm Sensor - Right Rear Middle (UD7)
12 - Object Alarm Sensor - Left Rear Middle (UD7)
13 - Object Alarm Sensor - Left Rear Corner (UD7)
14 - Tail/Turn Signal Lamp - Left
15 - Backup Lamp - Left
16 - Tail/Stop Lamp - Left

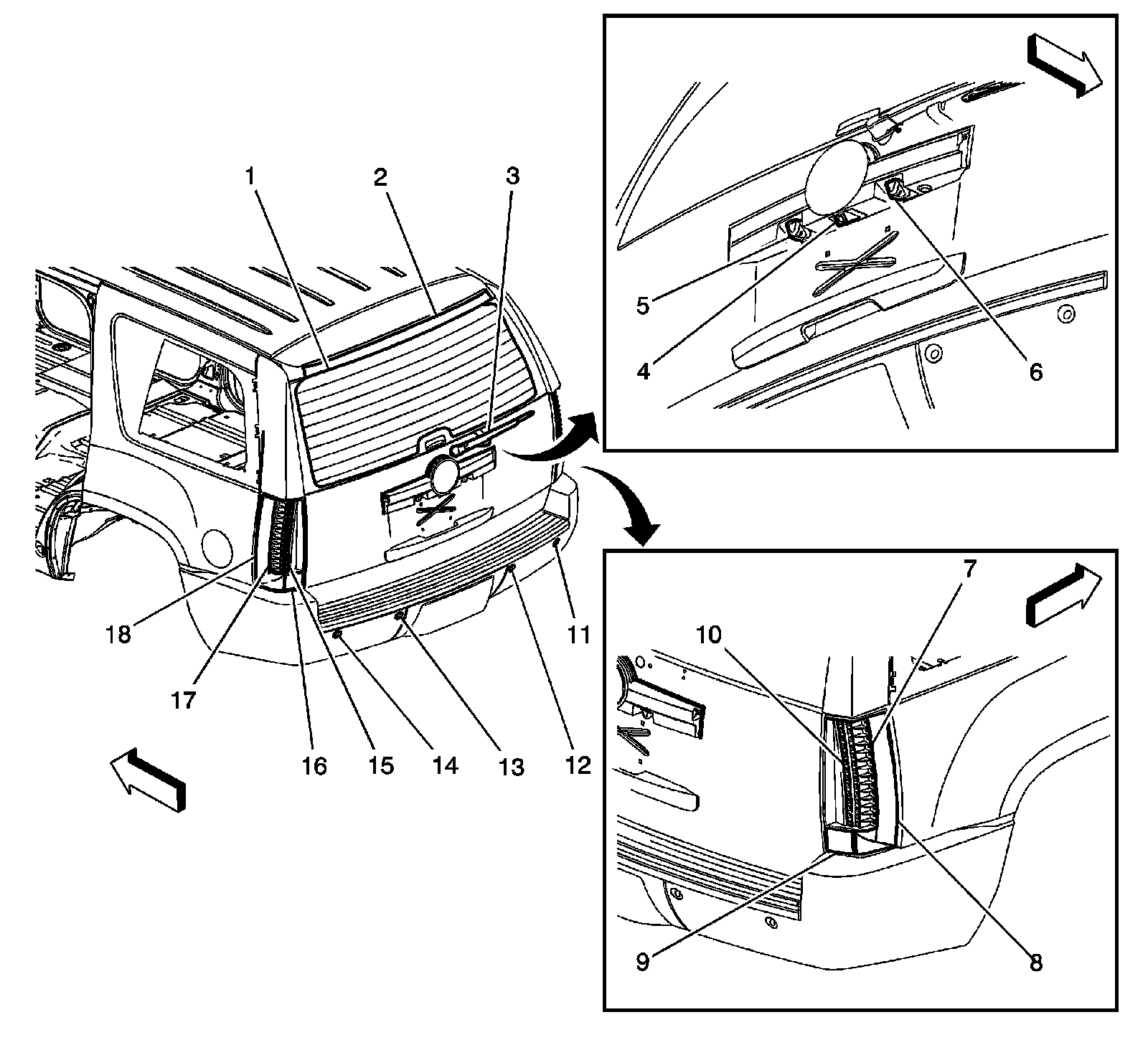

Rear of Vehicle Components (Z75 with E52)

1 - Rear Window Defogger Grid
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Rear Window Wiper
4 - Rearview Camera (UVC)
5 - License Lamp - Left
6 - License Lamp - Right
7 - Tail Lamp Circuit Board - Right
8 - Side Marker Lamp - Right Rear
9 - Backup Lamp - Right
10 - Tail Lamp Circuit Board - Right
11 - Object Alarm Sensor - Right Rear Corner (UD7)
12 - Object Alarm Sensor - Right Rear Middle (UD7)
13 - Object Alarm Sensor - Left Rear Middle (UD7)
14 - Object Alarm Sensor - Left Rear Corner (UD7)
15 - Tail Lamp Circuit Board - Left
16 - Backup Lamp - Left
17 - Tail Lamp Circuit Board - Left
18 - Side Marker Lamp - Left Rear
