Solar Sensor: Diagrams




Component Connector End Views

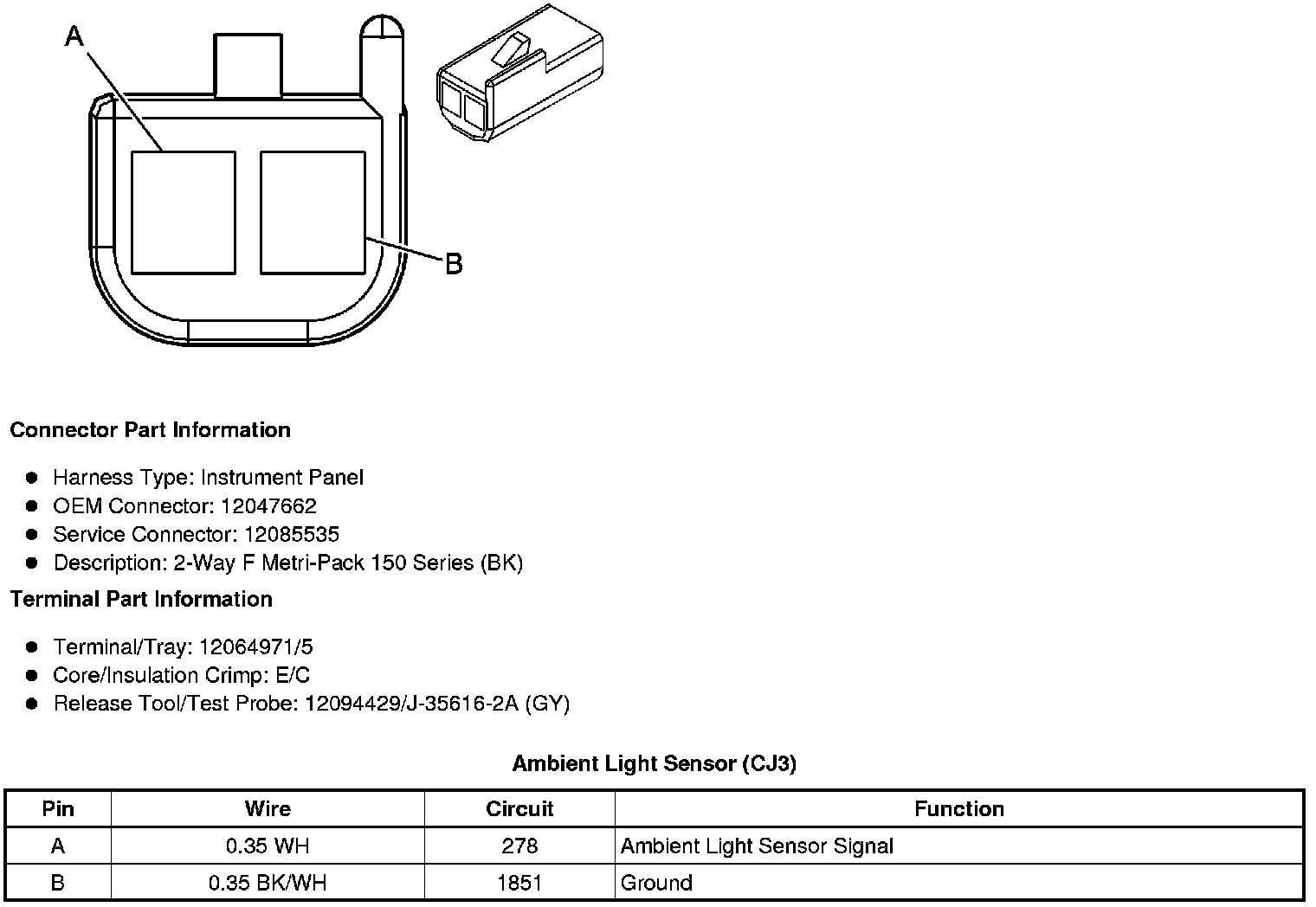

Ambient Light Sensor (CJ3)

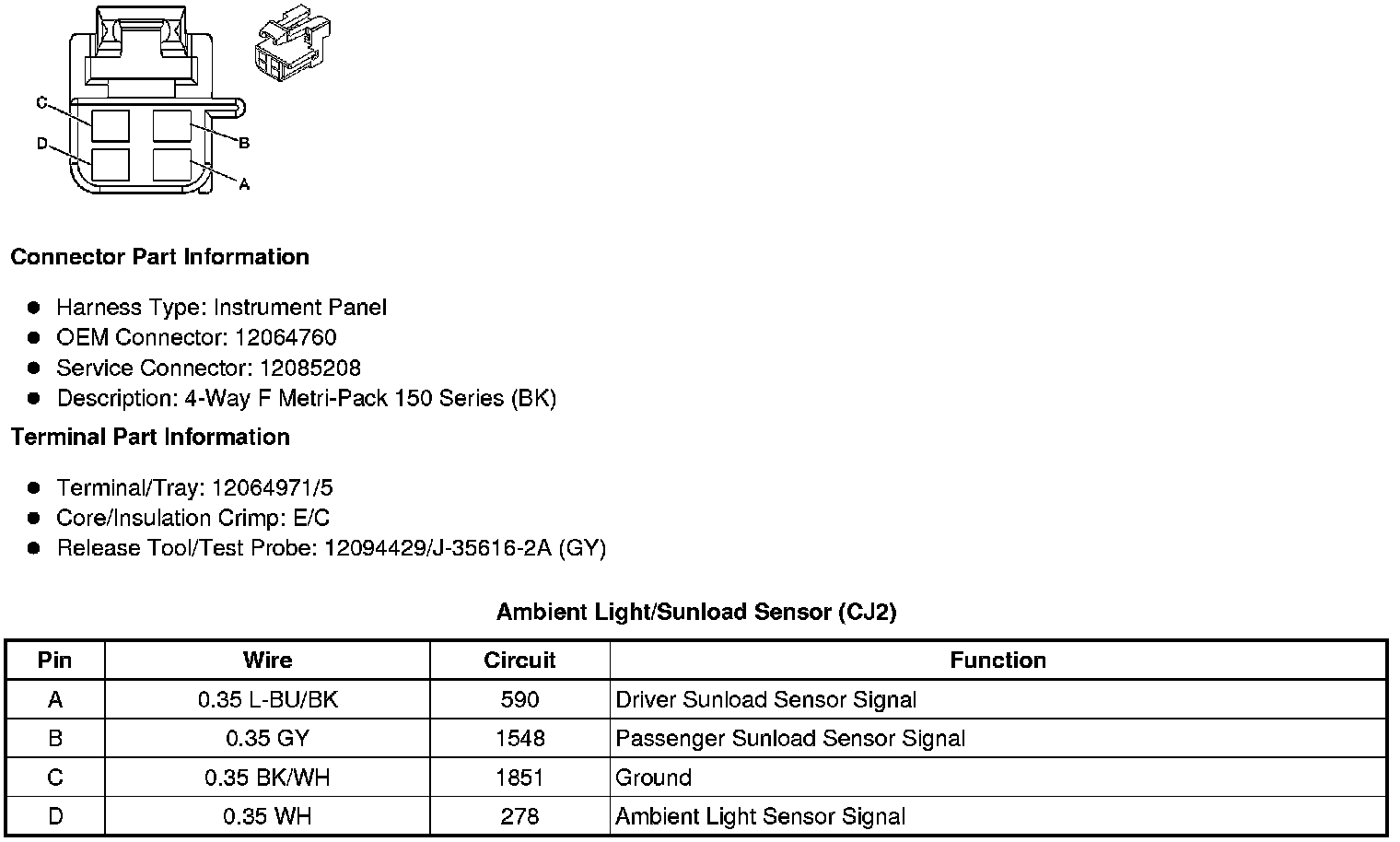

Ambient Light/Sunload Sensor (CJ2)
