Lateral Accelerometer: Diagrams
Component Connector End Views

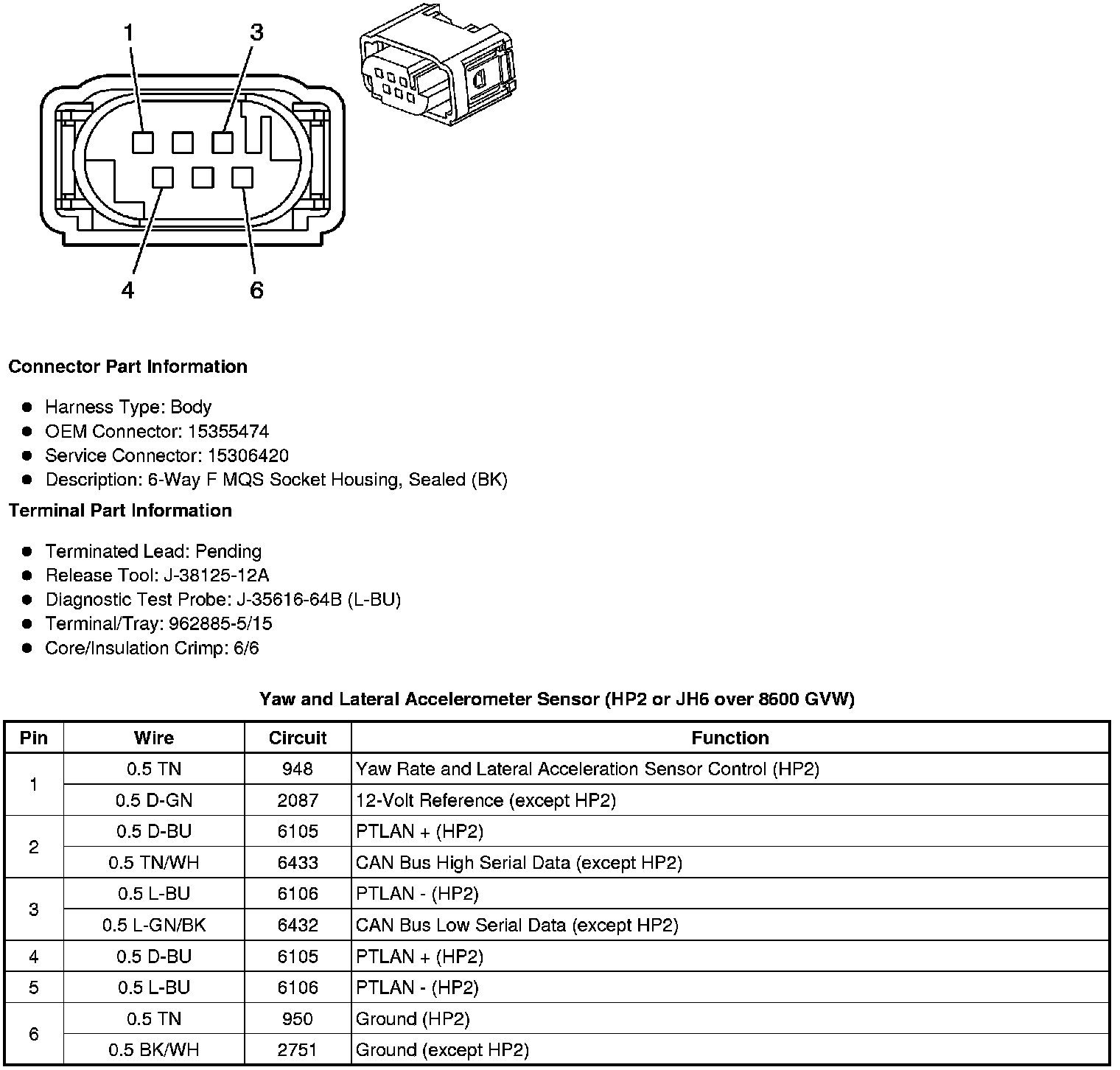

Yaw and Lateral Accelerometer Sensor (HP2 or JH6 over 8600 GVW)

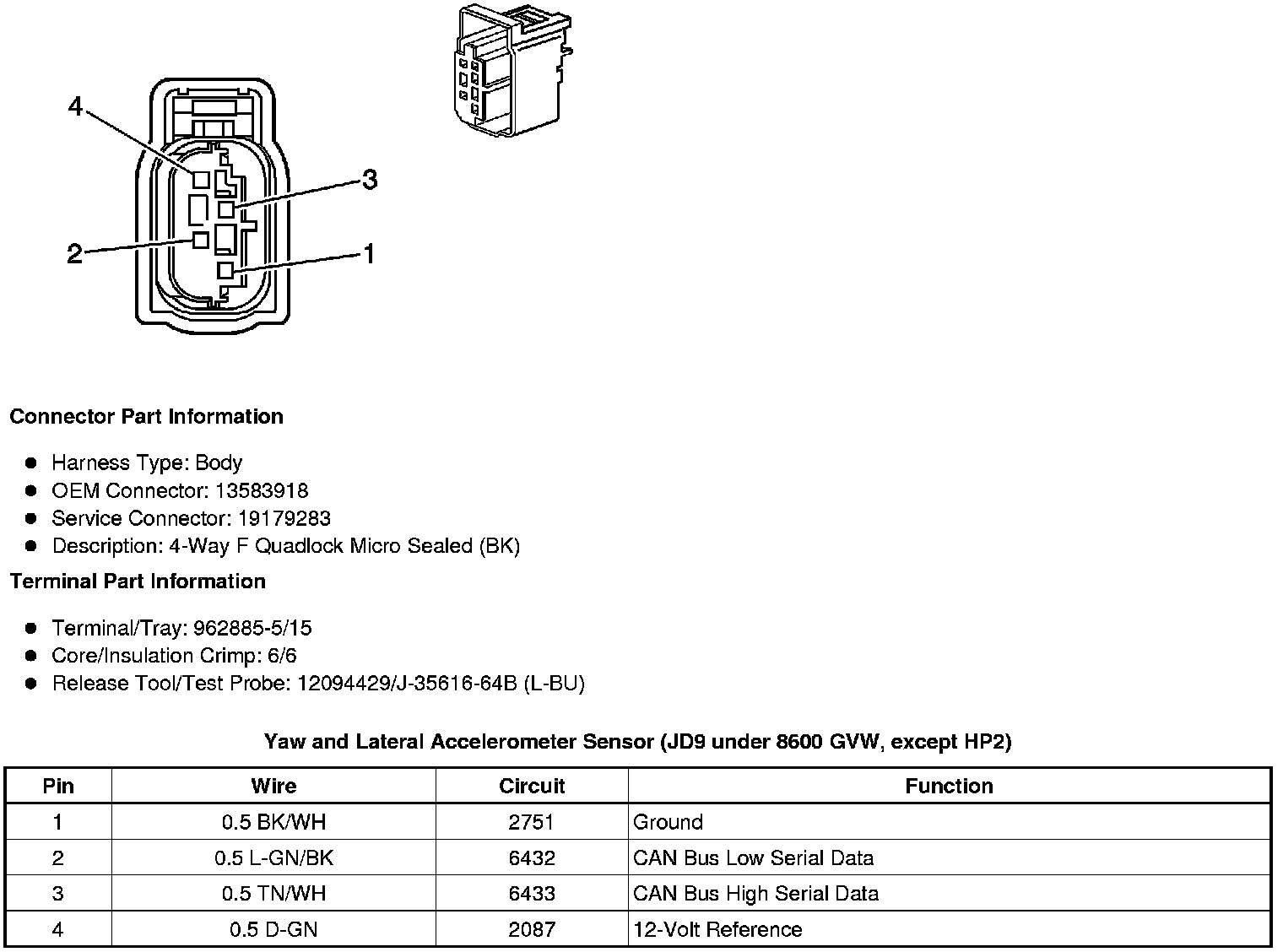

Yaw and Lateral Accelerometer Sensor (JD9 under 8600 GVW, except HP2)
Component Connector End Views
Yaw and Lateral Accelerometer Sensor (HP2 or JH6 over 8600 GVW)
Yaw and Lateral Accelerometer Sensor (JD9 under 8600 GVW, except HP2)
