X372
X372

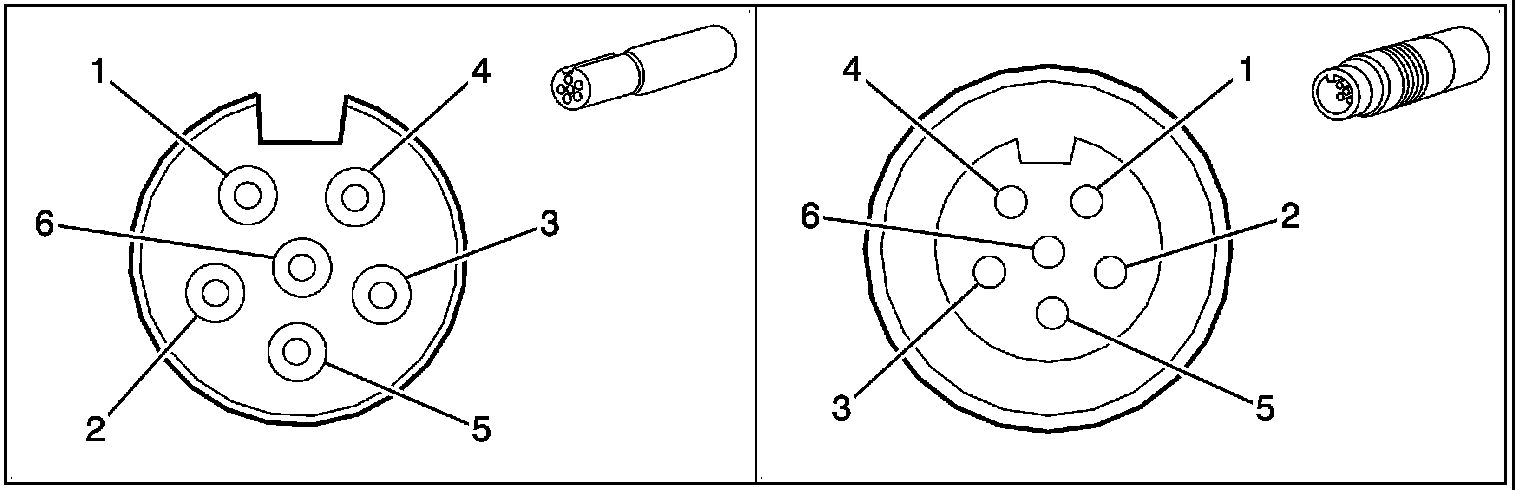

Inline Harness Connector End Views

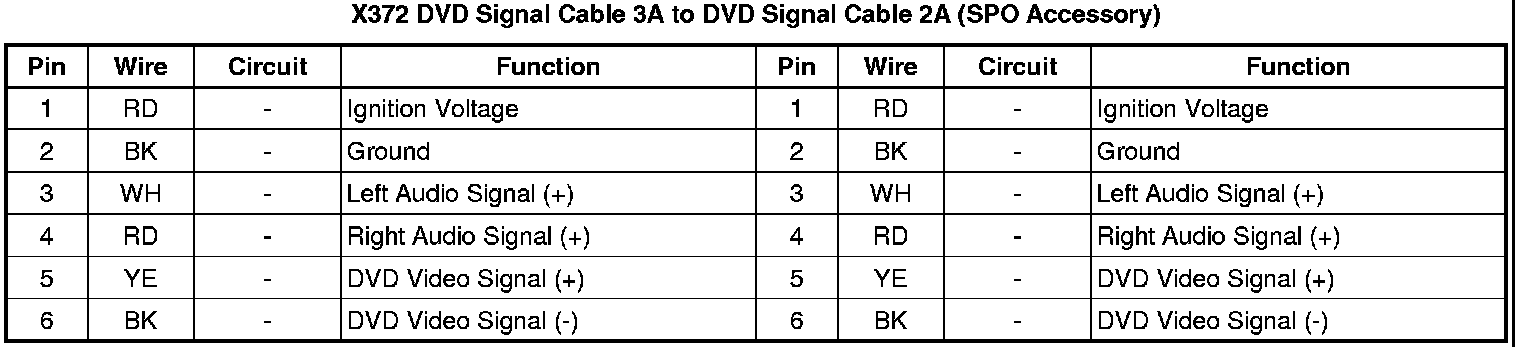

X372 DVD Signal Cable 3A to DVD Signal Cable 2A (SPO Accessory)
