Body Control Module: Diagrams




Component Connector End Views

Body Control Module (BCM) X1

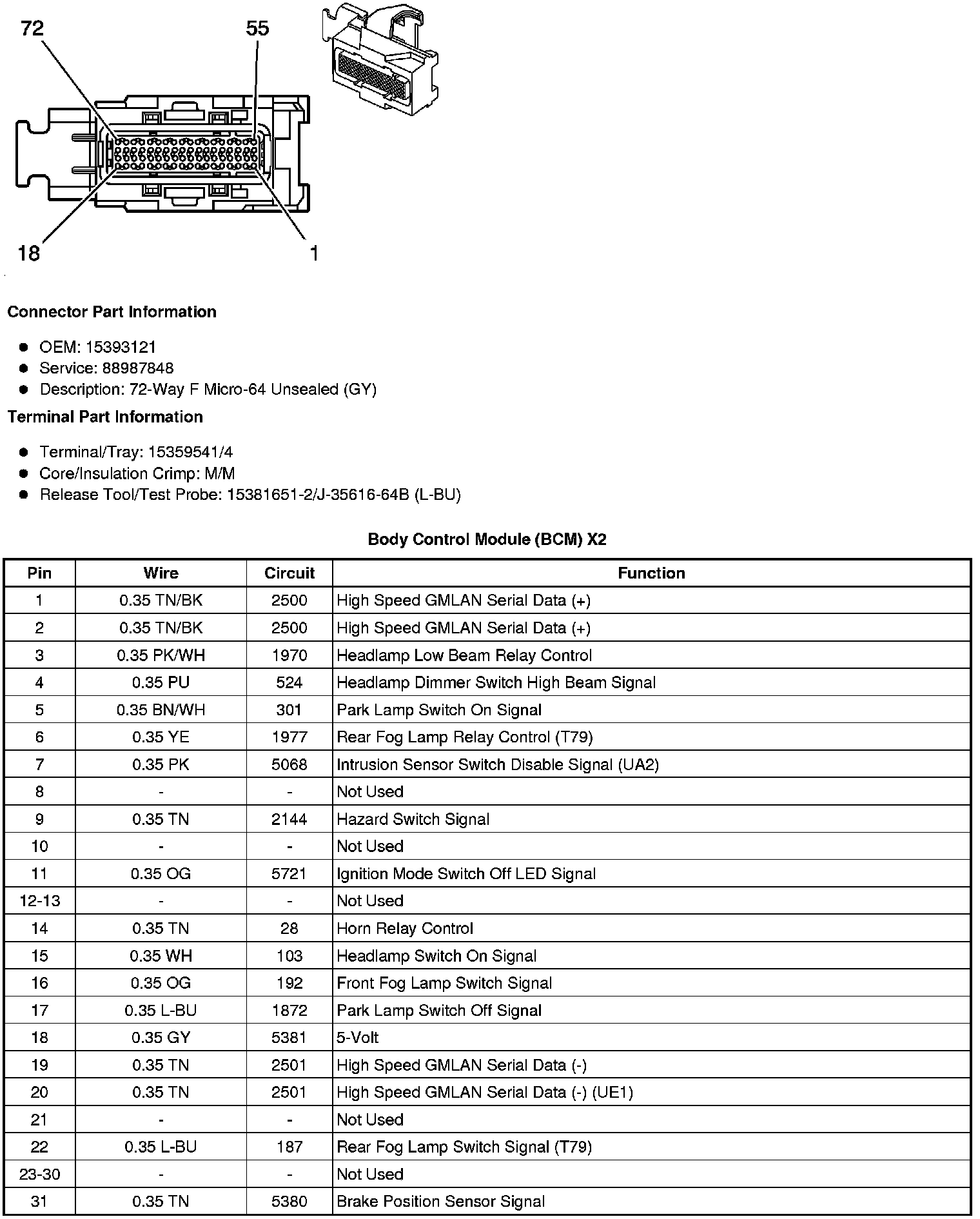

Body Control Module (BCM) X2

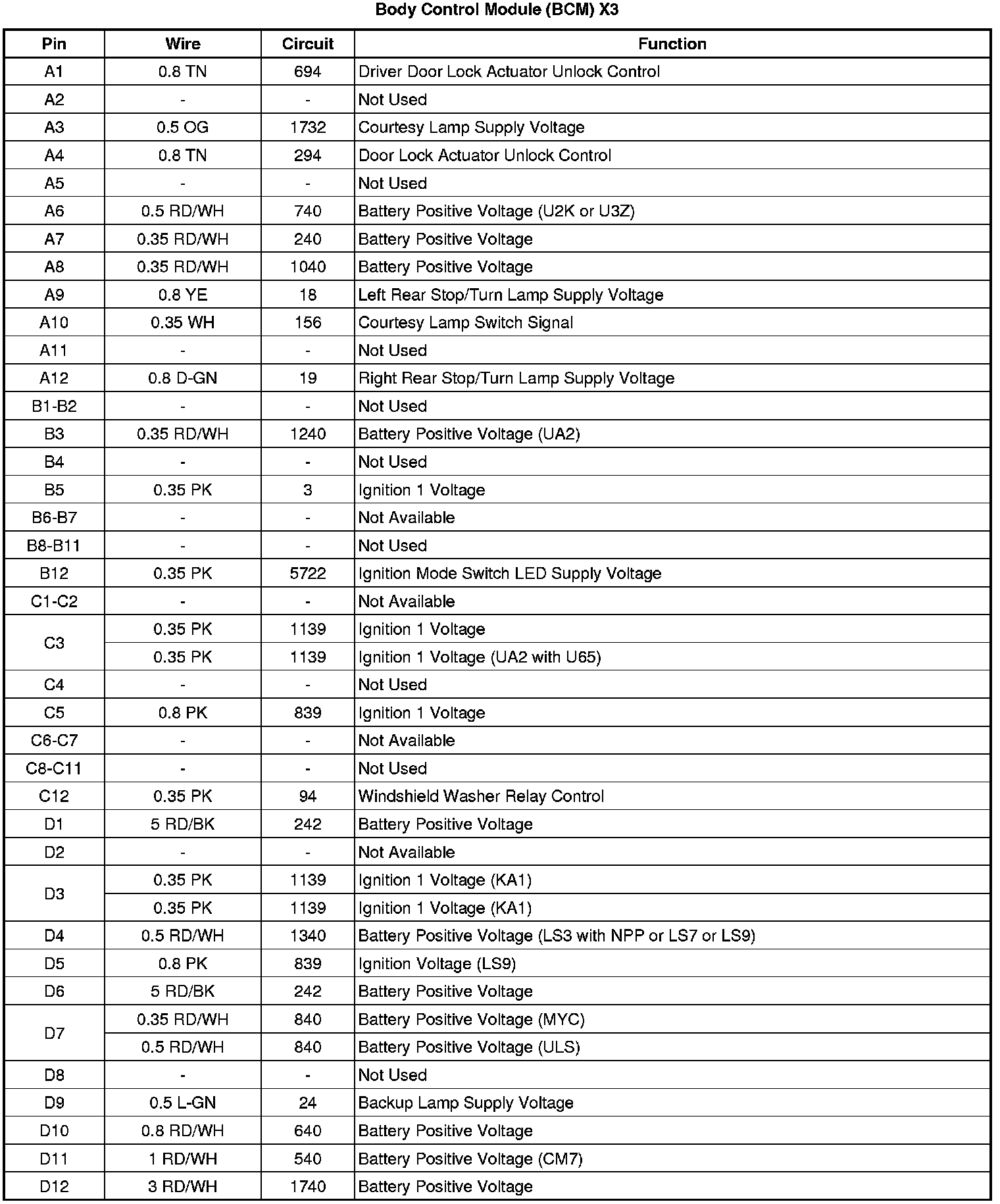

Body Control Module (BCM) X3









Body Control Module (BCM) X4
