Driver Seat Frame Replacement




Driver Seat Frame Replacement

Removal Procedure

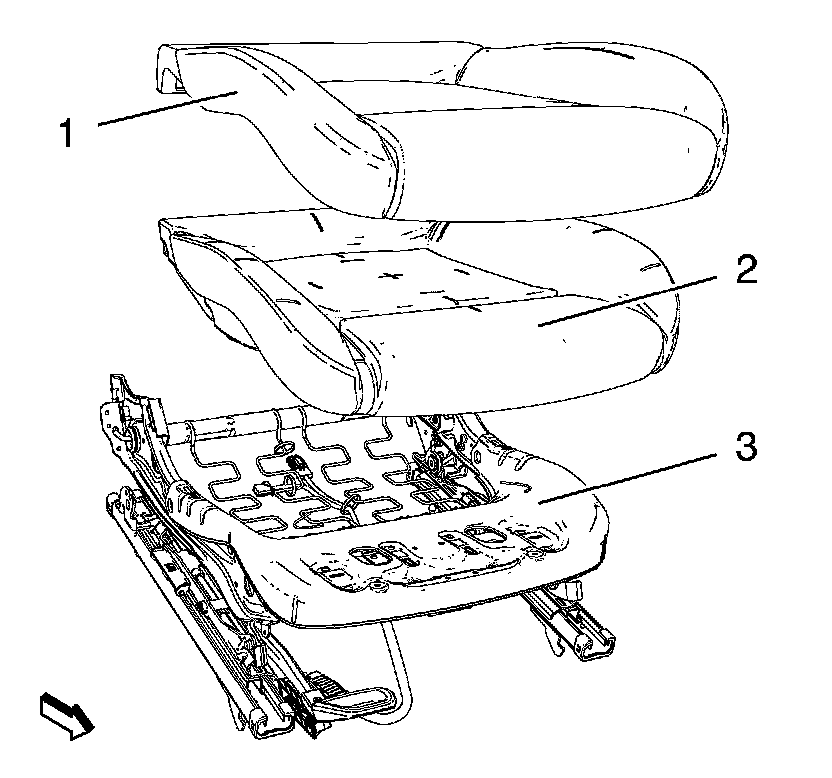

1. Remove front seat cushion cover (1) and pad (2) from frame (3). Refer to Front Seat Cushion Cover and Pad Replacement (Front Seat Cushion Cover and Pad Replacement)

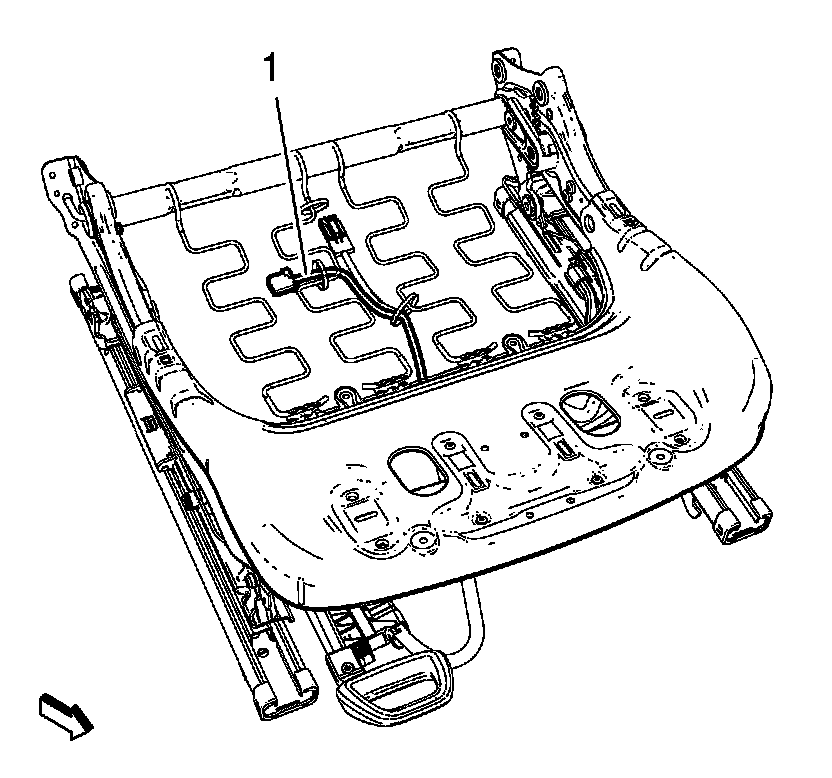

2. Remove the wire harness (1), if equipped.

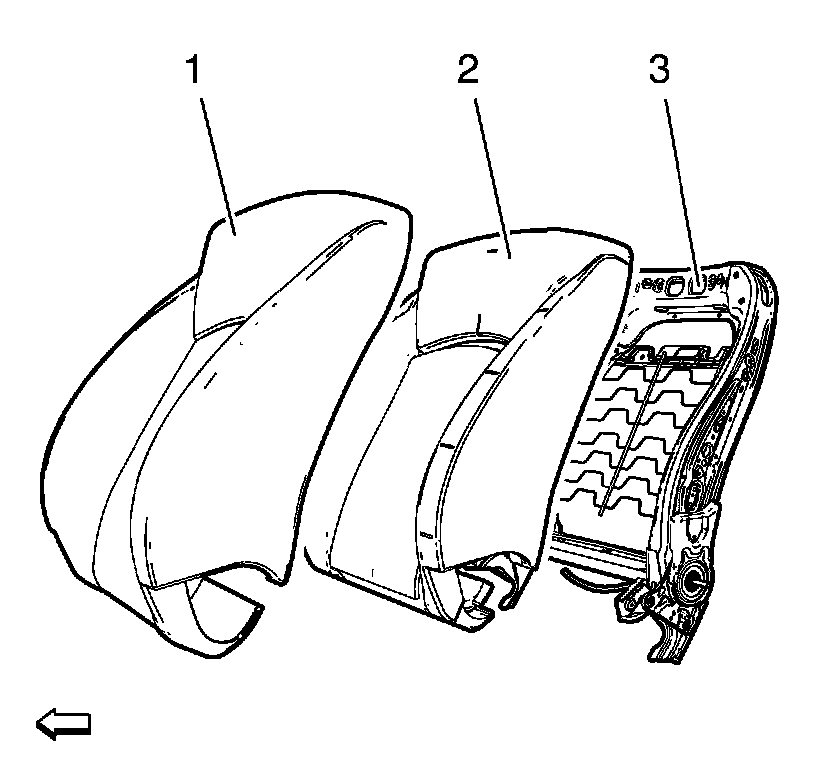

3. Remove front seat back cushion cover (1) and pad (2) from frame (3). Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Driver or Passenger Seat Back Cushion Cover and Pad Replacement)

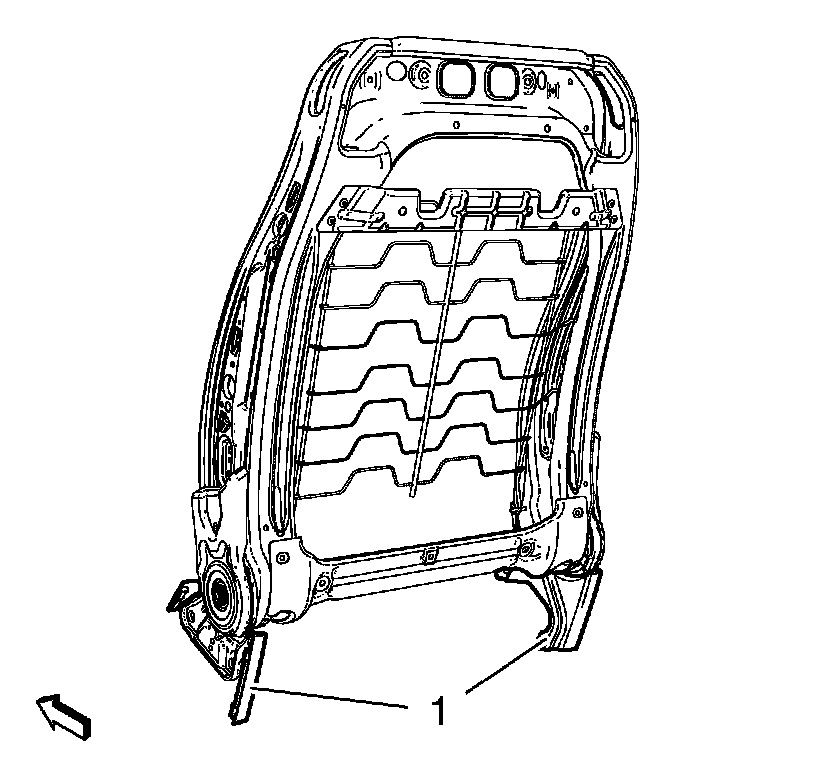

4. Remove inner seat frame cover (1).
5. Remove the wire harness, if equipped.

Installation Procedure




1. Install the wire harness, if equipped.
2. Install inner seat frame cover (1).




3. Install front seat back cushion cover (1) and pad (2) to frame (3). Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Driver or Passenger Seat Back Cushion Cover and Pad Replacement)




4. Install the wire harness (1), if equipped.




5. Install front seat cushion cover (1) and pad (2) to frame (3). Refer to Front Seat Cushion Cover and Pad Replacement (Front Seat Cushion Cover and Pad Replacement)
