Window Motor - Driver (AEC) M74D
Window Motor - Driver (AEC) M74D

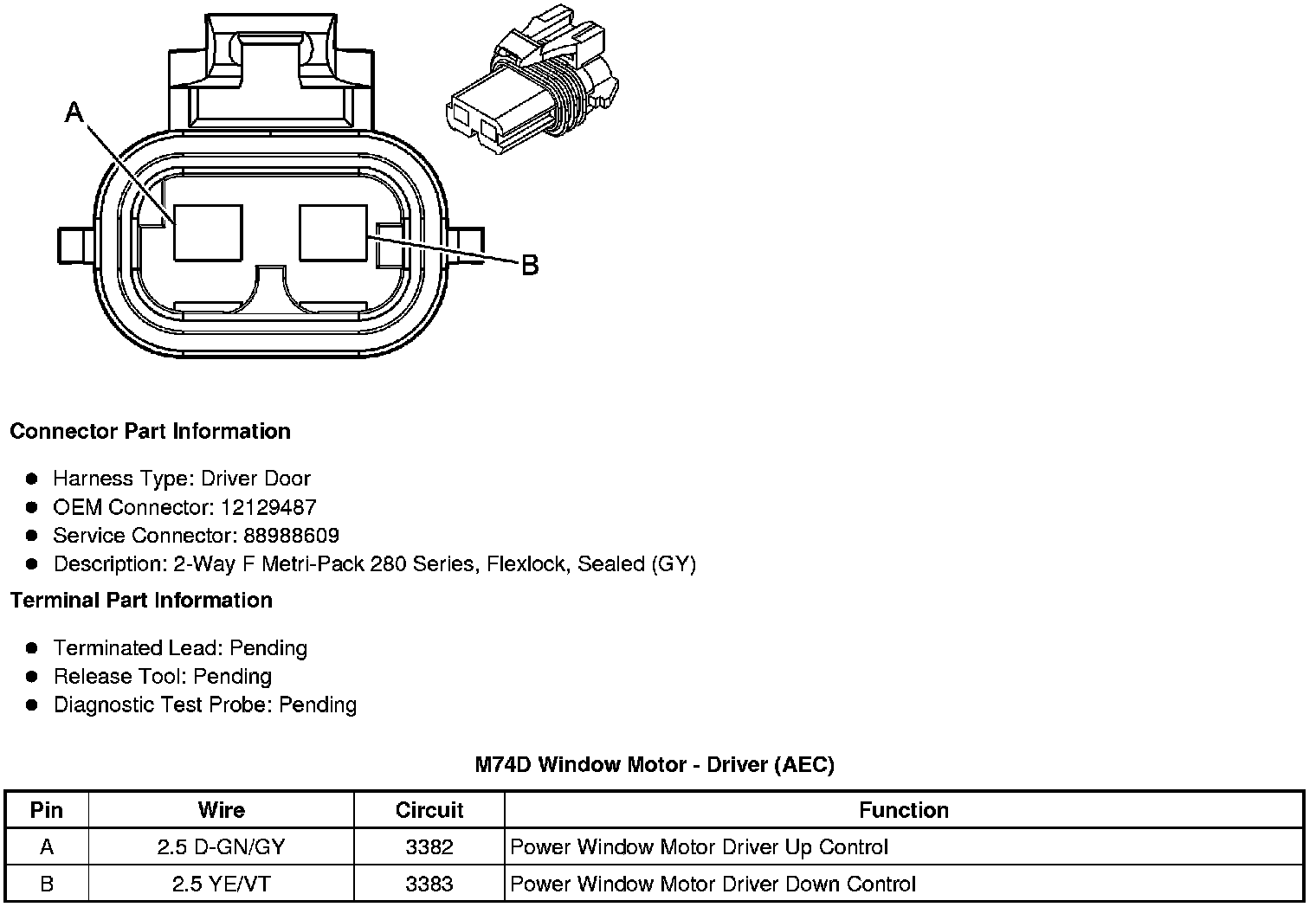

Component Connector End Views
M74D Window Motor - Driver (AEC)
