B9 Air Temperature Sensor - Ambient
B9 Air Temperature Sensor - Ambient
Component Connector End Views

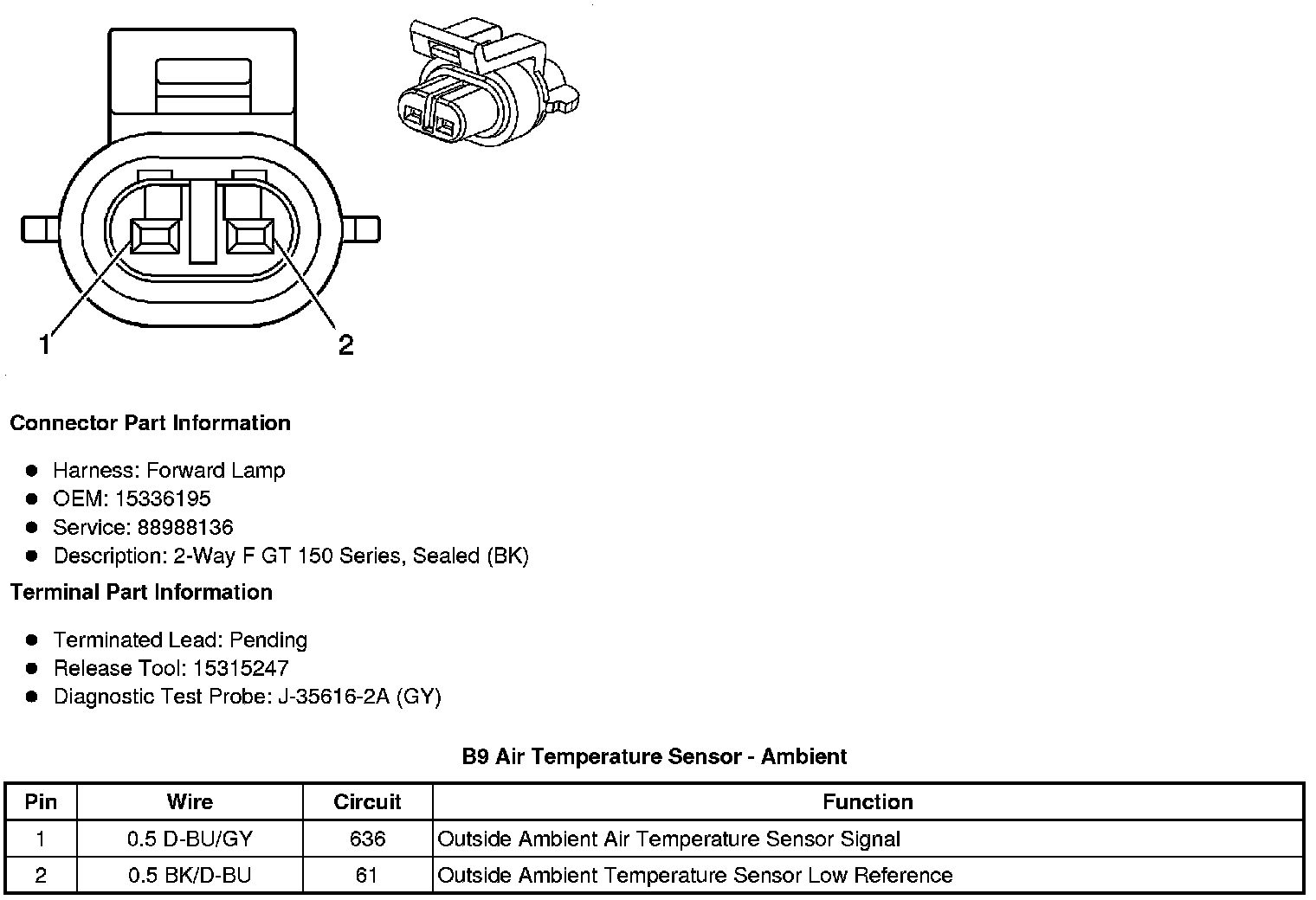

B9 Air Temperature Sensor - Ambient
