40. Automatic Transmission Flex Plate Removal

Automatic Transmission Flex Plate Removal (1.6L LDE, LXV, 1.8L 2H0, and LUW)

Special Tools

EN-652 - Automatic Transmission Flex Plate Holder

For equivalent regional tools, refer to Special Tools (Special Tools).




1. Install the EN-652 - holder (1) to hold the automatic transmission flex plate (2).
2. Loosen the 6 automatic transmission flex plate bolts.
3. Remove the EN-652 - holder (1).

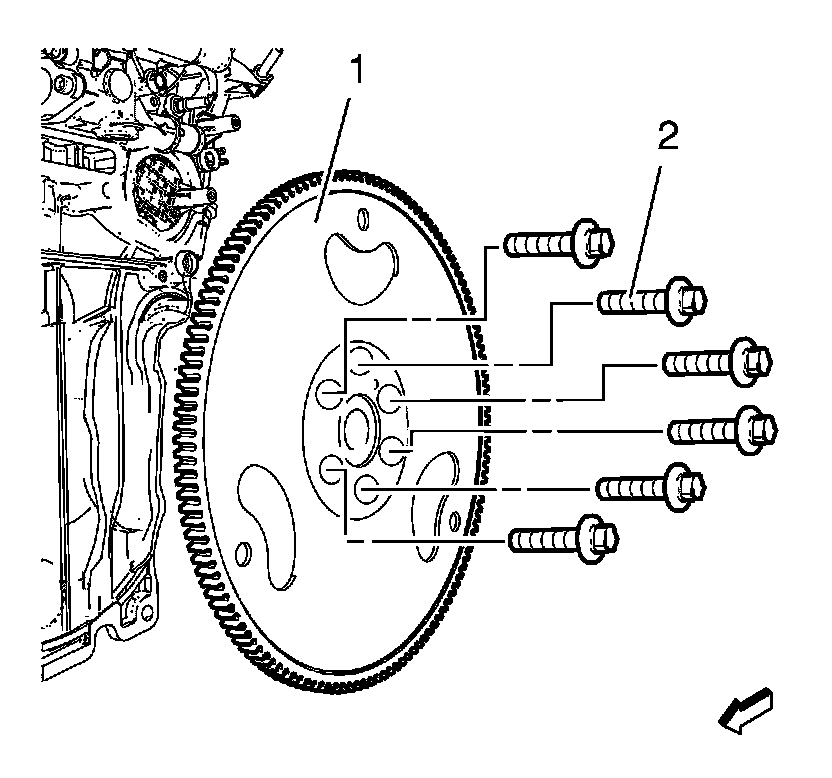

4. Remove the 6 automatic transmission flex plate bolts (2).
5. Remove the automatic transmission flex plate (1).
