Active Noise Cancellation Module (VQN) K108
Active Noise Cancellation Module (VQN) K108
Component Connector End Views

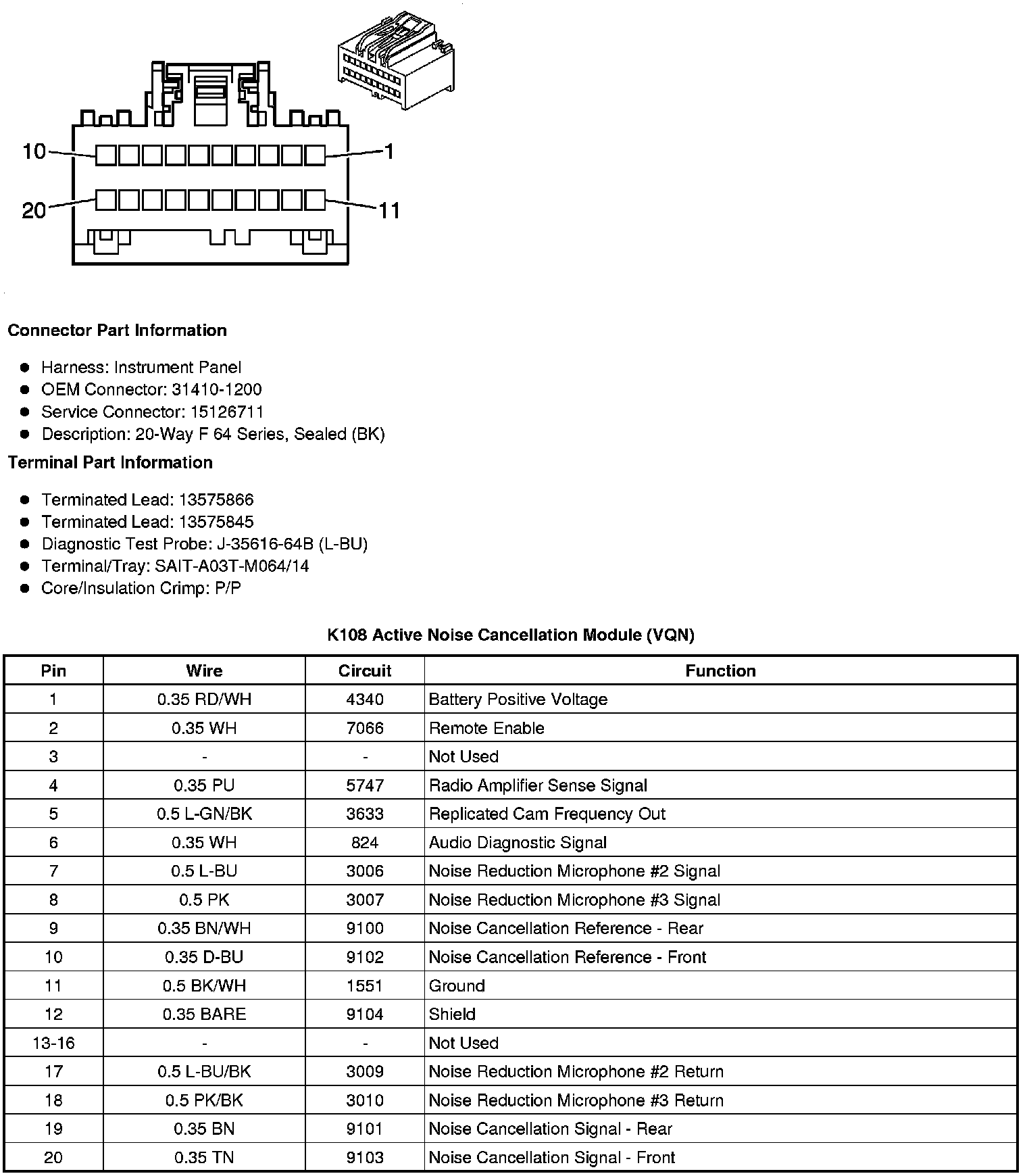

K108 Active Noise Cancellation Module (VQN)
