Ignition Cylinder Lock Control Solenoid Actuator M93




Component Connector End Views

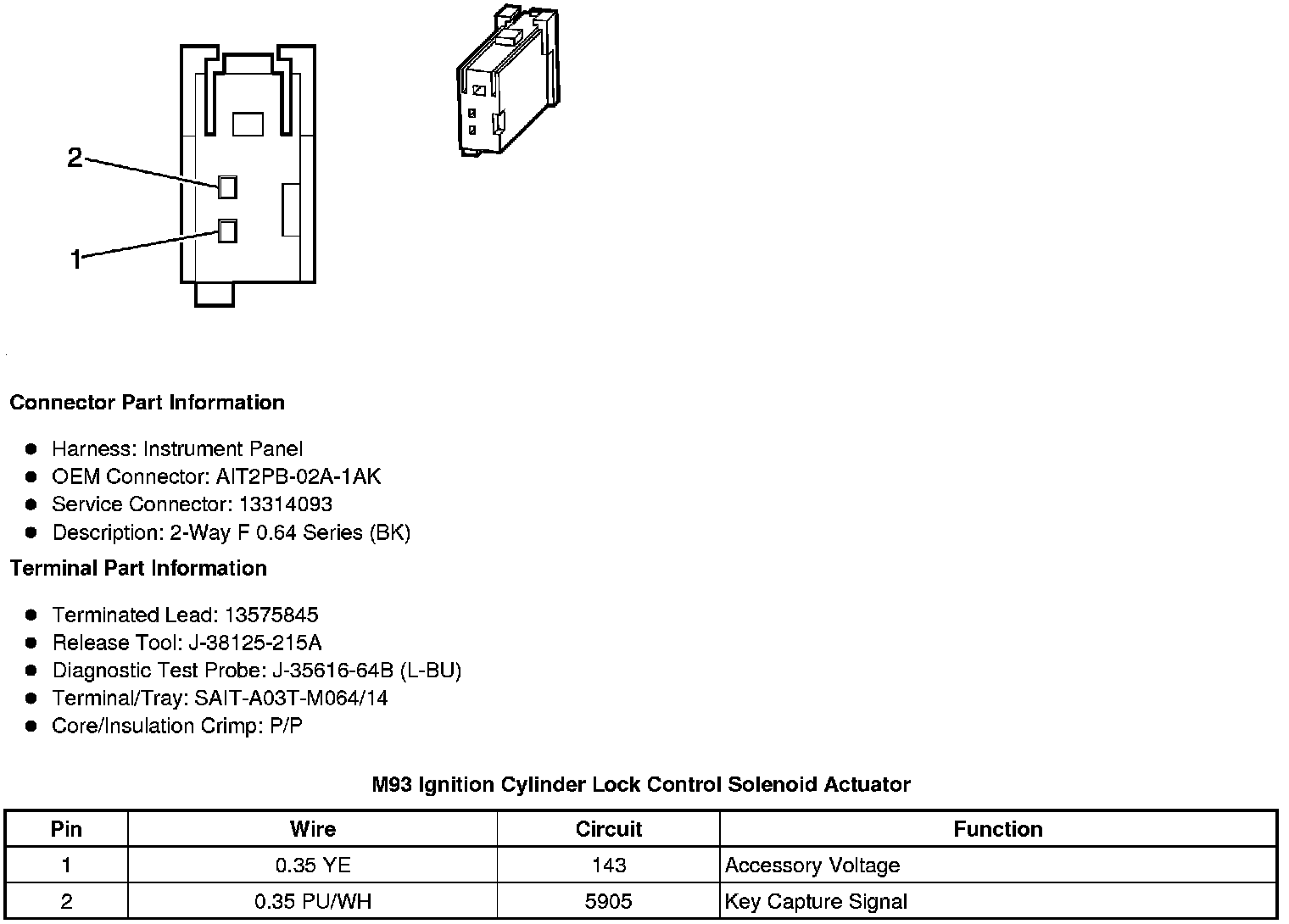

M93 Ignition Cylinder Lock Control Solenoid Actuator
