Mirror Control Module - Left (LTZ or SLT) K96L
Mirror Control Module - Left (LTZ or SLT) K96L
Component Connector End Views

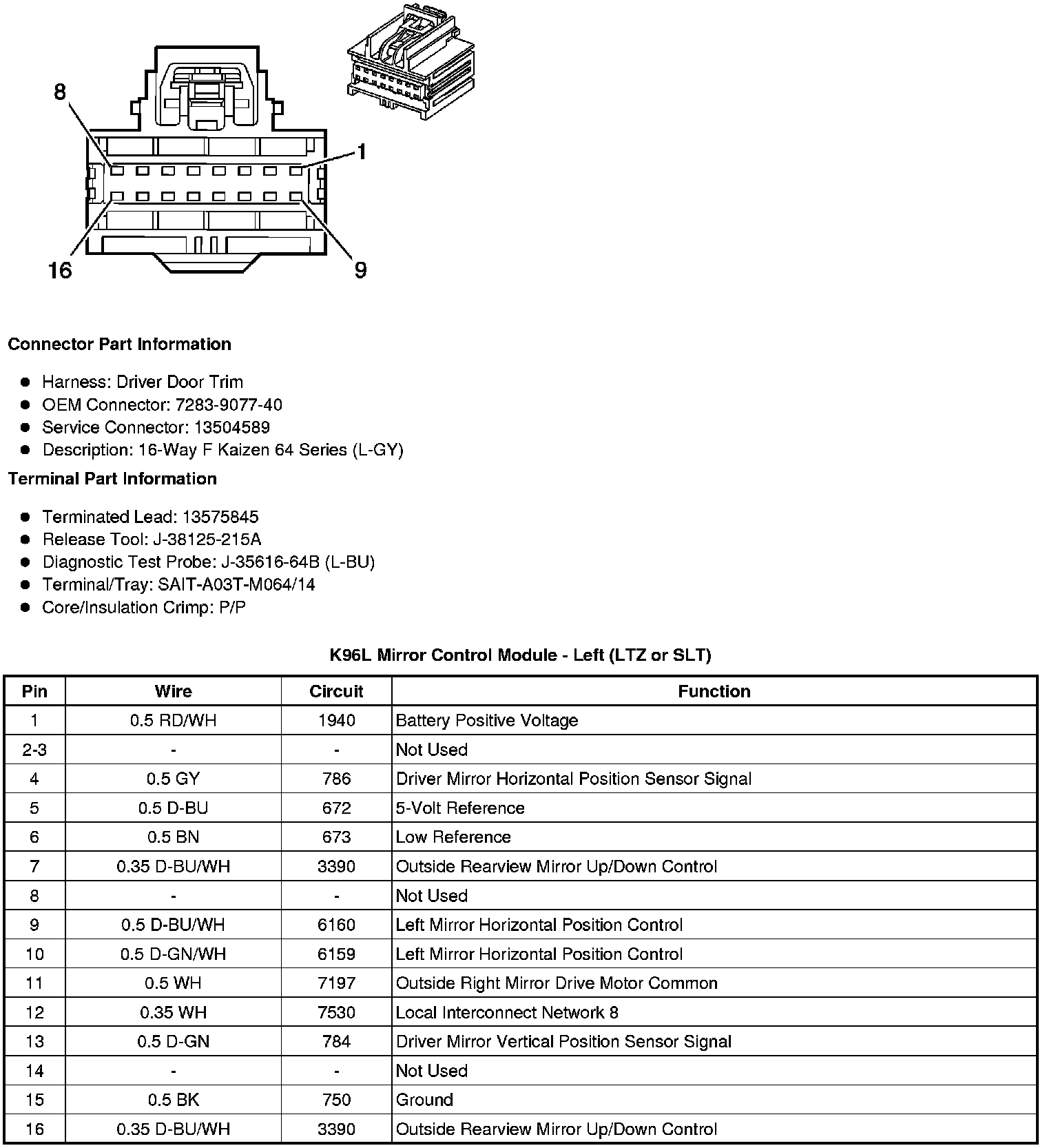

K96L Mirror Control Module - Left (LTZ or SLT)
