E5T Tail/Brake and Turn Signal Lamp - Right
E5T Tail/Brake and Turn Signal Lamp - Right
Component Connector End Views

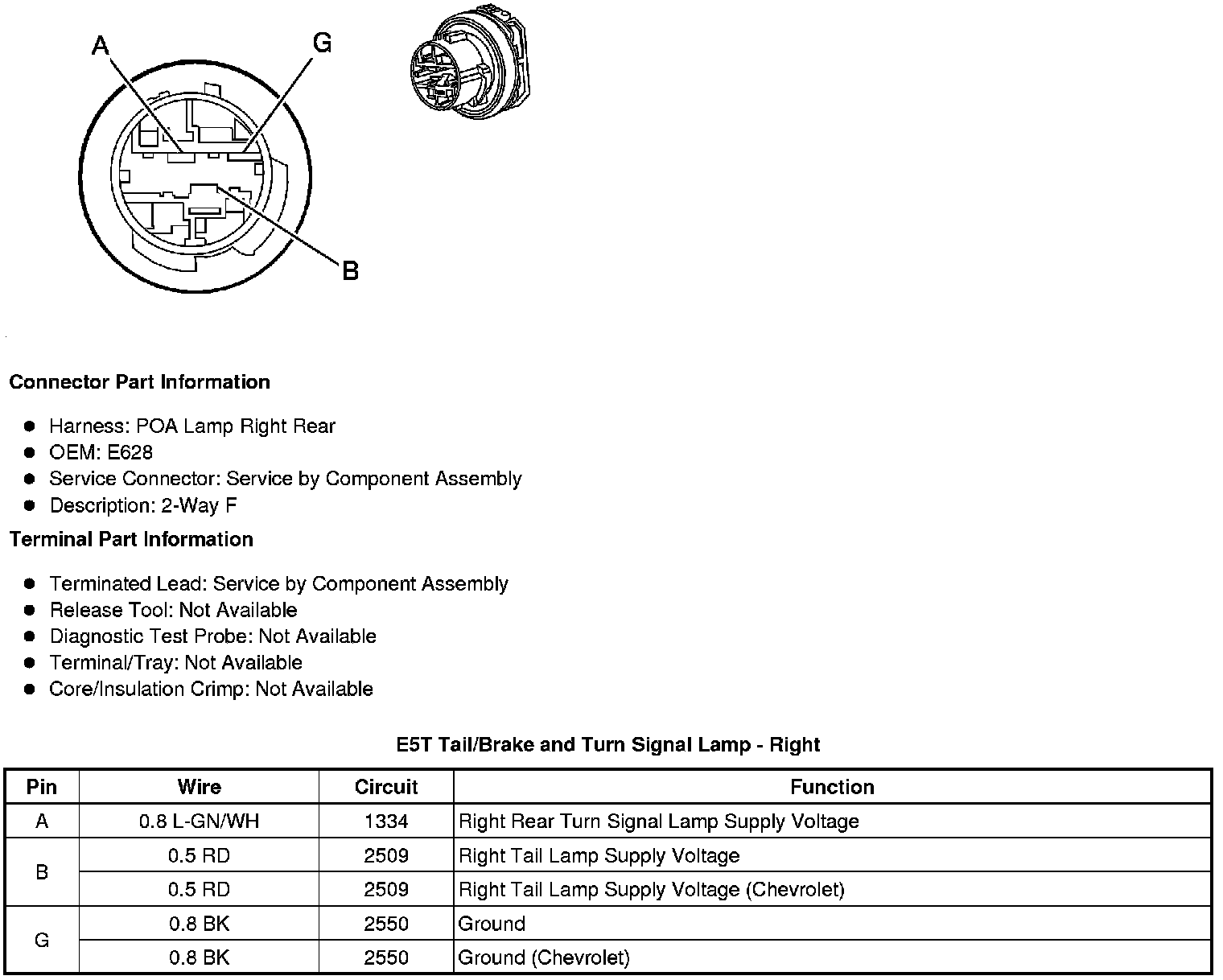

E5T Tail/Brake and Turn Signal Lamp - Right
