39. Transmission Fluid Pump Disassemble (6T40/45)




Transmission Fluid Pump Disassemble (6T40/45)

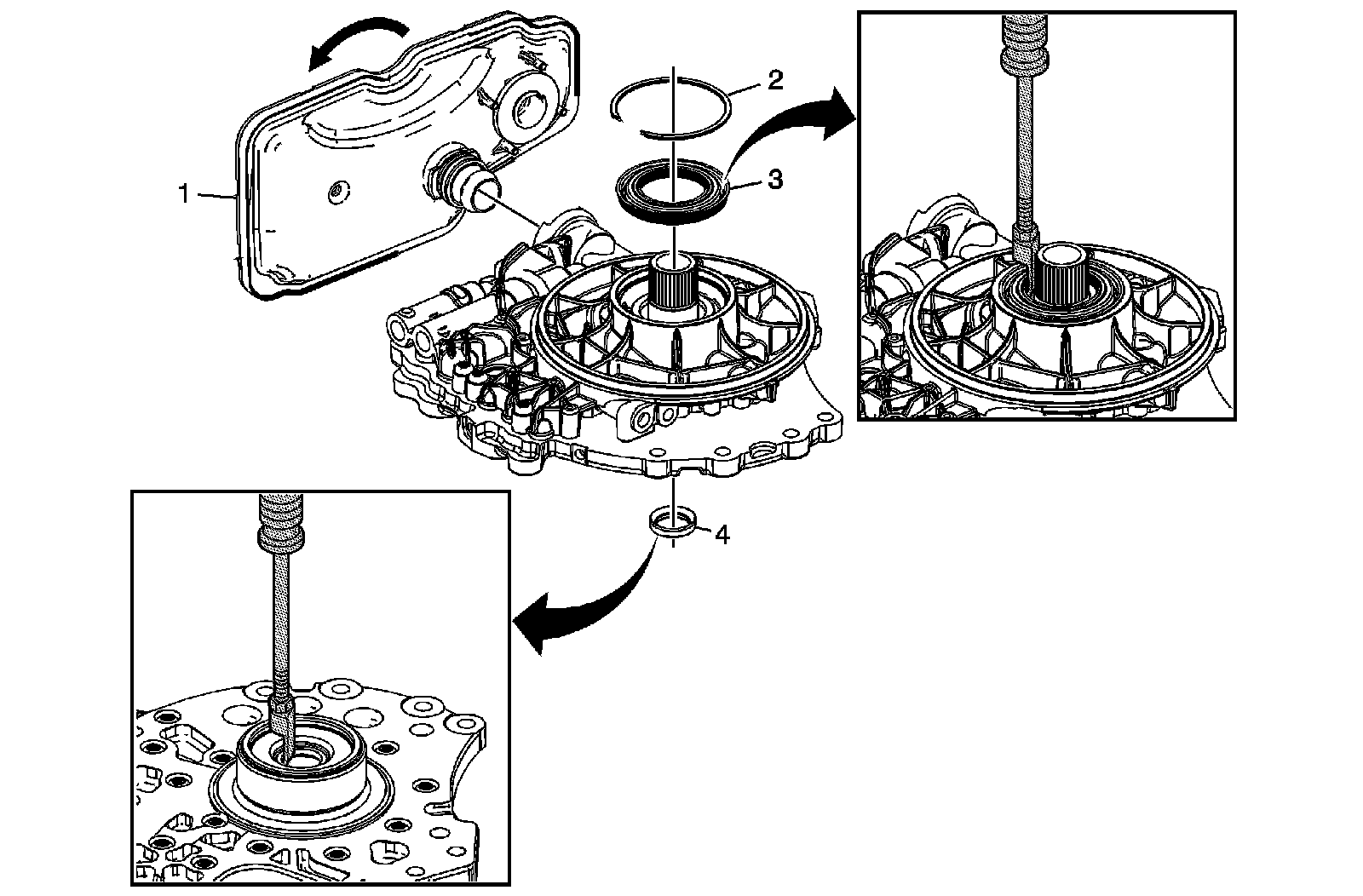

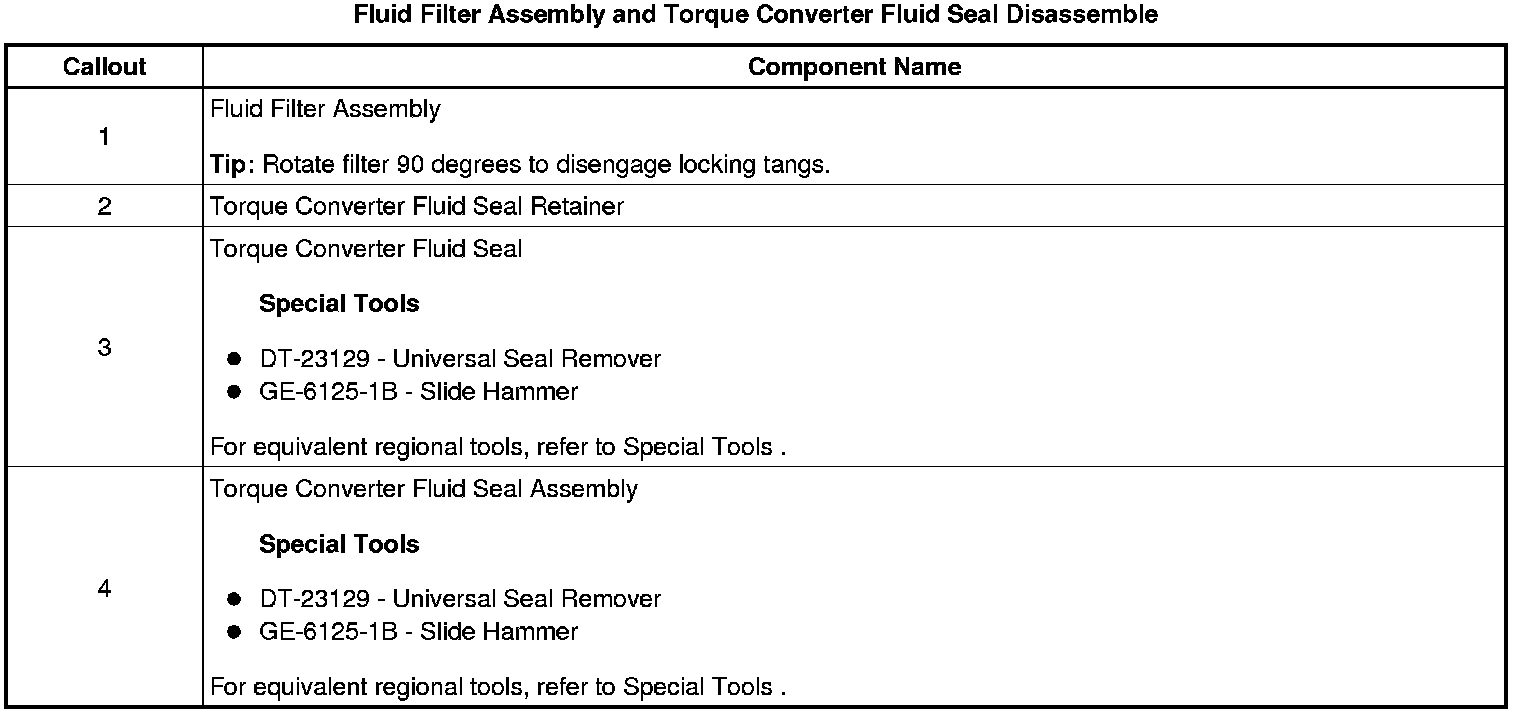

Fluid Filter Assembly and Torque Converter Fluid Seal Disassemble

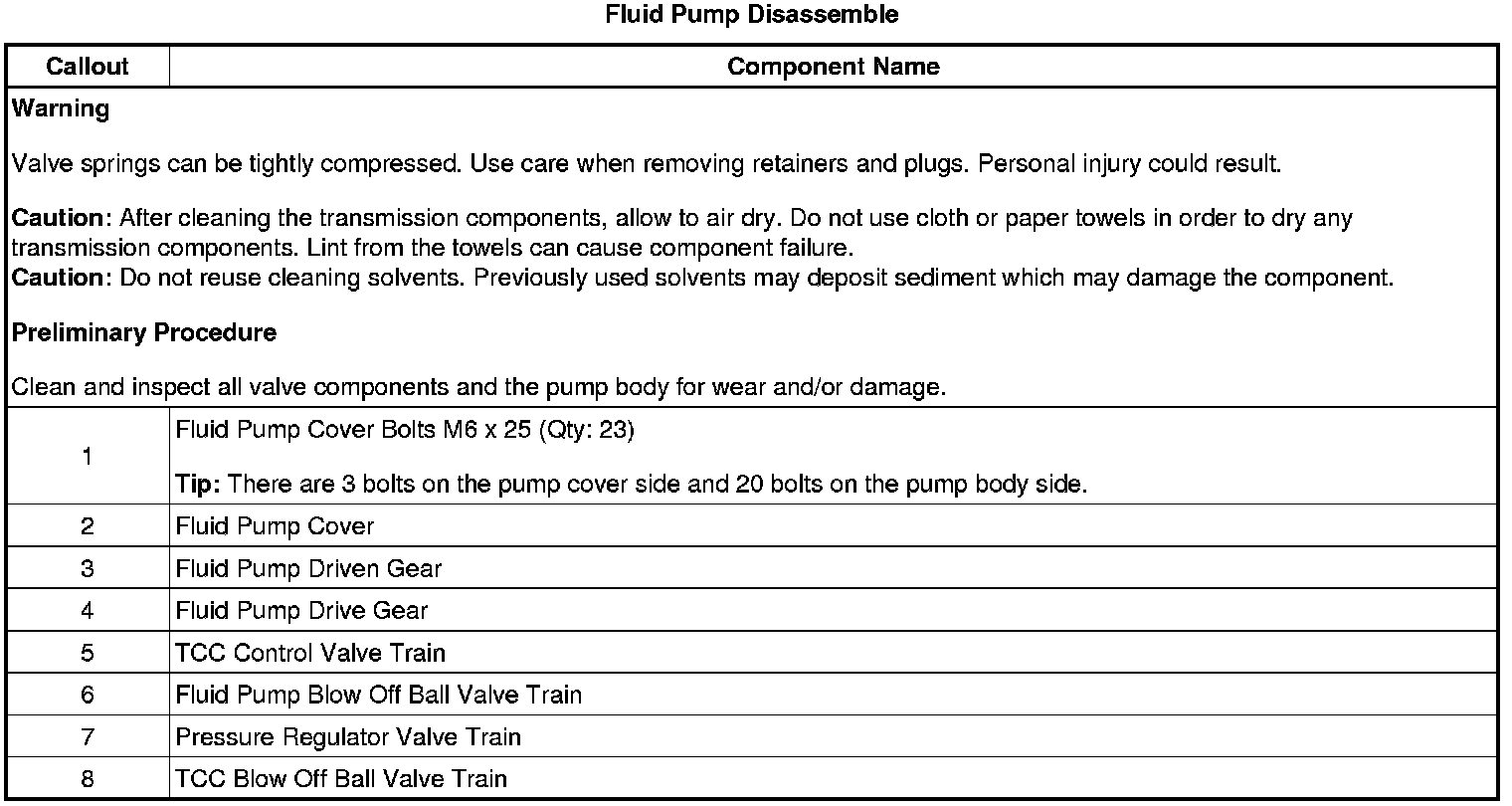

Fluid Pump Disassemble
