Battery Tray: Service and Repair

Battery Tray Replacement (LGD/LZE)

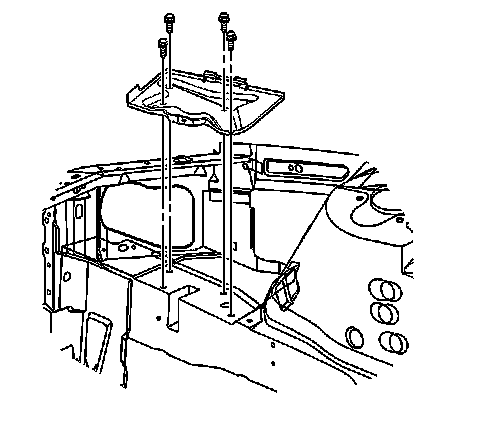

Removal Procedure




1. Remove the battery. Refer to Battery Replacement (LGD/LZE) (Removal and Replacement).
2. Remove the battery tray bolts.
3. Remove the battery tray.

Installation Procedure




1. Install the battery tray.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the battery tray bolts.

Tighten the bolts to 5 Nm (44 lb in).

3. Install the battery. Refer to Battery Replacement (LGD/LZE) (Removal and Replacement).
