1. Draining Fluids and Oil Filter Removal

Draining Fluids and Oil Filter Removal

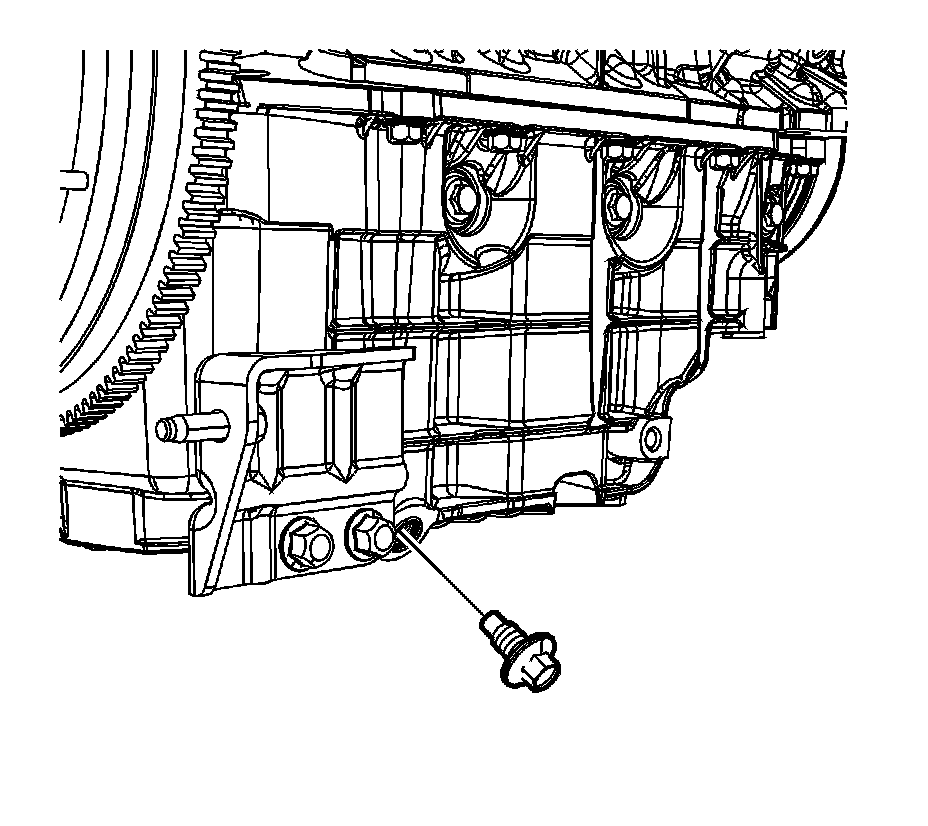

1. Remove the oil pan drain plug.
2. Drain the engine oil.

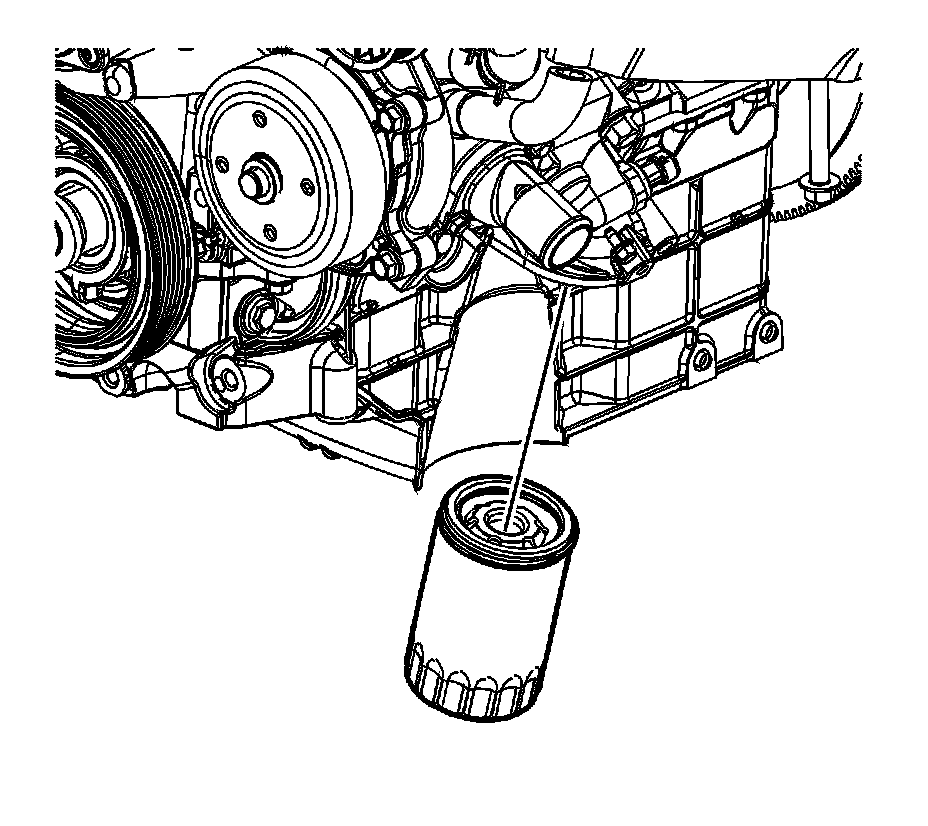

3. Remove the oil filter.

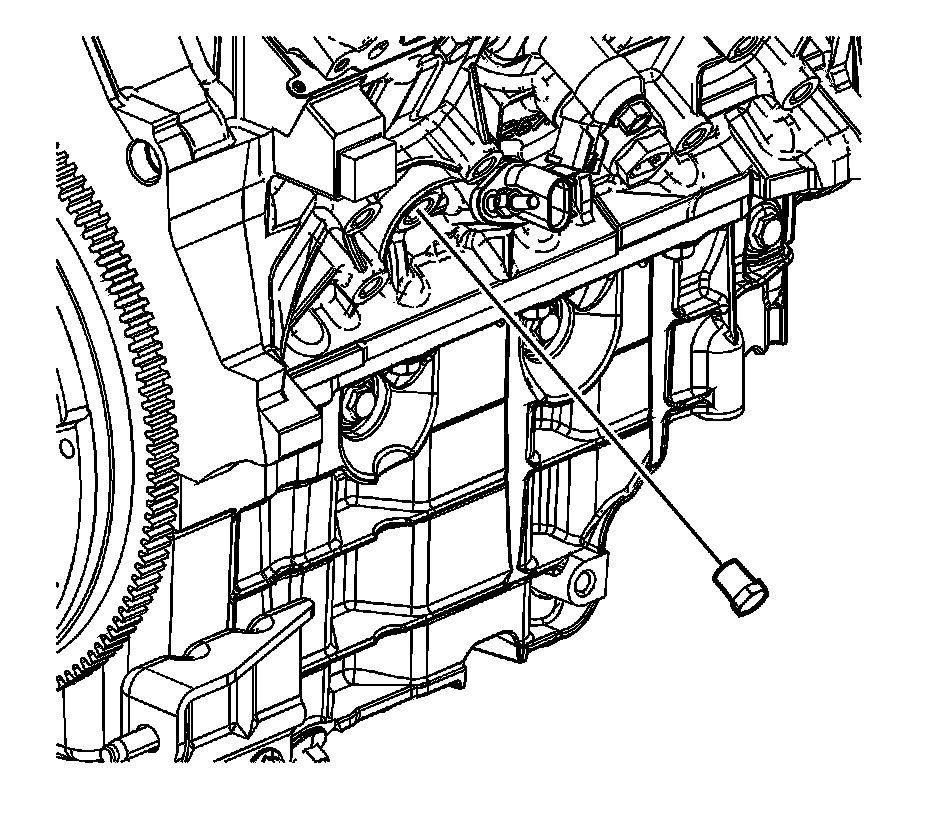

4. Remove the coolant drain plug from the left side.

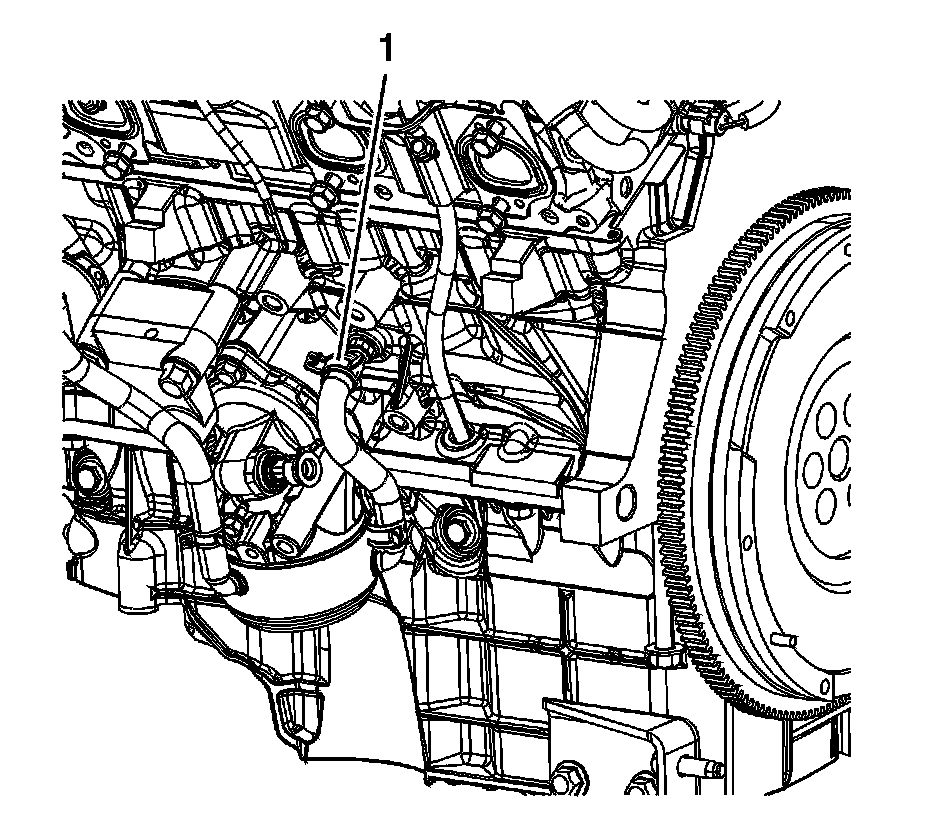

5. If equipped with an oil cooler (RPO-KC4), reposition the upper inlet hose clamp (1).
6. Remove the oil cooler inlet hose from the block outlet.

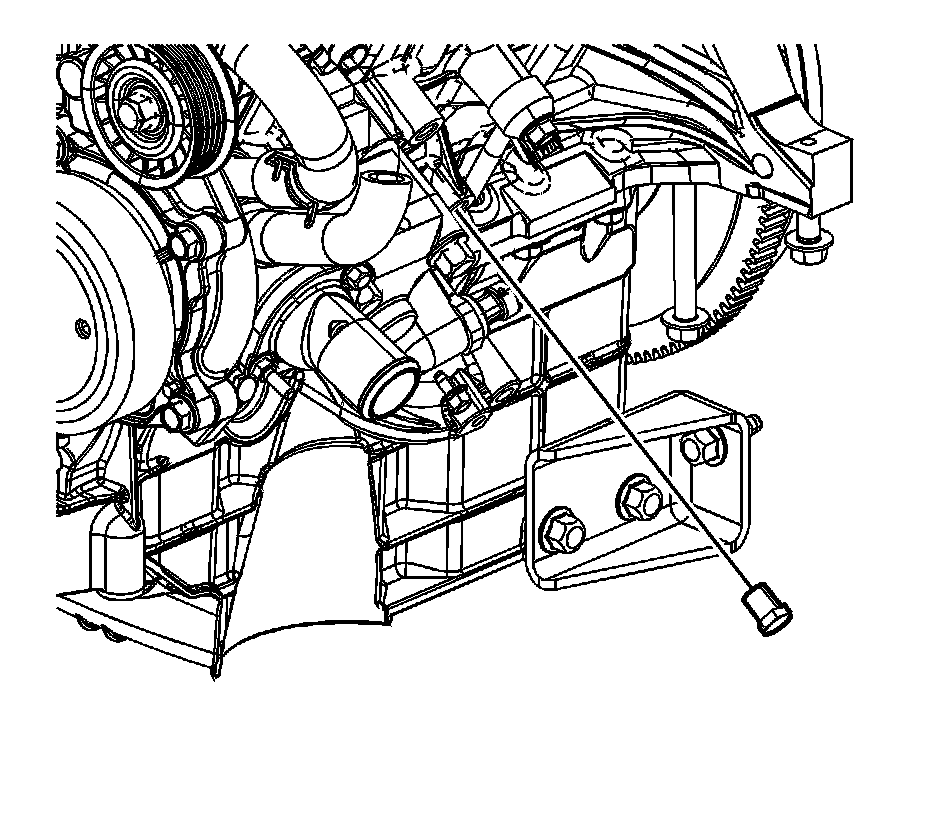

7. If not equipped with an oil cooler (RPO-KC4), remove the coolant drain plug from the right side.
8. Drain the coolant.
