39. Torque Converter Fluid Seal Assemble

Torque Converter Fluid Seal Assemble

Special Tools

J-28540-A - Converter Seal Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).





Caution: Install the seal onto the tool before installing into the case to prevent damage to the seal.

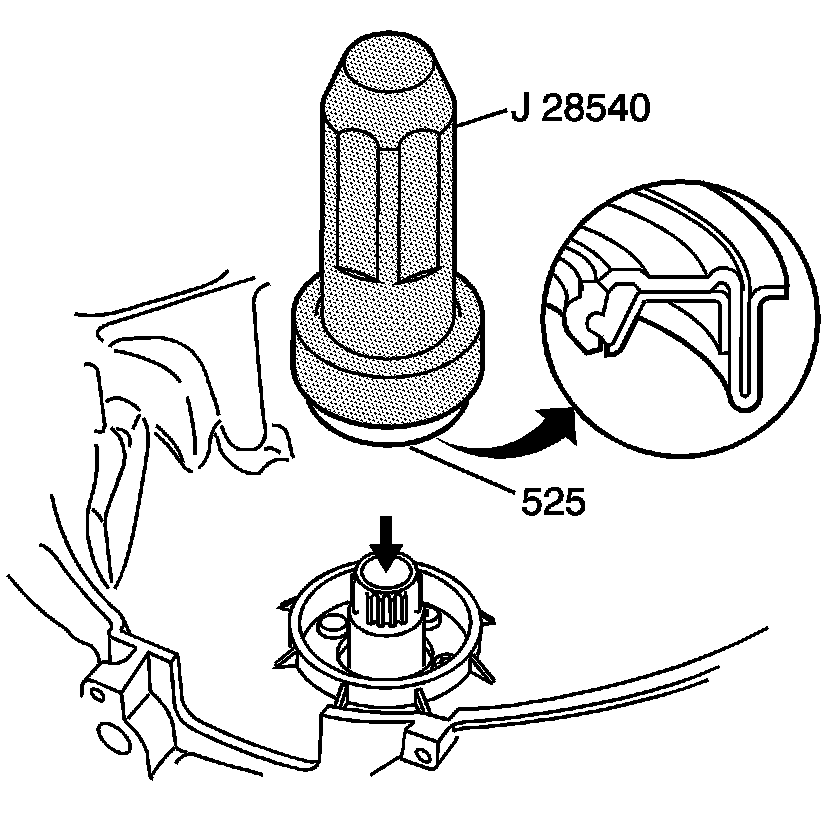

Use J-28540-A - seal installer and a mallet in order to install the torque converter oil seal (525).
