4. Forward Servo Removal

Forward Servo Removal

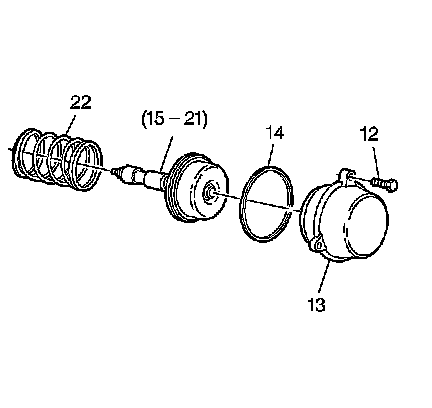

1. Remove the three forward band servo cover bolts (12).
2. The servo assembly will push the servo cover out. If the servo cover does not push out, tap it with a rubber mallet.
3. Remove the servo cover (13) and remove the cover seal (14).
4. Remove the servo assembly (15-21).
5. Remove the piston spring (22) from the forward band servo.
