8. Control Valve Body Cover and Gasket Disassemble

Control Valve Body Cover and Gasket Disassemble

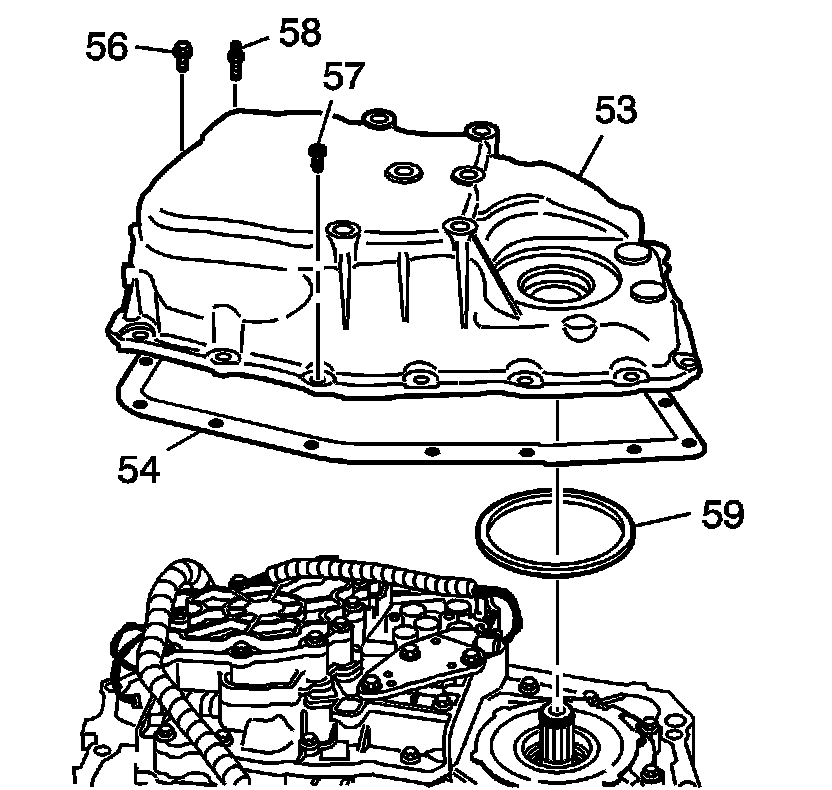

1. Position the transaxle so that the control valve body cover (53) is facing up.
2. Remove the 17 control valve body cover bolts:

* 9 flanged bolts (56)
* 4 TORX bolts (57)
* 4 stud bolts (58)

3. Remove the cover (53), outer gasket (54) and inner gasket (59).
