Manifold Pressure/Vacuum Sensor: Locations

Powertrain Component Views

Front and Right Side of the Engine Components (LY7)




1 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake
2 - Camshaft Position (CMP) Sensor - Bank 1 Intake
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Intake Manifold Tuning (IMT) Solenoid Valve
5 - Camshaft Position (CMP) Sensor - Bank 2 Intake
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Throttle Body
8 - Ignition Coil 6
9 - Ignition Coil 4
10 - Ignition Coil 2
11 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
12 - Engine Coolant Temperature (ECT) Sensor
13 - Generator
14 - A/C Compressor Clutch
15 - Camshaft Position (CMP) Sensor - Bank 2 Exhaust
16 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust
17 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake
18 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust
19 - Camshaft Position (CMP) Sensor - Bank 1 Exhaust

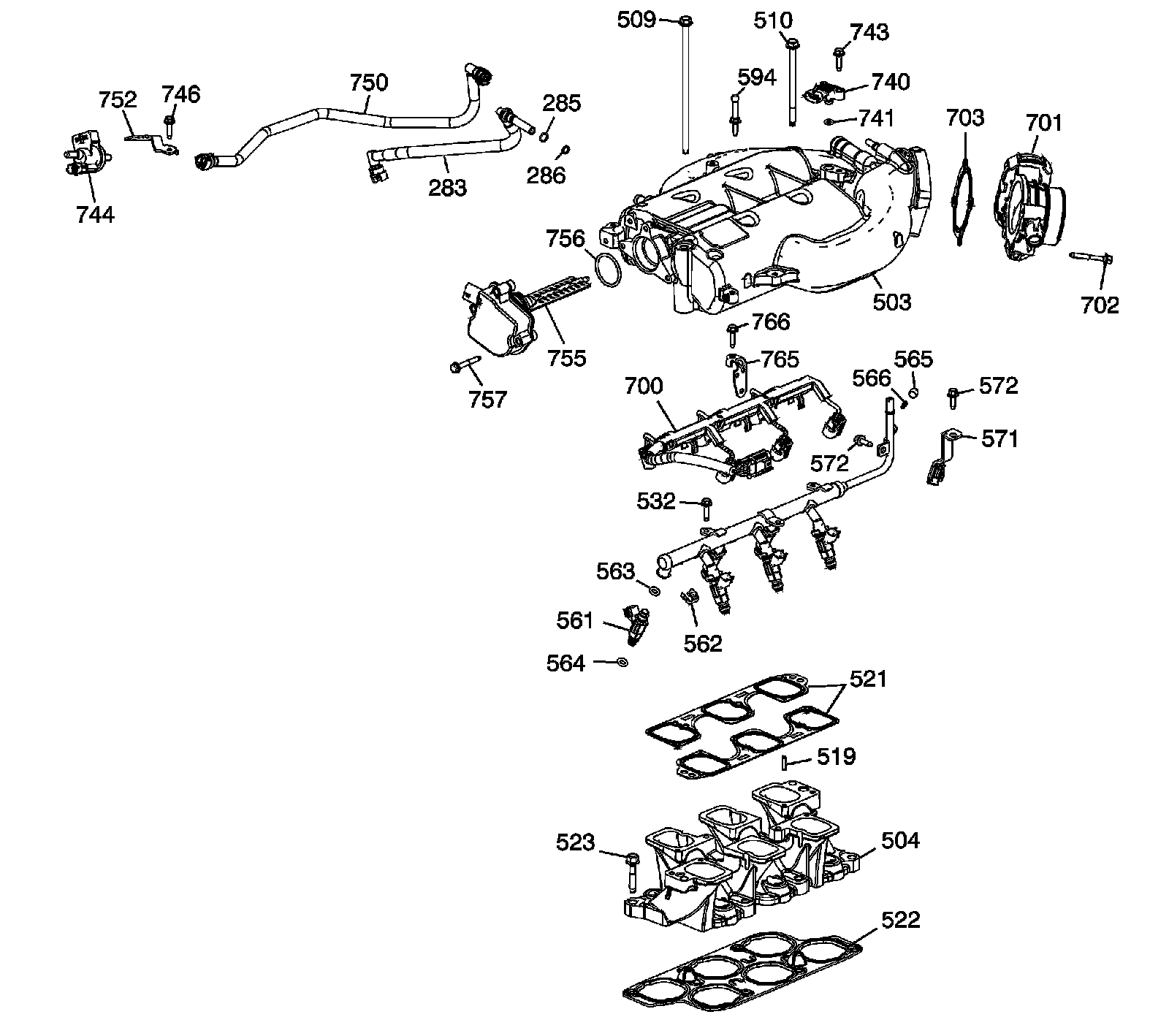

Disassembled Views

Intake Manifold




283 - Dirty PCV Hose
285 - PCV Hose O-ring Outer/Larger
286 - PCV Hose O-ring Inner/Smaller
503 - Upper Intake Manifold
504 - Lower Intake Manifold
509 - Upper Intake Manifold Bolt - Long
510 - Upper Intake Manifold Bolt - Short
519 - Lower Intake Manifold to Upper Intake Manifold Dowel Pin
521 - Upper Intake Manifold Gasket
522 - Lower Intake Manifold Gasket
523 - Lower Intake Manifold Bolt
532 - Fuel Rail Bolt
561 - Fuel Injector
562 - Fuel Injector Retainer
563 - Fuel Injector Upper Seal
564 - Fuel Injector Lower Seal
565 - Fuel Pressure Service Valve Cap
566 - Fuel Pressure Service Valve
571 - Fuel Rail Bracket
572 - Fuel Rail Bracket Bolt
572 - Fuel Rail Bracket Bolt
594 - Fuel Injector Sight Shield Cover Ball Stud
700 - Fuel Injector Wiring Harness
701 - Throttle Body
702 - Throttle Body Bolt
703 - Throttle Body Gasket
740 - MAP Sensor
741 - MAP Sensor O-ring
743 - MAP Sensor Bolt
744 - EVAP Purge Solenoid
746 - EVAP Purge Solenoid Bolt
750 - EVAP Purge Solenoid Tube - Intake Manifold to EVAP Solenoid
752 - EVAP Purge Solenoid Bracket
755 - Intake Manifold Tuning Valve
756 - Intake Manifold Tuning Valve O-ring
757 - Intake Manifold Tuning Valve Bolt
765 - Fuel Injector Wiring Harness Bracket
766 - Fuel Injector Wiring Harness Bracket Bolt
