Disassembled Views

Disassembled Views

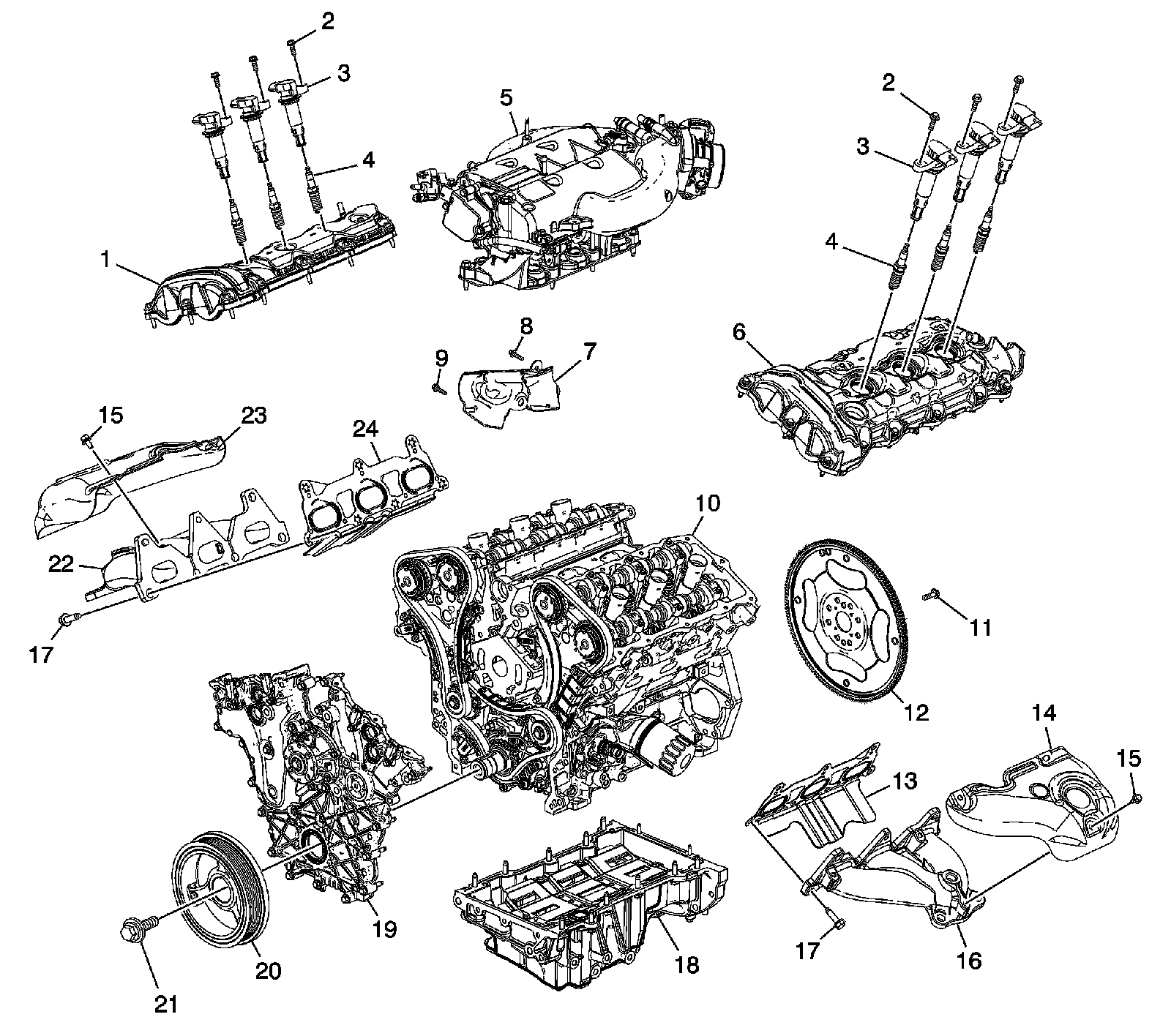

Engine Covers and Component Assemblies (1 of 2)




1 - Right Camshaft Cover Assembly
2 - Ignition Coil Bolt
3 - Ignition Coil
4 - Spark Plug
5 - Intake Manifold Assembly
6 - Left Camshaft Cover Assembly
7 - Crankshaft Position Sensor Heat Shield
8 - Crankshaft Position Sensor Heat Shield Bolt - Small
9 - Crankshaft Position Sensor Heat Shield Bolt - Large
10 - Engine Assembly
11 - Engine Flywheel Bolt
12 - Engine Flywheel
13 - Left Exhaust Manifold Gasket
14 - Left Exhaust Manifold Heat Shield
15 - Exhaust Manifold Heat Shield Bolt
16 - Left Exhaust Manifold
17 - Cylinder Head Exhaust Manifold Bolt
18 - Oil Pan Assembly
19 - Engine Front Cover Assembly
20 - Crankshaft Balancer
21 - Crankshaft Balancer Bolt
22 - Right Exhaust Manifold
23 - Right Exhaust Manifold Heat Shield
24 - Right Exhaust Manifold Gasket

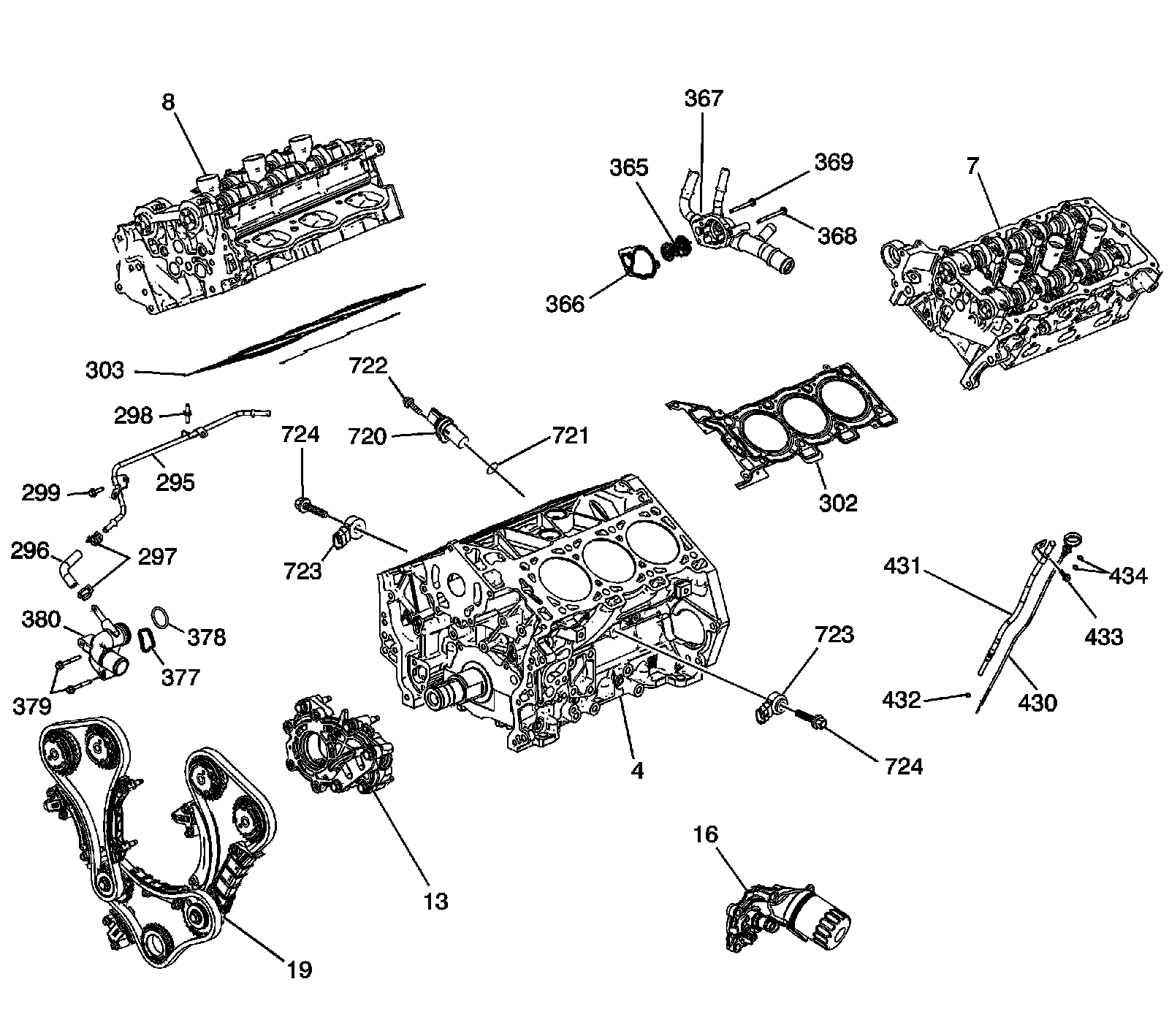

Engine Covers and Component Assemblies (2 of 2)




4 - Engine Short Block Assembly
7 - Left Cylinder Head Assembly
8 - Right Cylinder Head Assembly
13 - Oil Pump Assembly
16 - Oil Filter Adapter Assembly
19 - Timing Drive Assembly
295 - Engine Coolant Air Bleed Pipe
296 - Engine Coolant Air Bleed Hose
297 - Engine Coolant Air Bleed Hose Clamp
298 - Engine Coolant Air Bleed Pipe Stud
299 - Engine Coolant Air Bleed Pipe Bolt
302 - Left Cylinder Head Gasket
303 - Right Cylinder Head Gasket
365 - Engine Cooling Thermostat
366 - Engine Cooling Thermostat Gasket
367 - Engine Cooling Thermostat Housing
368 - Engine Cooling Thermostat Housing Bolt
369 - Engine Cooling Thermostat Bolt - Short
377 - Water Outlet Seal
378 - Water Outlet O-ring
379 - Water Outlet Bolt
380 - Water Outlet
430 - Oil Level Indicator
431 - Oil Level Indicator Tube
432 - Oil Level Indicator Tube O-ring
433 - Oil Level Indicator Tube Bolt
434 - Oil Level Indicator Handle O-ring
720 - Crankshaft Position Sensor
721 - Crankshaft Position Sensor O-ring
722 - Crankshaft Position Sensor Bolt
723 - Knock Sensor
723 - Knock Sensor
724 - Knock Sensor Bolt
724 - Knock Sensor Bolt
