X800 - X899

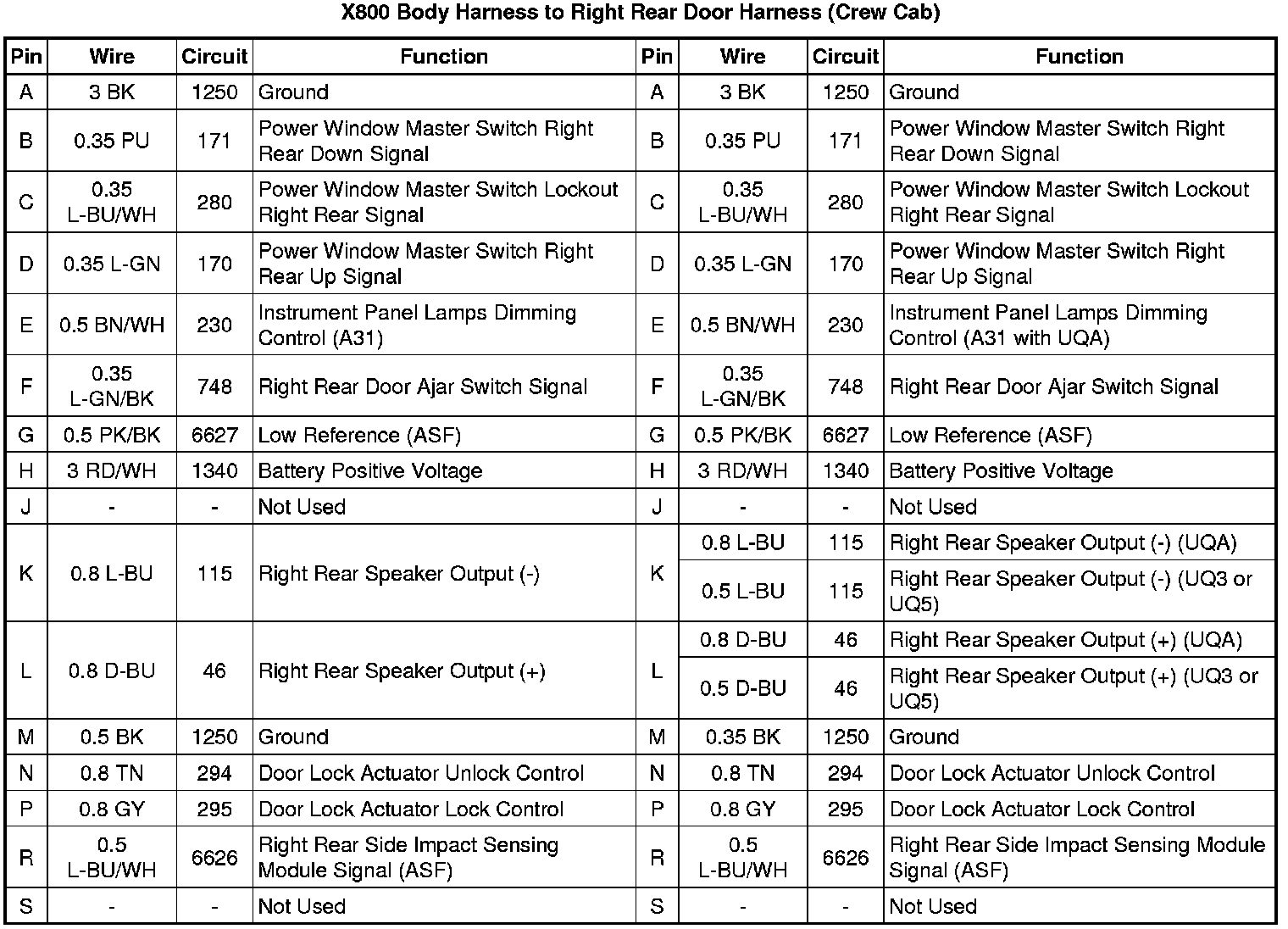

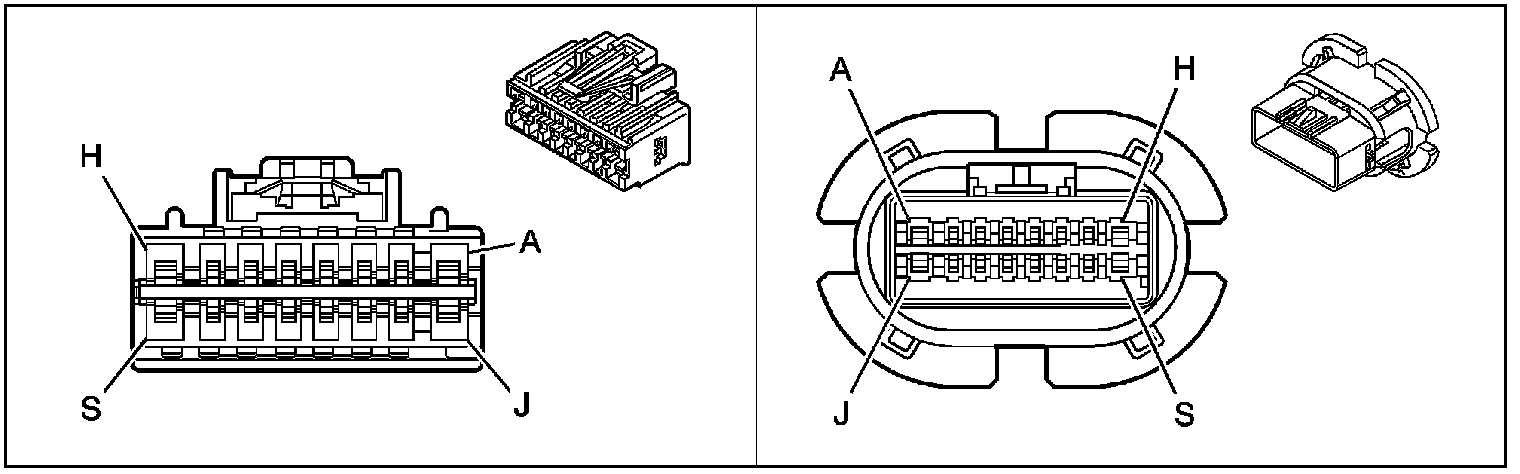

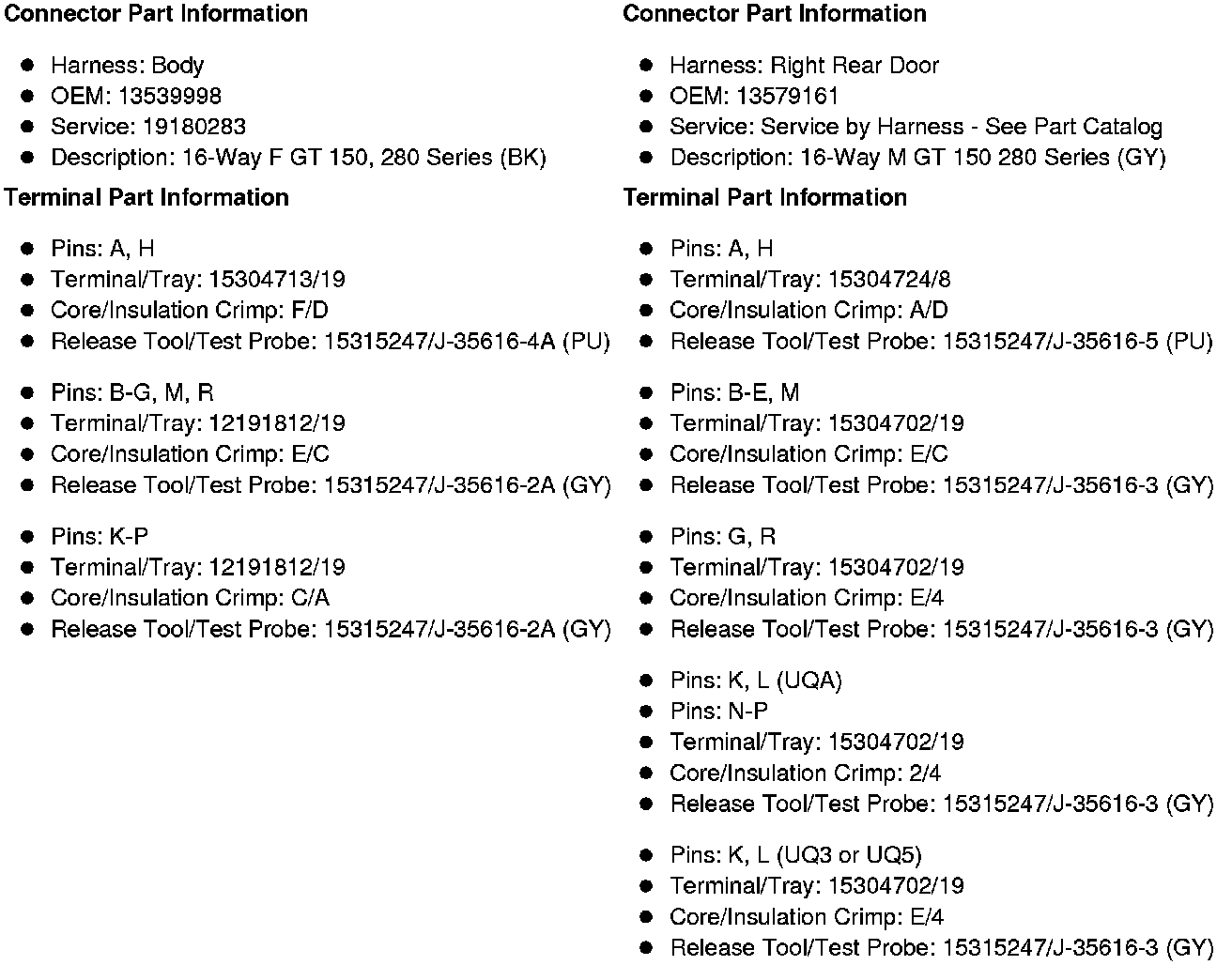

X800 Body Harness to Right Rear Door Harness (Crew Cab)

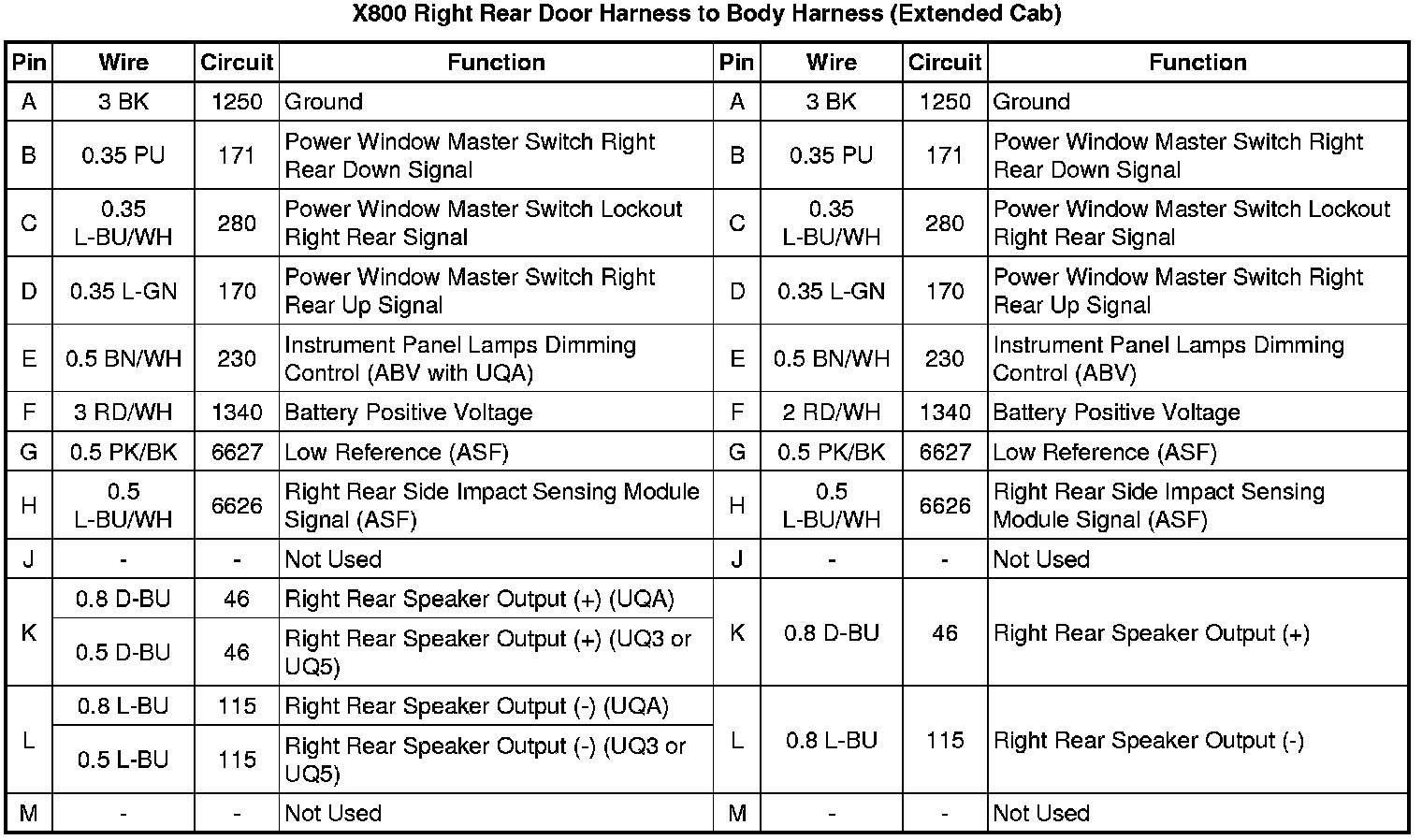

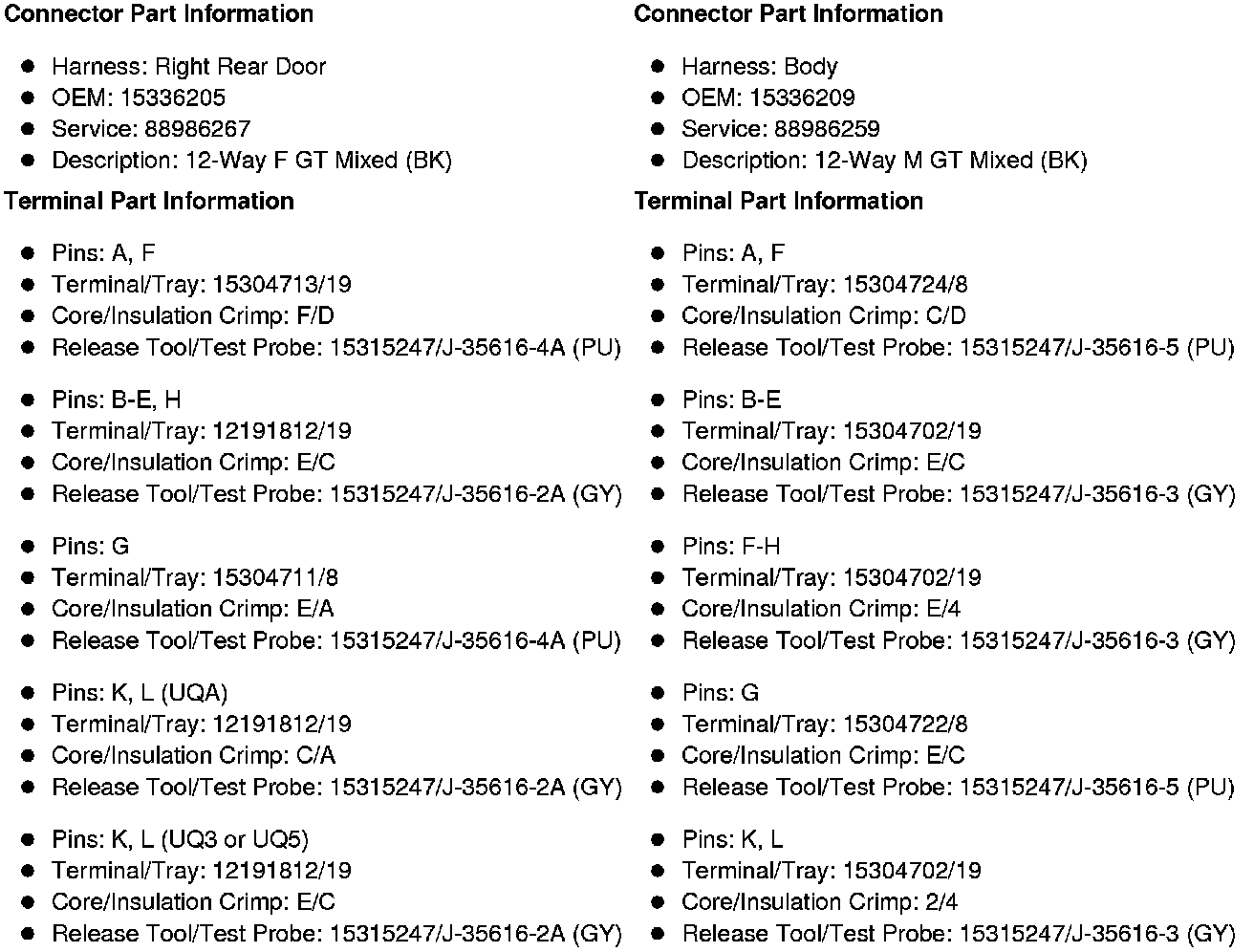

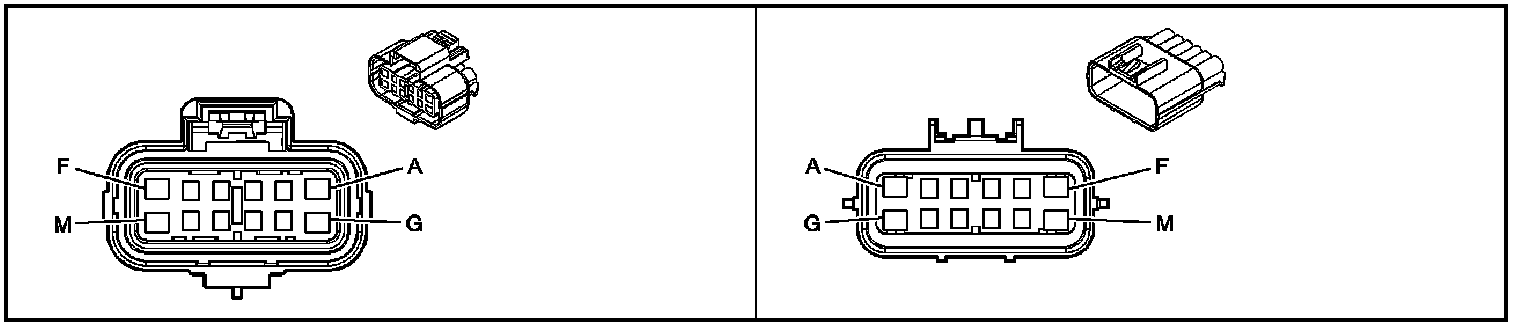

X800 Right Rear Door Harness to Body Harness (Extended Cab)
