93. Throttle Body Assembly Installation

Throttle Body Assembly Installation (6.2L LS9)





Note:
DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

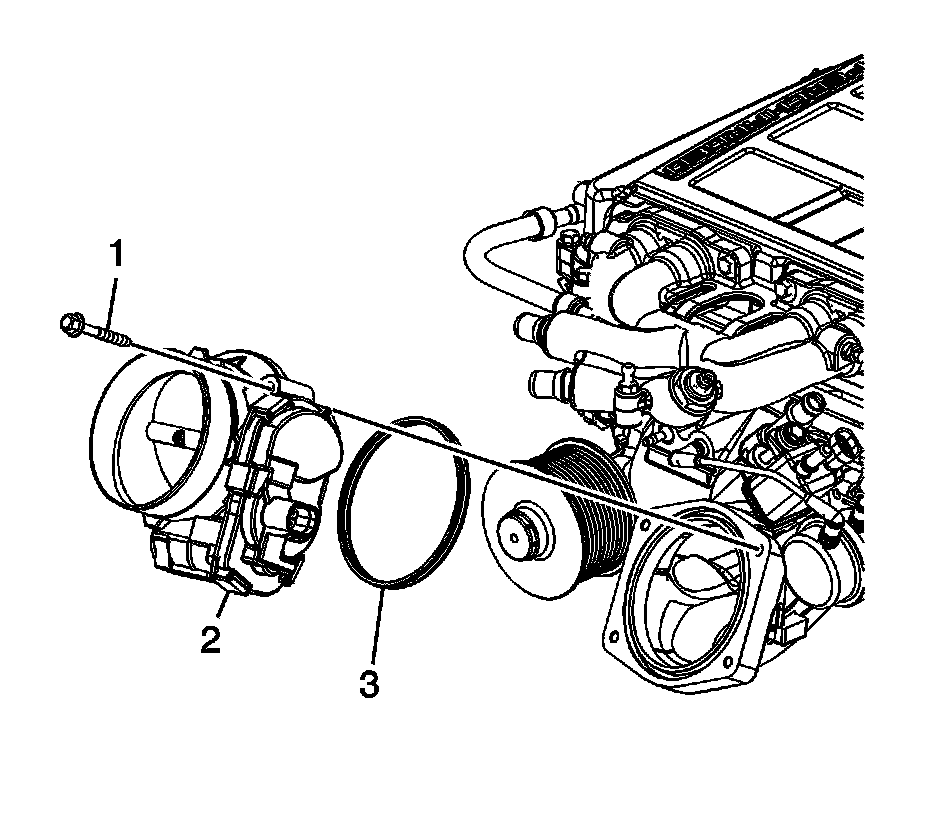

1. Install the throttle body gasket (3) to the supercharger.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the throttle body (2) and bolts (1). Tighten the throttle body bolts to 10 Nm (89 lb in).
