3. Camshaft Timing Chain Inspection

Camshaft Timing Chain Inspection

Special Tools
* EN-952 - Fixing Pin
* EN-953-A - Fixing Tool
* EN-49977-100 - Transmitter Disc Fixation

For equivalent regional tools, refer to Special Tools Tools and Equipment.

1. Remove the ignition coil. Refer to Ignition Coil Replacement Service and Repair.
2. Remove the camshaft cover. Refer to Camshaft Cover Replacement (1.4L LUH and LUJ) Service and Repair.




3. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
4. Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement
5. Rotate the engine clockwise until the bore (2) in the crankshaft balancer aligns with the mark (1) on the engine front cover.




6. Examine that the camshaft grooves (1) are visible as shown. If the camshaft grooves are not visible rotate the crankshaft 360°.




7. Remove the crankshaft bearing cap tie plate hole plug (2) and the seal ring (1).





Caution: To ensure proper crankshaft top dead center (TDC) alignment, the retention pin should fit easily through the bore in the crankshaft tie plate and into the crankshaft. Binding of the retention pin could affect proper engine timing.

8. Install EN-952 - fixing pin (1) to hold the crankshaft in TDC position.





Note: The fixing tool should be installed completely to both camshaft grooves without high effort.

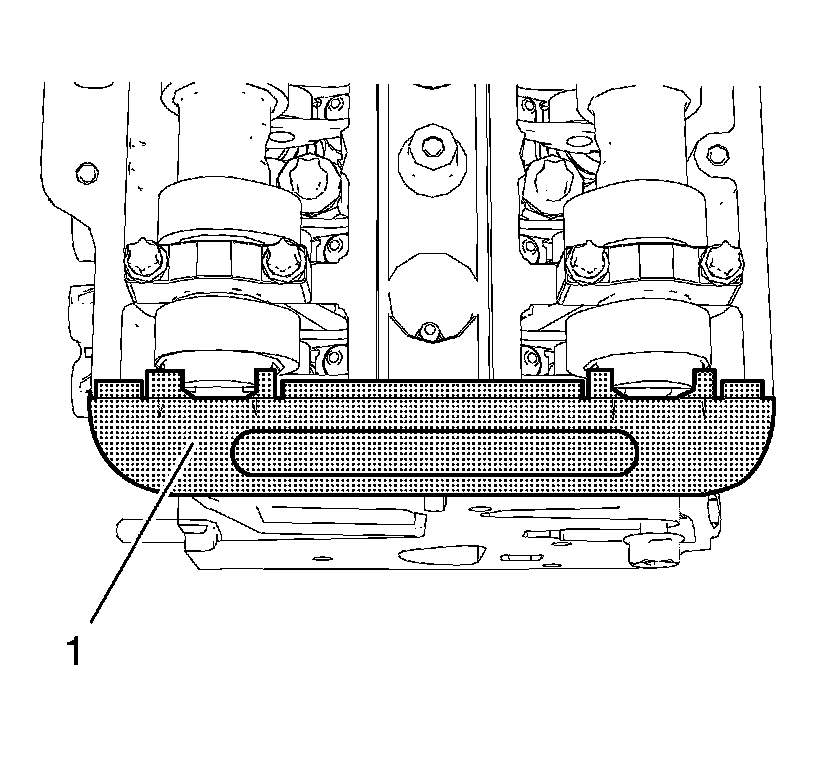

9. Install EN-953-A - fixing tool (1) to the camshafts.





Note: A wrong installation position is possible. Make sure that the fixation tool is installed without clearance to the cylinder head in areas (3) and (4).

10. Install EN-49977-100 - transmitter disc fixation (1) to inspect the correct position of the camshaft position exciter wheels.
11. Tighten the bolts (2) of EN-49977-100 - transmitter disc fixation.
12. If EN-953-A - fixing tool or EN-49977-100 - transmitter disc fixation can not be installed, refer to Camshaft Timing Chain Adjustment 4. Camshaft Timing Chain Adjustment.
13. Remove EN-49977-100 - transmitter disc fixation.
14. Remove EN-953-A - fixing tool.
15. Remove EN-952 - fixing pin.

Caution: Refer to Fastener Caution Fastener Caution.

16. Install crankshaft bearing cap tie plate hole plug and seal ring and tighten to 40 Nm (30 lb ft).
17. Install the front compartment insulator. Refer to Front Compartment Insulator Replacement
18. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
19. Install the camshaft cover.
20. Install the ignition coil.
