70. Camshaft Timing Chain Installation

Camshaft Timing Chain Installation

Special Tools
* EN-952 - Fixing Pin
* EN-953-A - Fixing Tool
* EN-955-1 - Fixing Pin from EN-955 - Kit

For equivalent regional tools, refer to Special Tools Tools and Equipment.

1. The engine should be adjusted to TDC.
2. The crankshaft should be locked with EN-952 - fixing pin.
3. The camshaft should be locked with EN-953-A - fixing tool.

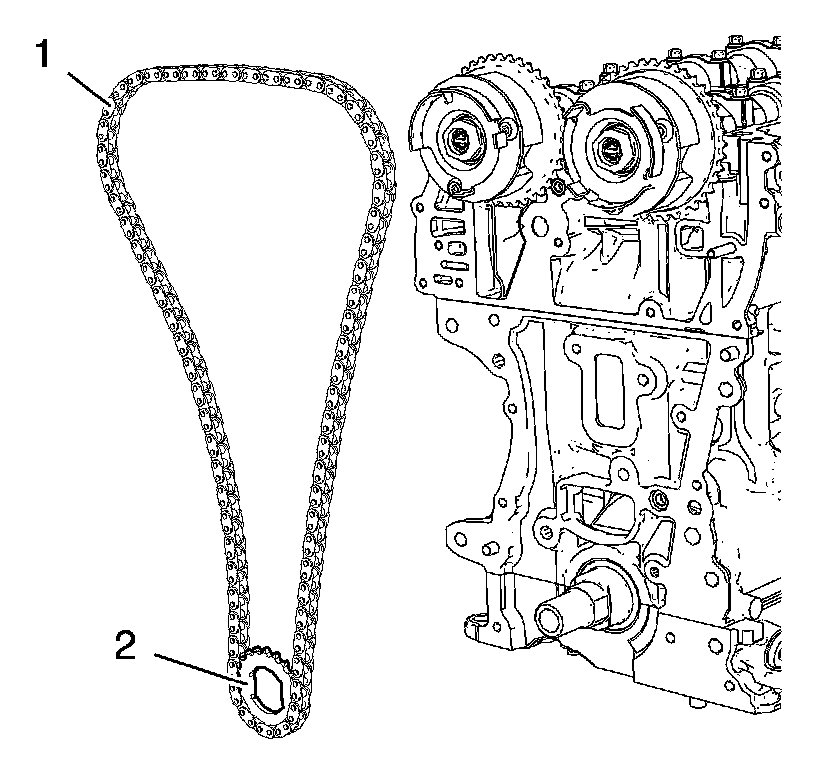

4. Install the timing chain (1) along with the crankshaft sprocket (2).




5. Install the timing chain tensioner shoe (1).

Caution: Refer to Fastener Caution Fastener Caution.

6. Install the timing chain tensioner shoe bolt (2) and tighten to 20 Nm (15 lb ft).




7. Install the timing chain guide right side (1).
8. Install the 2 timing chain guide right side bolts (2) and tighten to 8 Nm (71 lb in).




9. Push the timing chain (2) in direction to the timing chain tensioner (1) and Remove EN-955-1 - fixing pin (3).

The upper timing chain guide will be installed after the installation of the engine front cover and the fastening of the camshaft sprockets.
