98. Automatic Transmission Flex Plate Removal

Automatic Transmission Flex Plate Removal

Special Tools

EN-652 - Flywheel Holder

For equivalent regional tools, refer to Special Tools Tools and Equipment.

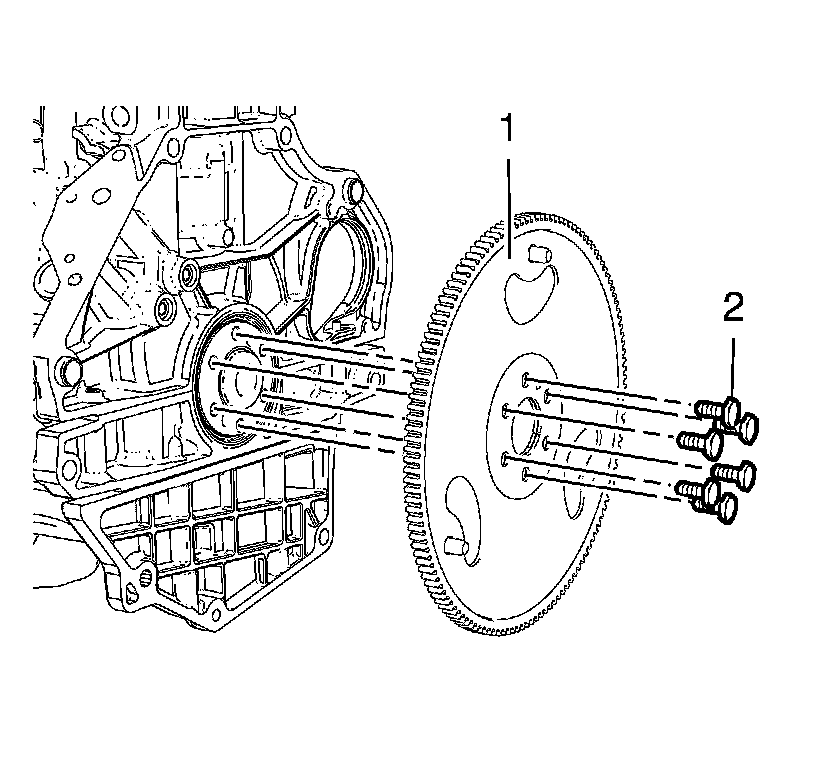

1. Install EN-652 - flywheel holder (1) in order to fix the automatic transmission flex plate (2).




2. Remove the 6 automatic transmission flex plate bolts (2).
3. Remove the automatic transmission flex plate (1).
