Body Harness Routing - Under the Rear of the Vehicle
Body Harness Routing - Under the Rear of the Vehicle
Harness Routing Views

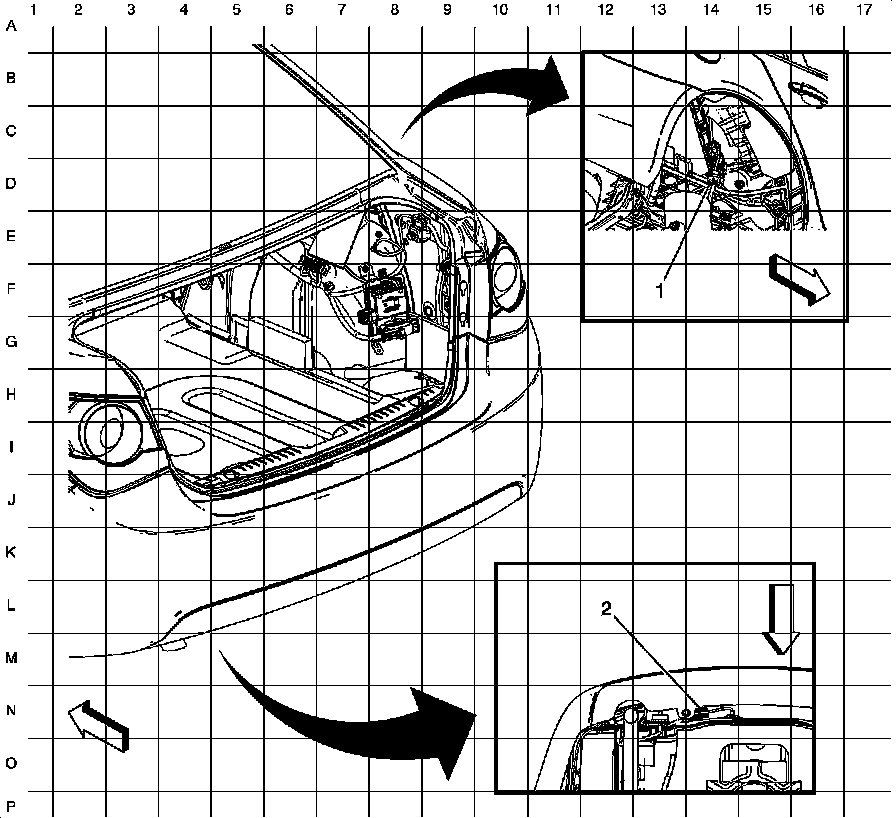

Body Harness Routing - Under the Rear of the Vehicle
1
- X401
2
- X402
