Knock Sensor: Locations

Powertrain Component Views

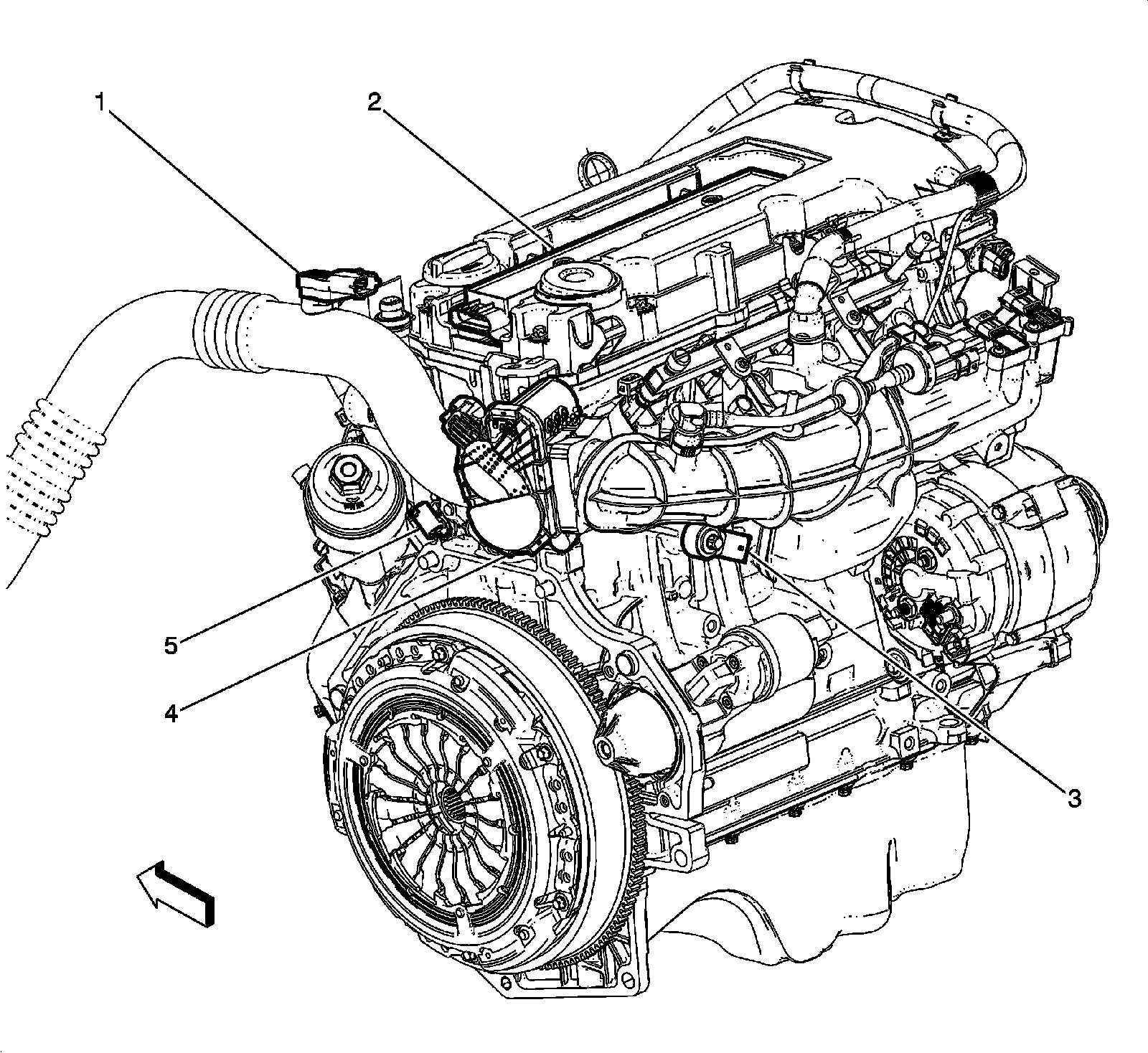

Engine Components - Left Rear (LUJ)




1 - B65 Intake Manifold Pressure and Air Temperature Sensor
2 - T8 Ignition Coil
3 - B68 Knock Sensor
4 - Q38 Throttle Body
5 - B34A Engine Coolant Temperature Sensor 1
