Body / Frame Mount Bushing: Service and Repair




Drivetrain and Front Suspension Frame Rear Insulator Replacement

Special Tools

CH-49384 - Frame Bushing Installer

For equivalent regional tools, refer to Special Tools Tools and Equipment.

Removal Procedure





1. Remove the frame. Refer to Drivetrain and Front Suspension Frame Replacement Drivetrain and Front Suspension Frame Replacement.

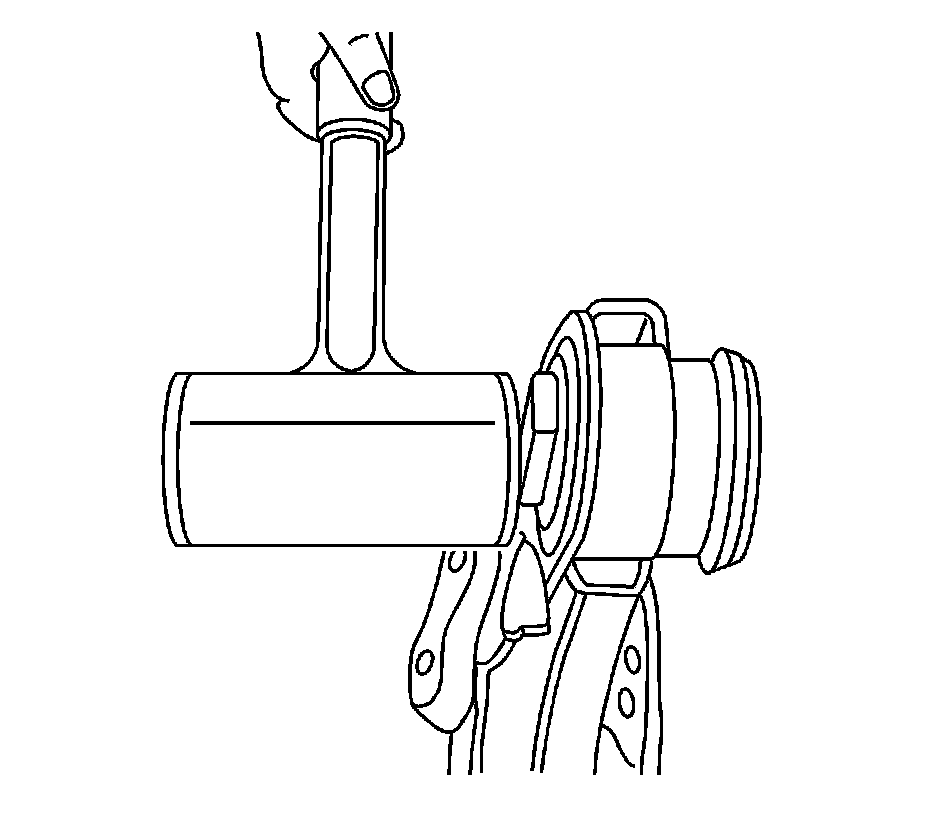

2. Remove cradle bushing with a rubber mallet.

Installation Procedure

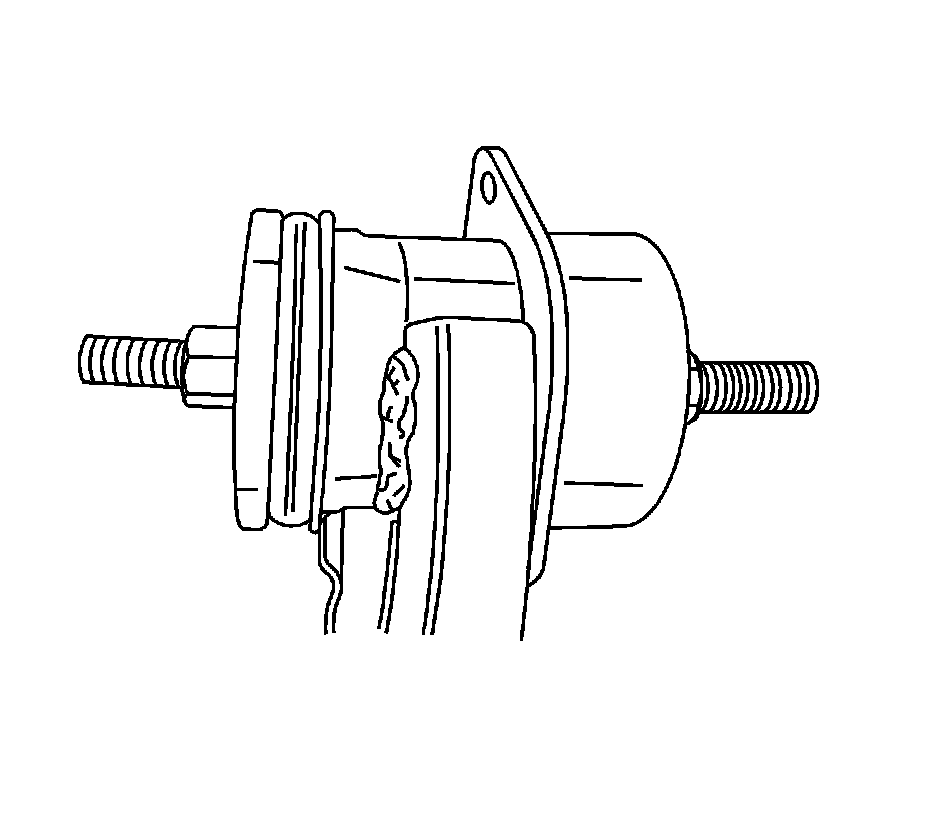

1. Install the bushing using the CH-49384 - installeruntil the lip of the bushing is fully seated to the bottom of the cradle assembly.

2. Install the frame. Refer to Drivetrain and Front Suspension Frame Replacement Drivetrain and Front Suspension Frame Replacement.
