Cruise Control

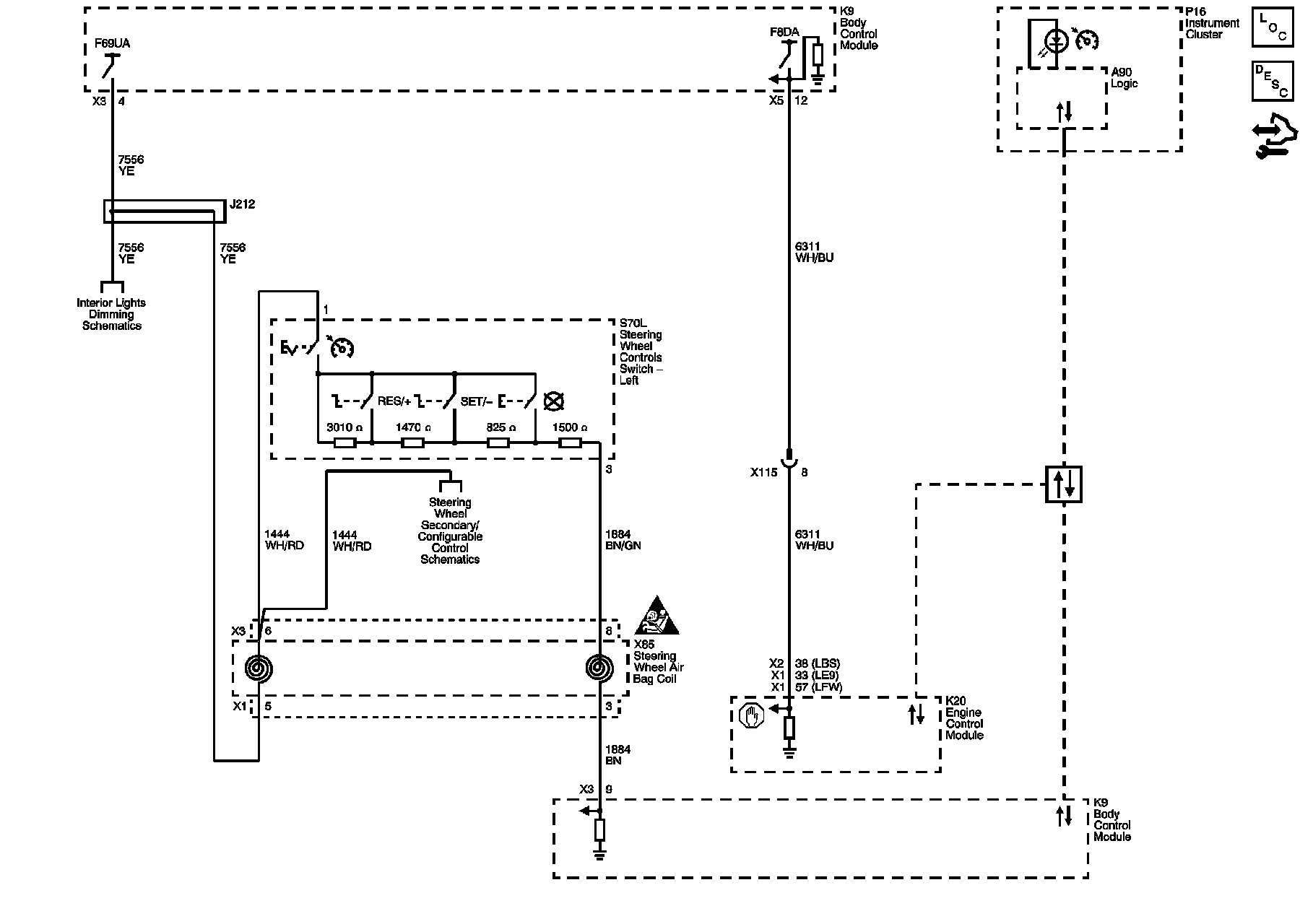

Cruise Control Schematics

K34

Master Electrical Component List
Cruise Control Description and Operation
Control Module References
