Seat Memory Control Module X2 (A45)

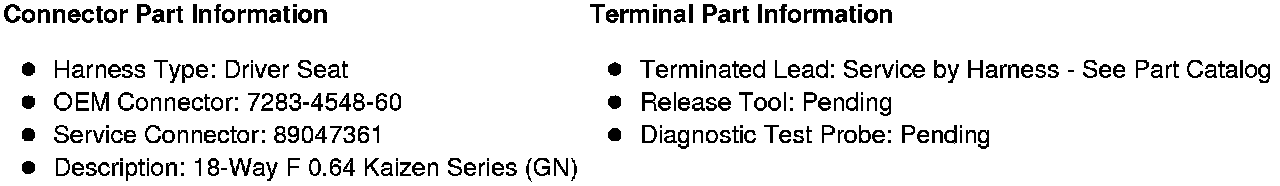

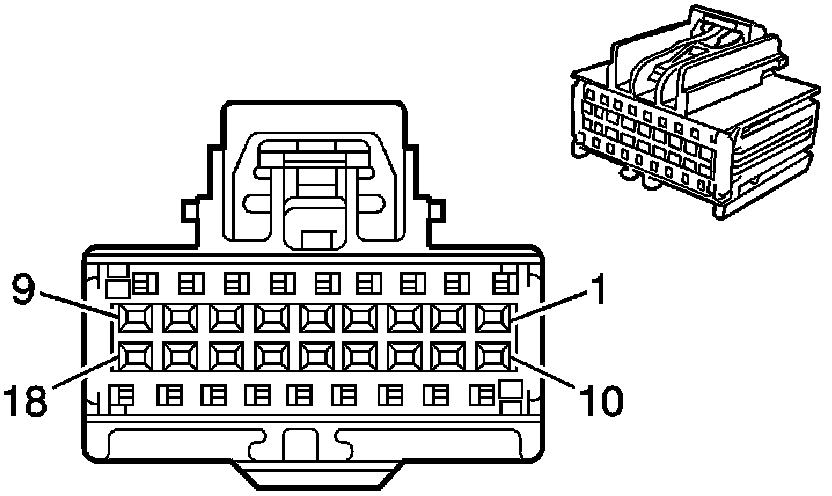

Component Connector End Views

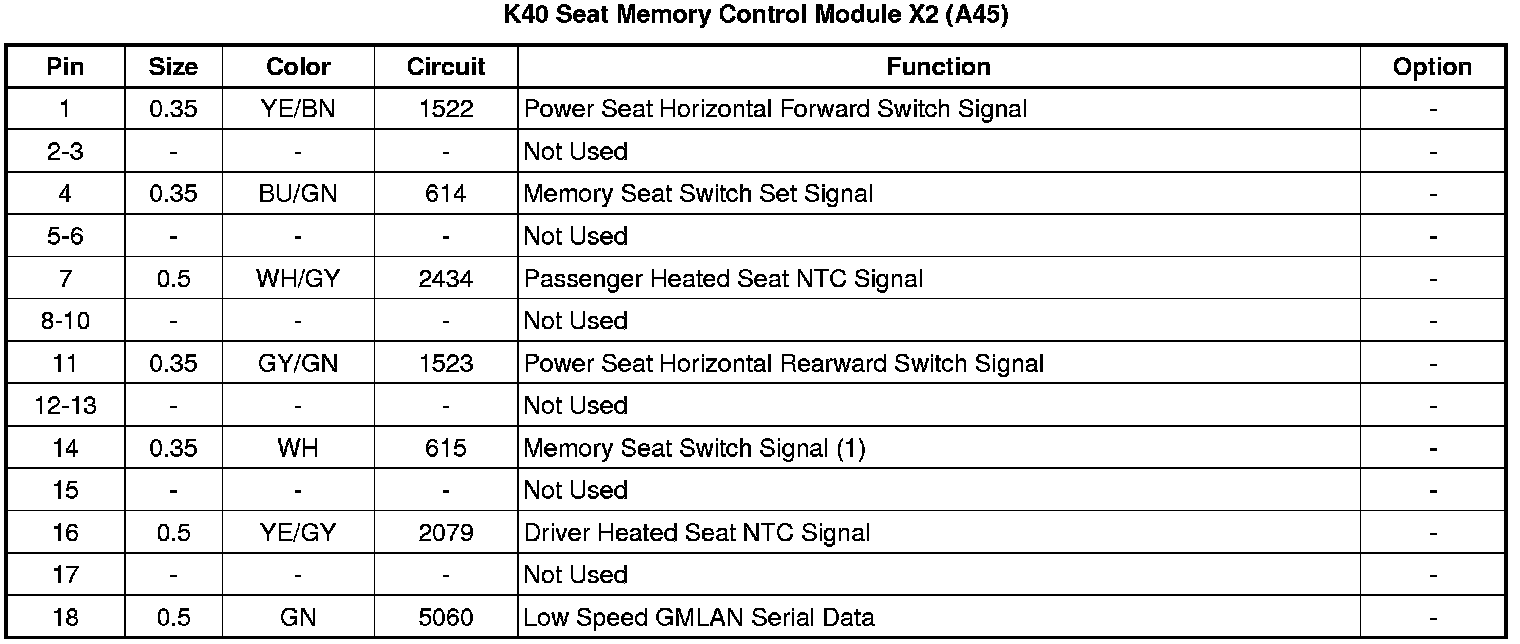

K40 Seat Memory Control Module X2 (A45)
