Thread Repair Specifications (LAP, LAT, LE5, LE8, LE9)
Thread Repair Specifications (LAP, LAT, LE5, LE8, LE9)

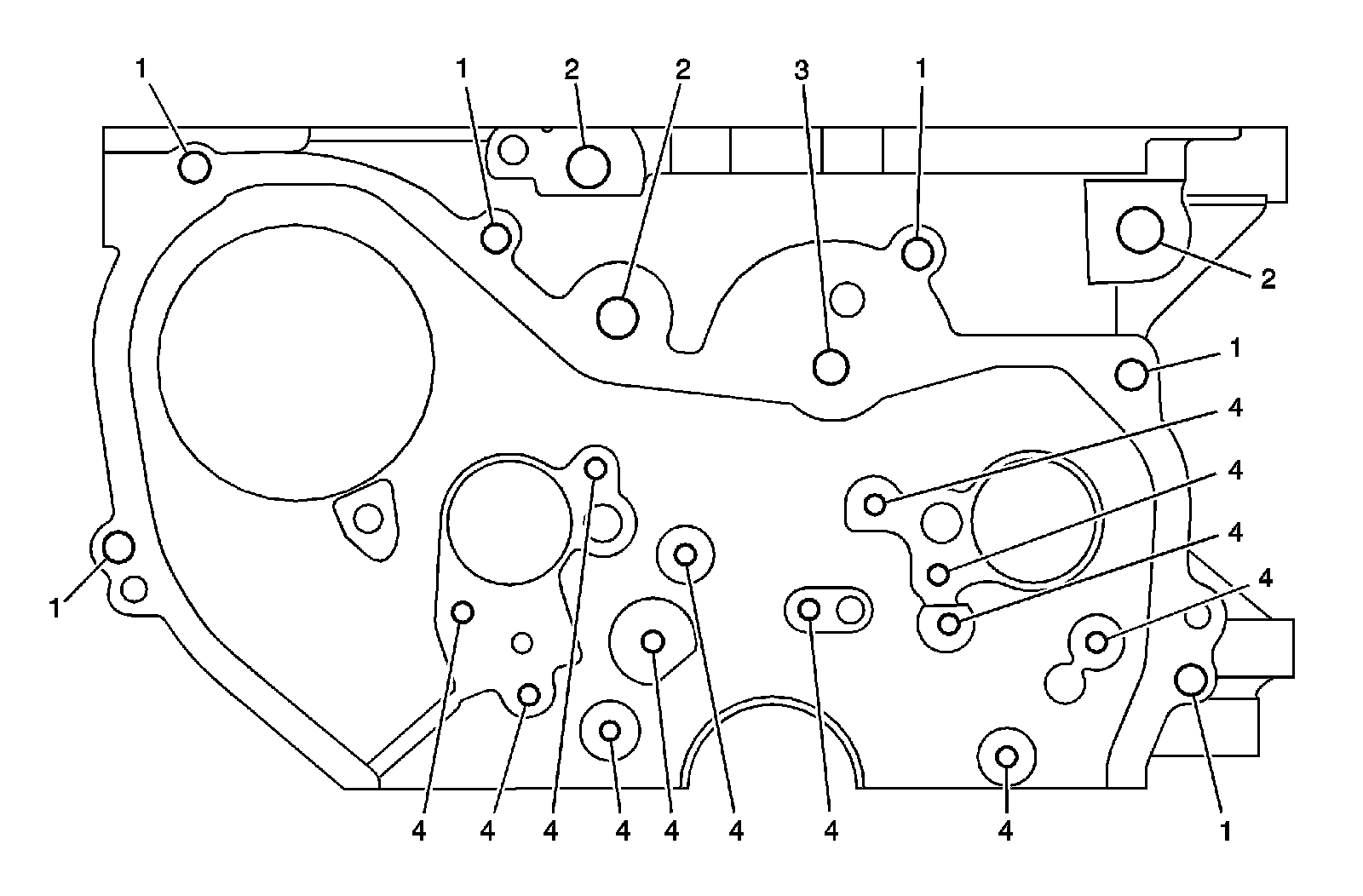

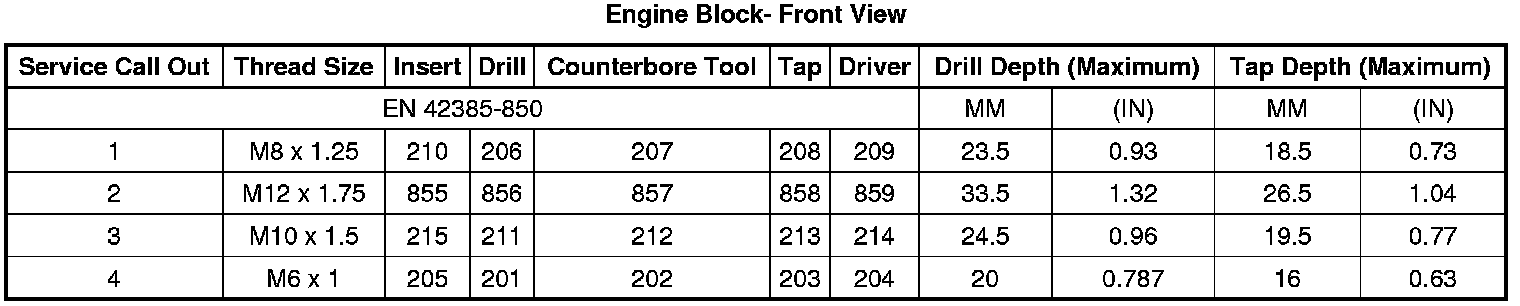

Engine Block- Front View

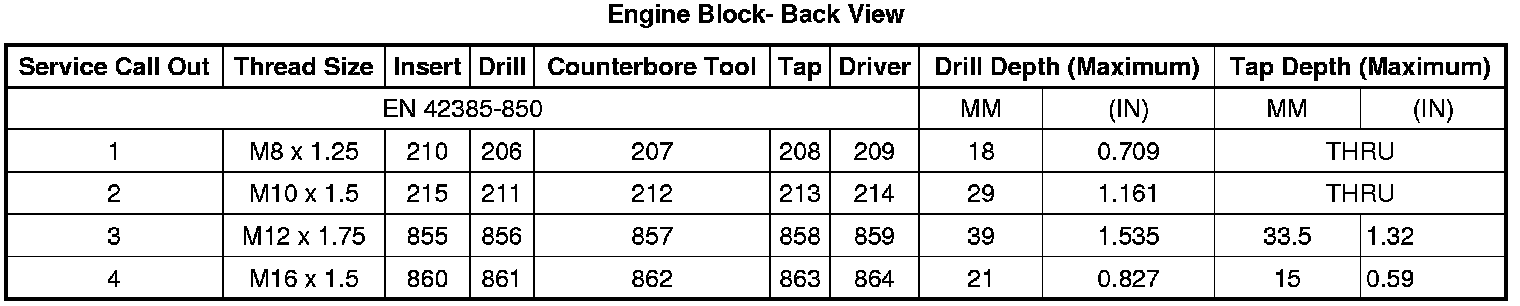

Engine Block- Back View
Engine Block- Right Side View

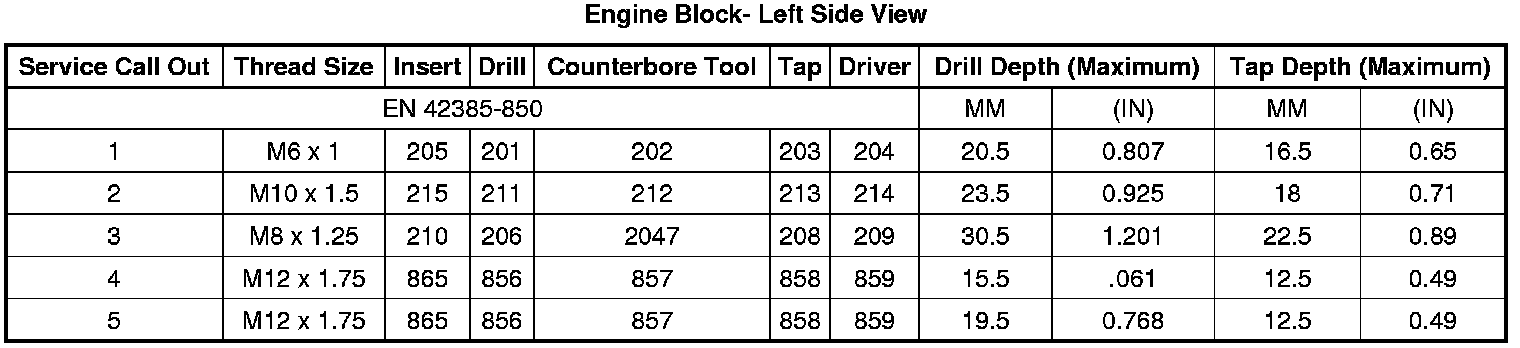

Engine Block- Left Side View

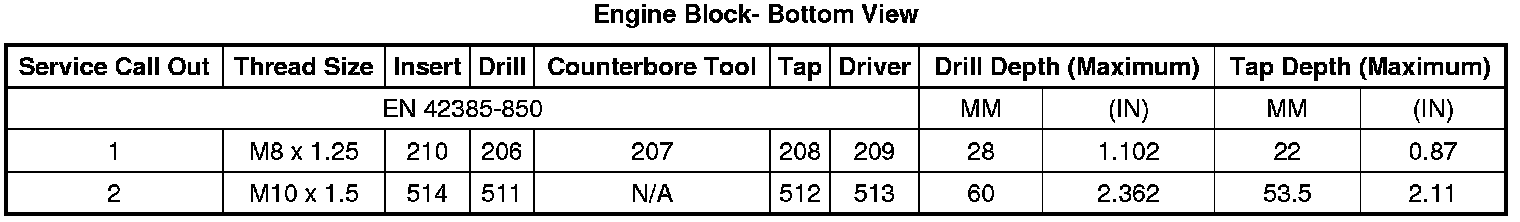

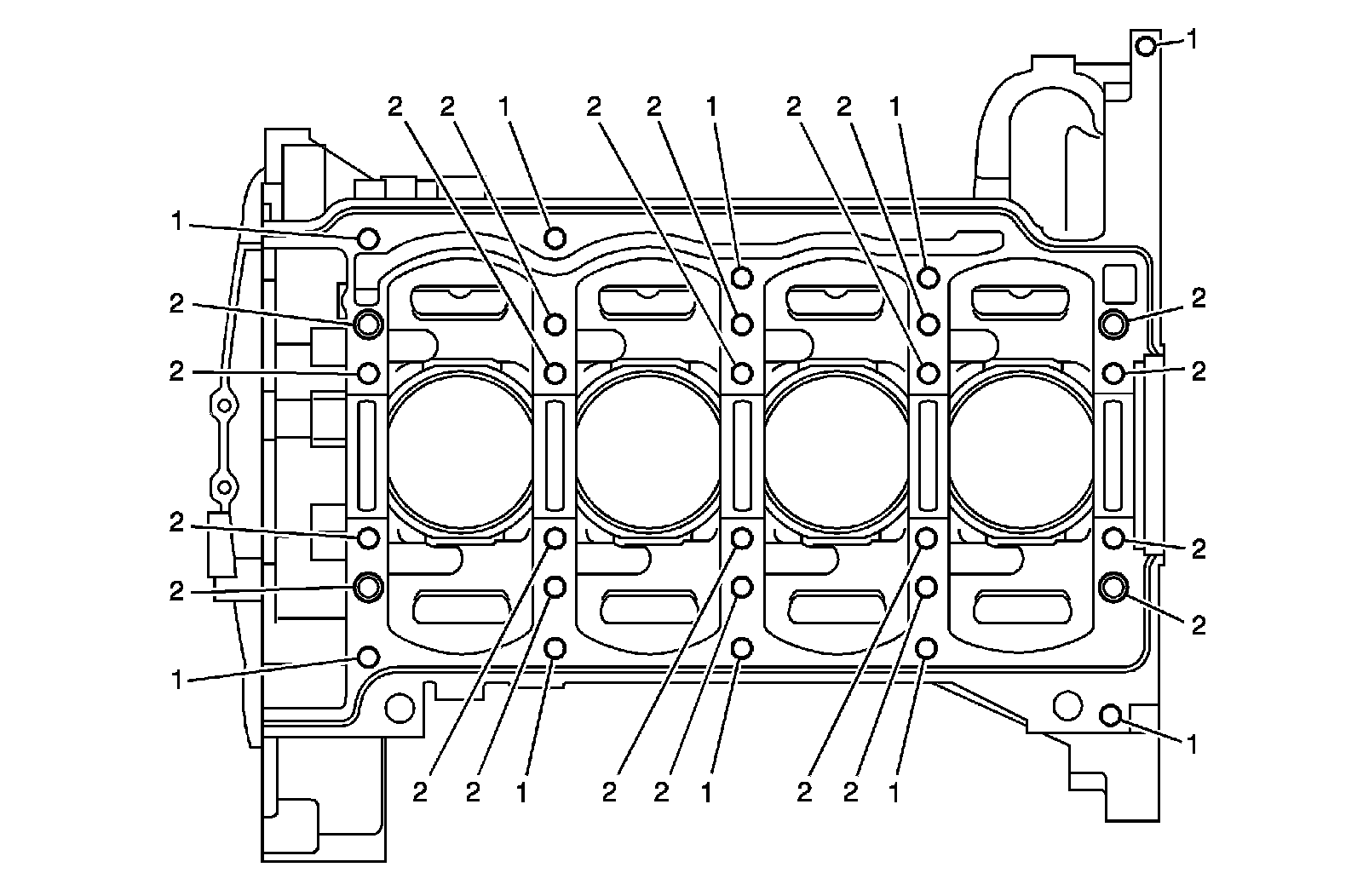

Engine Block- Bottom View

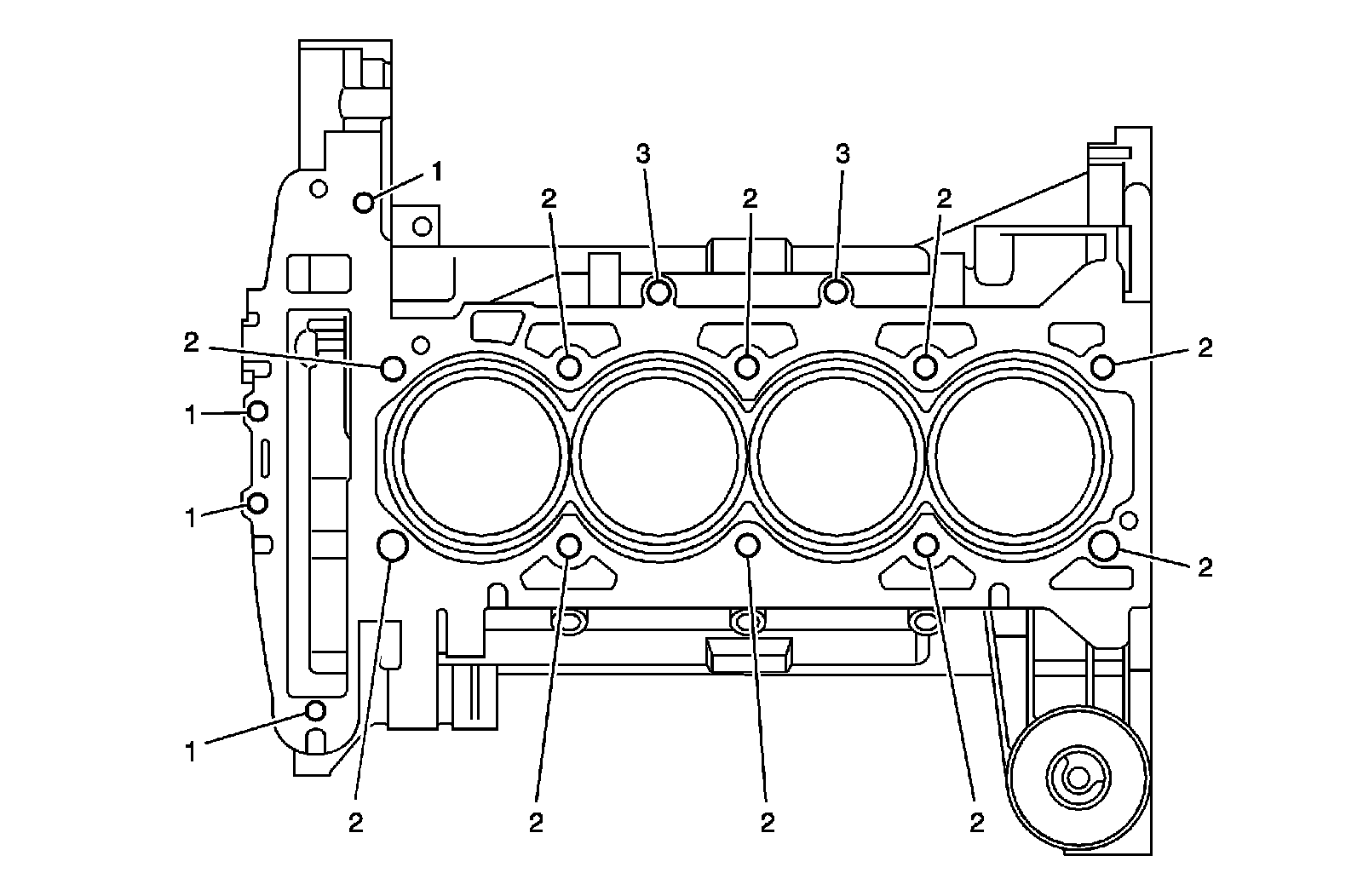

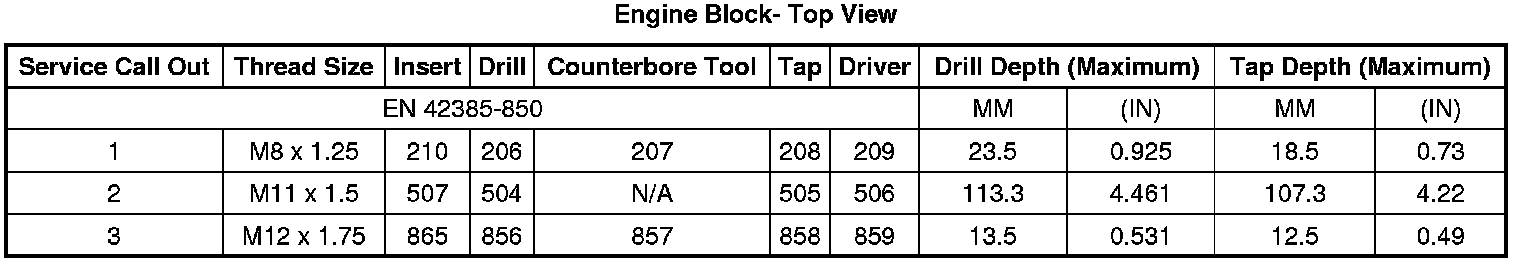

Engine Block- Top View

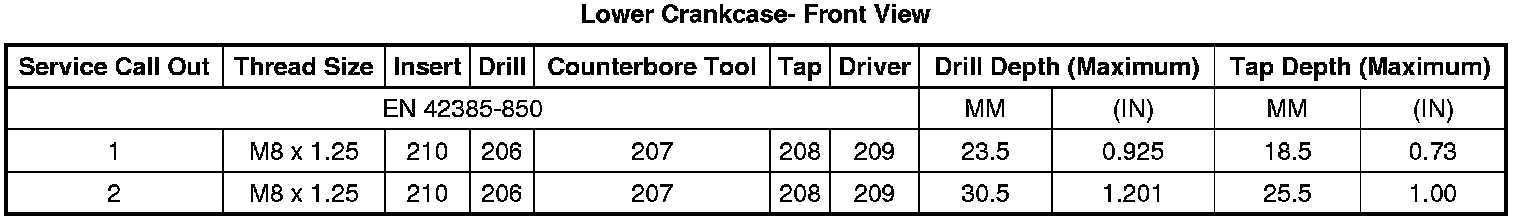

Lower Crankcase- Front View
Lower Crankcase- Back View

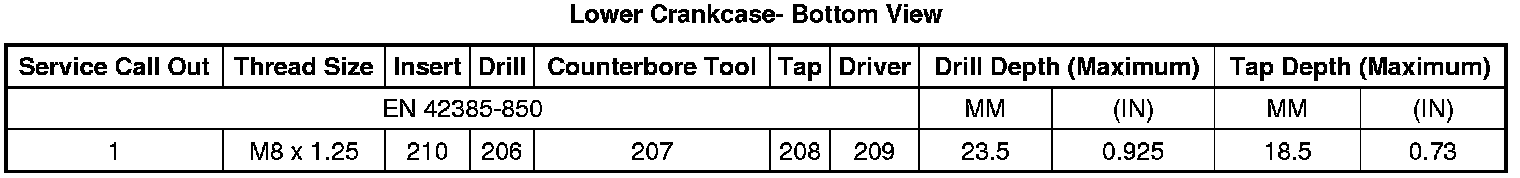

Lower Crankcase- Bottom View

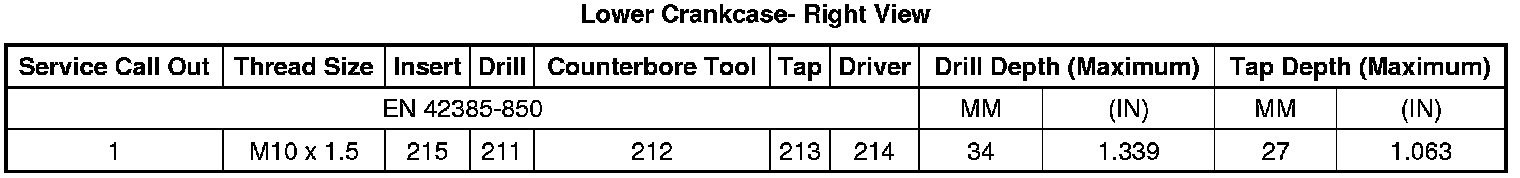

Lower Crankcase- Right View
Lower Crankcase- Left View

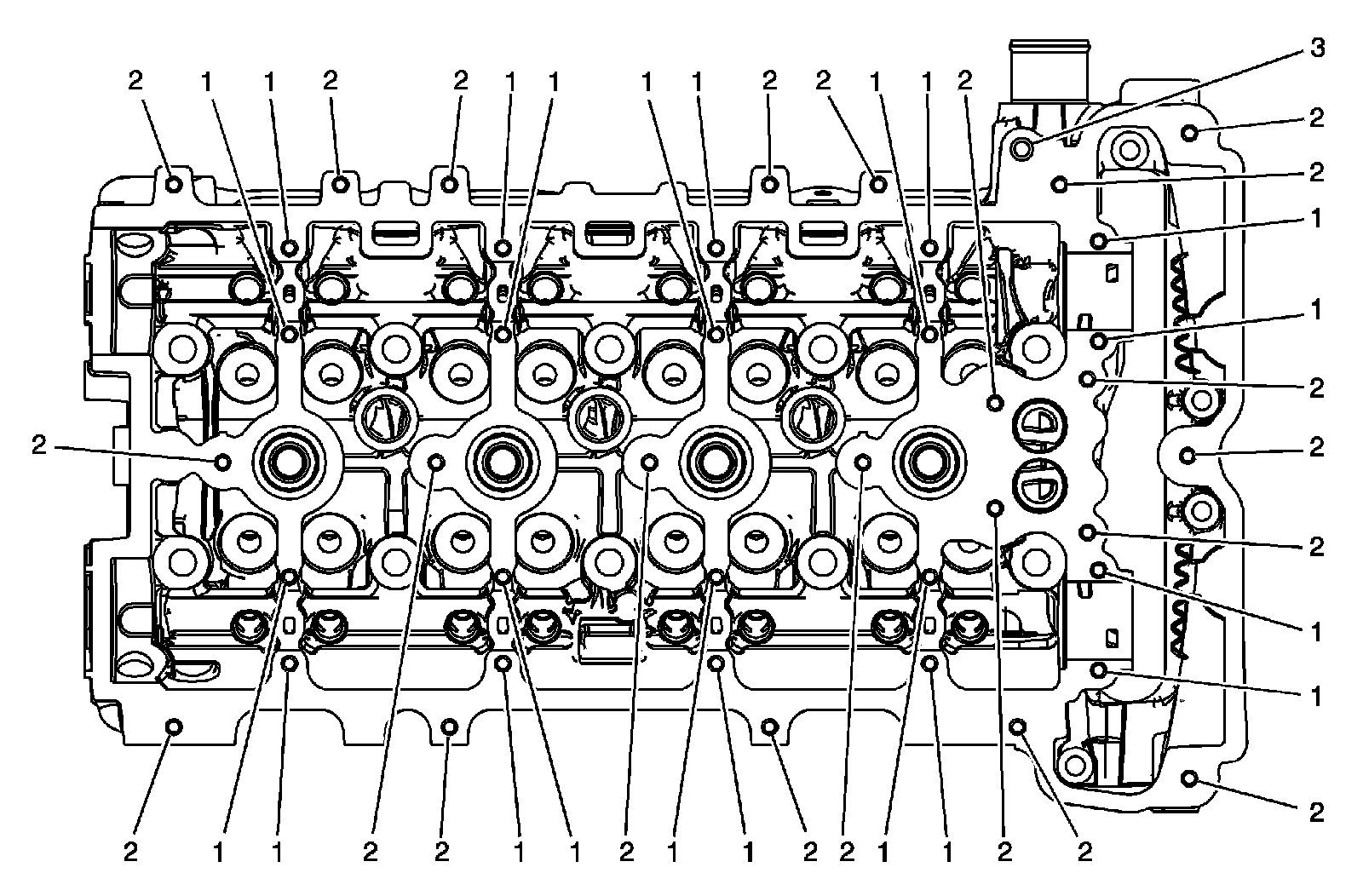

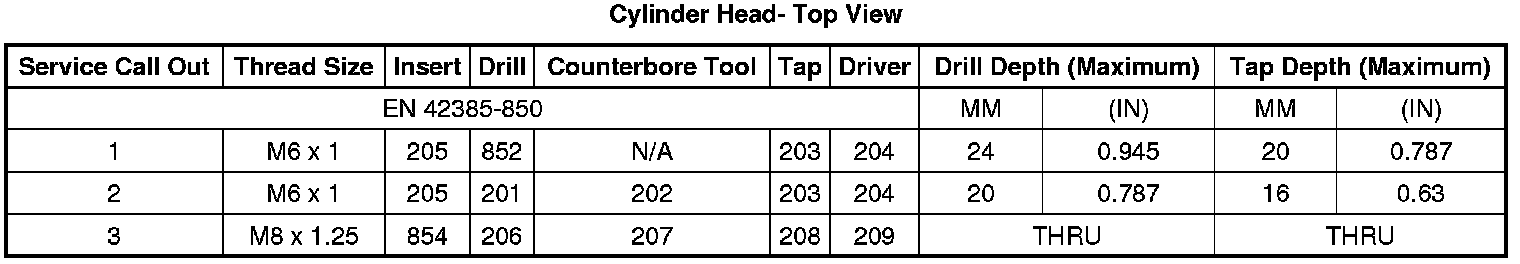

Cylinder Head- Top View

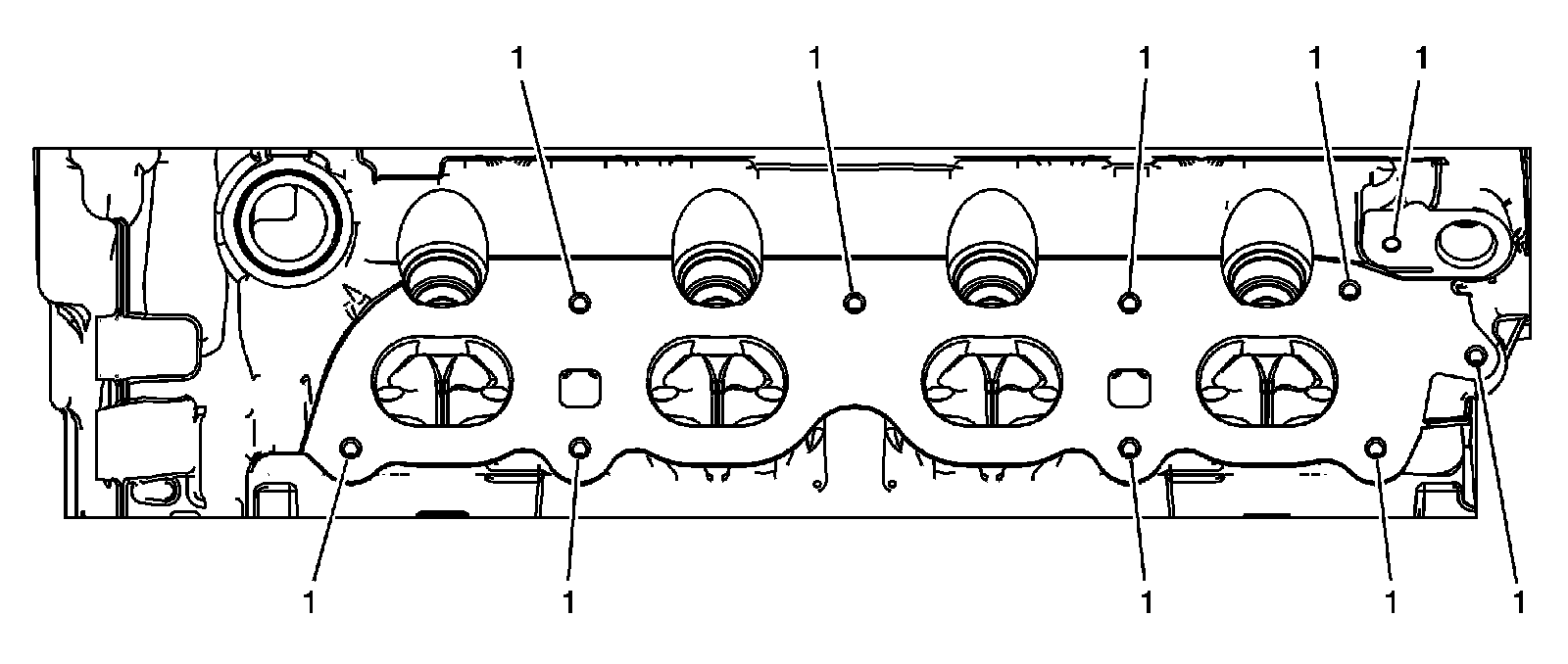

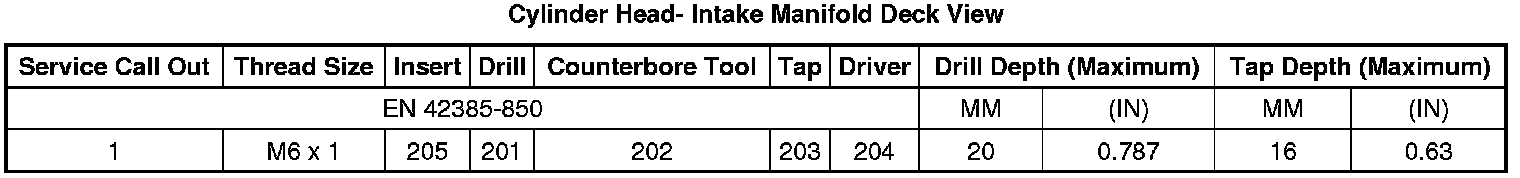

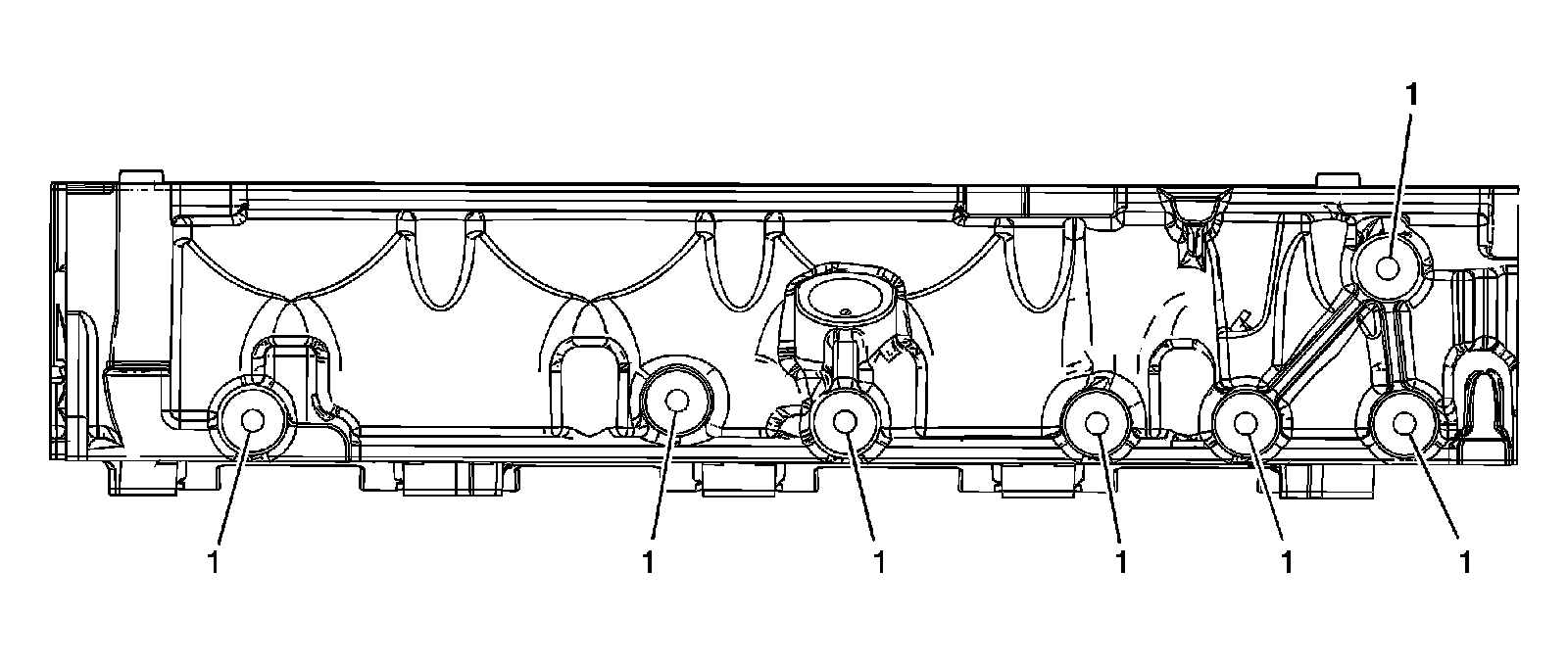

Cylinder Head- Intake Manifold Deck View
Cylinder Head- Exhaust Manifold Deck View

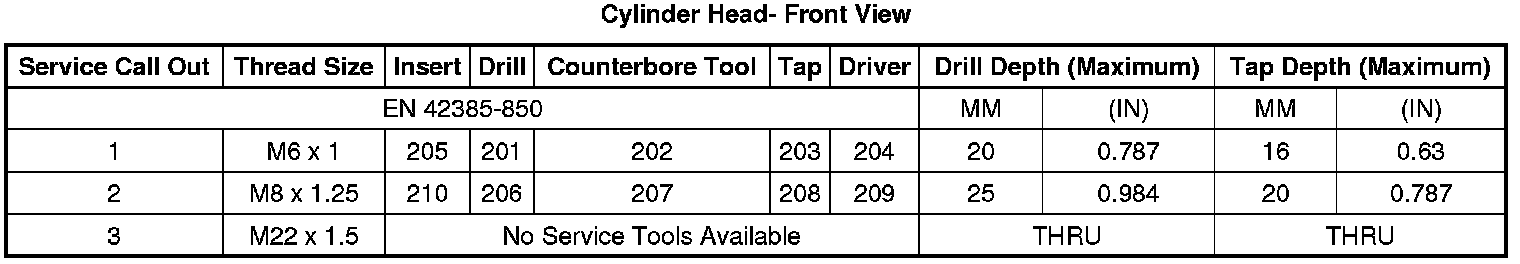

Cylinder Head- Front View

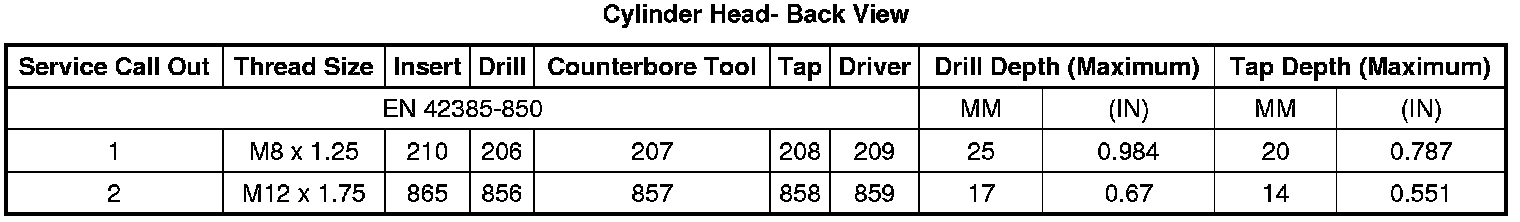

Cylinder Head- Back View
