Electrical Diagrams
Engine Controls Schematics (LAF)

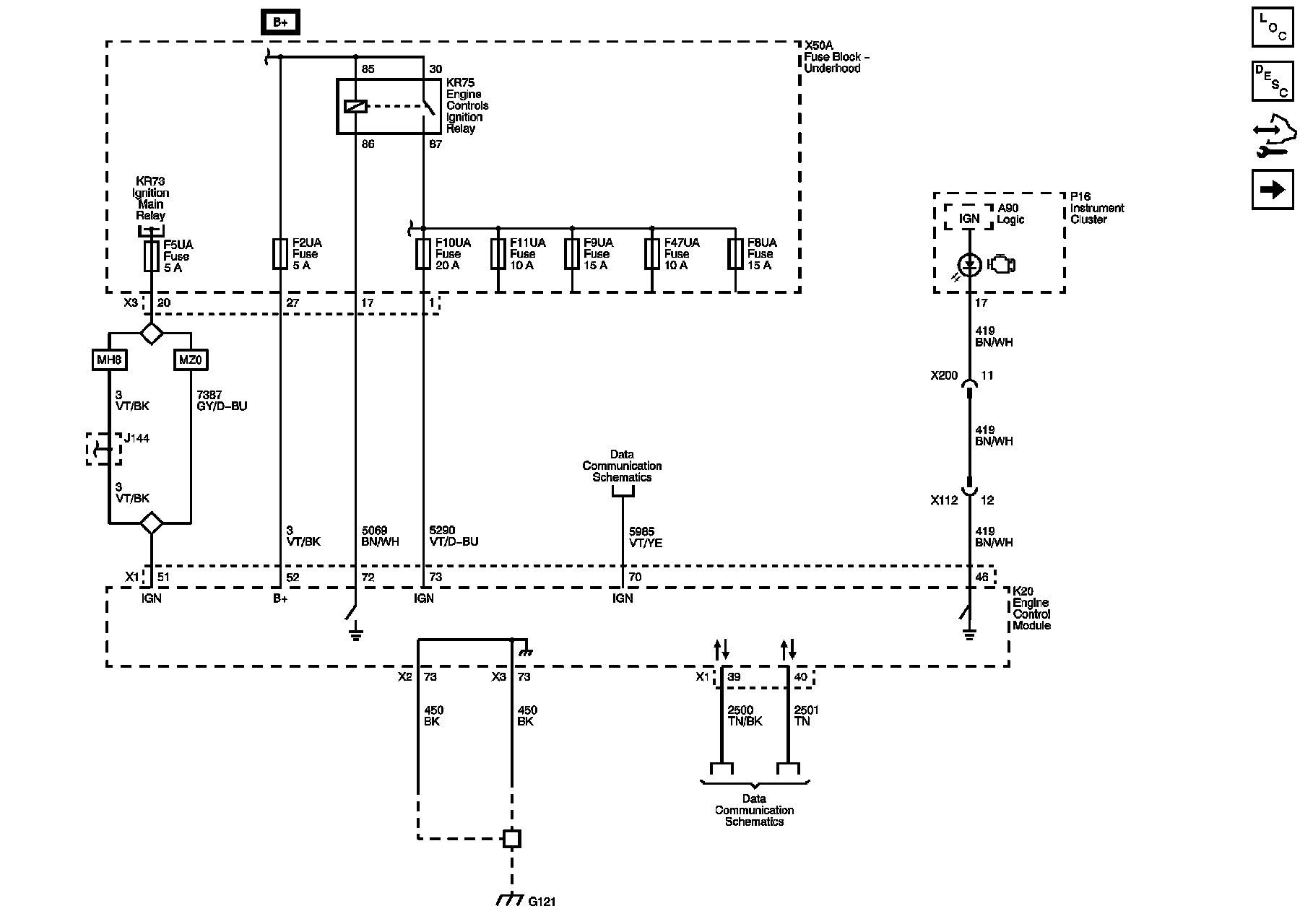

Module Power, Ground, Serial Data, and MIL

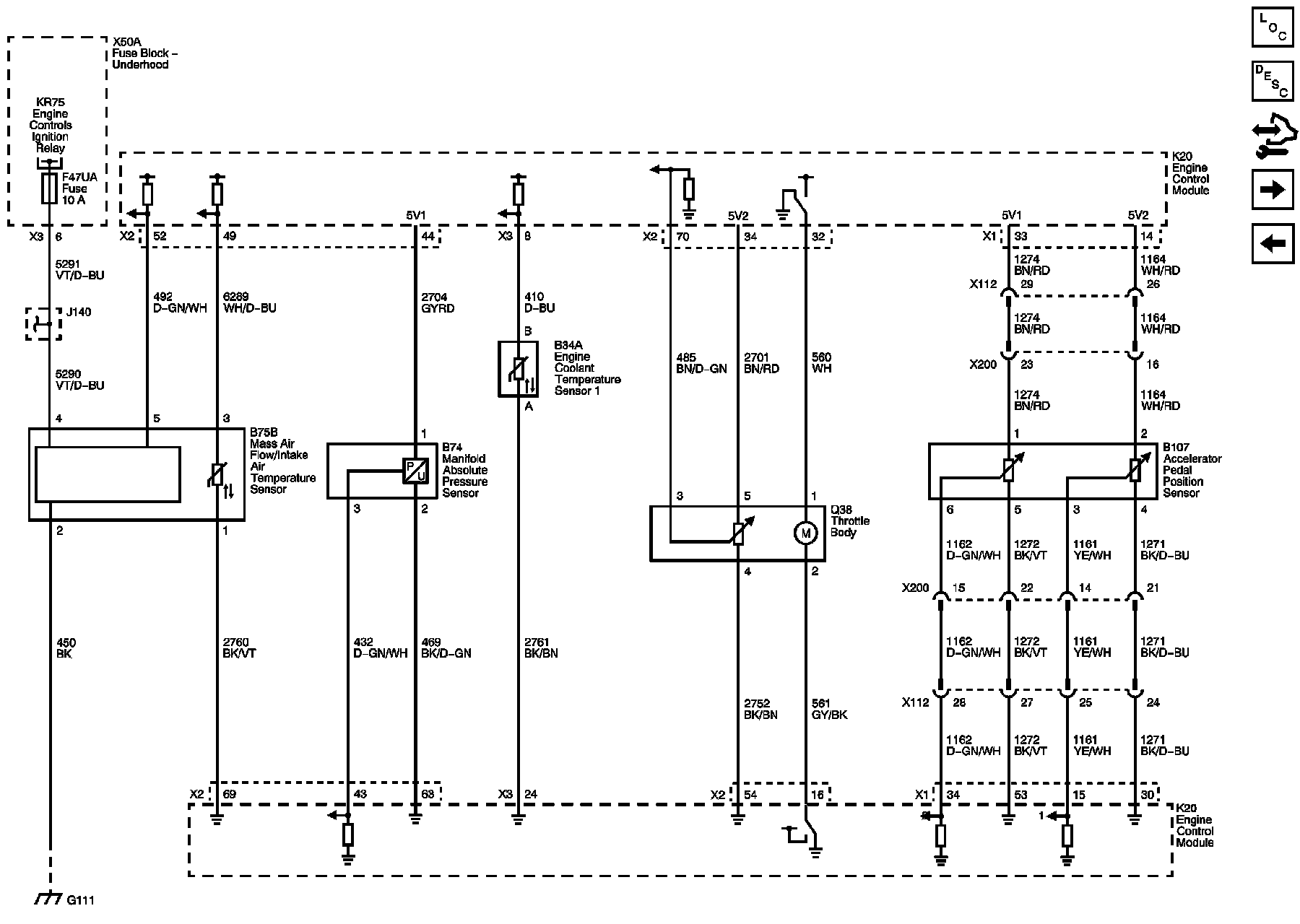

5V1, 5V2, and Low Reference Bus (1 of 2)
Low Reference Bus (2 of 2)

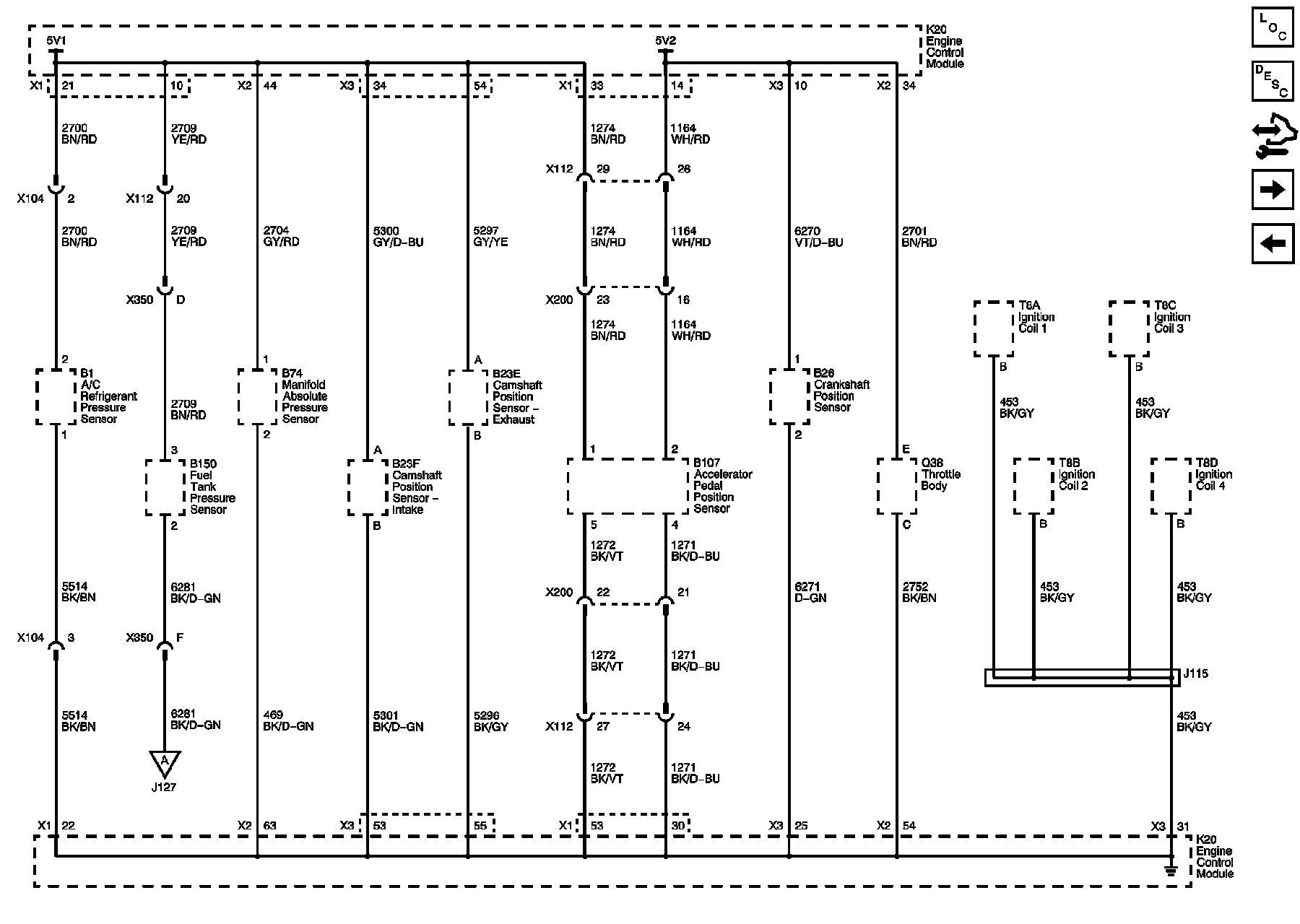

Engine Data Sensors- Pressure, Temperature, and Throttle Controls

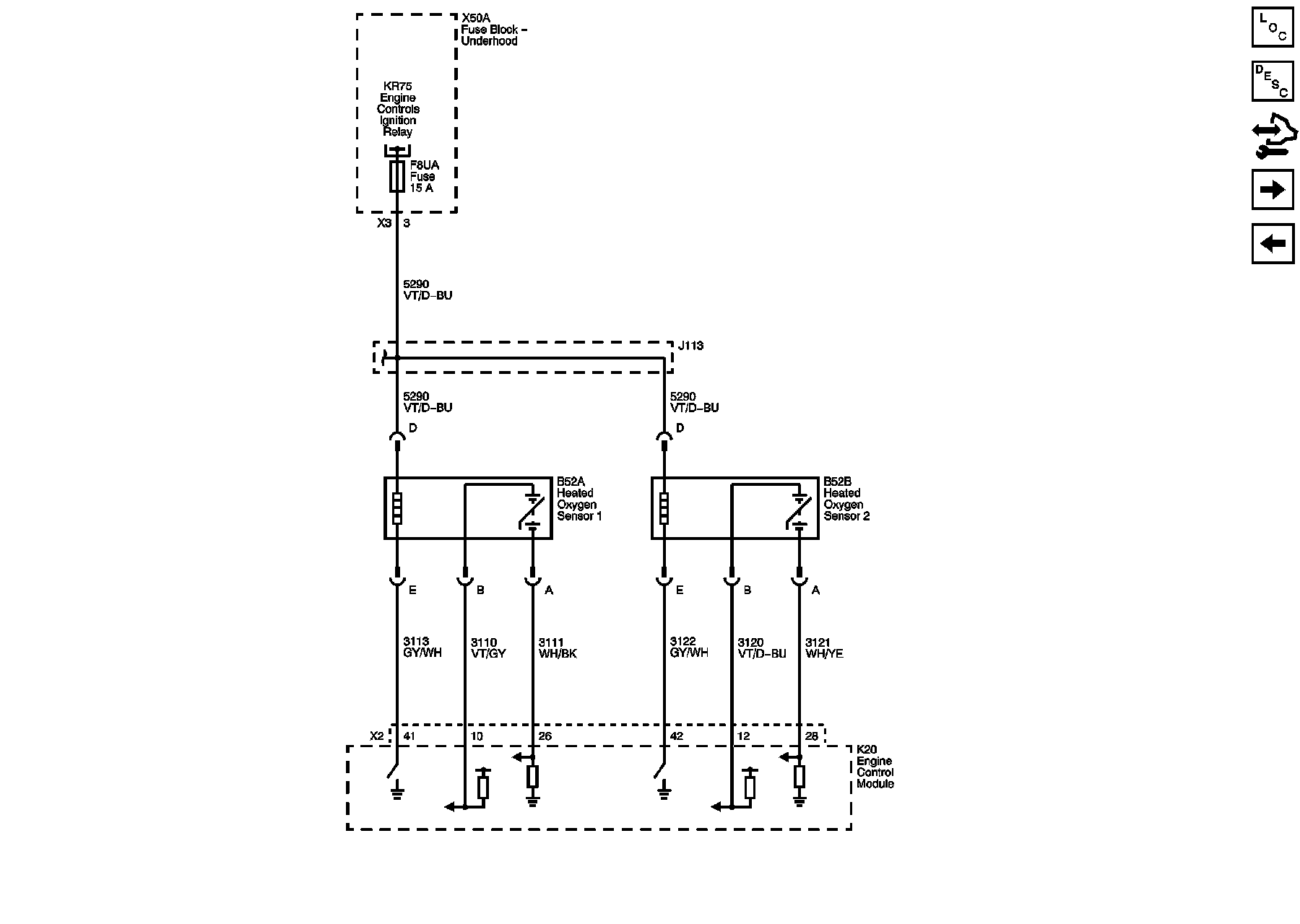

Engine Data Sensors- Oxygen Sensors

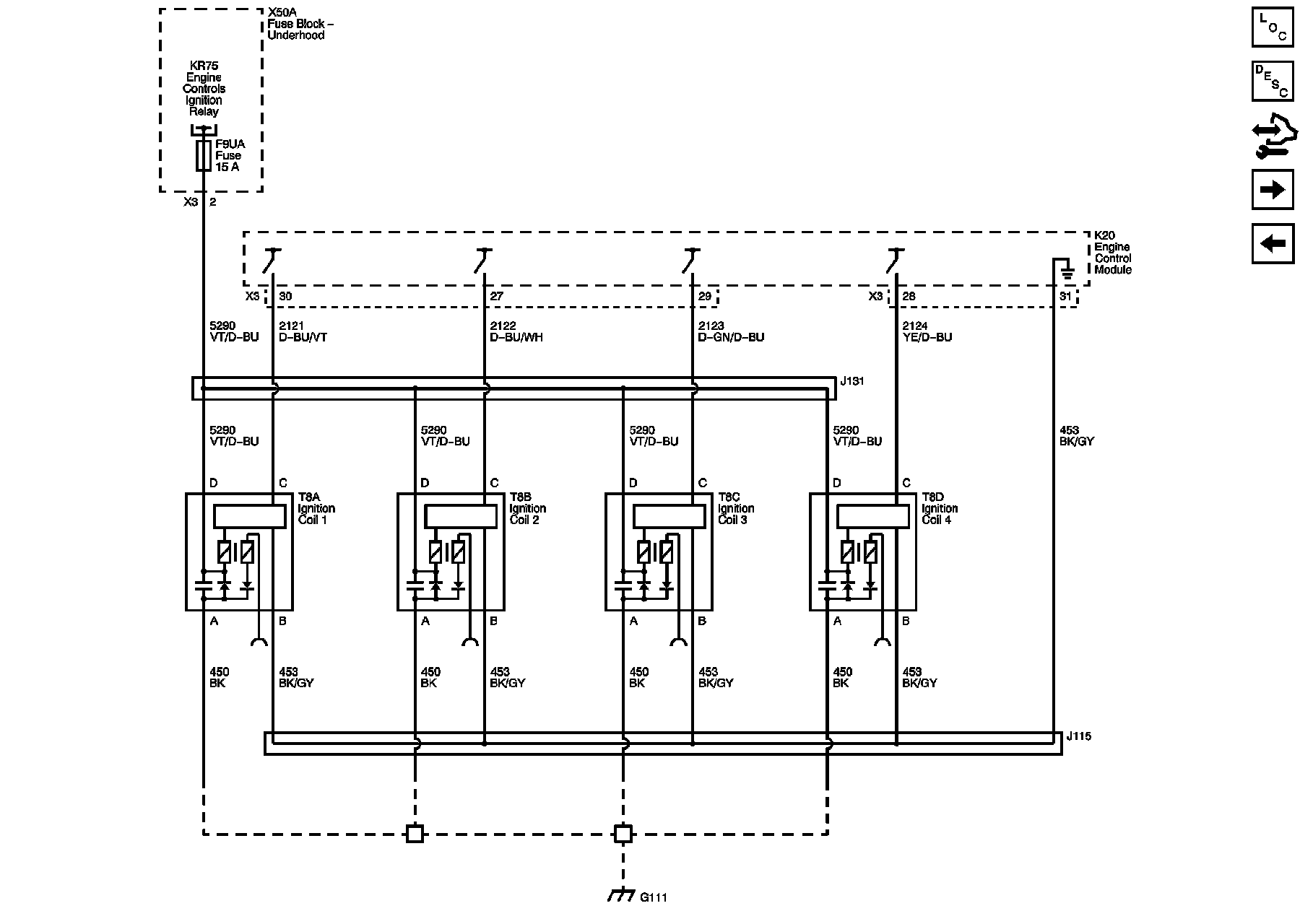

Ignition Controls- Ignition System

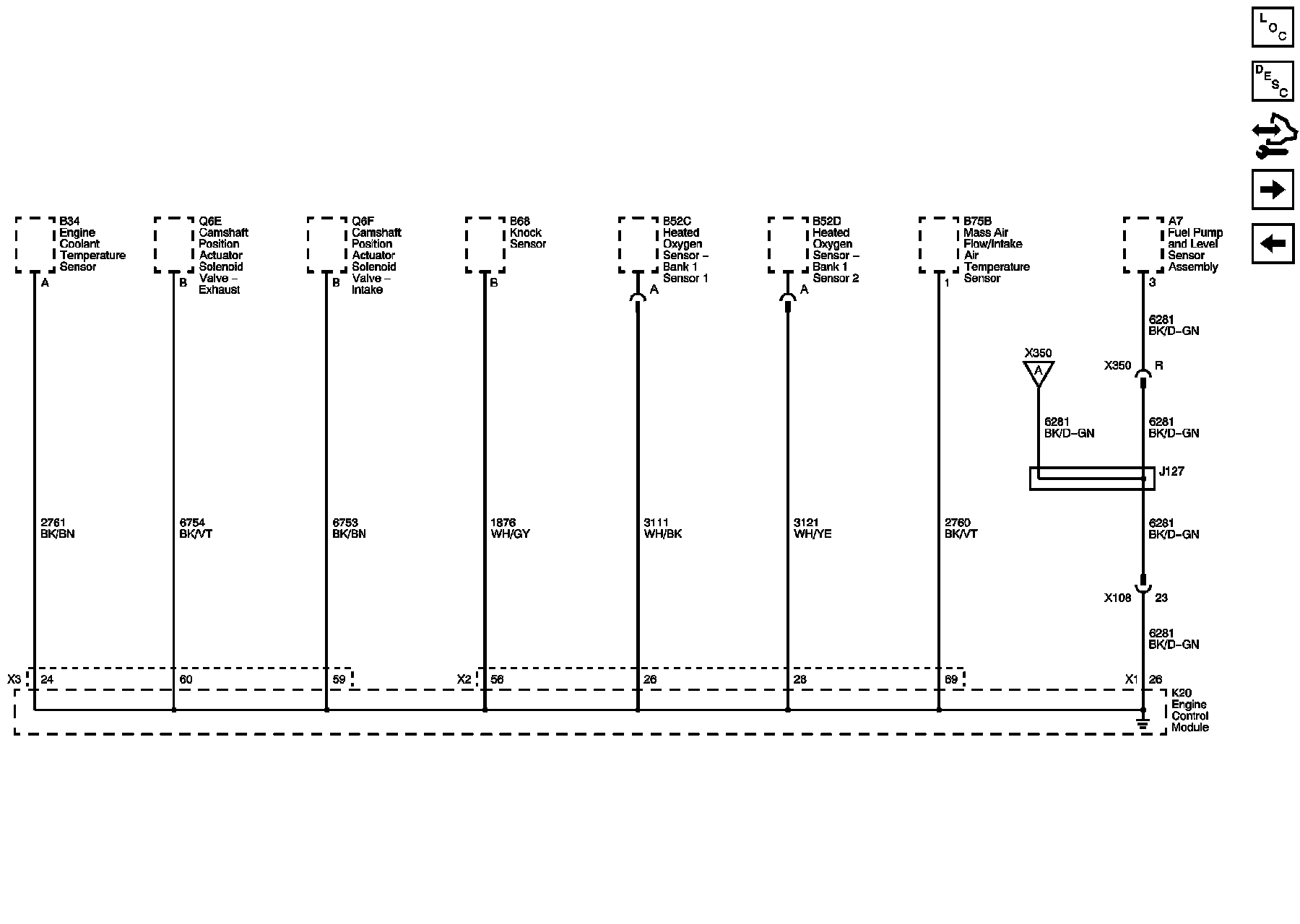

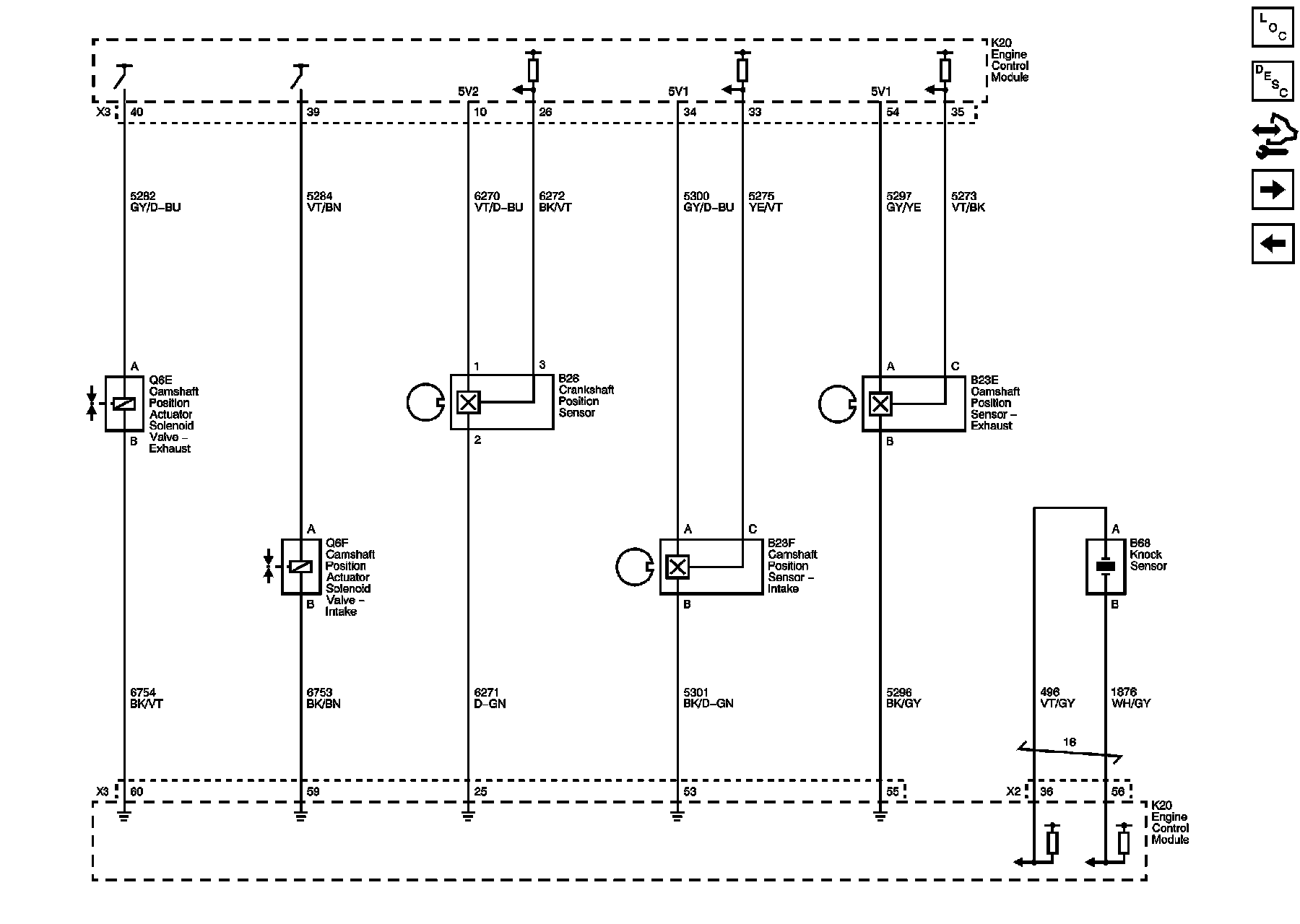

Ignition Controls- Camshaft, Crankshaft, and Knock Sensors, and Camshaft Actuators

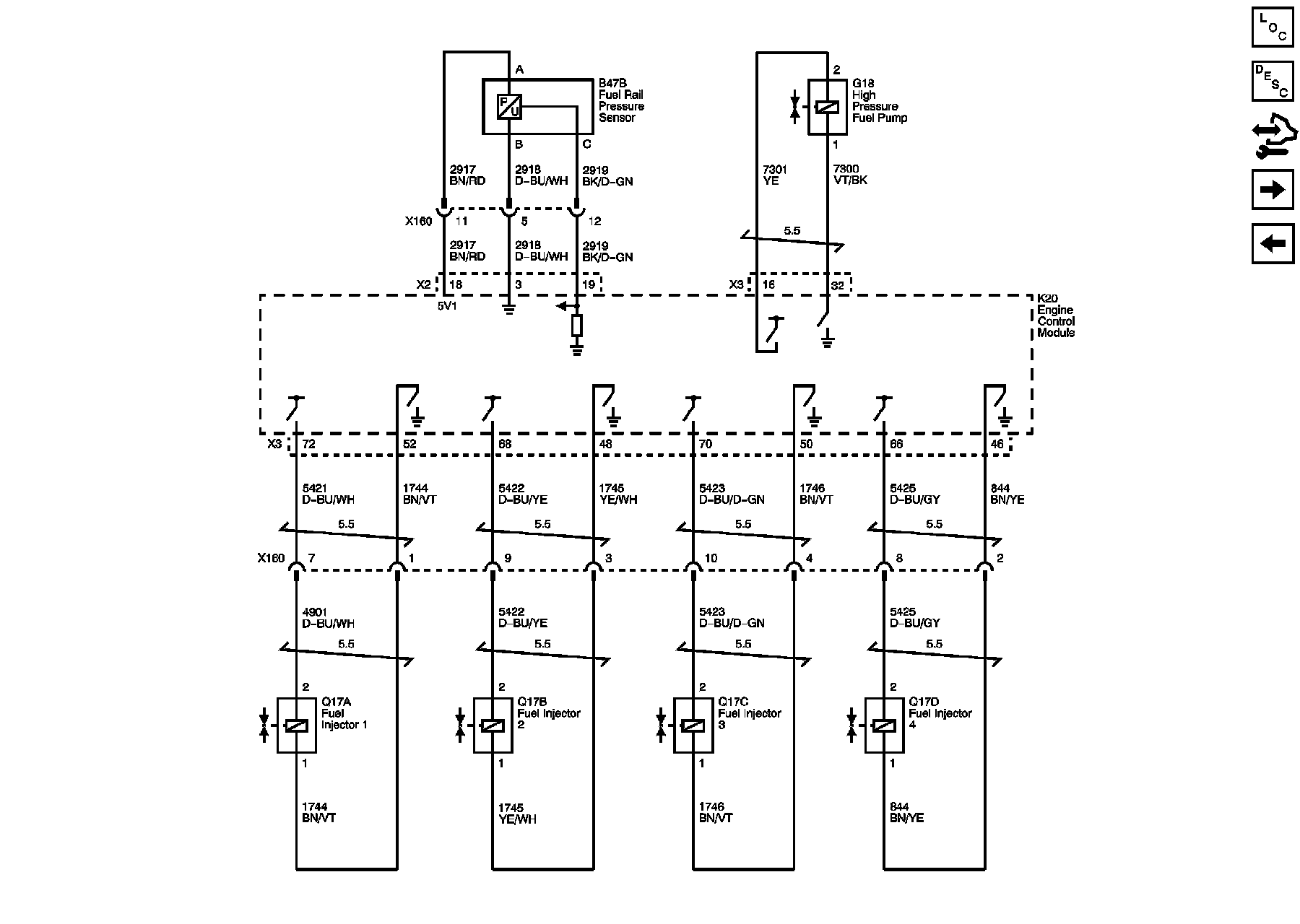

Fuel Controls- Fuel Injectors

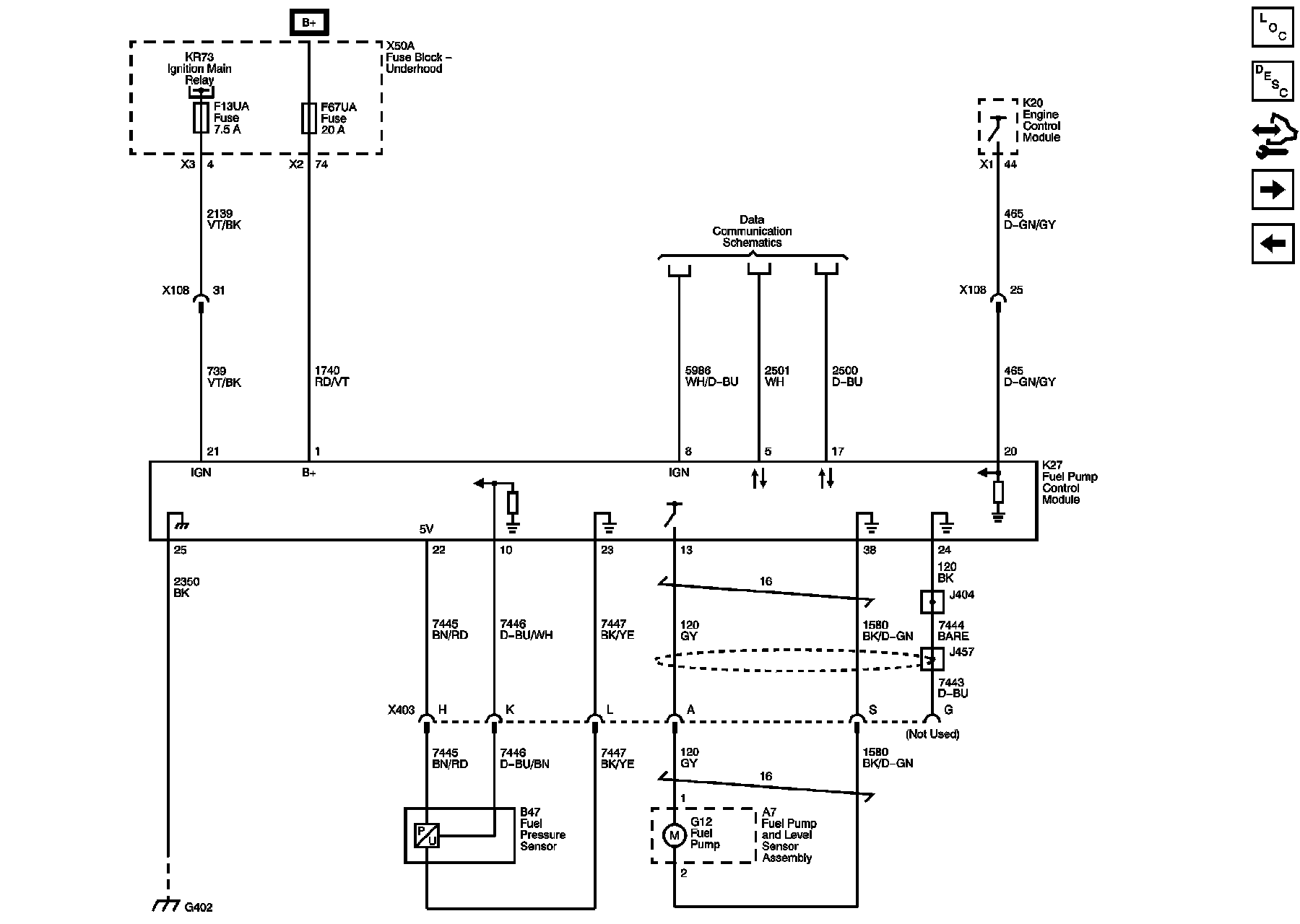

Fuel Controls- Fuel Pump Control

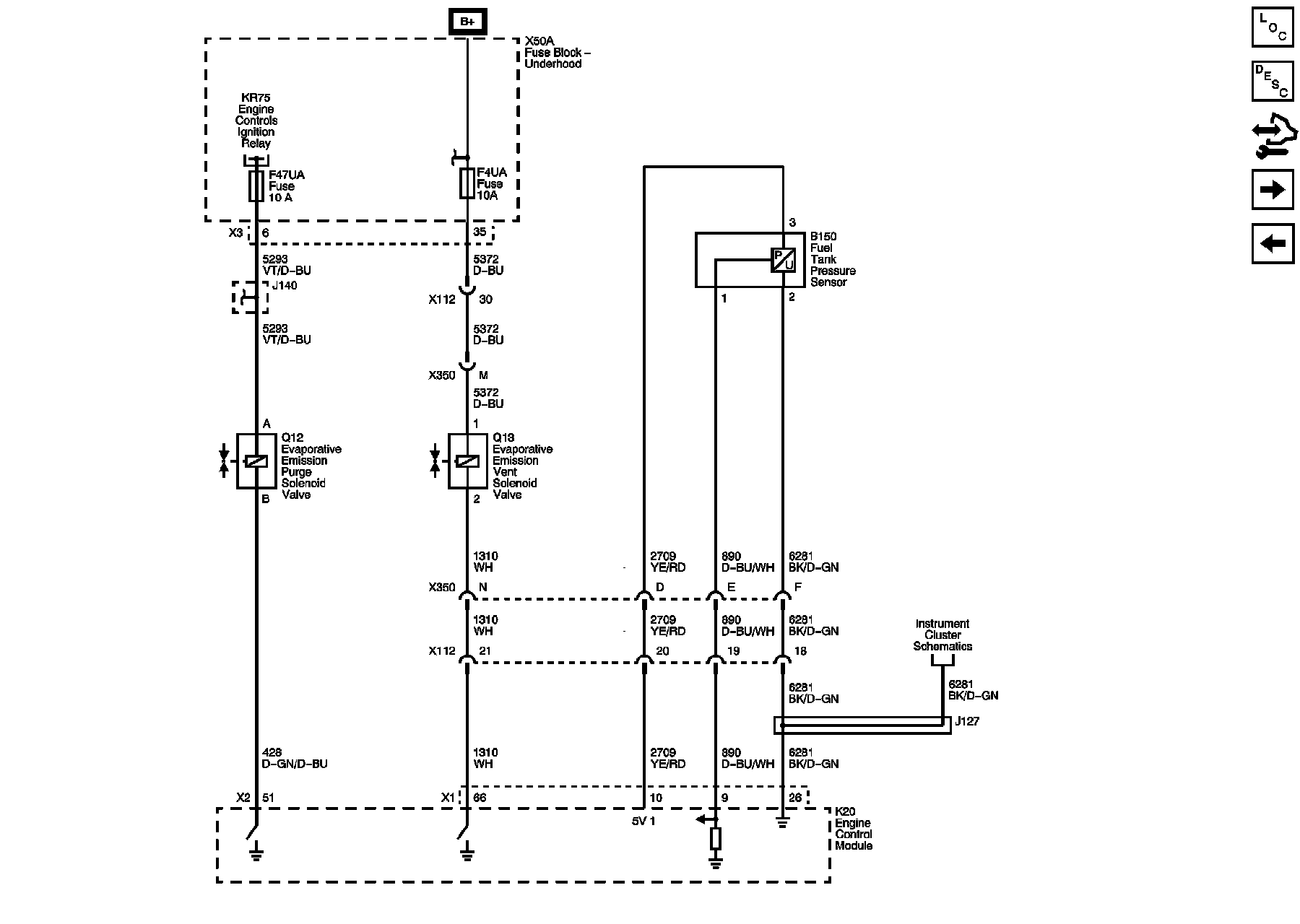

Fuel Controls- Evaporative Emission Controls

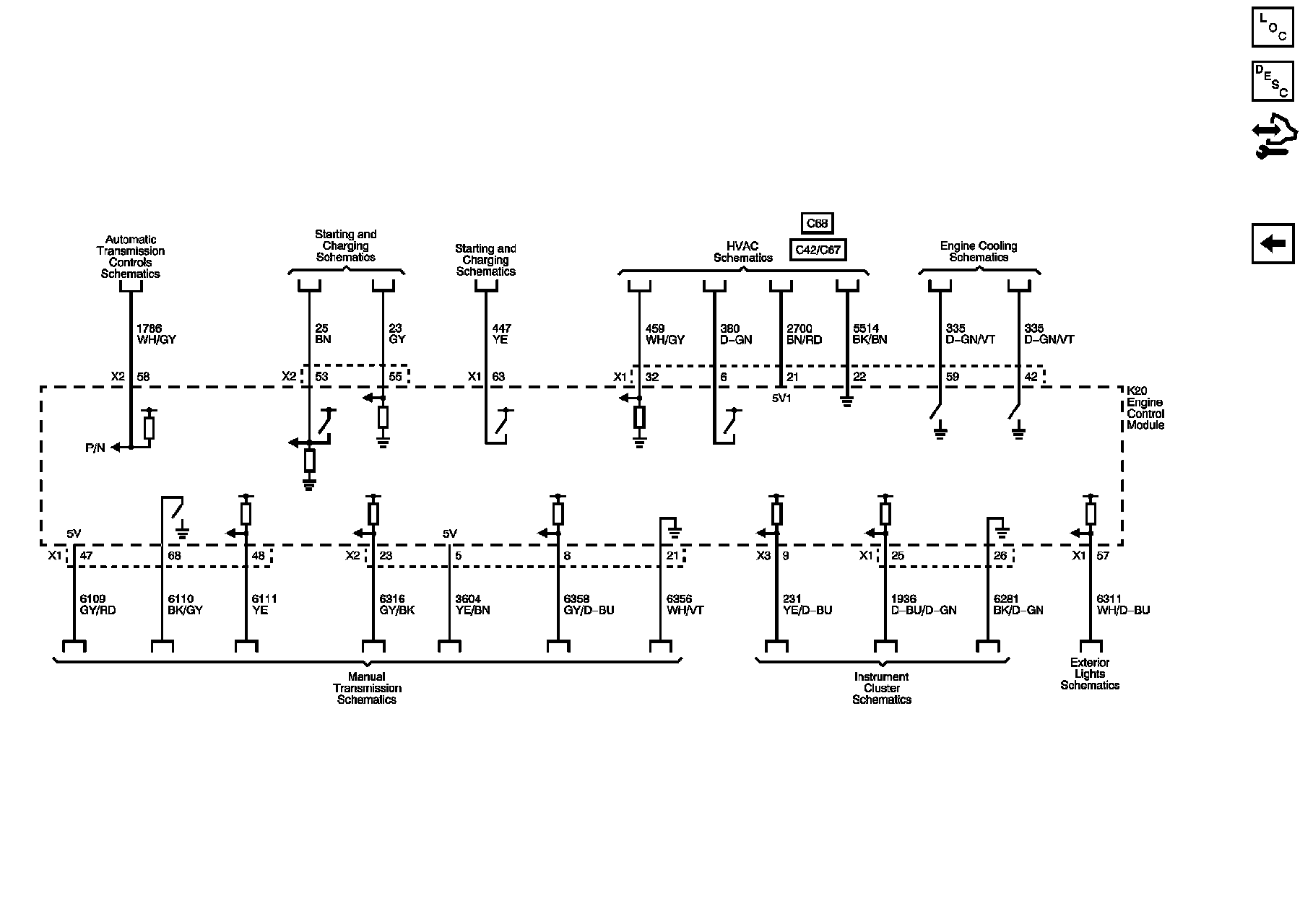

Controlled/Monitored Subsystem References
