Battery Positive Cable Replacement

Battery Positive Cable Replacement

Removal Procedure

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.





2. Unlock the retaining tab (1) on the battery fuse box cover.

3. Use a suitable screwdriver (2) to unlock the clip (4) through the window (3).

Note:
Pull the battery fuse box housing, DO NOT pull the flap.

4. Open the battery fuse box cover.

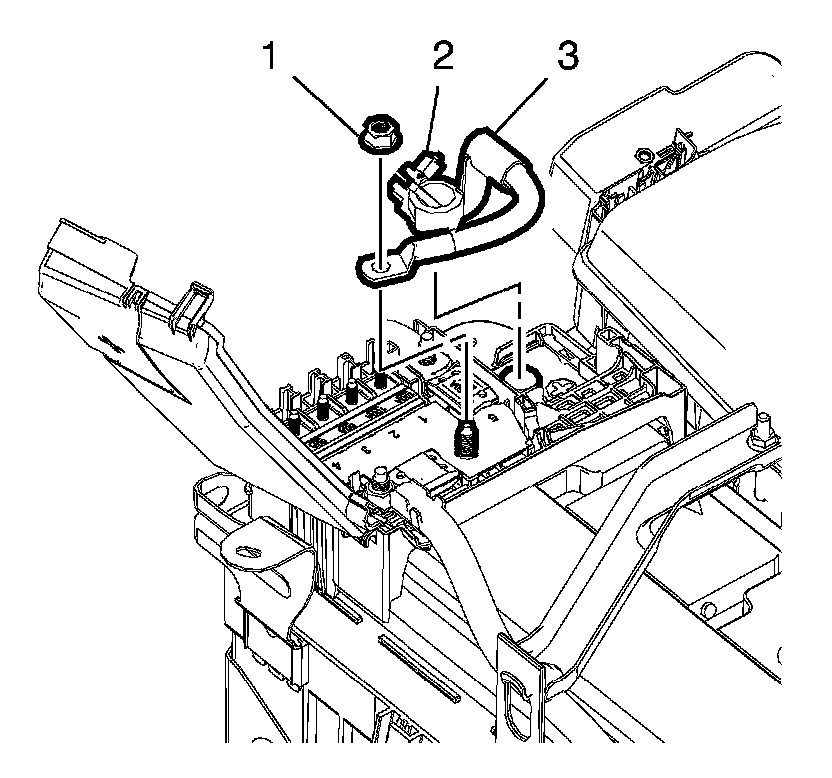

5. Remove the battery positive cable to fuse box nut (1).

6. Remove the battery positive cable to battery nut (2).

7. Remove the battery positive cable to fuse box cable (3).

Installation Procedure





1. Install the battery positive cable to fuse box cable (3).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the battery positive cable to battery nut (2) and tighten to 4.5 Nm (40 lb in).

3. Install the battery positive cable to fuse box nut (1) and tighten to 9 Nm (80 lb in).





4. Close the battery fuse box cover and lock the retaining tabs (1) and (4).

5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.
