Battery Cover Replacement

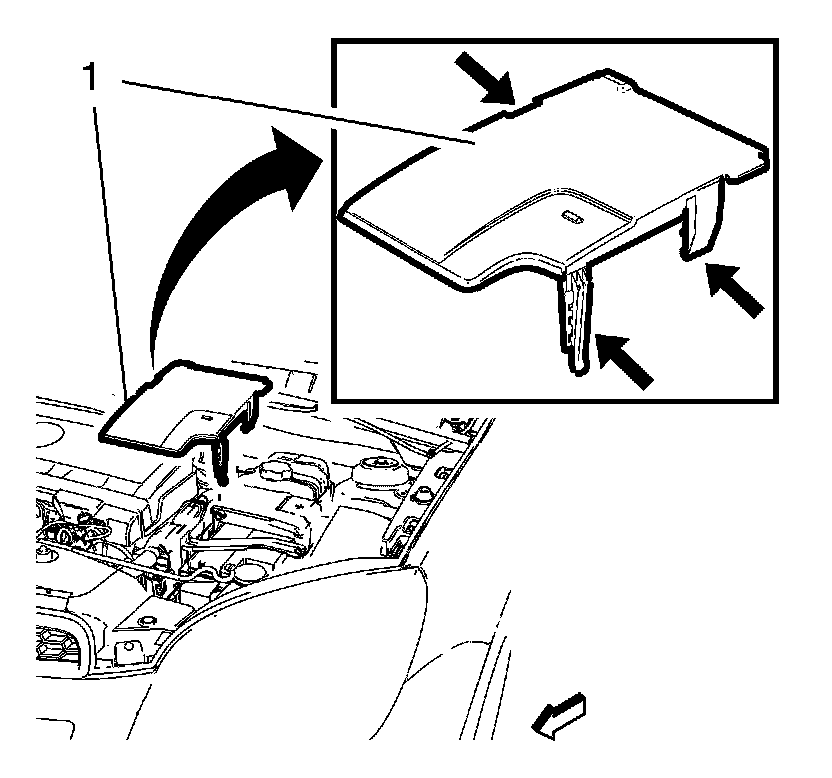

Battery Cover ReplacementRemoval ProcedureNote: Mind the 3 battery cover retainer clips (arrows). The battery cover could be damaged if the retainer clips are not fully unlocked.
Remove the battery cover (1) from the
battery tray.
Installation ProcedureNote: Ensure the proper seat of the battery cover.
Install the battery cover (1) to the
battery tray.
