Power Distribution Schematics




Power Distribution Schematics

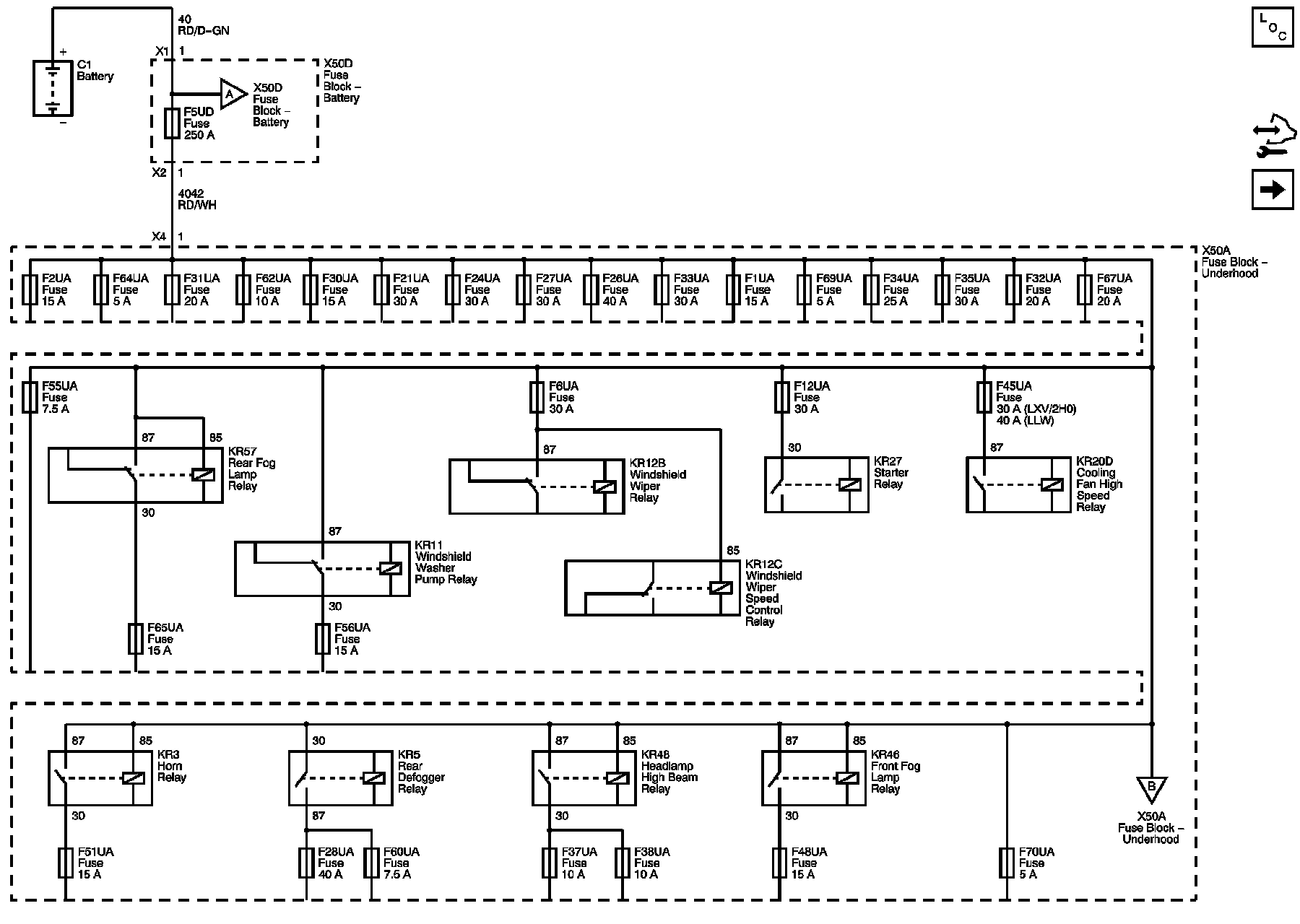

B+ Bus (1 of 3)





B+ Bus (2 of 3)





B+ Bus (3 of 3)





Fuses F2UA, F21UA, F27UA, F31UA, F32UA, F34UA, F35UA, F69UA, and F70UA





Fuses F1UA, F25UA, F26UA, F30UA, F33UA, F55UA, F64UA, and F67UA





Fuses F24UA, F48UA, F5UB, and F6UB





Fuses F3DA, F8DA, F9DA, F10DA, F11DA, F16DA, F3UD, and F6UD





Fuses F14DA, F15DA, F17DA, F21DA, F23DA, F24DA, and F25DA





Fuse F22DA and Ignition Switch

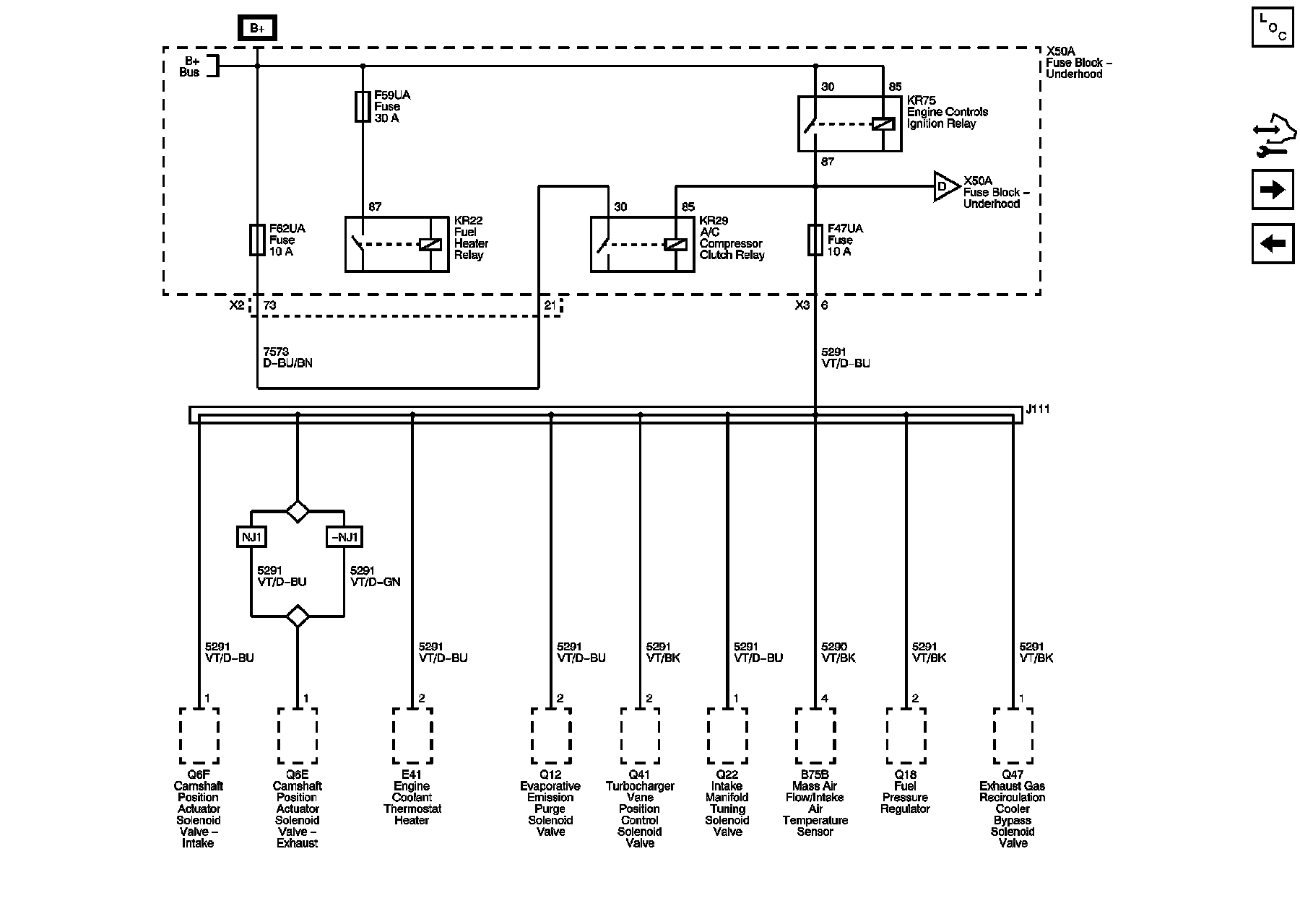

Fuses F47UA, F59UA, and F62UA





Fuses F8UA, F9UA, F10UA, and F11UA





Fuses F16UA, F17UA, F18UA, F52UA, F54UA, and F57UA





Fuses F5UA, F13UA, and F53UA

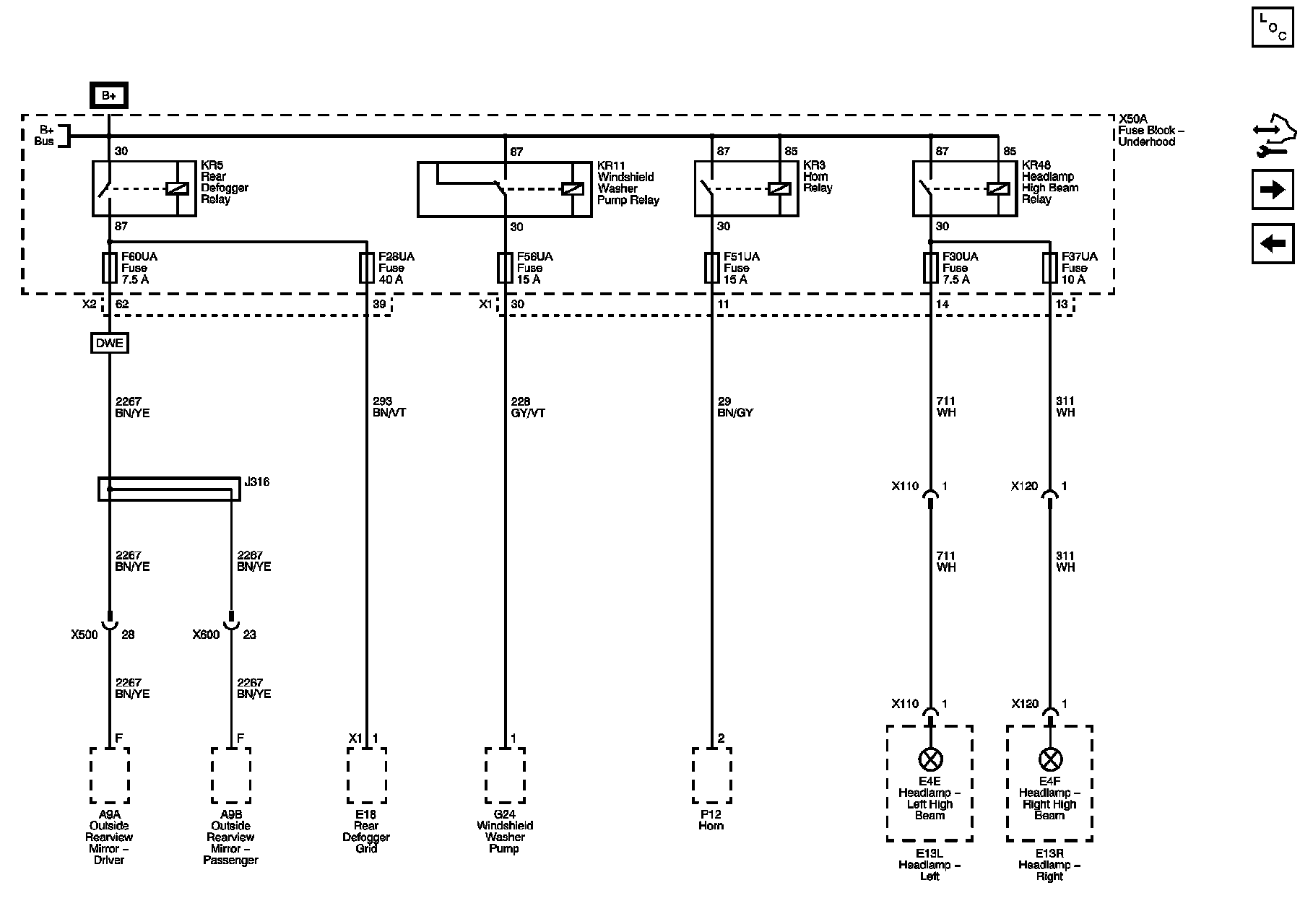

Fuses F28UA, F30UA, F37UA, F51UA, F56UA, and F60UA





Fuses F1DA, F4DA, F5DA, F6DA, and F7DA
